NSN 5306-01-060-7246 AIC4356N7D1900, C4356N7D1900, PBF4356N7D1900
Product Details | SHOULDER BOLT
5306-01-060-7246 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: AIC4356N7D1900, C4356N7D1900, PBF4356N7D1900, VS2986N7D1900, 5306-01-060-7246, 01-060-7246, 5306010607246, 010607246
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAY 1978 | 01-060-7246 | 04905 ( BOLT, SHOULDER ) |

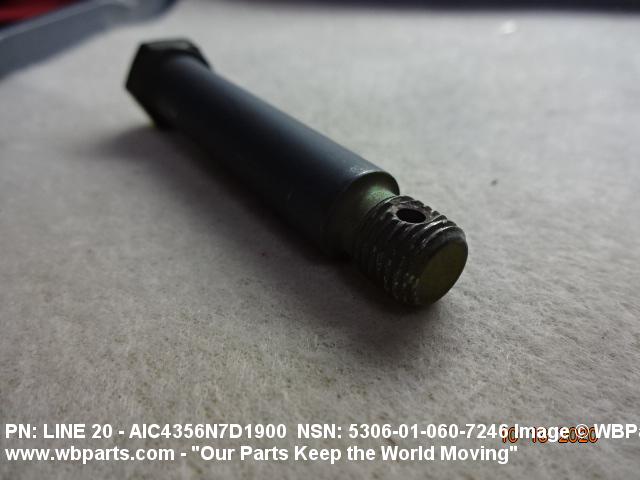

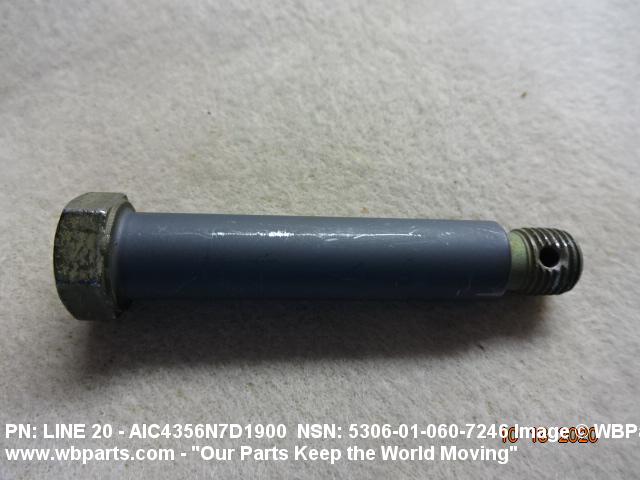

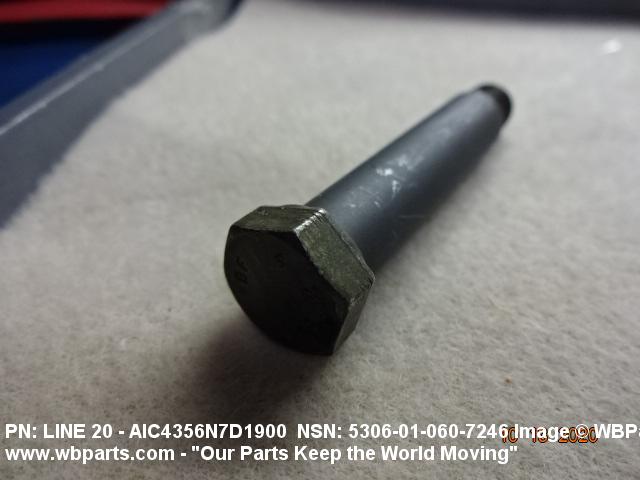

Drawings & Photos | NSN 5306-01-060-7246
Demand History | NSN 5306-01-060-7246
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AIC4356N7D1900 | 2020-10-294 | 1 | United States |
| AIC4356N7D1900 | 2020-09-247 | 1 | United States |
| C4356N7D1900 | 2020-08-223 | 1 | United States |
Cross Reference | NSN 5306-01-060-7246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AIC4356N7D1900 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| C4356N7D1900 | 06710 | VALLEY-TODECO, INC. |
| C4356N7D1900 | 0JV78 | J M PRECISION INC |
| C4356N7D1900 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| C4356N7D1900 | 57928 | SONIC INDUSTRIES INC. |
| C4356N7D1900 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| PBF4356N7D1900 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| VS2986N7D1900 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-060-7246
Related Products | NSN 5306-01-060-7246
Technical Data | NSN 5306-01-060-7246
| Characteristic | Specifications |
|---|---|

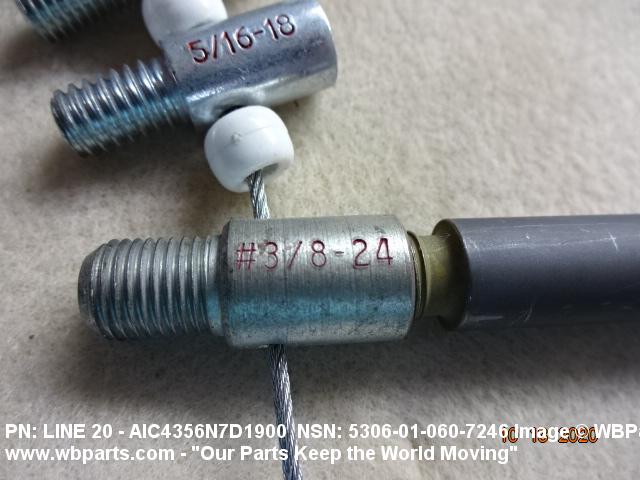

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.438 INCHES NOMINAL |

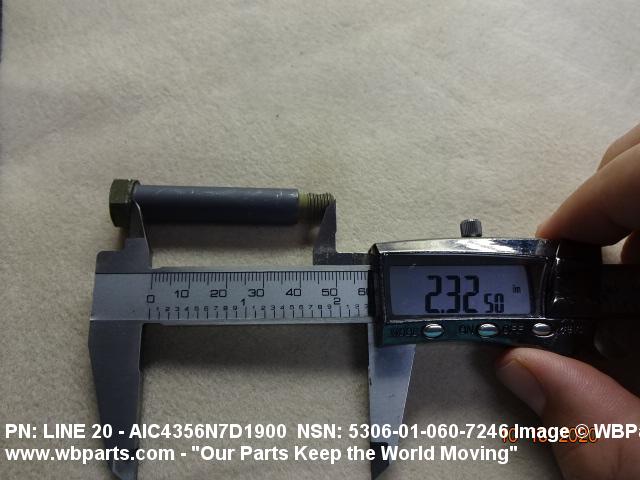

| FASTENER LENGTH | 2.328 INCHES MINIMUM AND 2.348 INCHES MAXIMUM |
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6485 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OR NICKEL AND CADMIUM HEAD CADMIUM OR NICKEL AND CADMIUM THREADS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS 672 ASSN STD 1ST TREATMENT RESPONSE OR AMS 2416 ASSN STD 2ND TREATMENT RESPONSE HEAD NAS 672 ASSN STD 1ST TREATMENT RESPONSE OR AMS 2416 ASSN STD 2ND TREATMENT RESPONSE THREADS |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |

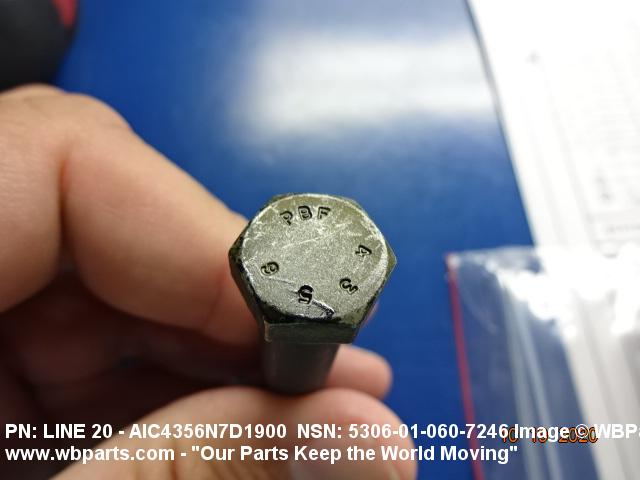

| HEAD STYLE | C1 HEXAGON |

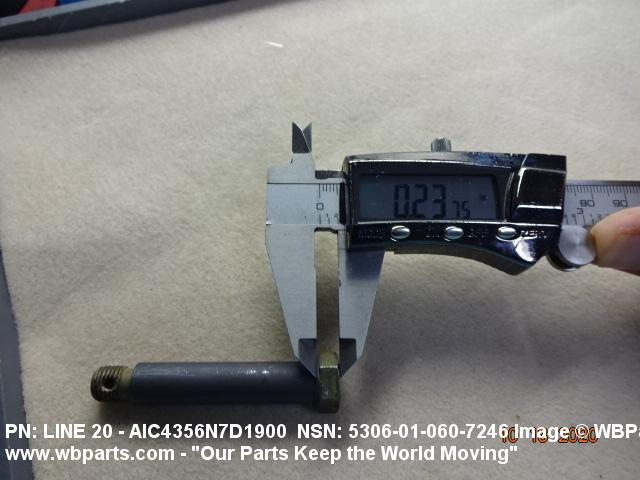

| HEAD HEIGHT | 0.203 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |

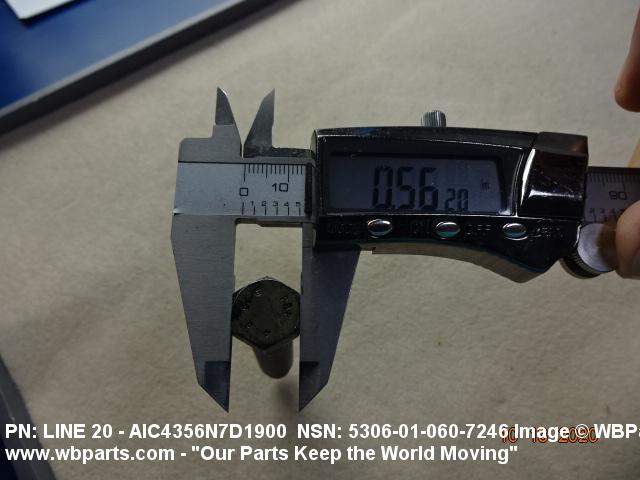

| WIDTH BETWEEN FLATS | 0.553 INCHES MINIMUM AND 0.563 INCHES MAXIMUM |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

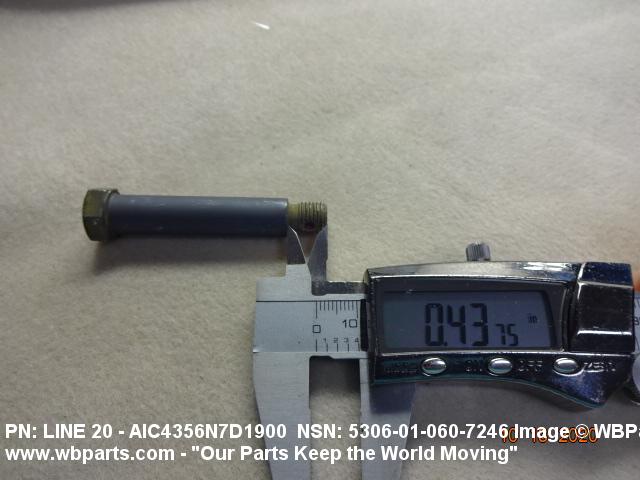

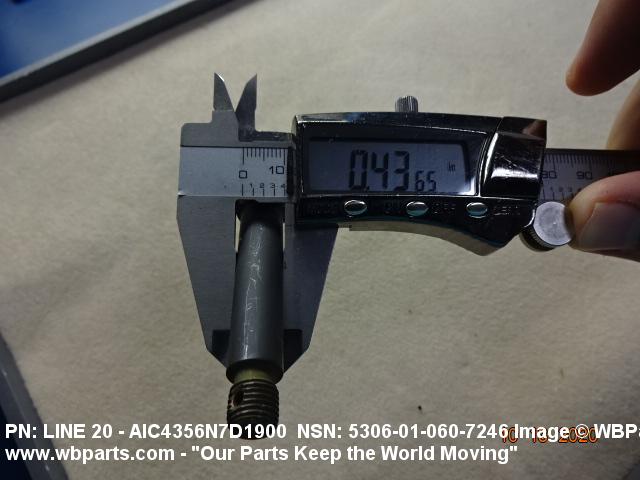

| SHOULDER DIAMETER | 0.436 INCHES MINIMUM AND 0.437 INCHES MAXIMUM FIRST SHOULDER |

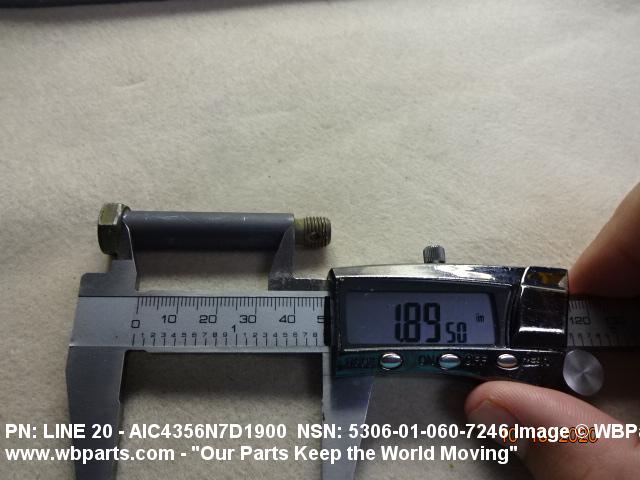

| SHOULDER LENGTH | 1.890 INCHES MINIMUM AND 1.910 INCHES MAXIMUM FIRST SHOULDER |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 2.135 INCHES MINIMUM AND 2.155 INCHES MAXIMUM FIRST HOLE |

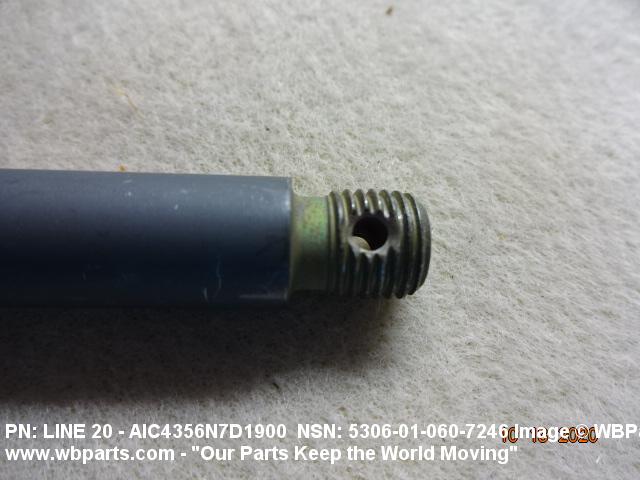

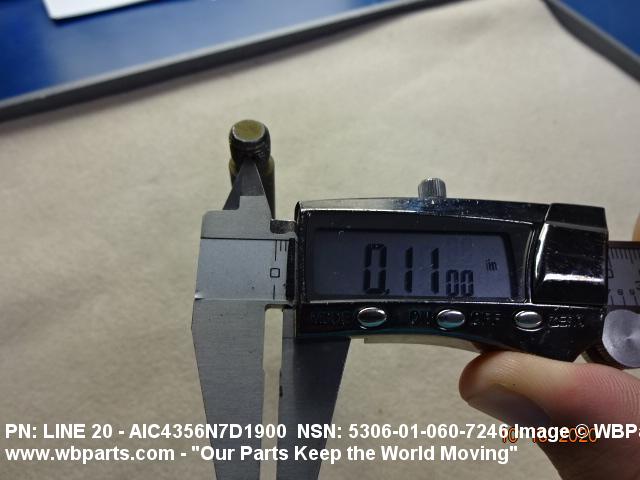

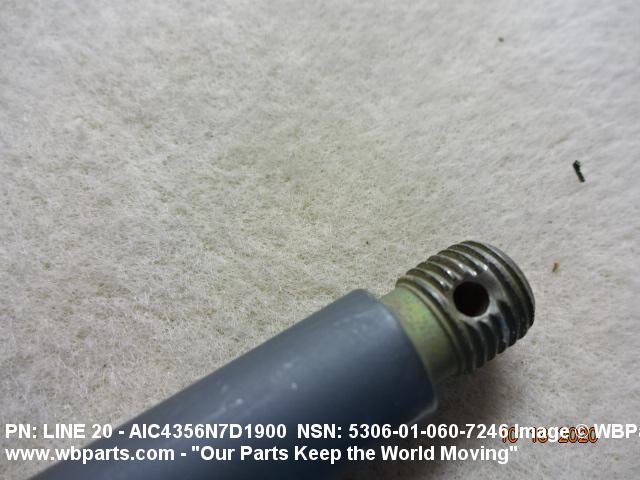

| SHANK UNTHREADED HOLE DIAMETER | 0.106 INCHES MINIMUM AND 0.116 INCHES MAXIMUM FIRST HOLE |
| SPECIAL FEATURES | DRY FILM LUBE PER MIL-L-46010 ON GRIP ONLY |
Restrictions/Controls & Freight Information | NSN 5306-01-060-7246
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-060-7246
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
