NSN 5306-01-072-9123 AN48C6, AN48-C6, 01-072-9123
Product Details | EYE BOLT
5306-01-072-9123 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: AN48C6, AN48-C6, 5306-01-072-9123, 01-072-9123, 5306010729123, 010729123
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 MAR 1979 | 01-072-9123 | 01853 ( BOLT, EYE ) |

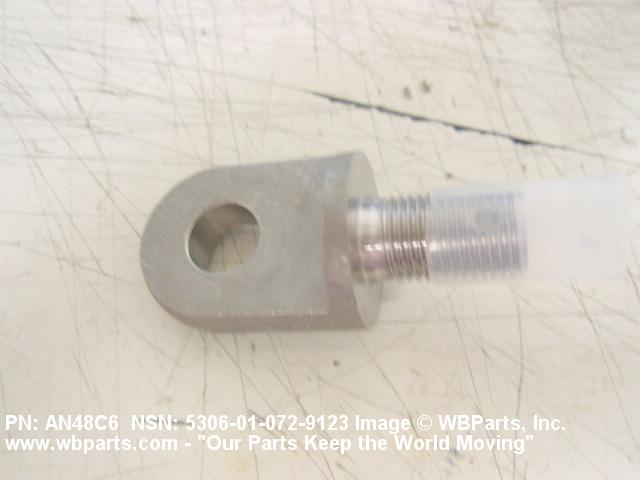

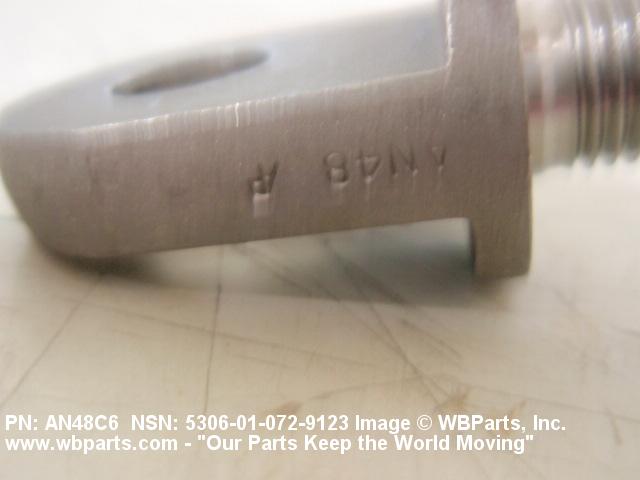

Drawings & Photos | NSN 5306-01-072-9123
Demand History | NSN 5306-01-072-9123
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-072-9123 | 2024-08-243 | 3 | United States |
| AN48C6 | 2018-10-303 | 20 | United States |
| AN48-C6 | 2014-01-13 | 2 | South Korea |
| AN48C6 | 2013-03-85 | 2 | South Korea |
| 5306-01-072-9123 | 2010-05-126 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-072-9123
Related Products | NSN 5306-01-072-9123
Technical Data | NSN 5306-01-072-9123
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.766 INCHES MINIMUM AND 0.813 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 431 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18732 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | B5 ROUND, CLOSED W/SHOULDER |
| EYE INSIDE DIAMETER | 0.436 INCHES MINIMUM AND 0.441 INCHES MAXIMUM |
| SHOULDER THICKNESS | 0.125 INCHES NOMINAL |
| SHANK LENGTH | 0.828 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| EYE STOCK THICKNESS | 0.308 INCHES MINIMUM AND 0.318 INCHES MAXIMUM |
| SHOULDER DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL LENGTH | 2.218 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 1.656 INCHES NOMINAL |
| EYE OUTSIDE WIDTH | 1.000 INCHES NOMINAL |
| DISTANCE FROM THREADED END TO SHANK HOLE CENTER | 0.141 INCHES MINIMUM AND 0.220 INCHES MAXIMUM FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.116 INCHES MAXIMUM FIRST HOLE |
