Product Details | MACHINE BOLT
5306-01-093-5105 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: SS27576416, SS27576-4-16, SS27576427, SS27576-4-27 , 5306-01-093-5105, 01-093-5105, 5306010935105, 010935105
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 APR 1980 | 01-093-5105 | 01847 ( BOLT, MACHINE ) |

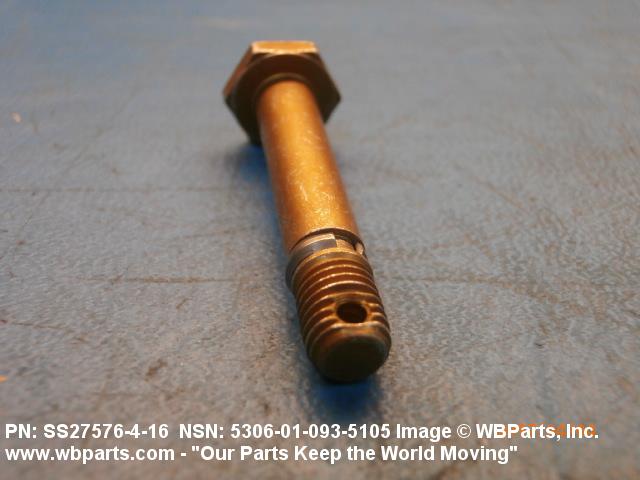

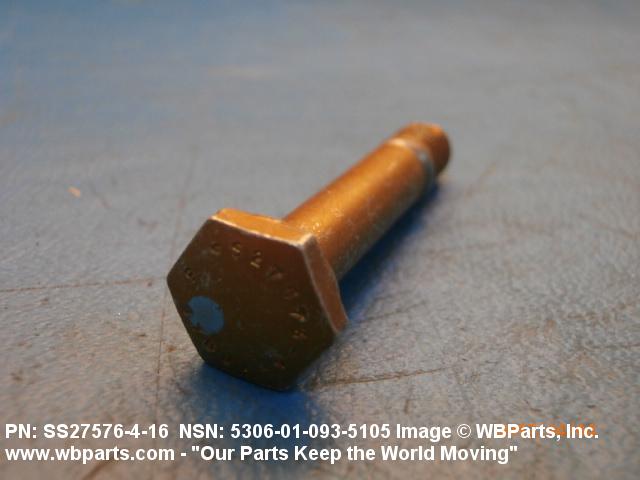

Drawings & Photos | NSN 5306-01-093-5105
Demand History | NSN 5306-01-093-5105
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS27576-4-16 | 2025-06-170 | 963 | DIBBS |
| SS27576-4-16 | 2025-06-161 | 963 | DIBBS |
| SS27576-4-16 | 2025-01-14 | 391 | DIBBS |
| SS27576-4-16 | 2024-12-345 | 207 | DIBBS |
| SS27576-4-16 | 2024-11-318 | 172 | DIBBS |
| SS27576-4-16 | 2024-11-310 | 172 | DIBBS |
| SS27576-4-16 | 2024-09-262 | 2000 | DIBBS |
| 5306-01-093-5105 | 2024-08-242 | 71 | United States |
| 5306-01-093-5105 | 2024-04-98 | 71 | United States |
| 5306-01-093-5105 | 2022-08-229 | 10 | United States |
| SS27576416 | 2022-05-123 | 1 | US |
| 5306-01-093-5105 | 2022-04-97 | 10 | Taiwan |
| SS27576416 | 2020-12-357 | 10 | United States |
| SS27576416 | 2020-06-177 | 276 | US |
| 5306-01-093-5105 | 2018-03-81 | 1 | DIBBS-RFPs |
| SS27576416 | 2017-03-73 | 4 | Canada |
| 5306-01-093-5105 | 2015-08-232 | 847 | DIBBS |
| 5306-01-093-5105 | 2015-05-139 | 1103 | DIBBS |
| 5306-01-093-5105 | 2014-08-216 | 920 | DIBBS |
| 5306-01-093-5105 | 2014-07-203 | 920 | DIBBS |
| 5306-01-093-5105 | 2014-05-125 | 1199 | DIBBS |
| 5306-01-093-5105 | 2014-04-97 | 744 | DIBBS |
| 5306-01-093-5105 | 2014-03-85 | 744 | DIBBS |
| 5306-01-093-5105 | 2012-01-31 | 2034 | DIBBS |
| 5306-01-093-5105 | 2009-06-168 | 20 | United States |
| 5306-01-093-5105 | 2009-03-76 | 1500 | DIBBS |
| 5306-01-093-5105 | 2009-01-20 | 1017 | DIBBS |
Cross Reference | NSN 5306-01-093-5105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS27576-4-16 | 0UCY9 | M.S. AEROSPACE INC. |
| SS27576-4-16 | 16258 | SPACELOK INC. |
| SS27576-4-16 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SS27576-4-16 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| SS27576-4-16 | 58794 | FASTENER TECHNOLOGY CORP. |
| SS27576-4-16 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| SS27576-4-16 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| SS27576-4-16 | 84256 | AVIBANK MFG., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-093-5105
Related Products | NSN 5306-01-093-5105
Technical Data | NSN 5306-01-093-5105

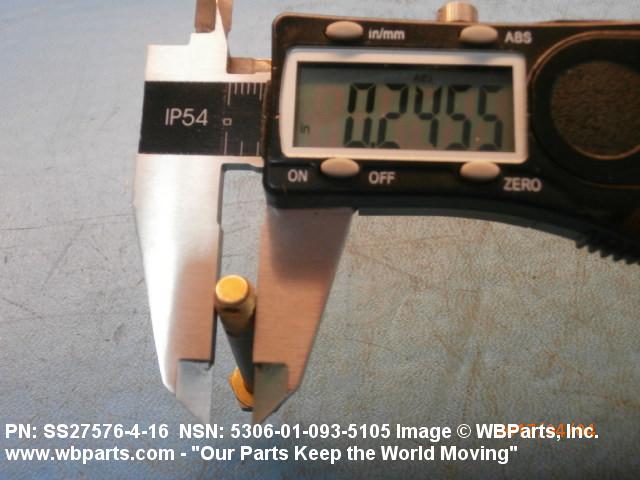

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |

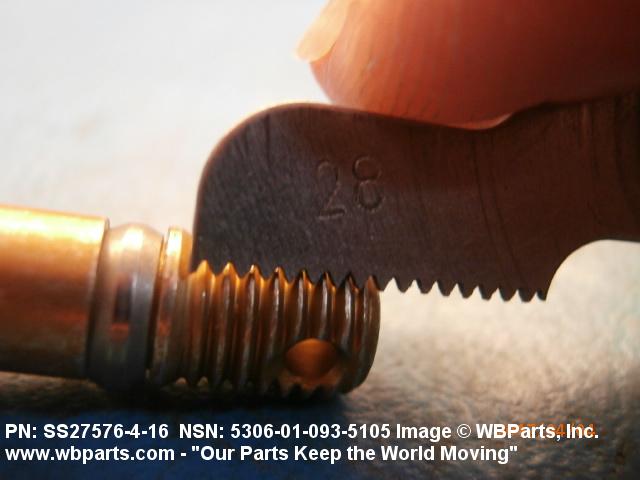

| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

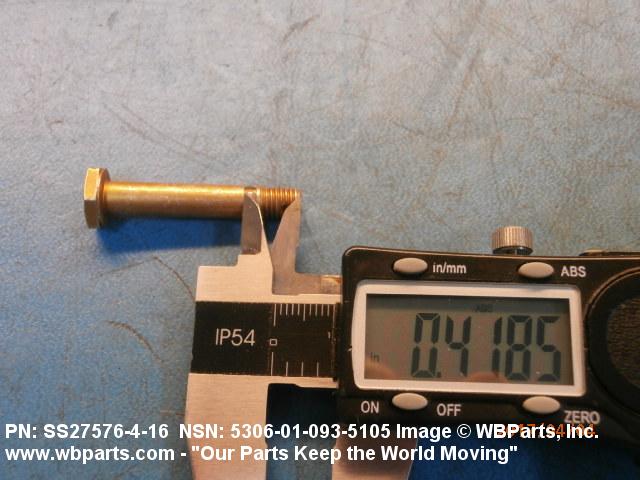

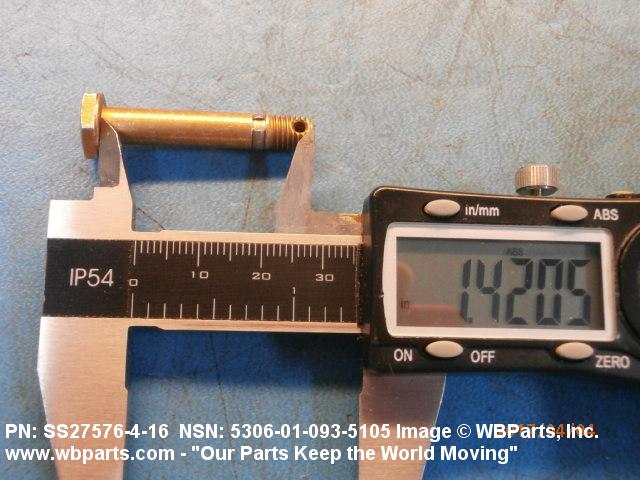

| THREAD LENGTH | 0.418 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| FASTENER LENGTH | 1.418 INCHES MINIMUM AND 1.438 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 41.0 ROCKWELL C MAXIMUM OVERALL |

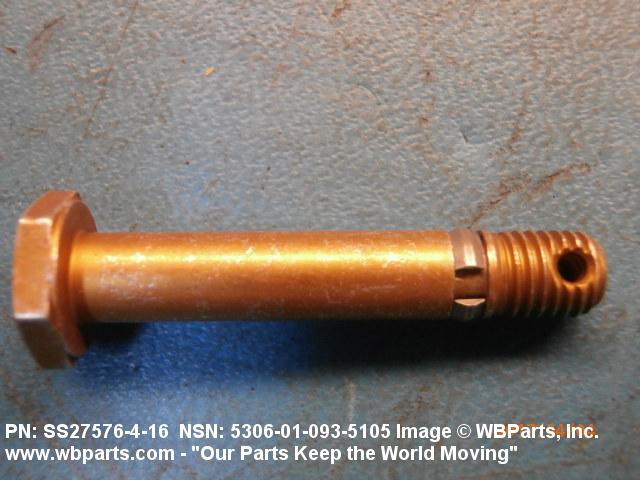

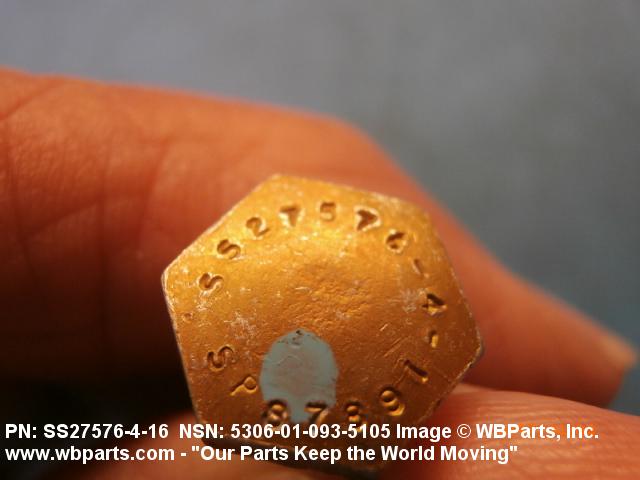

| HEAD STYLE | C4 CROWNED HEXAGON |

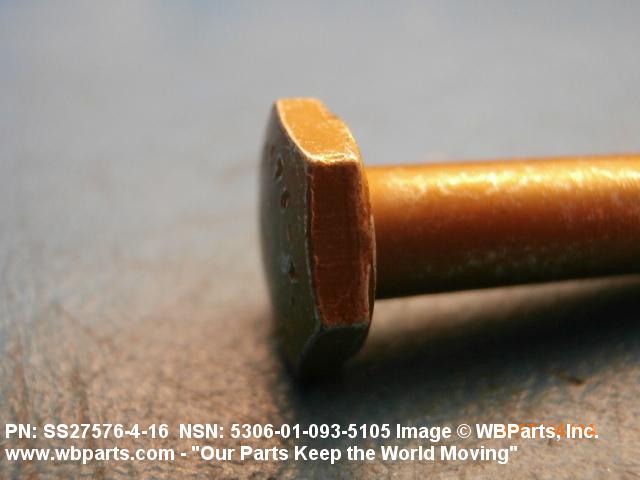

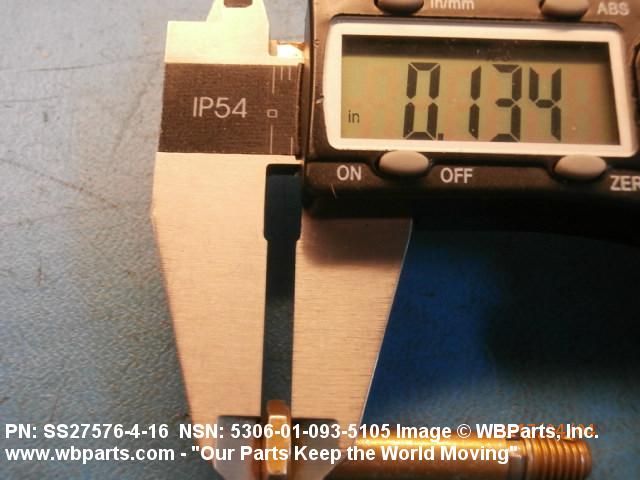

| HEAD HEIGHT | 0.126 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |

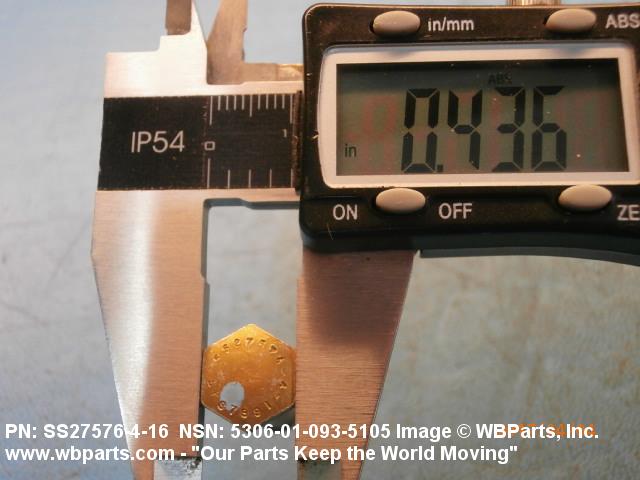

| WIDTH BETWEEN FLATS | 0.488 INCHES NOMINAL |

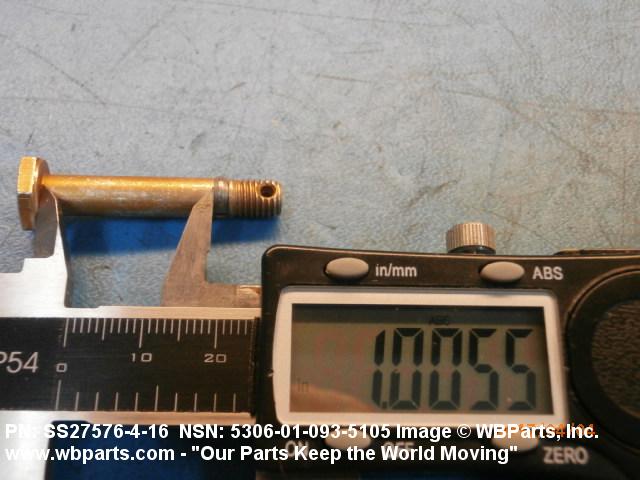

| GRIP LENGTH | 1.000 INCHES MINIMUM AND 1.016 INCHES MAXIMUM |
