NSN 5306-01-096-1249 SS50111680A, SS5011-16-80A, 01-096-1249
Product Details | CLOSE TOLERANCE BOLT
5306-01-096-1249 An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE.
Part Alternates: SS50111680A, SS5011-16-80A, 5306-01-096-1249, 01-096-1249, 5306010961249, 010961249
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUN 1980 | 01-096-1249 | 27851 ( BOLT, CLOSE TOLERANCE ) |

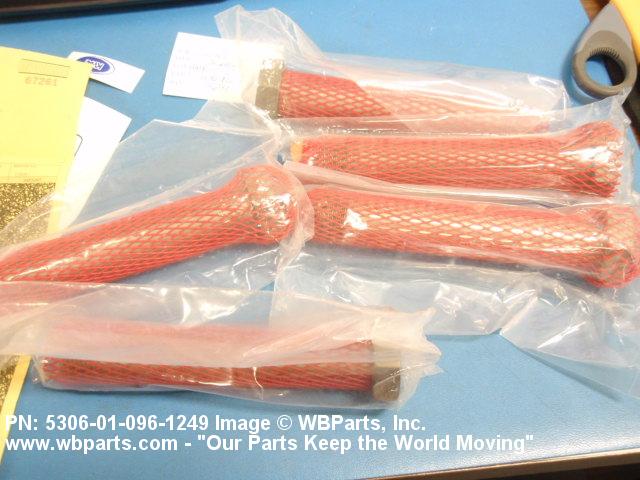

Drawings & Photos | NSN 5306-01-096-1249
Demand History | NSN 5306-01-096-1249
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-096-1249 | 2025-05-149 | 48 | United States |
| 5306-01-096-1249 | 2025-04-100 | 48 | United States |
| 5306-01-096-1249 | 2025-03-72 | 772 | US |
| SS5011-16-80A | 2025-03-72 | 772 | DIBBS |
| 5306-01-096-1249 | 2024-09-260 | 1028 | US |
| SS5011-16-80A | 2024-09-260 | 1028 | DIBBS |
| SS5011-16-80A | 2024-08-214 | 117 | DIBBS |
| SS5011-16-80A | 2024-01-17 | 649 | DIBBS |
| SS5011-16-80A | 2023-10-290 | 666 | DIBBS |
| SS5011-16-80A | 2023-09-270 | 349 | DIBBS |
| SS50111680A | 2022-05-123 | 2 | US |
| SS50111680A | 2019-10-290 | 1 | Poland |
| SS5011-16-80A | 2019-06-154 | 1000 | DIBBS |
| 5306-01-096-1249 | 2017-04-94 | 1 | Malaysia |
| 5306-01-096-1249 | 2017-03-87 | 1 | Malaysia |
| 5306-01-096-1249 | 2017-03-87 | 5 | Malaysia |
| SS50111680A | 2017-03-81 | 4 | Canada |
| 5306-01-096-1249 | 2016-02-38 | 176 | DIBBS |
| 5306-01-096-1249 | 2015-11-310 | 1 | DIBBS-RFPs |
| 5306-01-096-1249 | 2015-11-307 | 97 | DIBBS |
| 5306-01-096-1249 | 2015-10-281 | 1 | US |
| 5306-01-096-1249 | 2015-08-236 | 402 | DIBBS |
| SS5011-16-80A | 2015-03-61 | 2 | US |
| SS5011-16-80A | 2014-10-296 | 4 | Canada |
| 5306-01-096-1249 | 2014-08-227 | 1502 | DIBBS |
| 5306-01-096-1249 | 2014-06-163 | 225 | DIBBS |
| 5306-01-096-1249 | 2011-09-249 | 761 | DIBBS |
| 5306-01-096-1249 | 2011-06-166 | 1217 | DIBBS |
| 5306-01-096-1249 | 2011-04-104 | 235 | DIBBS |
| 5306-01-096-1249 | 2011-02-40 | 132 | DIBBS |
| 5306-01-096-1249 | 2010-09-265 | 20 | US |
| SS50111680A | 2010-07-196 | 5 | United States |
| SS50111680A | 2010-04-119 | 1 | US |
| 5306-01-096-1249 | 2009-11-313 | 660 | DIBBS |
| 5306-01-096-1249 | 2009-08-231 | 700 | DIBBS |
| 5306-01-096-1249 | 2009-06-175 | 685 | DIBBS |
| 5306-01-096-1249 | 2009-04-112 | 488 | DIBBS |
| 5306-01-096-1249 | 2009-04-93 | 600 | DIBBS |
| 5306-01-096-1249 | 2009-04-92 | 600 | DIBBS |
| 5306-01-096-1249 | 2009-03-82 | 650 | DIBBS |
Cross Reference | NSN 5306-01-096-1249
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS5011-16-80A | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| SS5011-16-80A | 0UCY9 | M.S. AEROSPACE INC. |
| SS5011-16-80A | 16258 | SPACELOK INC. |
| SS5011-16-80A | 4GP55 | ACUFAST AIRCRAFT PRODUCTS INC. |
| SS5011-16-80A | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| SS5011-16-80A | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| SS5011-16-80A | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-096-1249
Related Products | NSN 5306-01-096-1249
Technical Data | NSN 5306-01-096-1249
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 1.000 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.770 INCHES NOMINAL |
| FASTENER LENGTH | 5.770 INCHES NOMINAL |
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4928 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 49700 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.500 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 1.427 INCHES MINIMUM AND 1.440 INCHES MAXIMUM |
| GRIP LENGTH | 5.000 INCHES NOMINAL |
| GRIP DIAMETER | 0.9985 INCHES MINIMUM AND 0.9990 INCHES MAXIMUM |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 5.631 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.141 INCHES NOMINAL FIRST HOLE |
| MANUFACTURERS CODE | 78286 |
| MFR SOURCE CONTROLLING REFERENCE | SS5011-16-80A |
