Product Details | SHEAR BOLT

5306-01-112-7893 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.

Part Alternates: MS2129707019, MS21297-07019, 5306-01-112-7893, 01-112-7893, 5306011127893, 011127893

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 MAY 1981	01-112-7893	15903 ( BOLT, SHEAR )

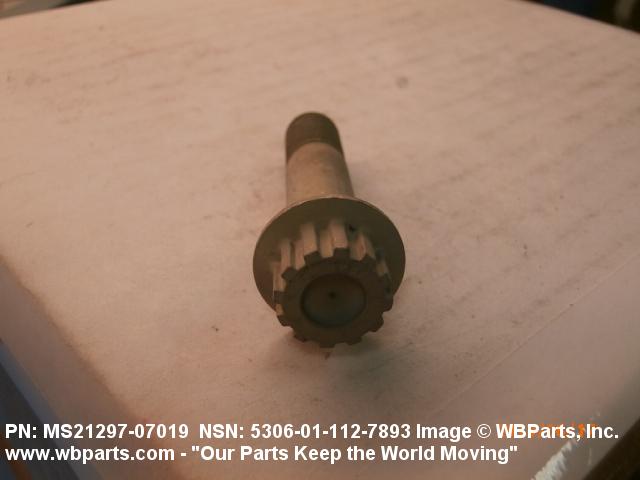

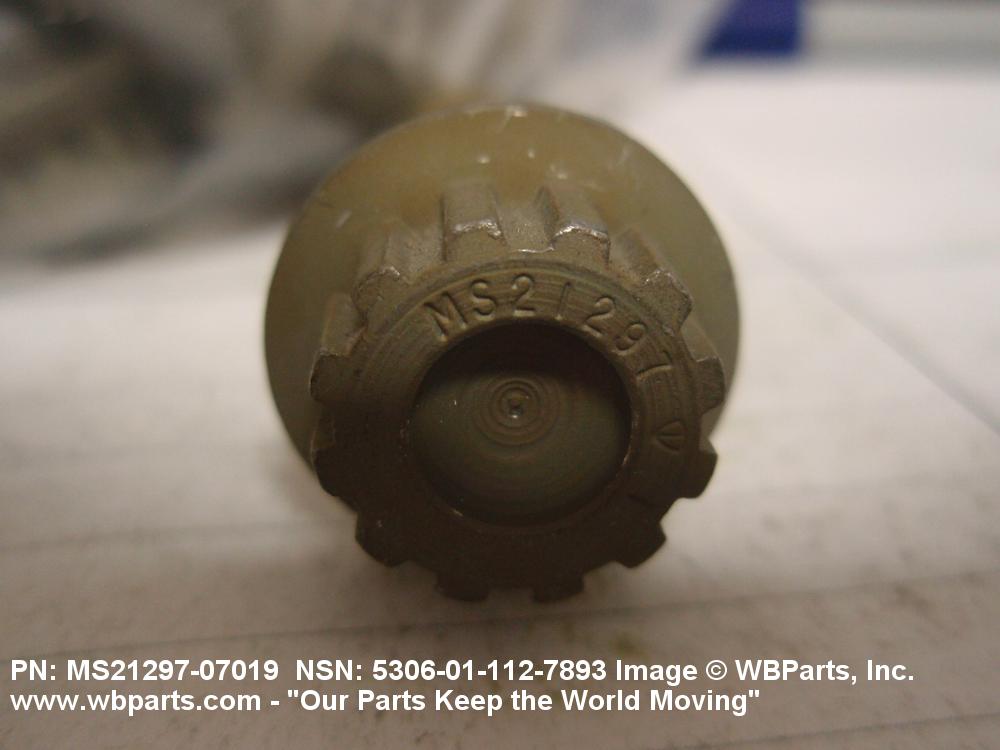

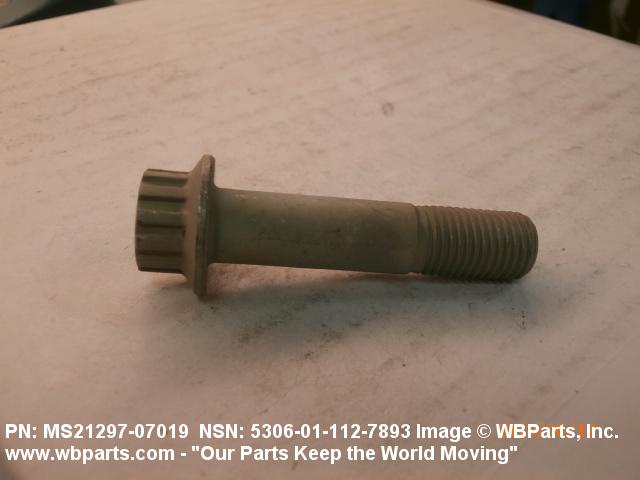

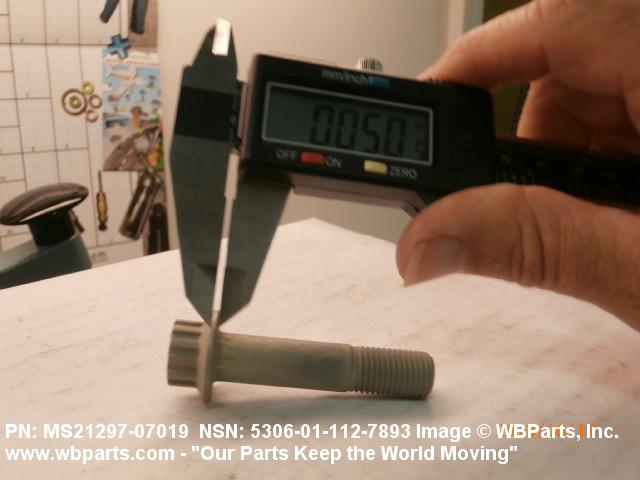

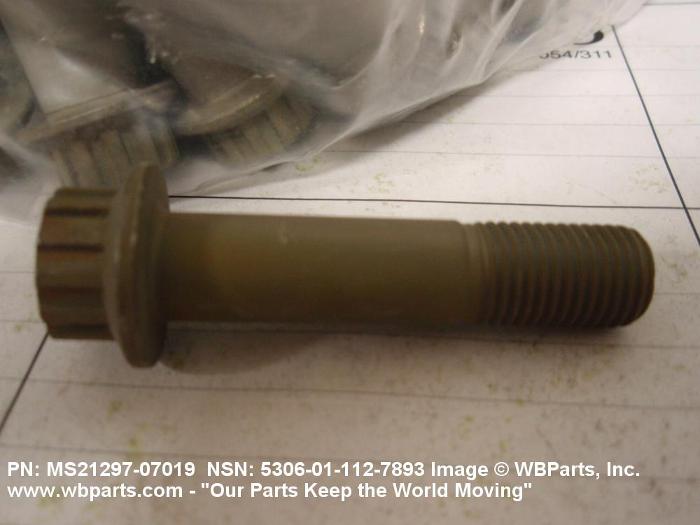

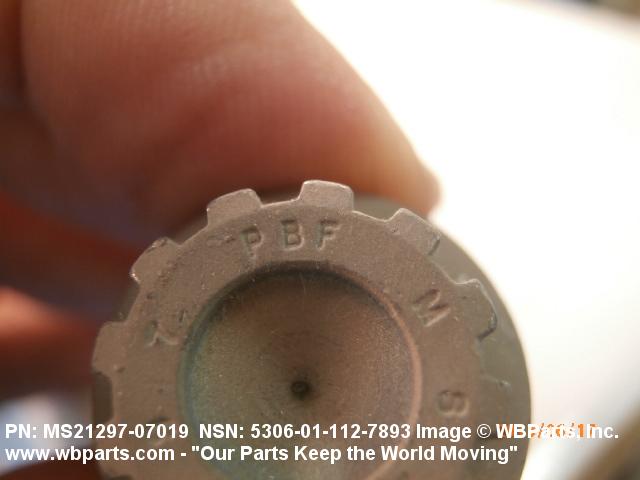

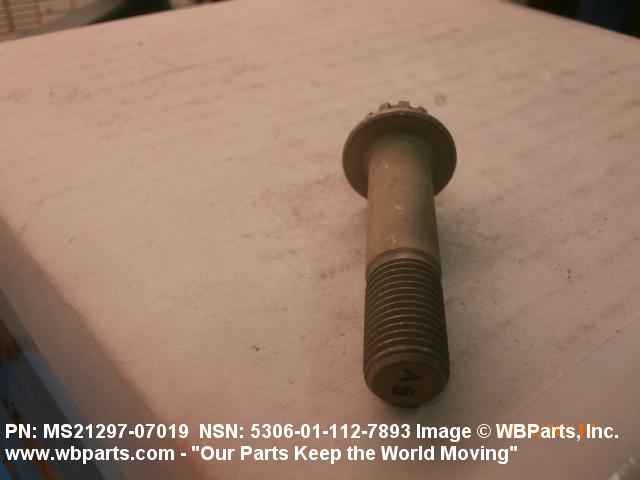

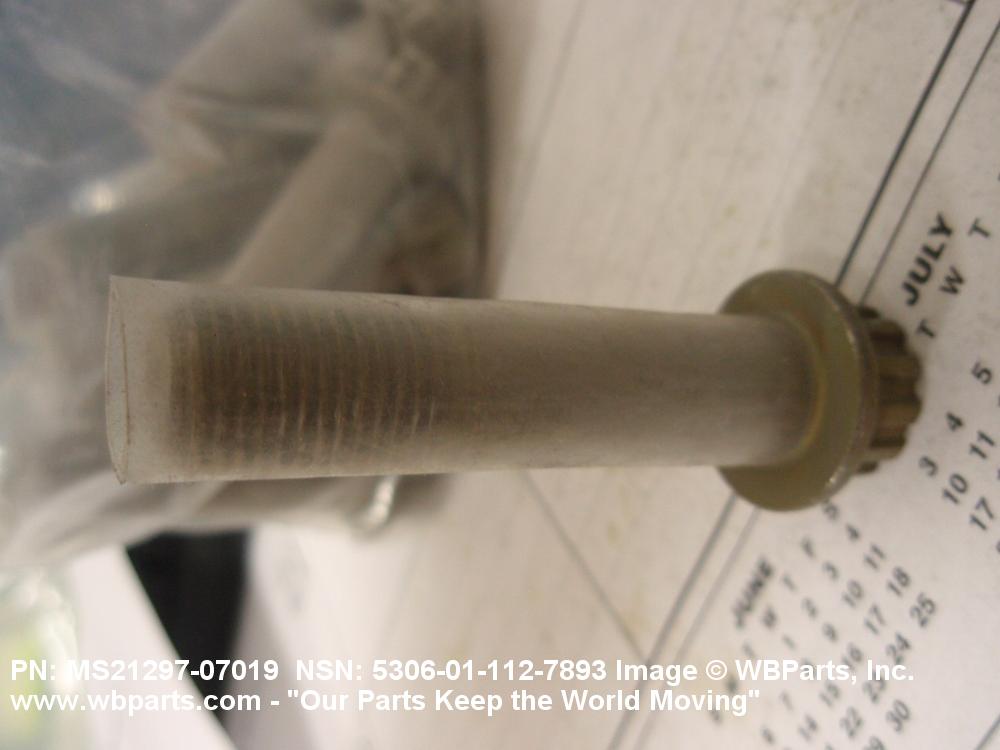

Drawings & Photos | NSN 5306-01-112-7893

Part Number	Request Date	QTY	Origin
MS2129707019	2016-02-48	110	Canada
MS2129707019	2015-11-314	48	United States
MS2129707019	2015-09-244	5	United States
MS2129707019	2015-06-181	100	Canada
MS2129707019	2015-06-181	200	Canada
MS2129707019	2015-04-111	3	United States
MS2129707019	2015-03-65	5	US
MS2129707019	2015-03-64	5	US
MS2129707019	2014-06-168	124	Canada
MS2129707019	2014-01-14	200	Canada
MS2129707019	2013-10-277	1	United States
MS2129707019	2013-09-273	1	US
MS2129707019	2013-07-183	20	Canada
MS2129707019	2013-07-183	100	Canada
MS2129707019	2013-07-183	200	Canada
MS2129707019	2013-04-112	200	Canada
MS2129707019	2012-12-345	20	Israel
MS2129707019	2012-12-338	125	Canada
MS2129707019	2012-11-333	125	CA
MS2129707019	2011-02-37	50	Israel
MS2129707019	2008-08-226	30	Israel
MS2129707019	2008-08-224	30	Israel

Cross Reference | NSN 5306-01-112-7893

Part Number	Cage Code	Manufacturer
MS21297-07019	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
MS21297-07019	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
MS21297-07019	27624	SPS TECHNOLOGIES, LLC DBA PB FASTENERS
MS21297-07019	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21297-07019	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21297-07019	97928	HUCK INTL INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-112-7893

Compare

Related Products | NSN 5306-01-112-7893

5306-01-112-7894, 5306-01-112-7895, 5306-01-112-7896, 5306-01-112-7897, 5306-01-112-7898

Technical Data | NSN 5306-01-112-7893

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF

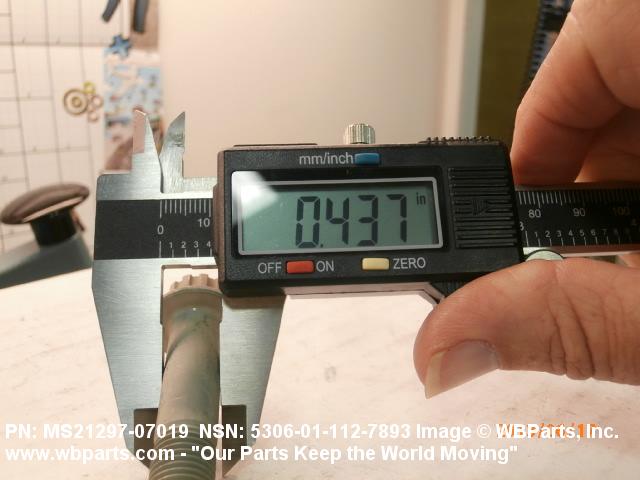

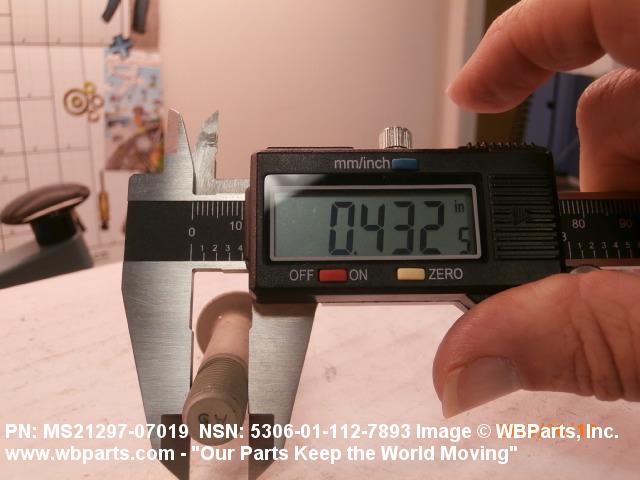

NOMINAL THREAD DIAMETER	0.438 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

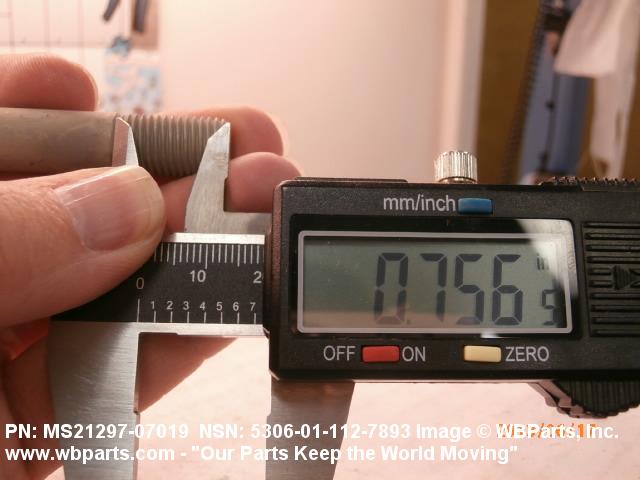

THREAD LENGTH	0.753 INCHES MINIMUM AND 0.803 INCHES MAXIMUM

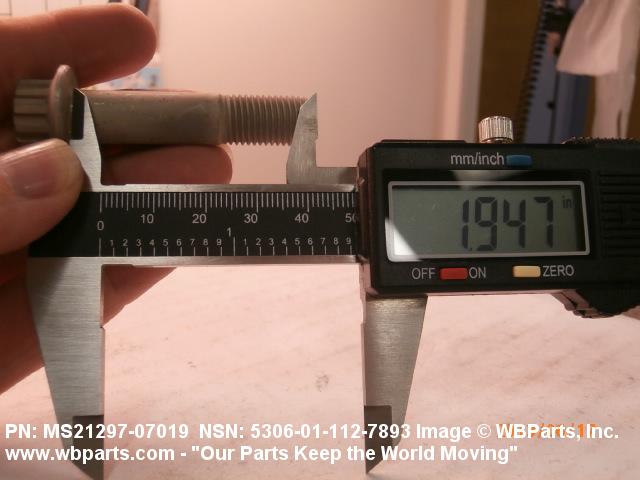

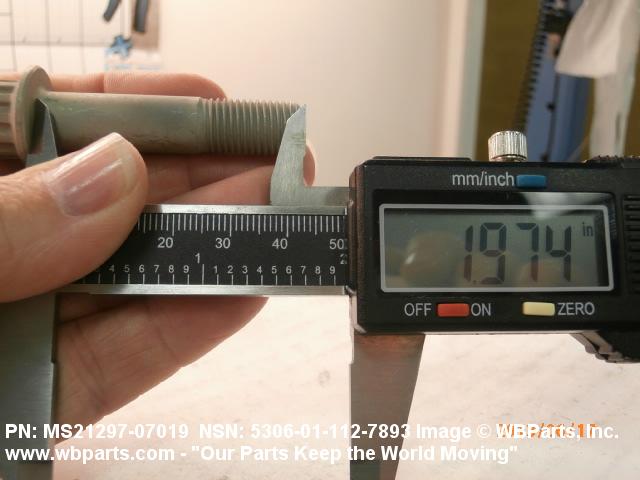

FASTENER LENGTH	1.951 INCHES MINIMUM AND 1.981 INCHES MAXIMUM
MATERIAL	STEEL COMP H11 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-8837 TYPE 2 CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	46.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	220000 POUNDS PER SQUARE INCH

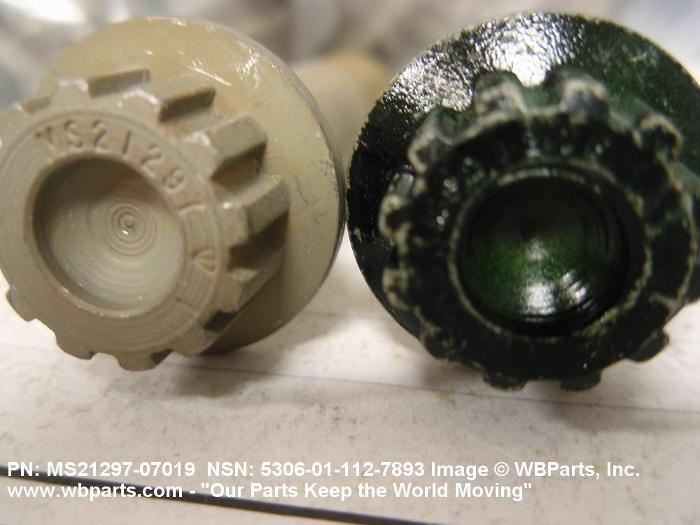

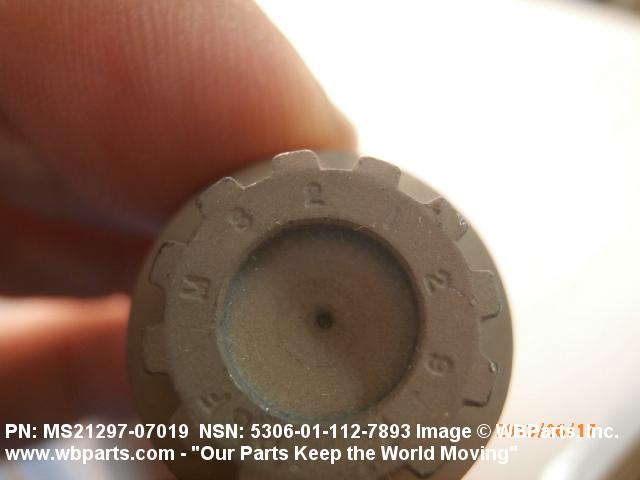

HEAD STYLE	C11 SPLINE EXTENDED WASHER
HEAD HEIGHT	0.310 INCHES MINIMUM AND 0.350 INCHES MAXIMUM

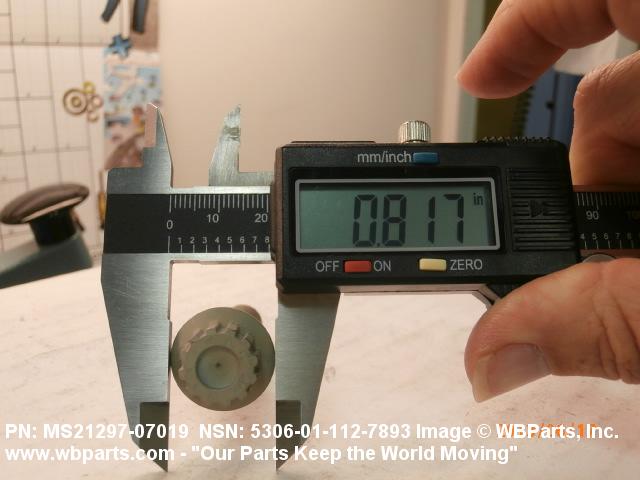

EXTENDED WASHER DIAMETER	0.807 INCHES MINIMUM AND 0.817 INCHES MAXIMUM
