Product Details | INTERNALLY RELIEVED BODY BOLT
5306-01-118-0769 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 11450721-1, 5306-01-118-0769, 01-118-0769, 5306011180769, 114507211, 011180769
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 AUG 1981 | 01-118-0769 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |

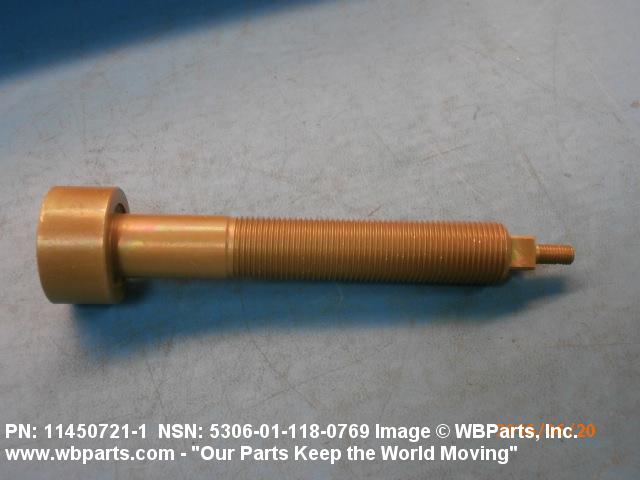

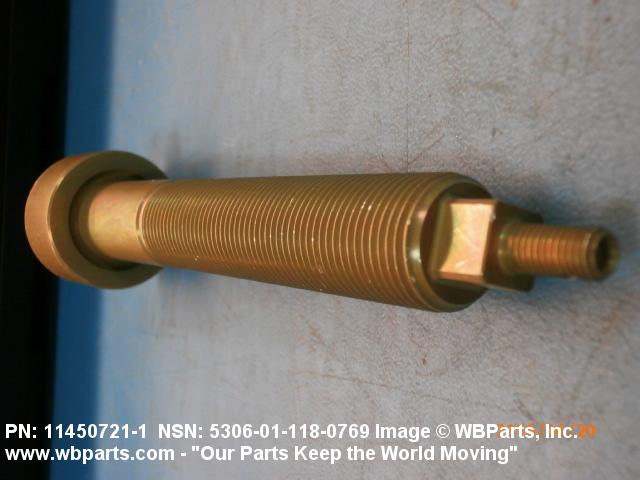

Drawings & Photos | NSN 5306-01-118-0769
Demand History | NSN 5306-01-118-0769
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-118-0769 | 2021-04-05 | 2307 | DIBBS |
| 5306-01-118-0769 | 2017-02-09 | 1 | DIBBS-RFPs |
| 5306-01-118-0769 | 2016-10-23 | 886 | DIBBS |
| 5306-01-118-0769 | 2016-06-14 | 5 | Japan |
| 5306-01-118-0769 | 2016-04-28 | 5 | Japan |
| 5306-01-118-0769 | 2016-02-16 | 10 | Japan |
| 5306-01-118-0769 | 2015-06-17 | 2 | Japan |
| 5306-01-118-0769 | 2015-06-01 | 5 | Japan |
| 5306-01-118-0769 | 2012-02-10 | 516 | DIBBS |
| 5306-01-118-0769 | 2011-04-19 | 1654 | DIBBS |
| 5306-01-118-0769 | 2010-05-18 | 335 | DIBBS |
| 5306-01-118-0769 | 2009-10-29 | 930 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5306-01-118-0769
Related Products | NSN 5306-01-118-0769
5306-01-118-0888, 5306-01-118-0892, 5306-01-118-1179, 5306-01-118-1182, 5306-01-118-1187
Technical Data | NSN 5306-01-118-0769
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

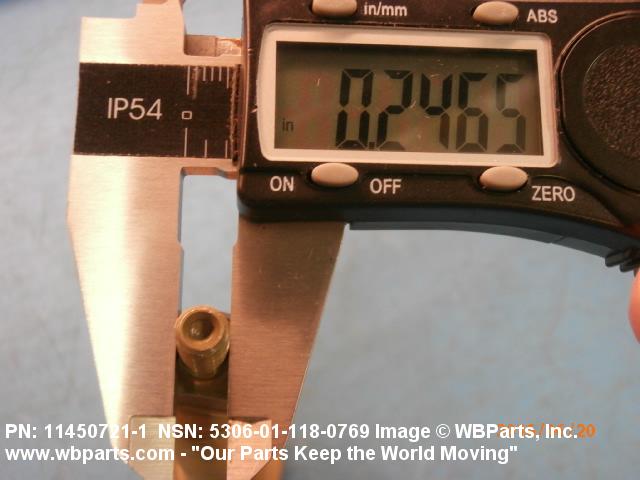

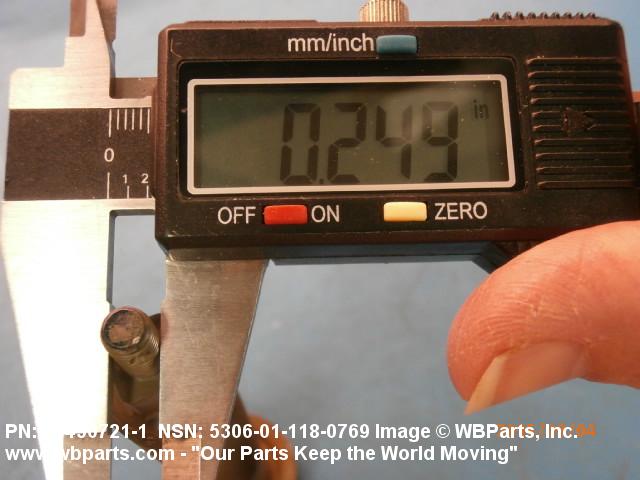

| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

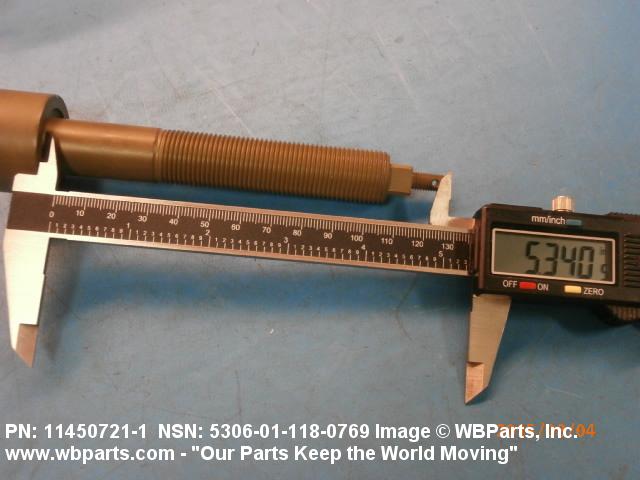

| FASTENER LENGTH | 5.340 INCHES NOMINAL |
| MATERIAL | STEEL COMP E4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | B42A CONCENTRIC HOLE THREADED |
| THREAD SERIES | UNJF CONCENTRIC HOLE |

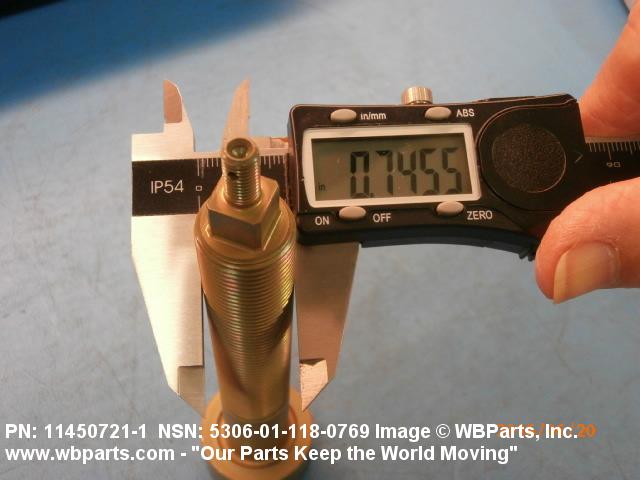

| NOMINAL THREAD SIZE | 0.750 INCHES CONCENTRIC HOLE |
| THREADS PER INCH | 16 CONCENTRIC HOLE |

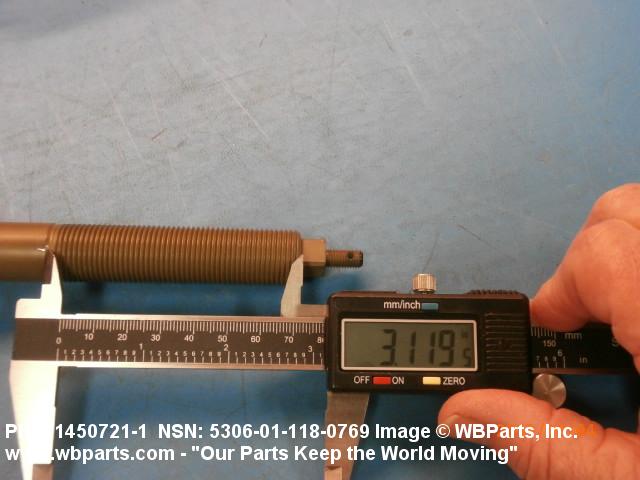

| INTERNAL THREAD LENGTH | 3.120 INCHES NOMINAL CONCENTRIC HOLE |
| HEAD STYLE | C49 FLAT CHAMFER |

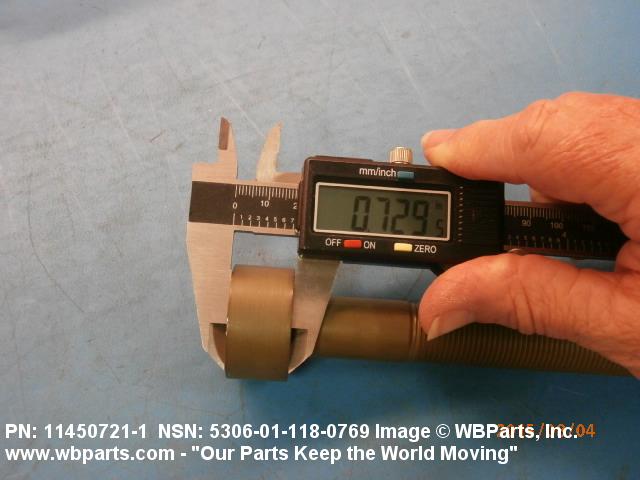

| HEAD HEIGHT | 0.730 INCHES NOMINAL |
| MANUFACTURERS CODE | 18876 |

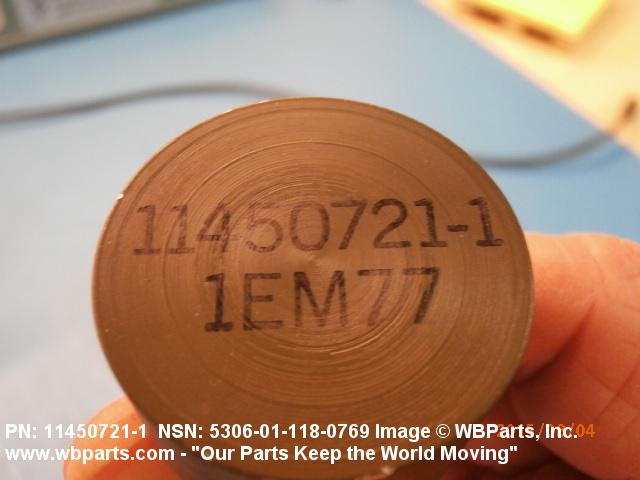

| DESIGN CONTROL REFERENCE | 11450721-1 |
Restrictions/Controls & Freight Information | NSN 5306-01-118-0769
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-118-0769
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
