NSN 5306-01-131-5846 1105367-11, 01-131-5846, 110536711
Product Details | TEE HEAD BOLT
5306-01-131-5846 An externally threaded fastener whose threaded portion is of one nominal diameter and with a head specially designed to fit in a slot and hold against turning.
Part Alternates: 1105367-11, 5306-01-131-5846, 01-131-5846, 5306011315846, 110536711, 011315846
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAY 1982 | 01-131-5846 | 06668 ( BOLT, TEE HEAD ) |
Drawings & Photos | NSN 5306-01-131-5846
Cross Reference | NSN 5306-01-131-5846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1105367-11 | 28298 | SMITH AND SMITH AIRCRAFT CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-131-5846
Technical Data | NSN 5306-01-131-5846
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.600 INCHES NOMINAL |
| FASTENER LENGTH | 5.380 INCHES NOMINAL |
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

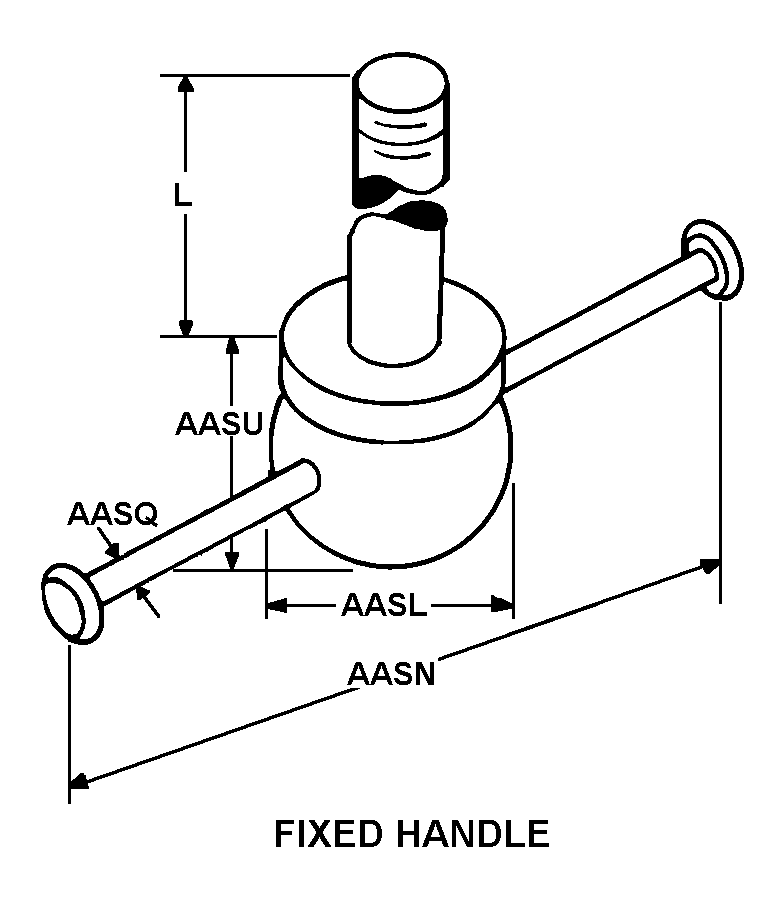

| HEAD STYLE | C93 FIXED HANDLE |
| HEAD DIAMETER | 0.700 INCHES NOMINAL |
| HANDLE LENGTH | 1.200 INCHES NOMINAL |
| HANDLE DIAMETER | 0.248 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| HEAD HEIGHT | 1.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 28298 |
| DESIGN CONTROL REFERENCE | 1105367-11 |
Restrictions/Controls & Freight Information | NSN 5306-01-131-5846
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
