NSN 5306-01-138-5336 SC267042, SC2670-4-2, T98142
Product Details | ASSEMBLED WASHER BOLT

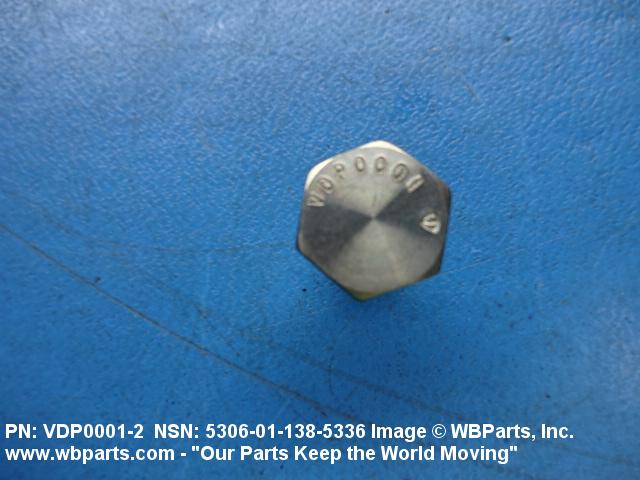

5306-01-138-5336 A BOLT, MACHINE on which has been assembled one or more nonremovable washers. See also SCREW, ASSEMBLED WASHER.
Part Alternates: SC267042, SC2670-4-2, T98142, T981-4-2, VDP00012, VDP0001-2, D16175122, D16175-12-2, 11102642, 111026-4-2, 5306-01-138-5336, 01-138-5336, 5306011385336, 011385336
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1982 | 01-138-5336 | 06659 ( BOLT, ASSEMBLED WASHER ) |

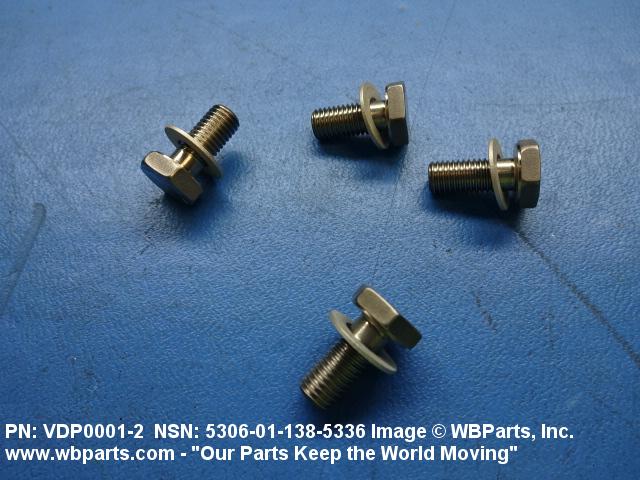

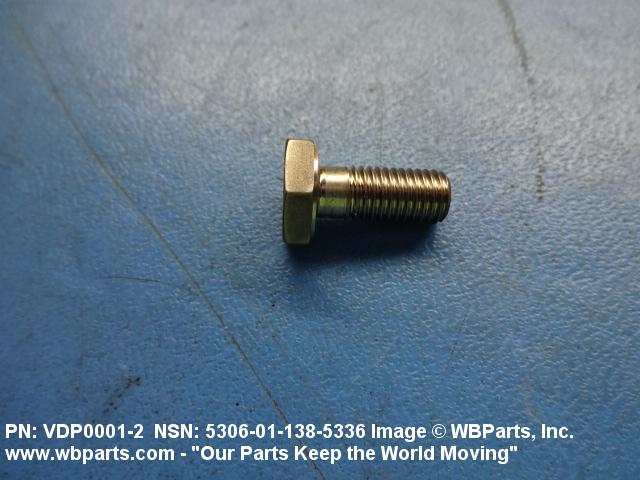

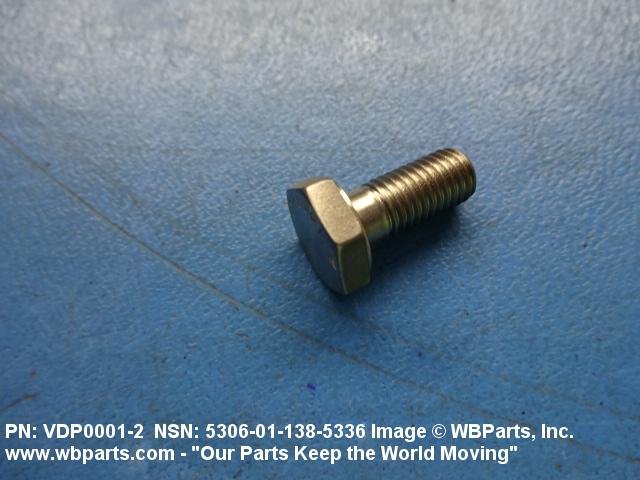

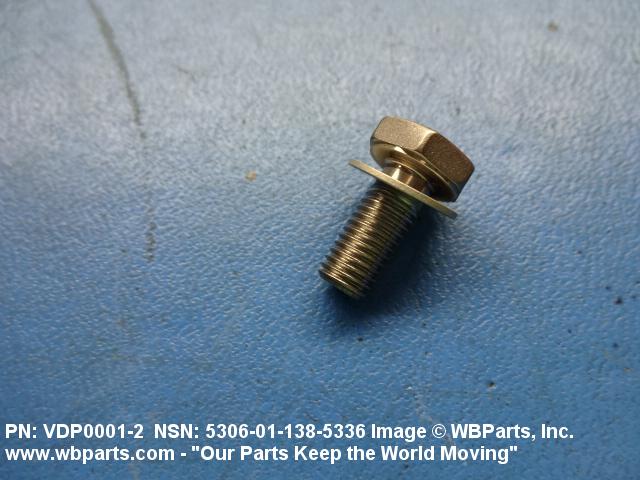

Drawings & Photos | NSN 5306-01-138-5336
Demand History | NSN 5306-01-138-5336
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-138-5336 | 2019-10-275 | 43 | United States |
| 111026-4-2 | 2019-07-186 | 4 | DIBBS |
| VDP0001-2 | 2019-07-186 | 4 | DIBBS |
| 111026-4-2 | 2019-06-177 | 4 | DIBBS |
| VDP0001-2 | 2019-06-177 | 4 | DIBBS |
| 111026-4-2 | 2019-05-125 | 4 | DIBBS |
| VDP0001-2 | 2019-05-125 | 4 | DIBBS |
| 5306-01-138-5336 | 2018-03-61 | 4 | DIBBS |
| 5306-01-138-5336 | 2018-02-36 | 4 | DIBBS |
| 5306-01-138-5336 | 2017-06-165 | 10 | DIBBS |
| 5306-01-138-5336 | 2017-04-114 | 10 | DIBBS |
Cross Reference | NSN 5306-01-138-5336
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 111026-4-2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| D16175-12-2 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| SC2670-4-2 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| T981-4-2 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| T981-4-2 | 97928 | HUCK INTL INC |
| VDP0001-2 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-138-5336
Related Products | NSN 5306-01-138-5336
Technical Data | NSN 5306-01-138-5336

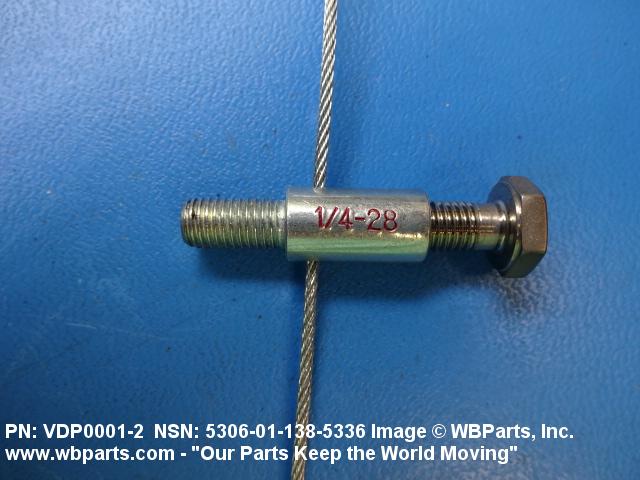

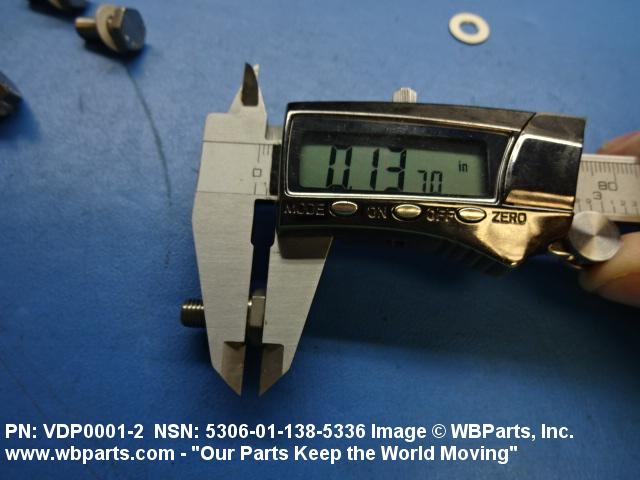

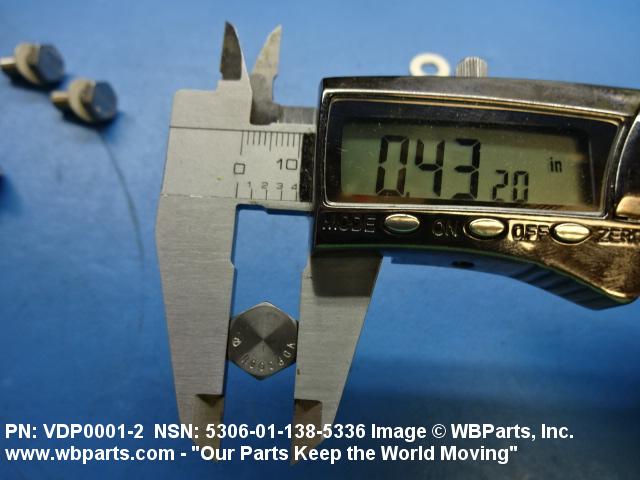

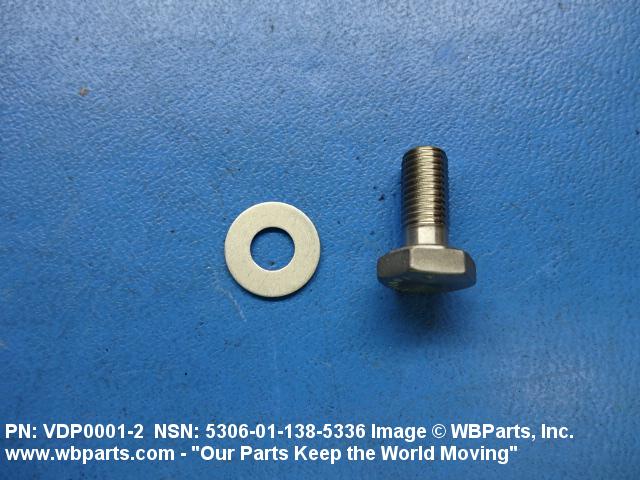

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.400 INCHES MINIMUM AND 0.450 INCHES MAXIMUM |
| FASTENER LENGTH | 0.535 INCHES MINIMUM AND 0.565 INCHES MAXIMUM |
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4967 6AL-4V ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.125 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | G30 FLAT |

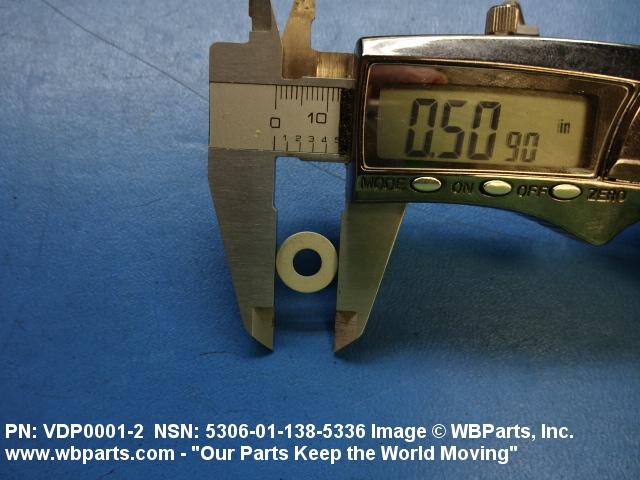

| PRIMARY WASHER OUTSIDE DIAMETER | 0.495 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |

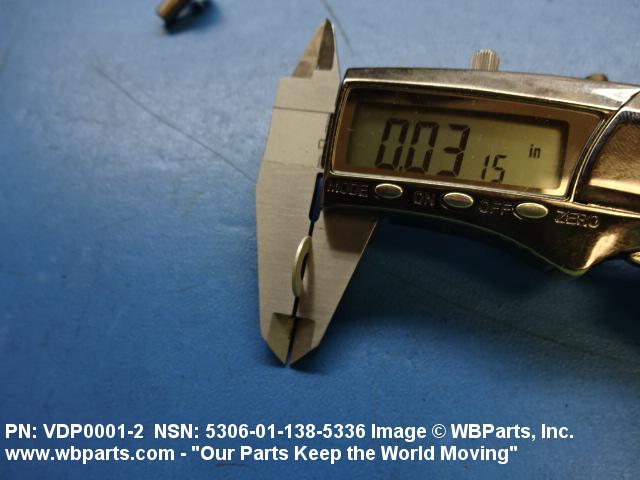

| PRIMARY WASHER MATERIAL THICKNESS | 0.028 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
