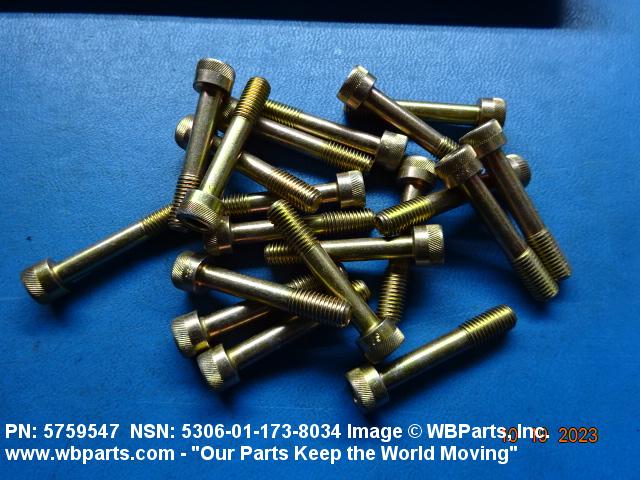

Product Details | INTERNAL WRENCHING BOLT

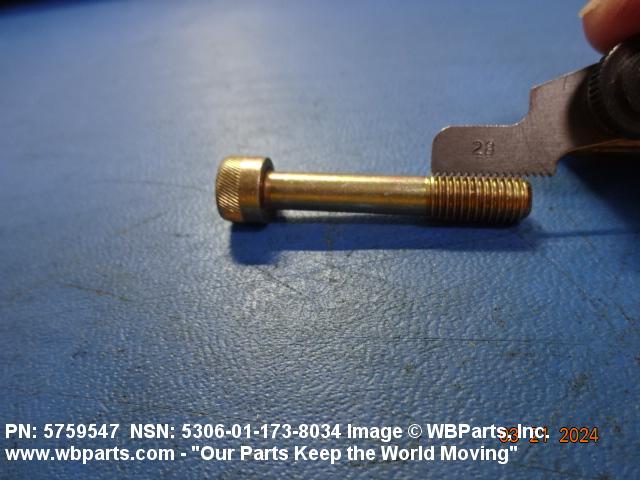

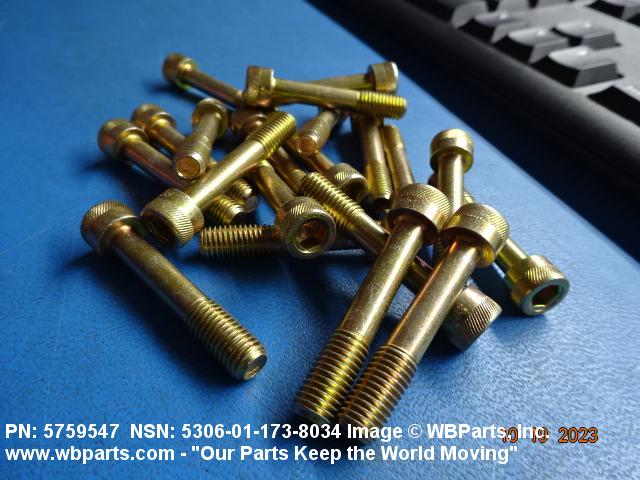

5306-01-173-8034 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: 5759547, 5306-01-173-8034, 01-173-8034, 5306011738034, 011738034
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAR 1984 | 01-173-8034 | 06666 ( BOLT, INTERNAL WRENCHING ) |

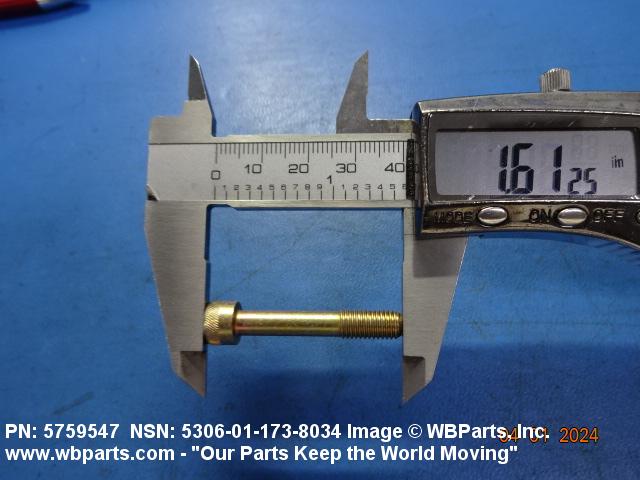

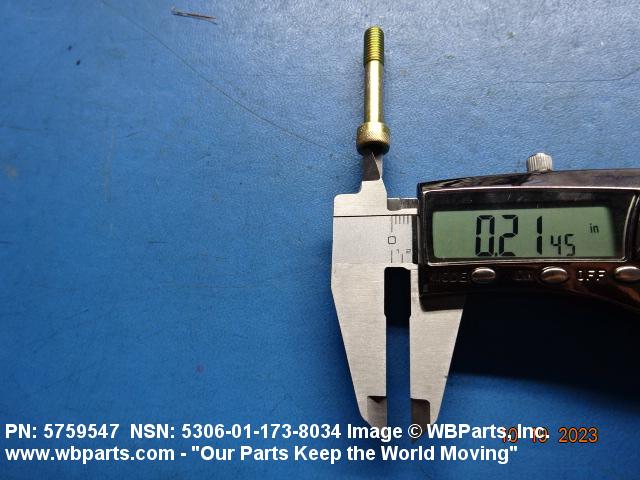

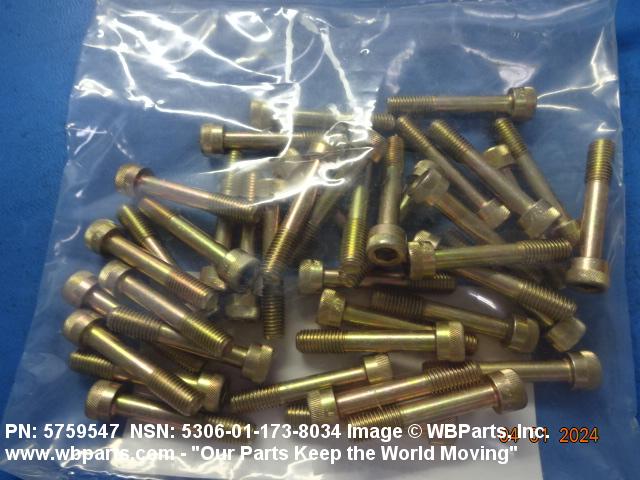

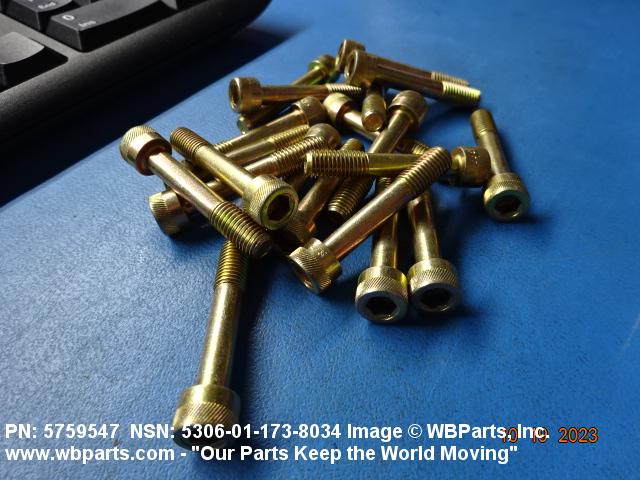

Drawings & Photos | NSN 5306-01-173-8034
Demand History | NSN 5306-01-173-8034
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-173-8034 | 2025-11-329 | 100 | US |
| 5759547 | 2025-09-253 | 30 | US |
| 5306-01-173-8034 | 2025-09-247 | 230 | US |
| 5759547 | 2025-08-231 | 250 | US |
| 5759547 | 2025-08-218 | 1040 | US |
| 5759547 | 2025-06-160 | 168 | United States |
| 5759547 | 2025-03-85 | 56 | United States |
| 5759547 | 2024-12-365 | 4 | United States |
| 5759547 | 2024-12-365 | 4 | United States |
| 5306-01-173-8034 | 2024-12-345 | 2 | United States |
| 5759547 | 2024-10-302 | 30 | US |
| 5759547 | 2024-04-95 | 32 | United States |
| 5759547 | 2024-03-85 | 40 | United States |
| 5759547 | 2024-03-73 | 80 | United States |
| 5306-01-173-8034 | 2024-01-16 | 112 | United States |
| 5306-01-173-8034 | 2023-12-352 | 4 | United States |
| 5306-01-173-8034 | 2023-10-278 | 230 | United States |
| 5306-01-173-8034 | 2023-06-167 | 100 | United States |
| 5306-01-173-8034 | 2023-05-145 | 100 | NL |
| 5306-01-173-8034 | 2023-01-25 | 200 | United States |
| 5306-01-173-8034 | 2022-07-202 | 676 | US |
| 5759547 | 2022-05-128 | 377 | DIBBS |
| 5306-01-173-8034 | 2021-12-335 | 297 | DIBBS |
| 5306-01-173-8034 | 2021-07-188 | 142 | DIBBS |
| 5306-01-173-8034 | 2021-06-167 | 116 | DIBBS |
| 5306-01-173-8034 | 2021-01-07 | 88 | DIBBS |
| 5306-01-173-8034 | 2020-02-35 | 200 | United States |
| 5306-01-173-8034 | 2019-12-363 | 200 | DIBBS |
| 5306-01-173-8034 | 2019-12-349 | 302 | DIBBS |
| 5306-01-173-8034 | 2019-11-323 | 129 | DIBBS |
| 5306-01-173-8034 | 2019-11-317 | 200 | DIBBS |
| 5306-01-173-8034 | 2019-05-149 | 50 | US |
| 5306-01-173-8034 | 2019-03-77 | 200 | DIBBS |
| 5306-01-173-8034 | 2019-03-72 | 37 | DIBBS |
| 5306-01-173-8034 | 2018-08-242 | 260 | DIBBS |
| 5306-01-173-8034 | 2018-04-91 | 213 | DIBBS |
| 5306-01-173-8034 | 2018-02-43 | 122 | DIBBS |
| 5306-01-173-8034 | 2017-10-303 | 122 | DIBBS |
| 5306-01-173-8034 | 2012-10-290 | 231 | DIBBS |
| 5306-01-173-8034 | 2010-10-300 | 78 | DIBBS |
| 5306-01-173-8034 | 2009-10-279 | 550 | DIBBS |
| 5306-01-173-8034 | 2009-06-177 | 533 | DIBBS |
| 5306-01-173-8034 | 2008-03-79 | 549 | DIBBS |
Cross Reference | NSN 5306-01-173-8034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5759547 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-173-8034
Related Products | NSN 5306-01-173-8034
Technical Data | NSN 5306-01-173-8034
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

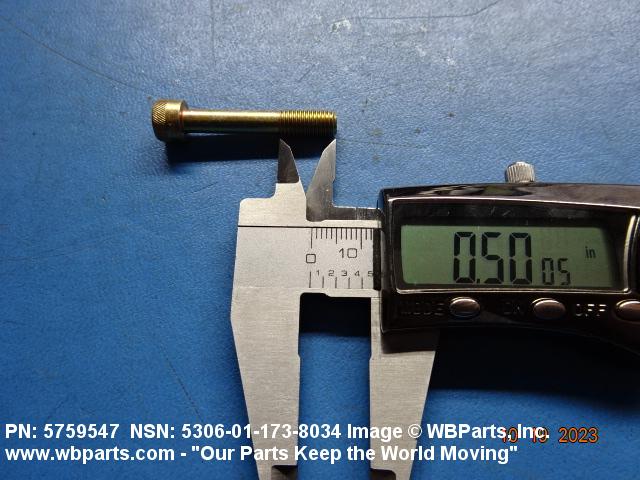

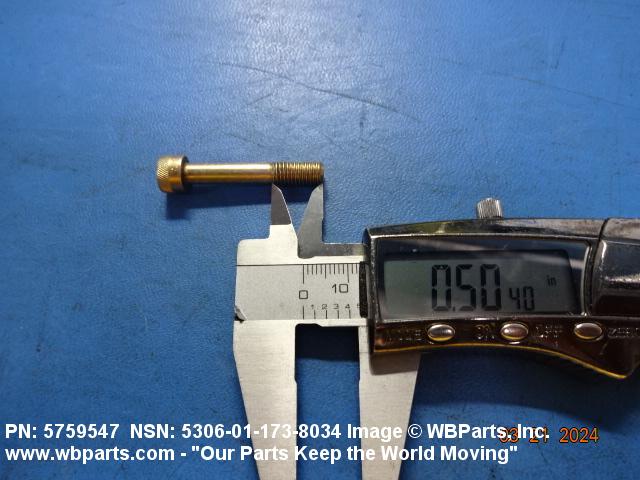

| THREAD LENGTH | 0.500 INCHES NOMINAL |

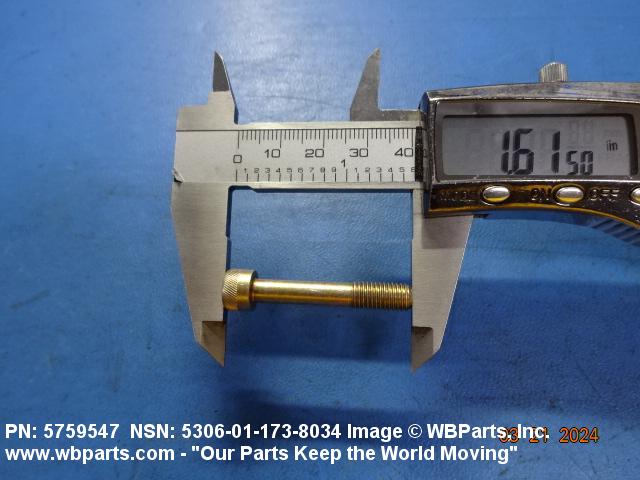

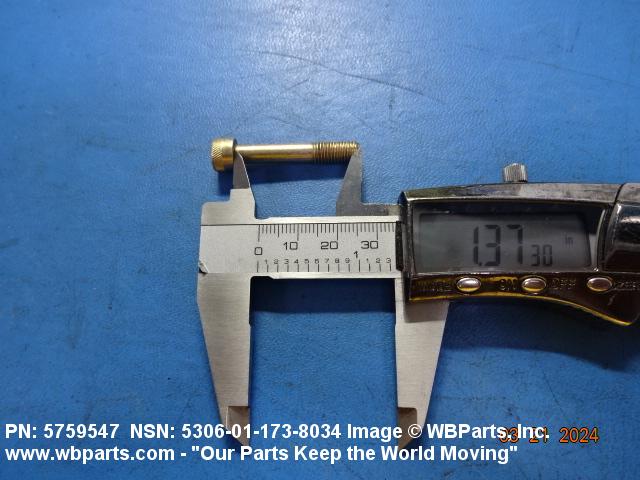

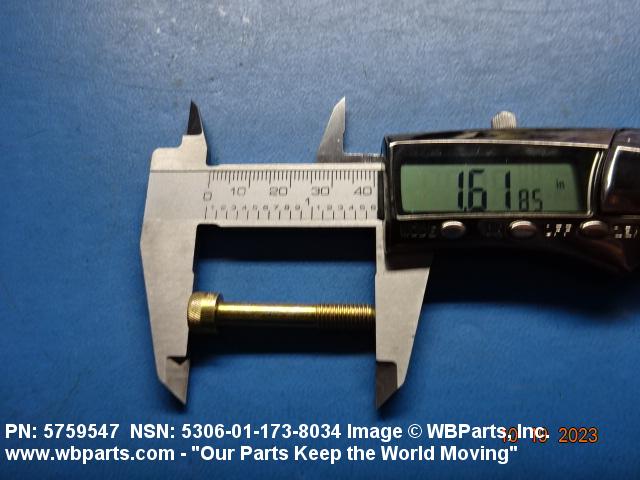

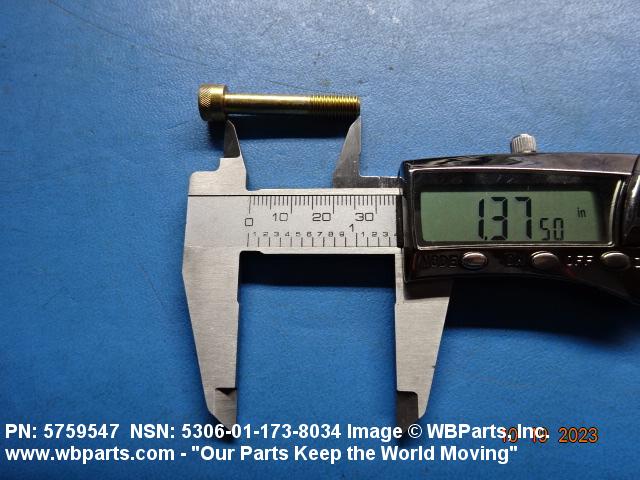

| FASTENER LENGTH | 1.375 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FF-S-86 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

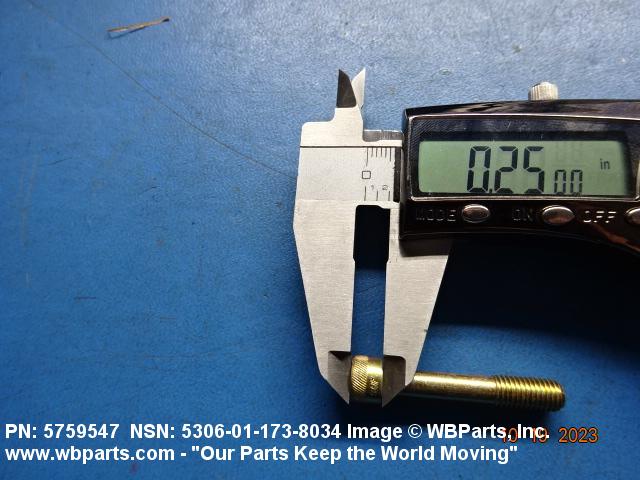

| HEAD STYLE | C44 FILLISTER |

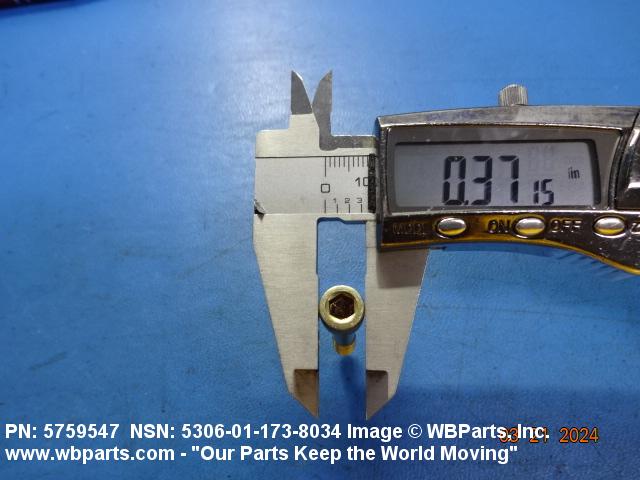

| HEAD DIAMETER | 0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

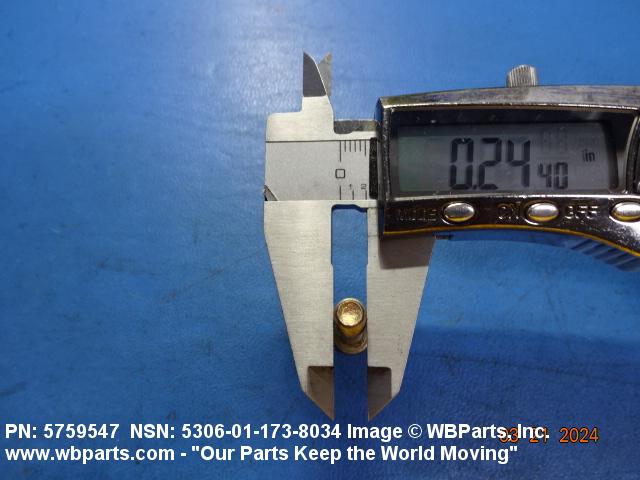

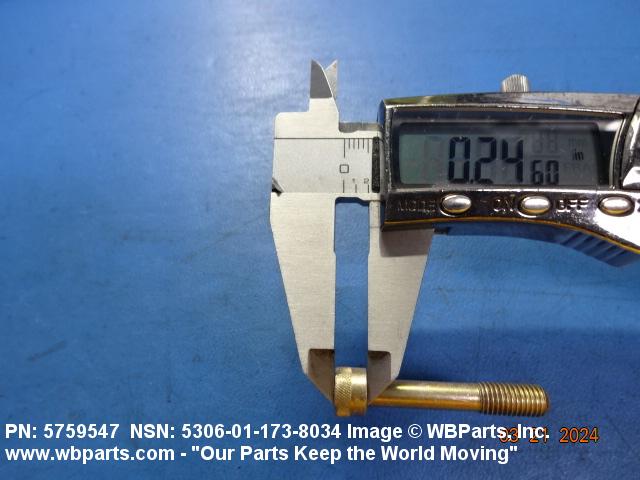

| HEAD HEIGHT | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |

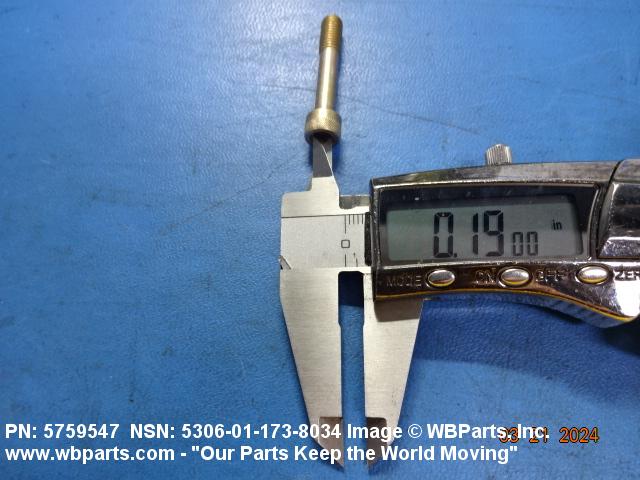

| WIDTH ACROSS FLATS | 0.1875 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |

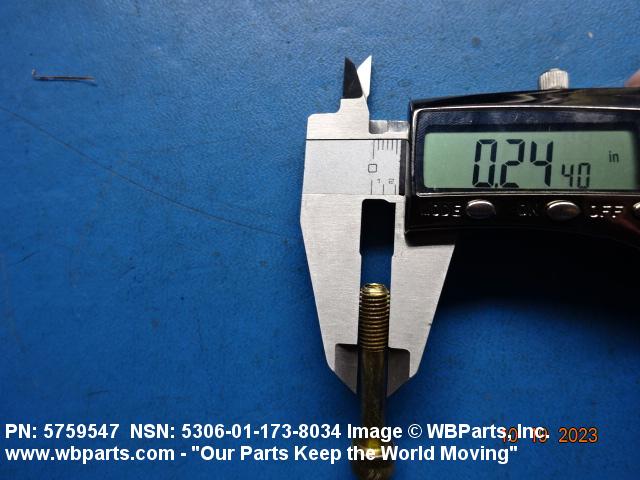

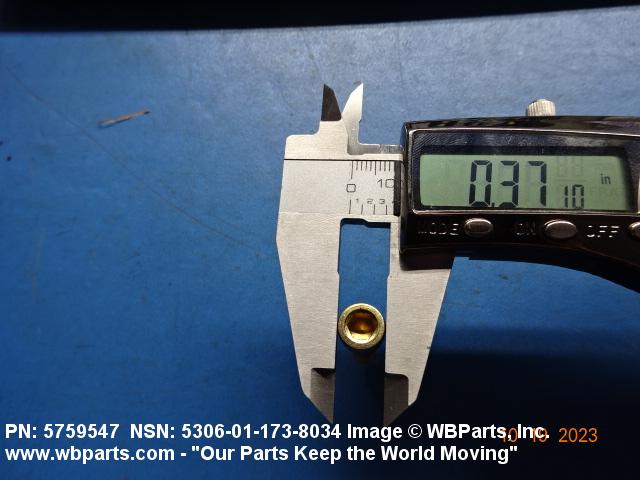

| FIRST DIAMETER FROM HEAD | 0.208 INCHES MINIMUM AND 0.212 INCHES MAXIMUM |
