NSN 5306-01-212-2272 AN8C47A, 01-212-2272, 012122272
Product Details | MACHINE BOLT
5306-01-212-2272 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN8C47A, 5306-01-212-2272, 01-212-2272, 5306012122272, 012122272
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUL 1985 | 01-212-2272 | 01847 ( BOLT, MACHINE ) |

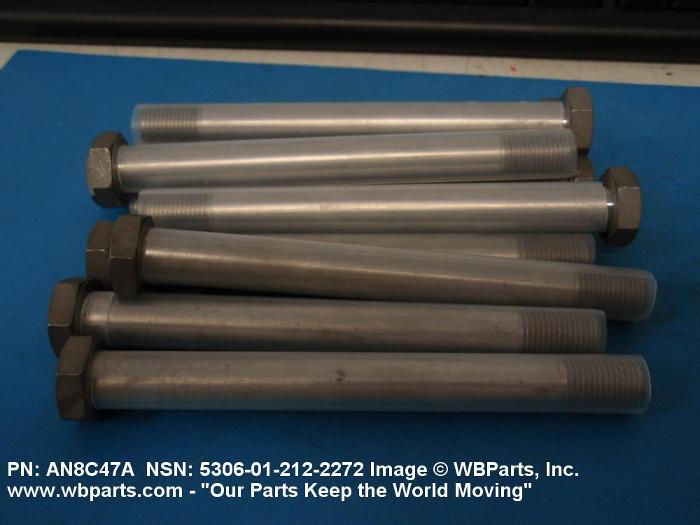

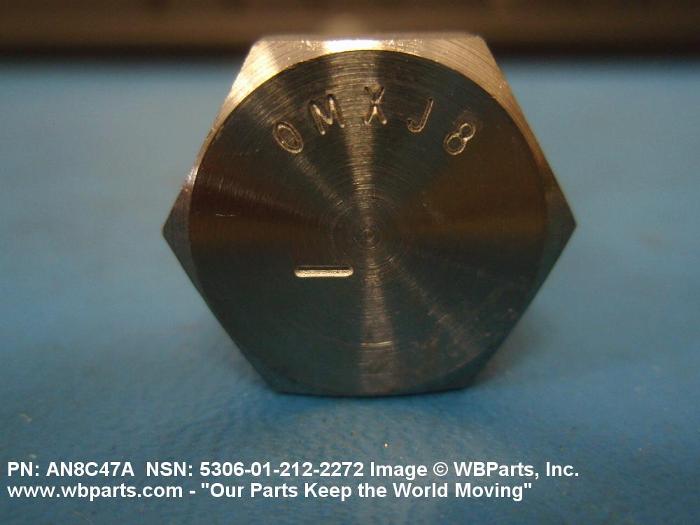

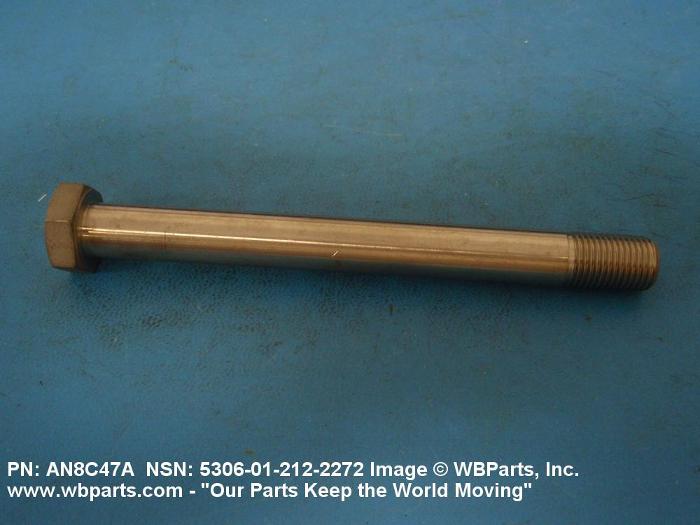

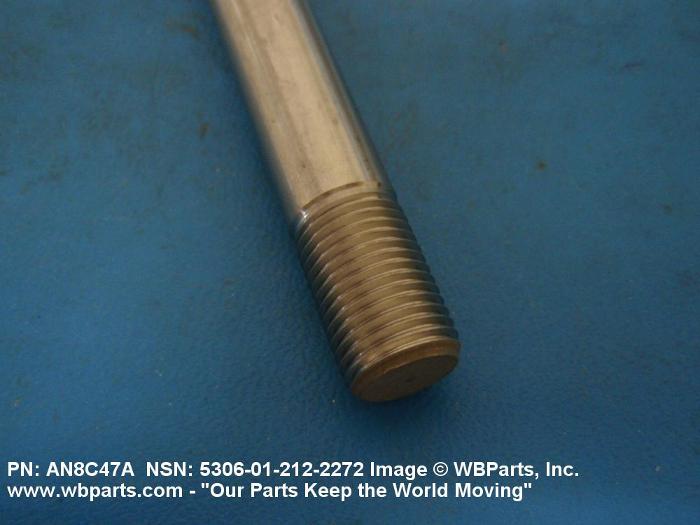

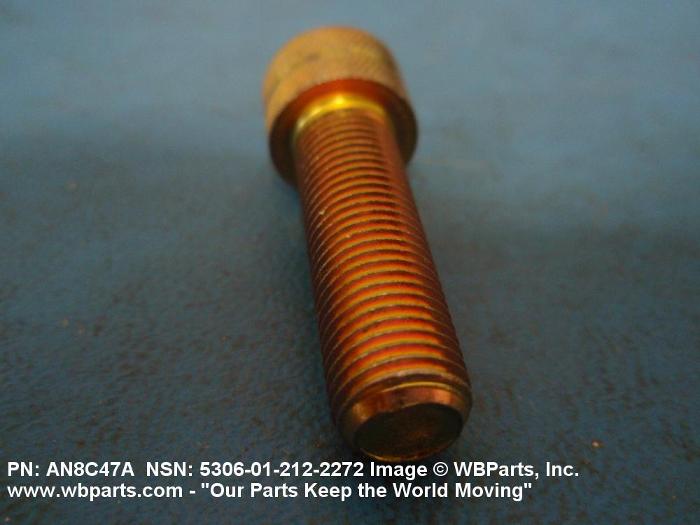

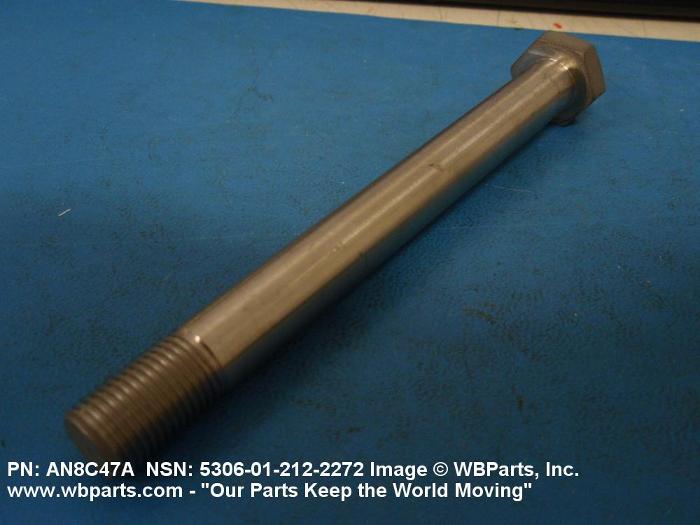

Drawings & Photos | NSN 5306-01-212-2272
Demand History | NSN 5306-01-212-2272
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8C47A | 2010-12-364 | 10 | United States |
Cross Reference | NSN 5306-01-212-2272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN8C47A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-212-2272
Technical Data | NSN 5306-01-212-2272
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | HEXAGON |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.749 INCHES MINIMUM AND |
| FASTENER LENGTH | 4.953 INCHES MINIMUM AND |
| MATERIAL | STEEL COMP 431 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18732 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND |
| HEAD HEIGHT | 0.265 INCHES MINIMUM AND |
| WIDTH BETWEEN FLATS | 0.740 INCHES MINIMUM AND |
| GRIP LENGTH | 4.172 INCHES MINIMUM AND |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN8C47A |
Restrictions/Controls & Freight Information | NSN 5306-01-212-2272
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
