NSN 5306-01-214-2758 1275M17P01, 01-214-2758, 012142758

Product Details | MACHINE BOLT


5306-01-214-2758 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: 1275M17P01, 5306-01-214-2758, 01-214-2758, 5306012142758, 012142758

Hardware and Abrasives | Bolts

Supply Group (FSG) NSN Assign. NIIN
53 08 AUG 1985 01-214-2758

Drawings & Photos | NSN 5306-01-214-2758



Demand History | NSN 5306-01-214-2758


Part Number Request Date QTY Origin
5306-01-214-2758 2016-12-20 7774 DIBBS
5306-01-214-2758 2016-11-24 7404 DIBBS
5306-01-214-2758 2016-09-01 8282 DIBBS
5306-01-214-2758 2016-05-17 7775 DIBBS
5306-01-214-2758 2007-10-26 5000 China
1275M17P01 2007-10-25 5000 US
1275M17P01 2007-10-24 5000 China
1275M17P01 2007-10-23 10000 US
5306-01-214-2758 2007-08-01 3000 Turkey

Cross Reference | NSN 5306-01-214-2758


Part Number Cage Code Manufacturer
1275M17P01 06710 VALLEY-TODECO, INC.
1275M17P01 07482 GENERAL ELECTRIC COMPANY DBA GE
1275M17P01 0UCY9 M.S. AEROSPACE INC.

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5306-01-214-2758


Technical Data | NSN 5306-01-214-2758


Characteristic Specifications
THREAD SERIES DESIGNATOR UNJF
NOMINAL THREAD DIAMETER 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.739 INCHES NOMINAL
FASTENER LENGTH 1.715 INCHES MINIMUM AND 1.735 INCHES MAXIMUM
MATERIAL NICKEL ALLOY 718 OVERALL

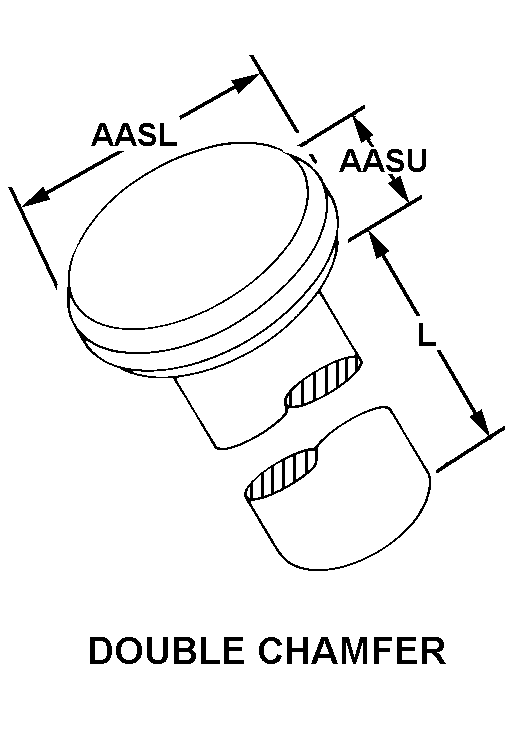

HEAD STYLE C43 DOUBLE CHAMFER
HEAD HEIGHT 0.135 INCHES MINIMUM AND 0.145 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5306-01-214-2758


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
