NSN 5306-01-221-8692 SS5211540, SS5211-5-40, 01-221-8692
Product Details | SHEAR BOLT

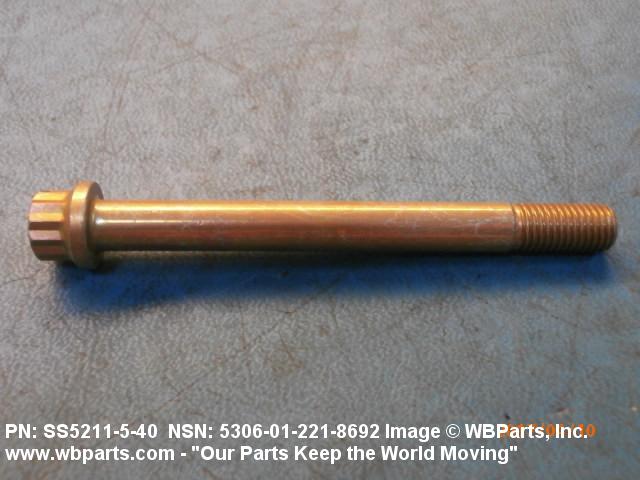

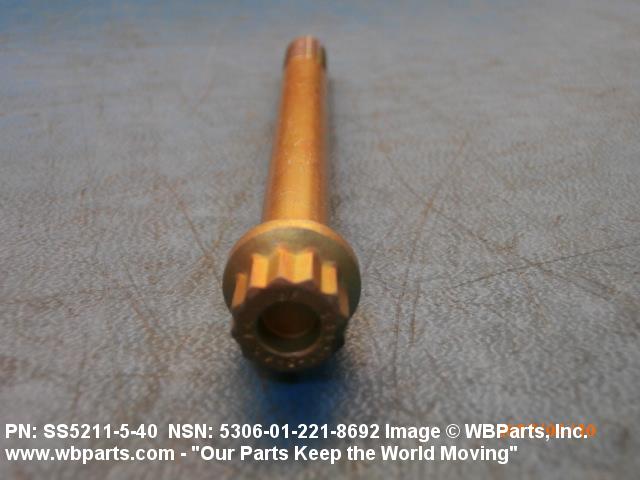

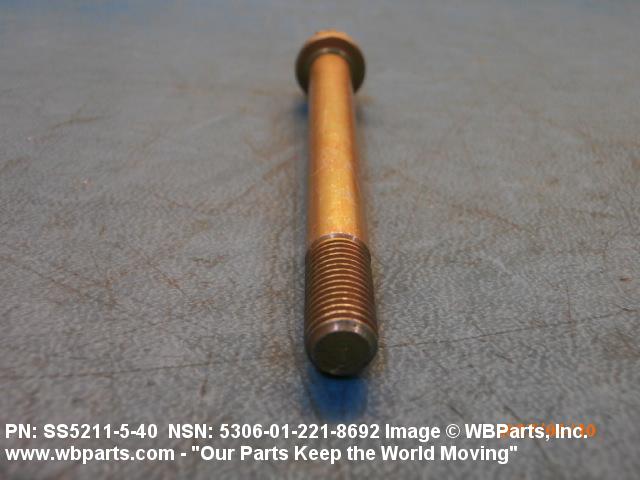

5306-01-221-8692 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: SS5211540, SS5211-5-40, 5306-01-221-8692, 01-221-8692, 5306012218692, 012218692
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 DEC 1985 | 01-221-8692 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-01-221-8692
Demand History | NSN 5306-01-221-8692
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS5211-5-40 | 2020-04-112 | 2863 | DIBBS |
| SS5211-5-40 | 2019-06-177 | 640 | DIBBS |
| SS5211-5-40 | 2019-05-134 | 3260 | DIBBS |
| 5306-01-221-8692 | 2018-11-305 | 640 | DIBBS |
| 5306-01-221-8692 | 2018-06-158 | 2653 | DIBBS |
| 5306-01-221-8692 | 2017-10-303 | 1 | DIBBS-RFPs |
| SS5211540 | 2017-03-81 | 8 | Canada |
| SS5211540 | 2017-03-81 | 8 | Canada |
| 5306-01-221-8692 | 2016-12-342 | 1 | DIBBS-RFPs |
| SS5211-5-40 | 2014-10-296 | 4 | Canada |
| 5306-01-221-8692 | 2011-09-249 | 38 | Taiwan |
| 5306-01-221-8692 | 2010-05-130 | 2531 | DIBBS |
| 5306-01-221-8692 | 2009-03-78 | 3002 | DIBBS |
| 5306-01-221-8692 | 2009-02-56 | 869 | DIBBS |
| SS5211540 | 2009-01-30 | 50 | United States |
| 5306-01-221-8692 | 2009-01-07 | 1002 | DIBBS |
| 5306-01-221-8692 | 2008-12-353 | 52 | DIBBS |
| 5306-01-221-8692 | 2008-07-199 | 2 | US |
| SS5211540 | 2008-02-60 | 2 | US |
| 5306-01-221-8692 | 2008-01-18 | 4636 | DIBBS |
Cross Reference | NSN 5306-01-221-8692
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS5211-5-40 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| SS5211-5-40 | 0UCY9 | M.S. AEROSPACE INC. |
| SS5211-5-40 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| SS5211-5-40 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| SS5211-5-40 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| SS5211-5-40 | 84256 | AVIBANK MFG., INC. |
| SS5211-5-40 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-221-8692
Related Products | NSN 5306-01-221-8692
Technical Data | NSN 5306-01-221-8692
| Characteristic | Specifications |
|---|---|
| EXTENDED WASHER THICKNESS | 0.072 INCHES MINIMUM AND 0.092 INCHES MAXIMUM |
| THREAD DIRECTION | RIGHT-HAND |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-8844 CL 1 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

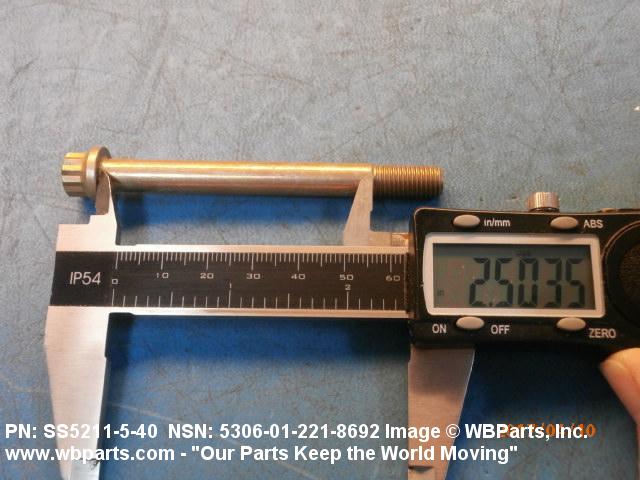

| GRIP LENGTH | 2.500 INCHES MINIMUM AND 2.510 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2401-3 ASSN STD 1ST TREATMENT RESPONSE AND QQ-P-416,TY 2 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| MATERIAL | STEEL COMP 4340 OVERALL |

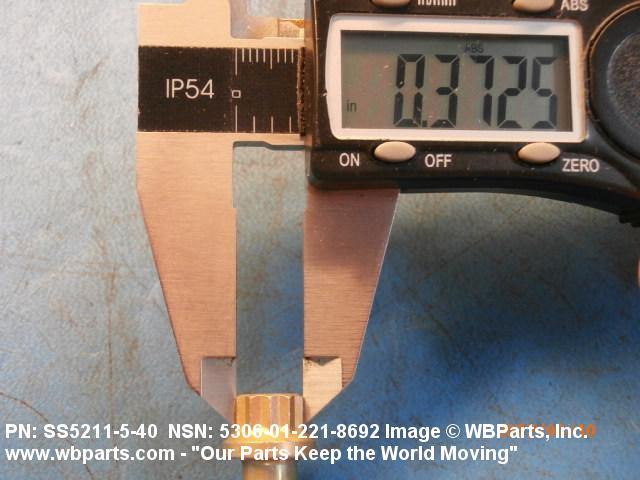

| WIDTH BETWEEN FLATS | 0.3750 INCHES NOMINAL |

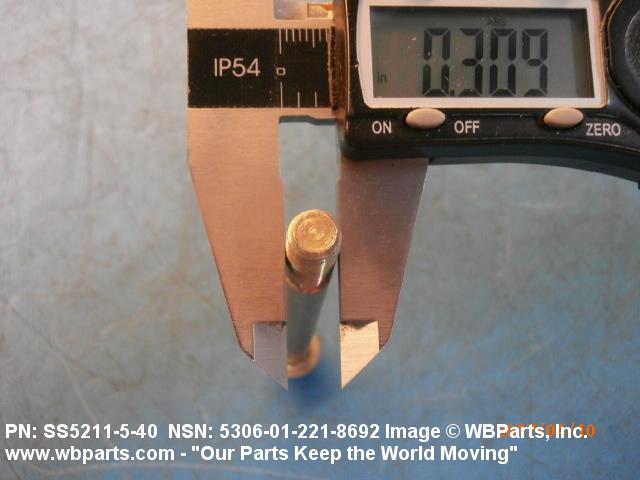

| NOMINAL THREAD DIAMETER | 0.312 INCHES |

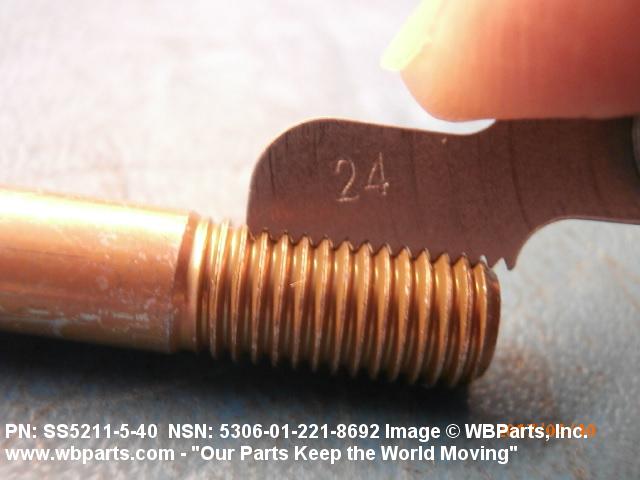

| THREAD QUANTITY PER INCH | 24 |

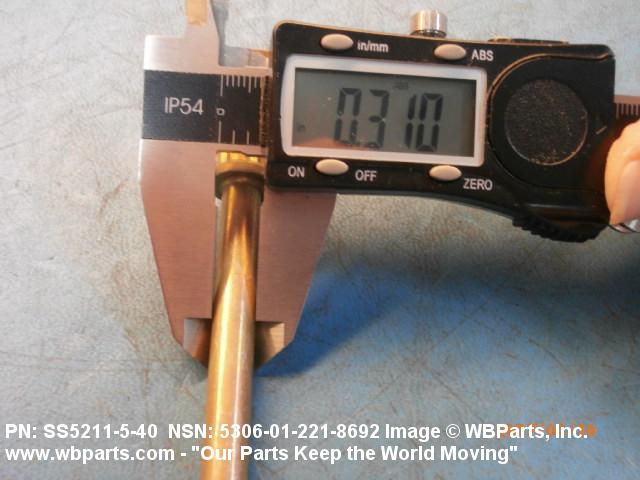

| GRIP DIAMETER | 0.3110 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |

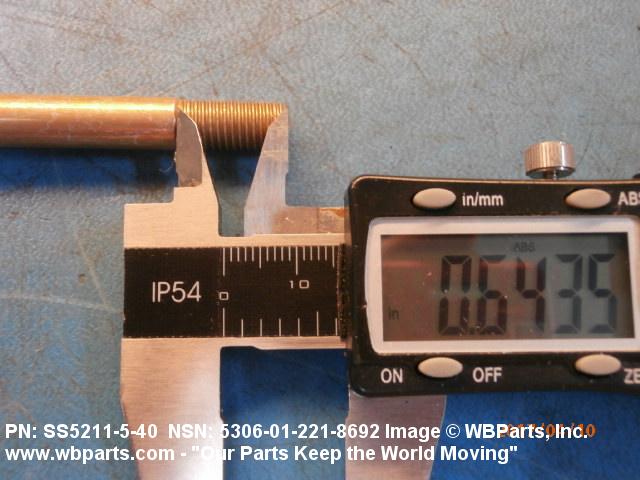

| THREAD LENGTH | 0.629 INCHES MINIMUM AND 0.671 INCHES MAXIMUM |

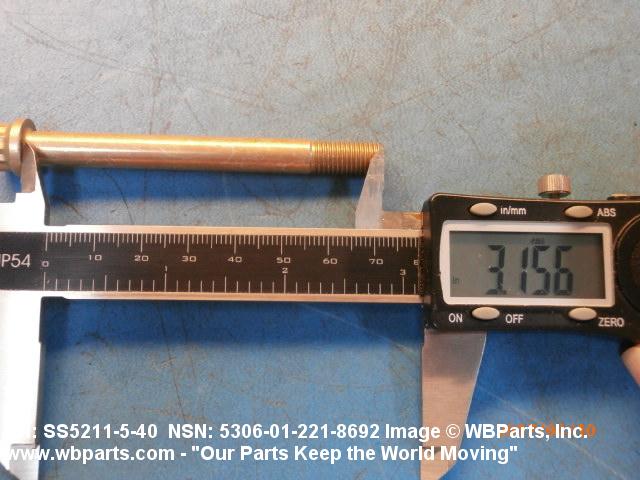

| FASTENER LENGTH | 3.139 INCHES MINIMUM AND 3.171 INCHES MAXIMUM |
| HEAD STYLE | DOUBLE HEXAGON W/HOLE |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |

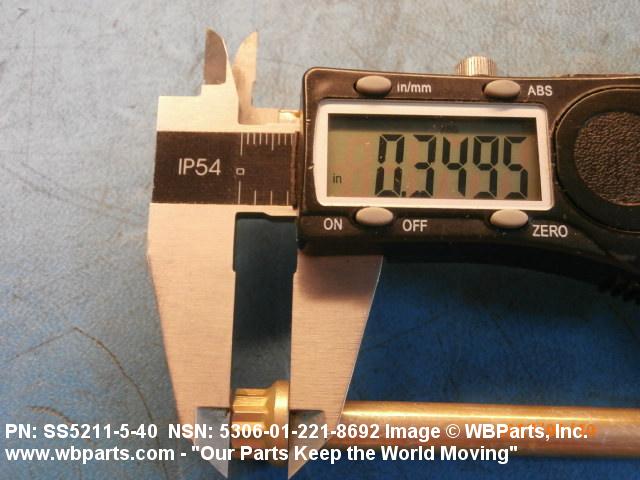

| HEAD HEIGHT | 0.338 INCHES MINIMUM AND 0.358 INCHES MAXIMUM |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |

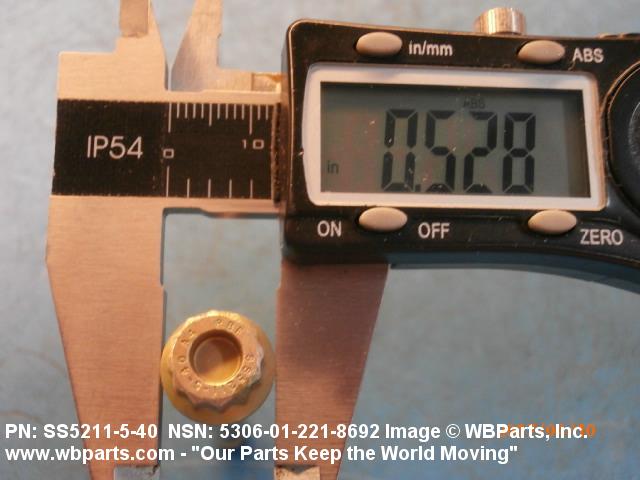

| EXTENDED WASHER DIAMETER | 0.521 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES GRIP |
| FEATURES PROVIDED | CASEHARDENED |
