NSN 5306-01-260-9808 MS5193721C, MS51937-21C, 01-260-9808

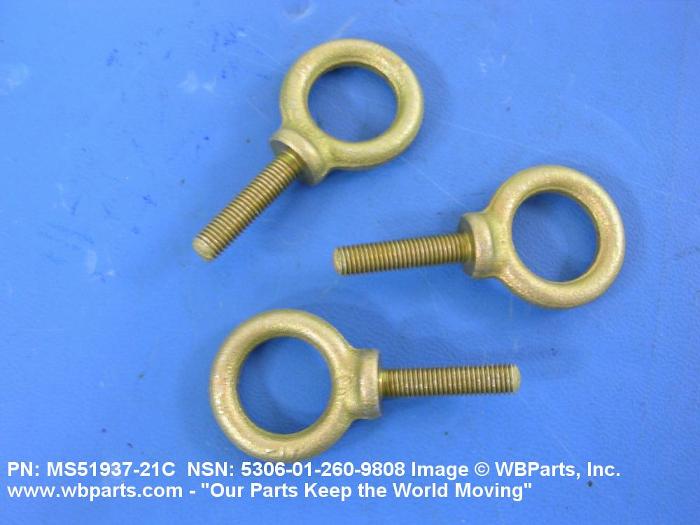

Product Details | EYE BOLT
5306-01-260-9808 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: MS5193721C, MS51937-21C, 5306-01-260-9808, 01-260-9808, 5306012609808, 012609808
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 1987 | 01-260-9808 | 01853 ( BOLT, EYE ) |
Drawings & Photos | NSN 5306-01-260-9808
Demand History | NSN 5306-01-260-9808
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS5193721C | 2008-07-196 | 3 | United States |
Cross Reference | NSN 5306-01-260-9808
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51937-21C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-260-9808
Related Products | NSN 5306-01-260-9808
Technical Data | NSN 5306-01-260-9808
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.750 INCHES MINIMUM |
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6382 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B17 ROUND, CLOSED W/SHOULDER |
| EYE INSIDE DIAMETER | 0.690 INCHES MINIMUM AND 0.810 INCHES MAXIMUM |
| SHOULDER THICKNESS | 0.120 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| SHANK LENGTH | 1.000 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |
| EYE STOCK DIAMETER | 0.190 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.500 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| OVERALL LENGTH | 2.220 INCHES MINIMUM AND 2.530 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 1.690 INCHES MINIMUM AND 1.870 INCHES MAXIMUM |
| EYE OUTSIDE WIDTH | 1.190 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51937-21C |
