NSN 5306-01-263-8124 NAS146DH22, NAS146DH-22, 01-263-8124
Product Details | INTERNAL WRENCHING BOLT
5306-01-263-8124 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: NAS146DH22, NAS146DH-22, 5306-01-263-8124, 01-263-8124, 5306012638124, 012638124
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1987 | 01-263-8124 | 06666 ( BOLT, INTERNAL WRENCHING ) |

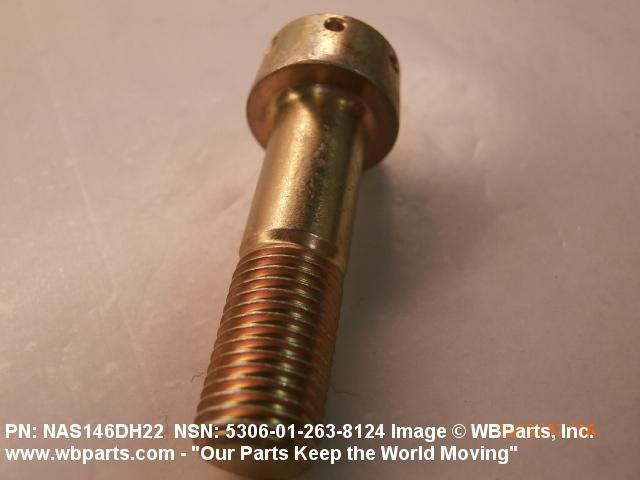

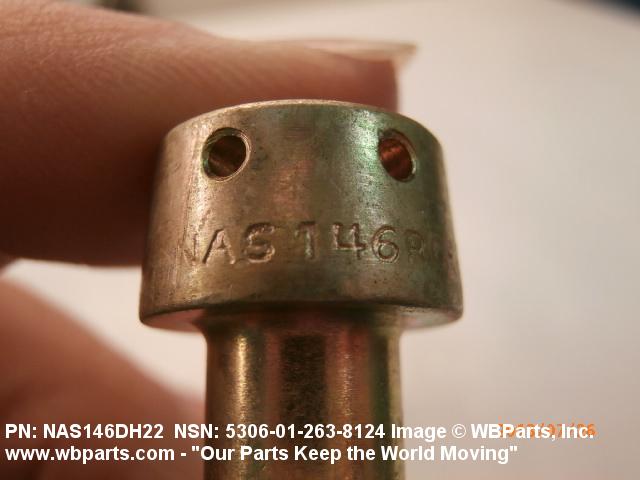

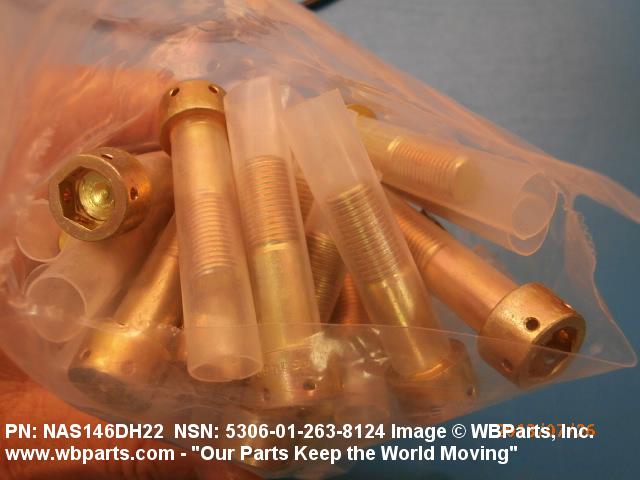

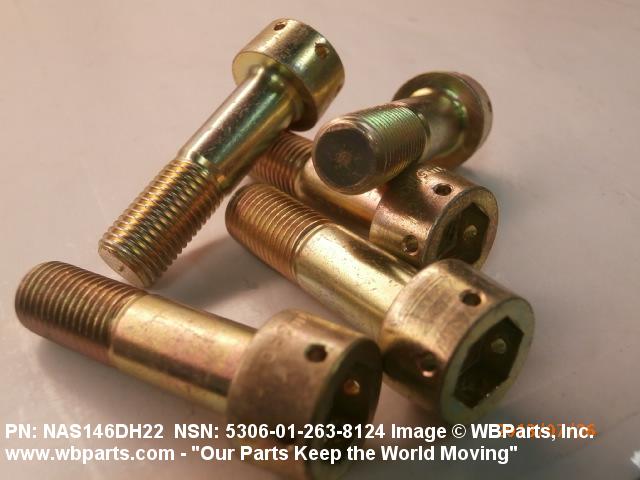

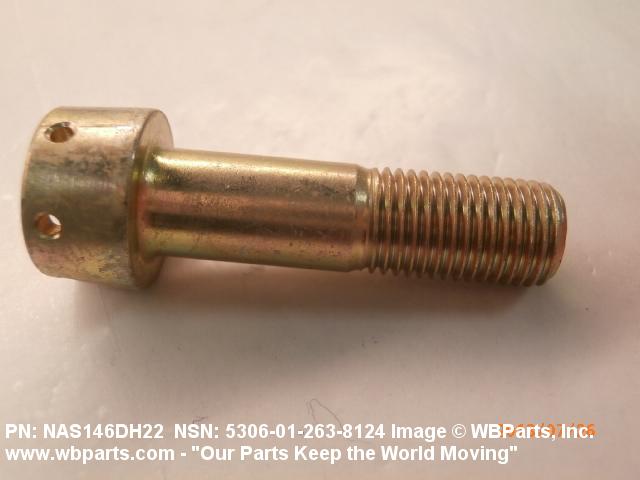

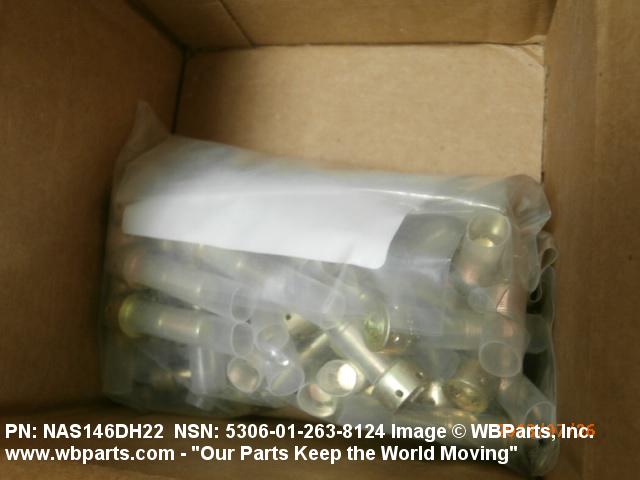

Drawings & Photos | NSN 5306-01-263-8124
Demand History | NSN 5306-01-263-8124
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS146DH22 | 2019-01-15 | 5 | US |
| 5306-01-263-8124 | 2019-01-11 | 5 | US |
| NAS146DH22 | 2018-06-169 | 15 | US |
| NAS146DH22 | 2017-05-137 | 35 | United States |
| 5306-01-263-8124 | 2013-07-184 | 50 | United States |
Cross Reference | NSN 5306-01-263-8124
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS146DH-22 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-263-8124
Technical Data | NSN 5306-01-263-8124
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

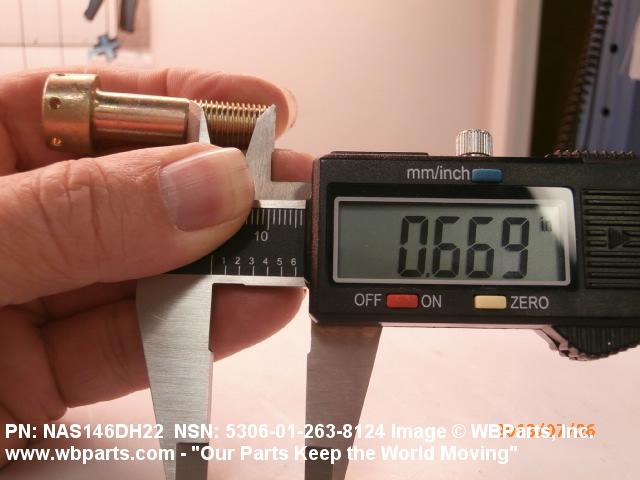

| THREAD LENGTH | 0.662 INCHES MINIMUM AND 0.712 INCHES MAXIMUM |

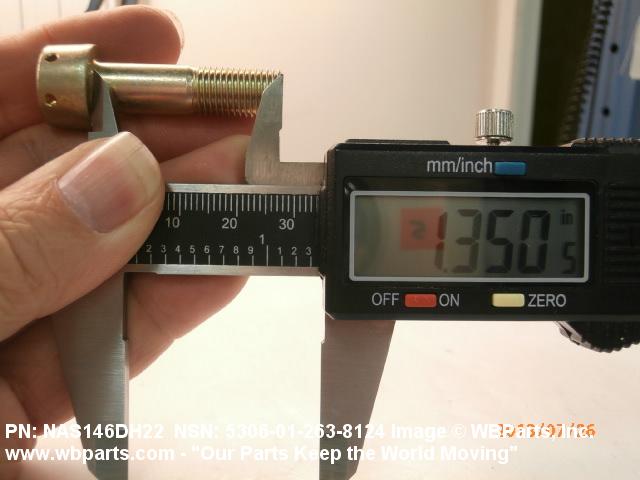

| FASTENER LENGTH | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 8740 OR STEEL COMP 6150 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 BEVEL-CONICAL |

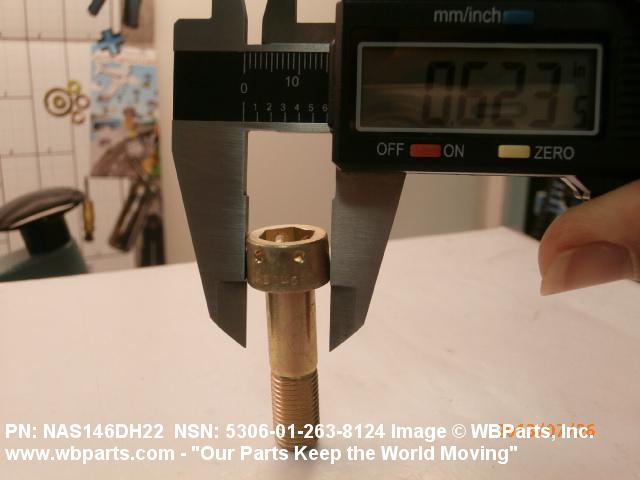

| HEAD DIAMETER | 0.615 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |

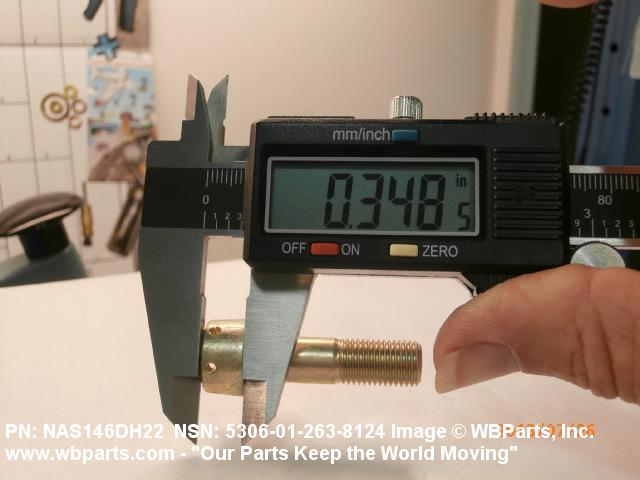

| HEAD HEIGHT | 0.333 INCHES MINIMUM AND 0.353 INCHES MAXIMUM |

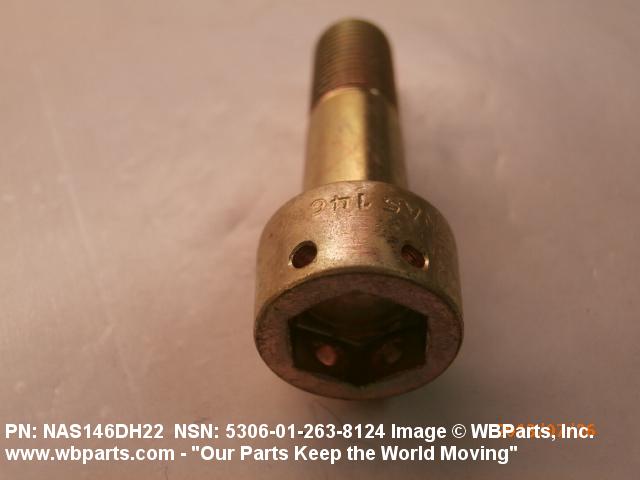

| INTERNAL DRIVE STYLE | D5 HEXAGON |

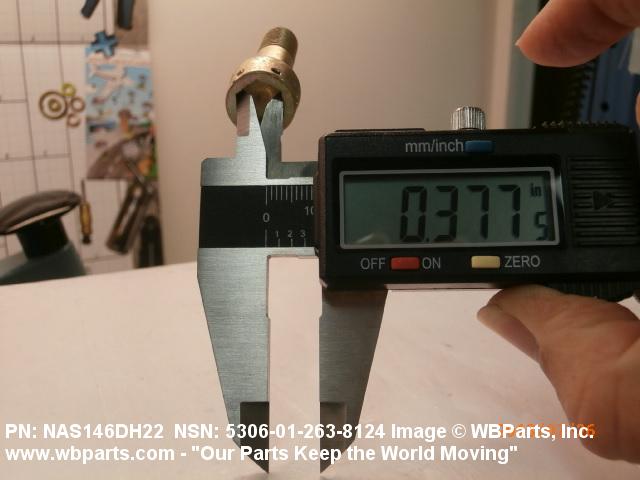

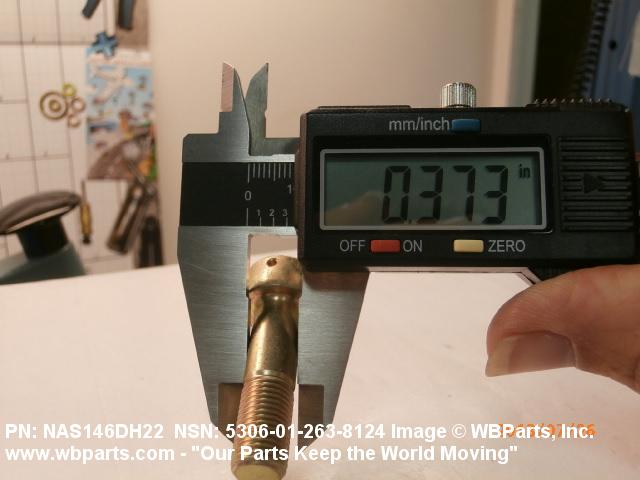

| WIDTH ACROSS FLATS | 0.375 INCHES MINIMUM AND 0.378 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E11 ROUND INTERNAL HEXAGON |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 6 |

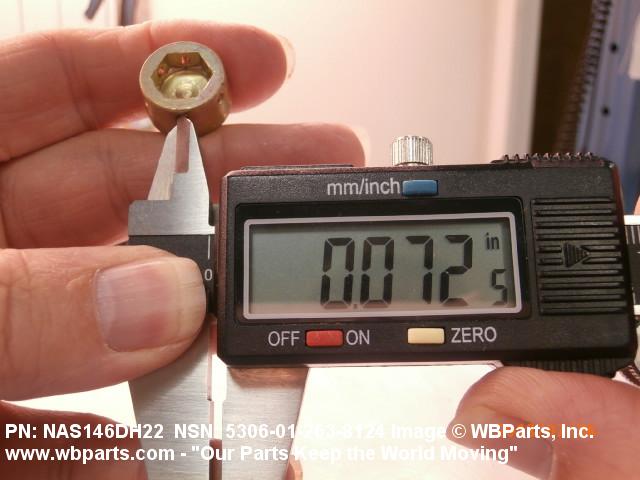

| HOLE DIAMETER | 0.070 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS146 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5306-01-263-8124
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
