NSN 5306-01-270-7215 MD-213074 PC18, MD213074PC18, MD-213075 PC19
Product Details | SHOULDER BOLT
5306-01-270-7215 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: MD-213074 PC18, MD213074PC18, MD-213075 PC19, MD213075PC19, 071325-024 , 71376180, 71376-180, 5306-01-270-7215, 01-270-7215, 5306012707215, 071325024, 012707215
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JAN 1988 | 01-270-7215 | 04905 ( BOLT, SHOULDER ) |

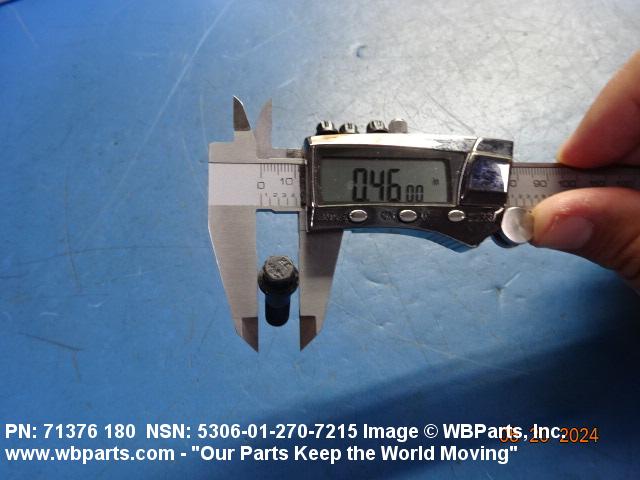

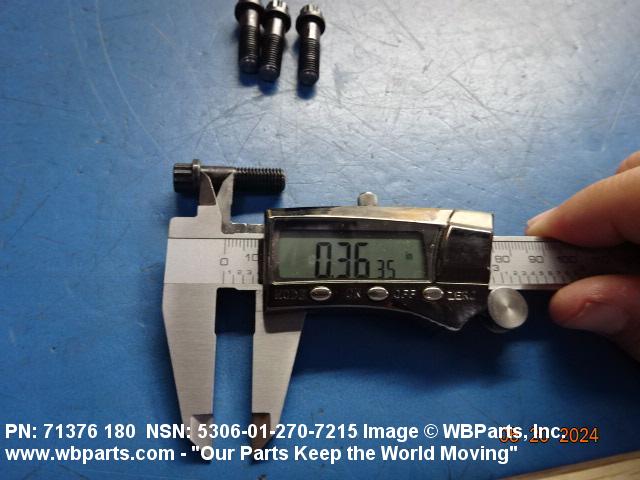

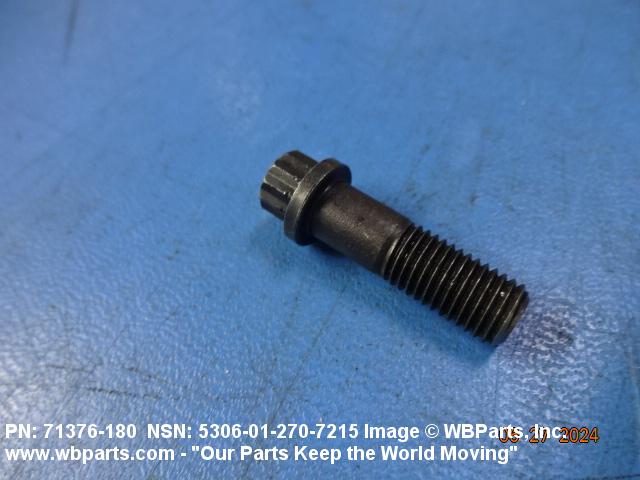

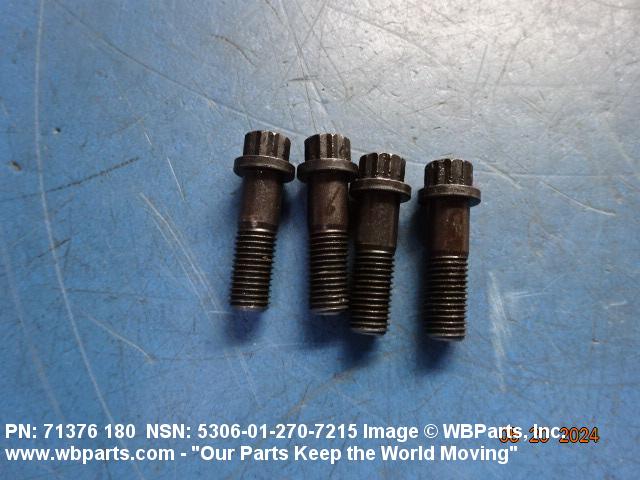

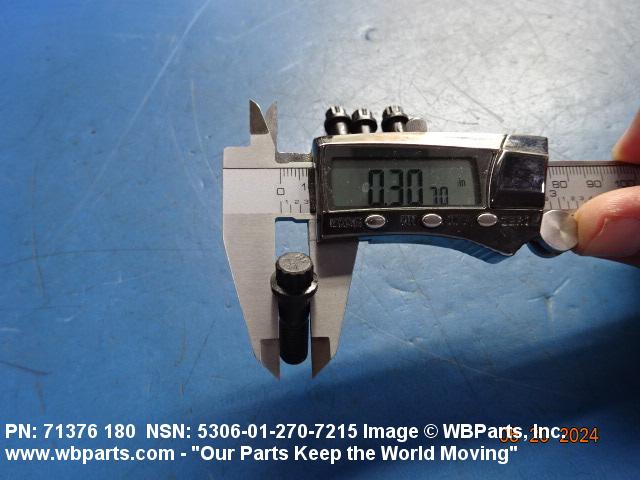

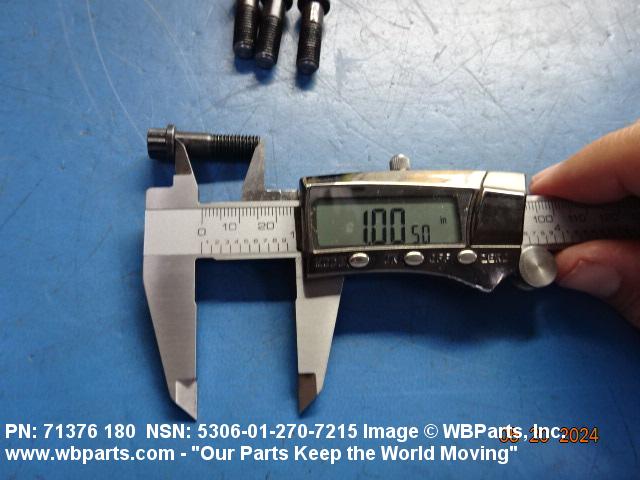

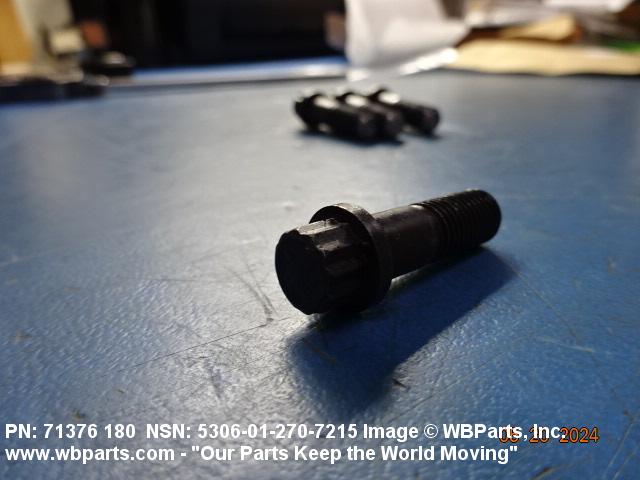

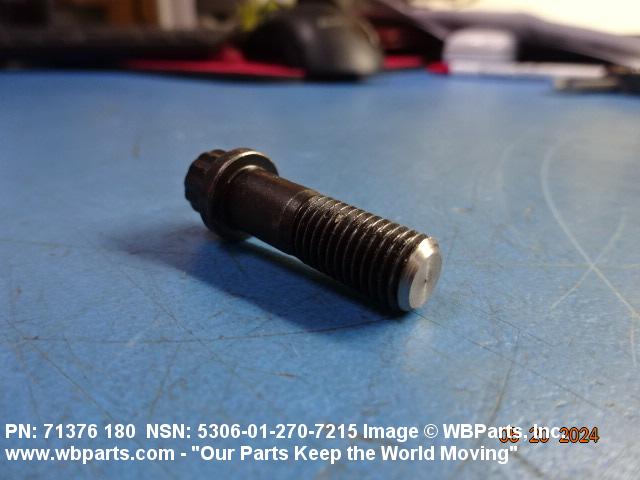

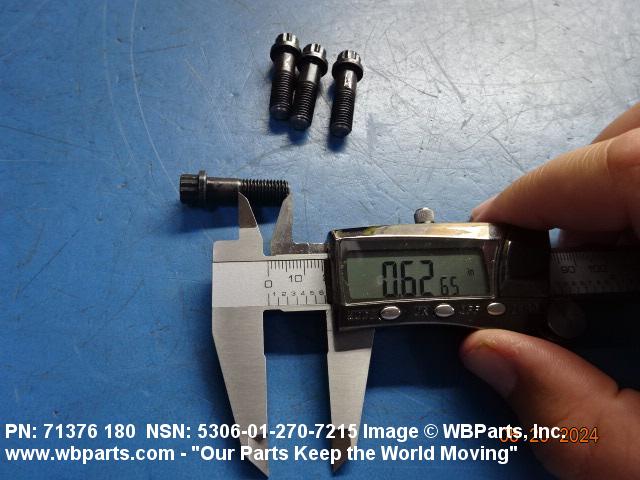

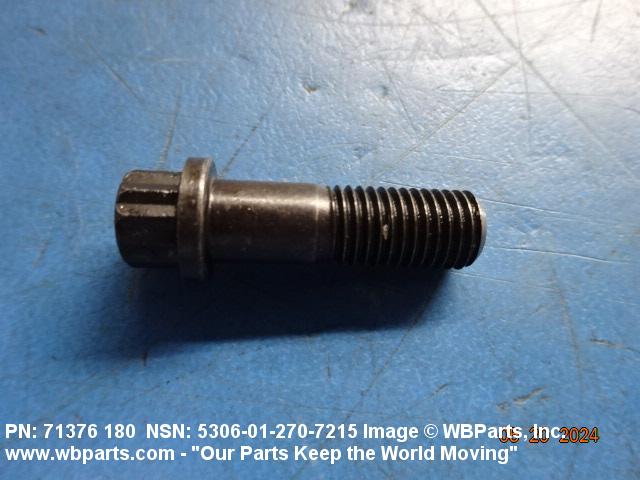

Drawings & Photos | NSN 5306-01-270-7215
Demand History | NSN 5306-01-270-7215
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 075528-608 | 2024-11-310 | 6 | DIBBS |
| MD-213074 PC18 | 2024-11-310 | 6 | DIBBS |
| 5306-01-270-7215 | 2024-06-177 | 12 | United States |
| 5306-01-270-7215 | 2024-06-163 | 32 | us |
| 075528-608 | 2024-06-163 | 2 | DIBBS |
| MD-213074 PC18 | 2024-06-163 | 2 | DIBBS |
| 5306-01-270-7215 | 2024-05-128 | 4 | us |
| 075528-608 | 2023-12-337 | 2 | DIBBS |
| MD-213074 PC18 | 2023-12-337 | 2 | DIBBS |
| 075528-608 | 2023-10-276 | 3 | DIBBS |
| MD-213074 PC18 | 2023-10-276 | 3 | DIBBS |
| 075528-608 | 2023-08-234 | 2 | DIBBS |
| MD-213074 PC18 | 2023-08-234 | 2 | DIBBS |
| 075528-608 | 2023-05-130 | 1 | DIBBS |
| MD-213074 PC18 | 2023-05-130 | 1 | DIBBS |
| 071325-024 | 2020-03-75 | 2 | DIBBS |
| 71376-180 | 2020-03-75 | 2 | DIBBS |
| MD-213074 PC18 | 2020-03-75 | 2 | DIBBS |
| MD-213075 PC19 | 2020-03-75 | 2 | DIBBS |
| 5306-01-270-7215 | 2016-03-63 | 4 | DIBBS |
| 5306-01-270-7215 | 2014-03-77 | 3 | DIBBS |
| 5306-01-270-7215 | 2013-01-09 | 21 | DIBBS |
| 5306-01-270-7215 | 2012-05-129 | 24 | DIBBS |
| 5306-01-270-7215 | 2012-04-115 | 6 | DIBBS |
Cross Reference | NSN 5306-01-270-7215
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 071325-024 | 70487 | AMERIDRIVES INTERNATIONAL, LLC DBA AMERIDRIVES COUPLINGS |
| 71376-180 | 03966 | ZURN INDUSTRIES INC |
| 71376-180 | 70487 | AMERIDRIVES INTERNATIONAL, LLC DBA AMERIDRIVES COUPLINGS |
| MD-213074 PC18 | 70487 | AMERIDRIVES INTERNATIONAL, LLC DBA AMERIDRIVES COUPLINGS |
| MD-213075 PC19 | 70487 | AMERIDRIVES INTERNATIONAL, LLC DBA AMERIDRIVES COUPLINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-270-7215
Restrictions/Controls & Freight Information | NSN 5306-01-270-7215
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-270-7215
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SE : Set |
