NSN 5306-01-273-2513 MS2125008042, MS21250-08042, 01-273-2513
Product Details | SHEAR BOLT
5306-01-273-2513 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: MS2125008042, MS21250-08042, 5306-01-273-2513, 01-273-2513, 5306012732513, 012732513
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 FEB 1988 | 01-273-2513 | 15903 ( BOLT, SHEAR ) |

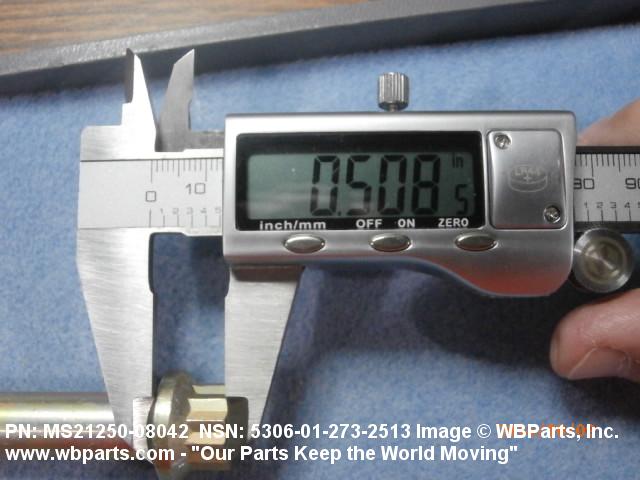

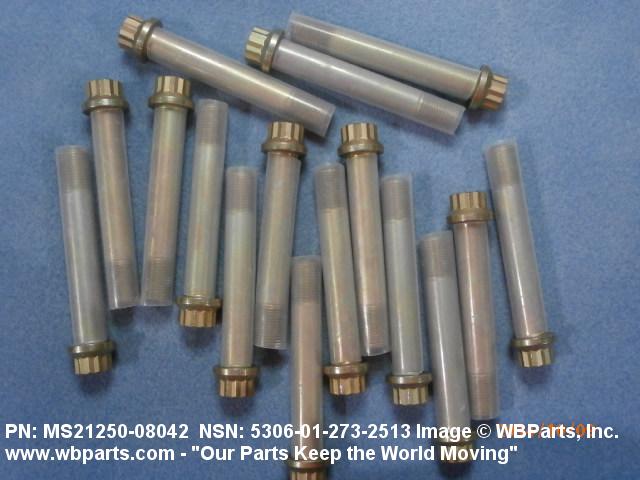

Drawings & Photos | NSN 5306-01-273-2513
Demand History | NSN 5306-01-273-2513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2125008042 | 2015-07-210 | 16 | United States |
| MS2125008042 | 2014-10-281 | 16 | United States |
| MS2125008042 | 2014-10-276 | 16 | United States |
Cross Reference | NSN 5306-01-273-2513
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21250-08042 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-273-2513
Technical Data | NSN 5306-01-273-2513
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |

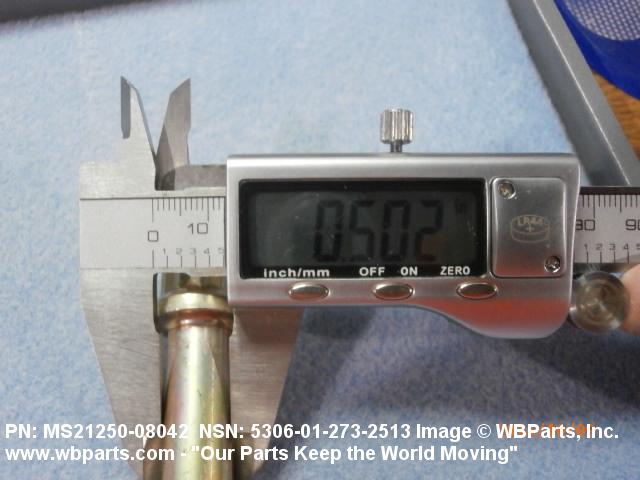

| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

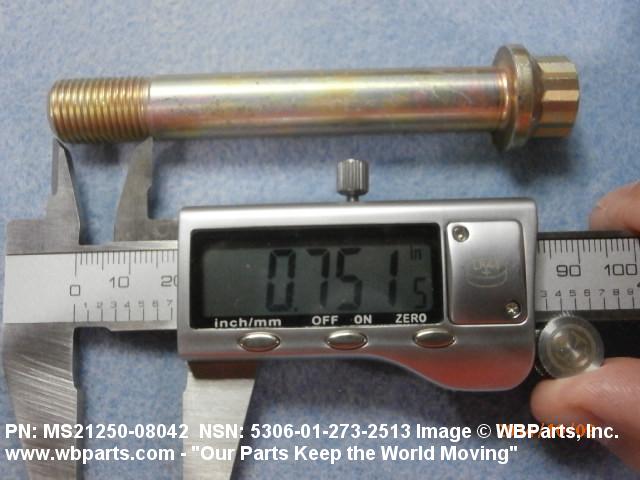

| THREAD LENGTH | 0.758 INCHES MINIMUM AND 0.778 INCHES MAXIMUM |

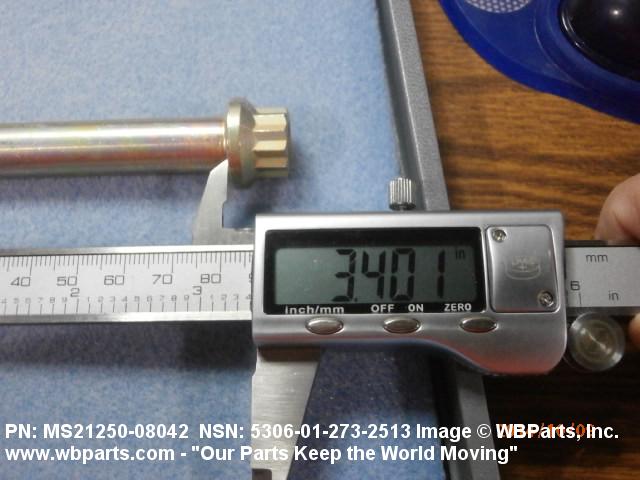

| FASTENER LENGTH | 3.403 INCHES MINIMUM AND 3.423 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 4340 OR STEEL COMP 6150 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 11,CL 2 MIL STD SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 DOUBLE HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 0.494 INCHES MINIMUM AND 0.514 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.547 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |

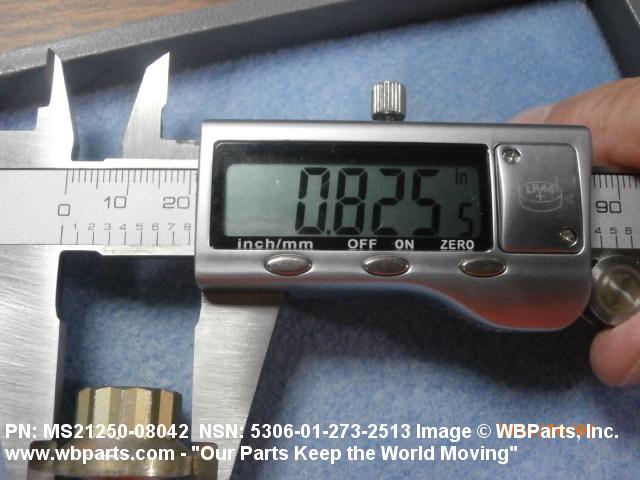

| EXTENDED WASHER DIAMETER | 0.818 INCHES MINIMUM AND 0.828 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.123 INCHES NOMINAL |

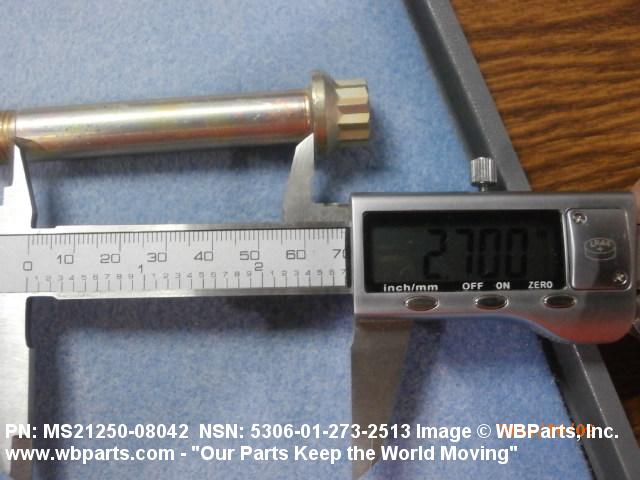

| GRIP LENGTH | 2.740 INCHES MINIMUM AND 2.760 INCHES MAXIMUM |

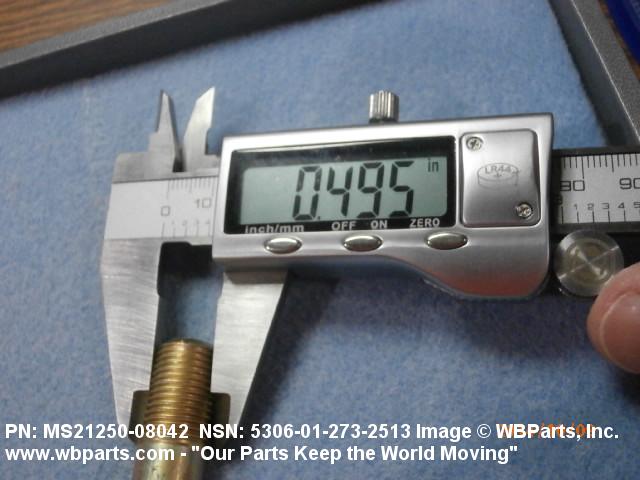

| GRIP DIAMETER | 0.4985 INCHES MINIMUM AND 0.4995 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 96906-MS21250-08042 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21250-08042 |
Restrictions/Controls & Freight Information | NSN 5306-01-273-2513
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | ZK | United Kingdom ZL ZM |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
