NSN 5306-01-332-1505 12564753, 01-332-1505, 013321505
Product Details | SHOULDER BOLT
5306-01-332-1505 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: 12564753, 5306-01-332-1505, 01-332-1505, 5306013321505, 013321505
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JAN 1991 | 01-332-1505 | 04905 ( BOLT, SHOULDER ) |
Drawings & Photos | NSN 5306-01-332-1505
Cross Reference | NSN 5306-01-332-1505
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12564753 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-332-1505
Technical Data | NSN 5306-01-332-1505
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.120 INCHES NOMINAL |
| FASTENER LENGTH | 3.270 INCHES NOMINAL |
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

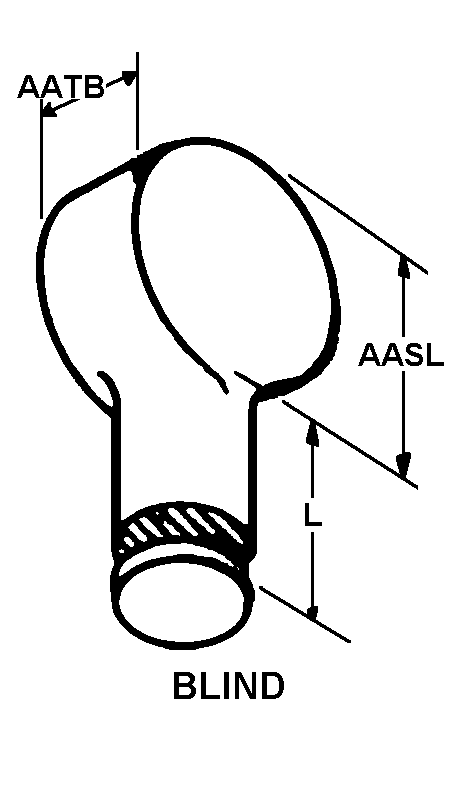

| HEAD STYLE | C71 BLIND |
| HEAD DIAMETER | 0.540 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.360 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | E9 ROUND |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.190 INCHES NOMINAL |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER DIAMETER | 0.360 INCHES NOMINAL FIRST SHOULDER |
| SHOULDER LENGTH | 0.860 INCHES NOMINAL FIRST SHOULDER |
| SPECIAL FEATURES | FURNISHED WITH LOCKING ELEMENT ON THREADS |
Restrictions/Controls & Freight Information | NSN 5306-01-332-1505
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
