NSN 5306-01-332-9249 MS2000652, MS20006-52, 01-332-9249
Product Details | INTERNAL WRENCHING BOLT
5306-01-332-9249 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: MS2000652, MS20006-52, 5306-01-332-9249, 01-332-9249, 5306013329249, 013329249
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JAN 1991 | 01-332-9249 | 06666 ( BOLT, INTERNAL WRENCHING ) |

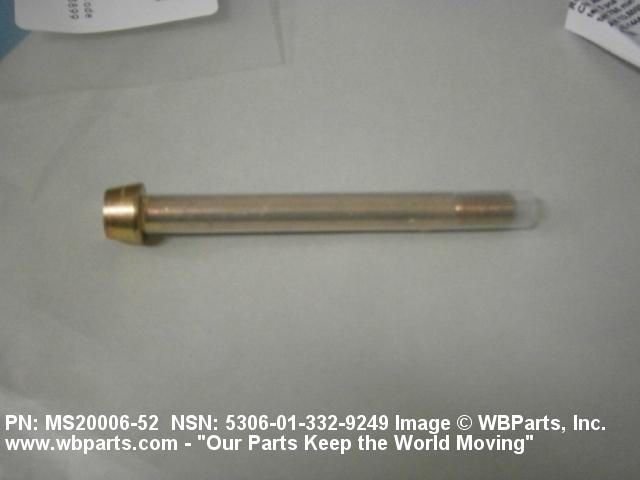

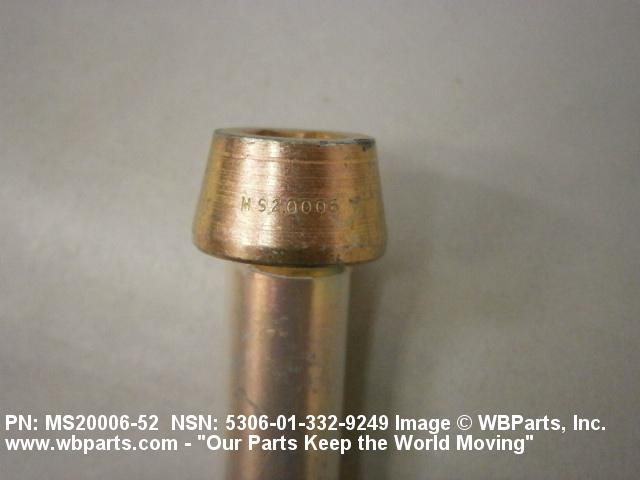

Drawings & Photos | NSN 5306-01-332-9249
Demand History | NSN 5306-01-332-9249
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-332-9249 | 2022-11-305 | 269 | DIBBS |
| 5306-01-332-9249 | 2017-06-156 | 1 | US |
| 5306-01-332-9249 | 2017-06-156 | 4 | JP |
| MS2000652 | 2017-06-156 | 2 | US |
| 5306-01-332-9249 | 2015-05-138 | 1 | US |
| MS2000652 | 2012-03-62 | 1 | us |
| MS2000652 | 2012-01-29 | 2 | US |
| MS2000652 | 2012-01-29 | 5 | US |
| 5306-01-332-9249 | 2011-05-139 | 2 | US |
| 5306-01-332-9249 | 2009-08-223 | 1 | US |
Cross Reference | NSN 5306-01-332-9249
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20006-52 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-332-9249
Technical Data | NSN 5306-01-332-9249
| Characteristic | Specifications |
|---|---|
| SPECIFICATION/STANDARD DATA | 96906-MS20006 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20006-52 |
Restrictions/Controls & Freight Information | NSN 5306-01-332-9249
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
