NSN 5306-01-341-8525 FDA1658M3, FDA-1658M-3, 01-341-8525

Product Details | RING BOLT

5306-01-341-8525 A BOLT, EYE having a nonremovable ring assembled in the eye.

Part Alternates: FDA1658M3, FDA-1658M-3, 5306-01-341-8525, 01-341-8525, 5306013418525, 013418525

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 JUL 1991	01-341-8525	01832 ( BOLT, RING )

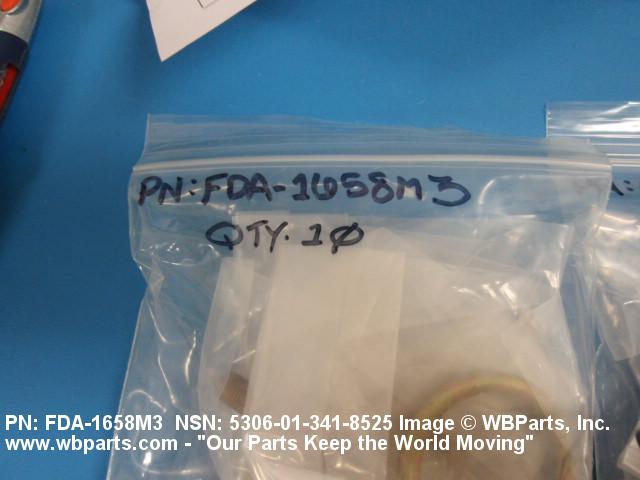

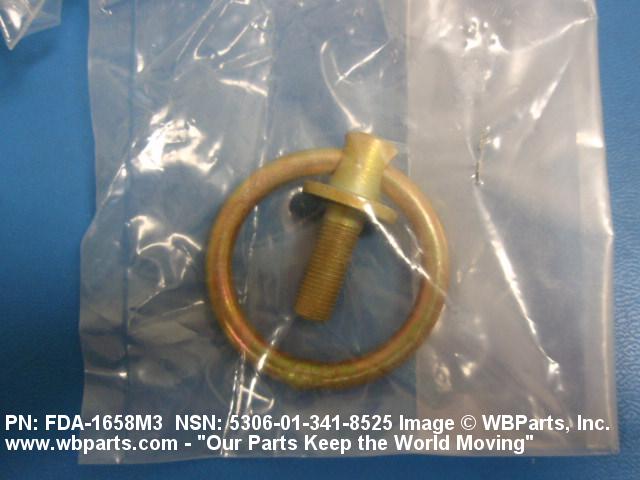

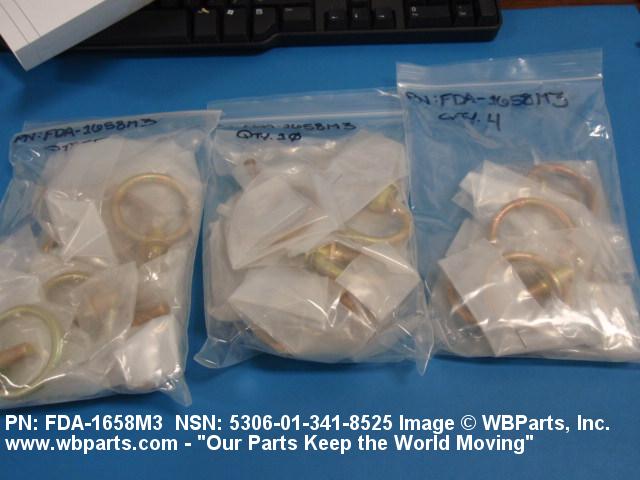

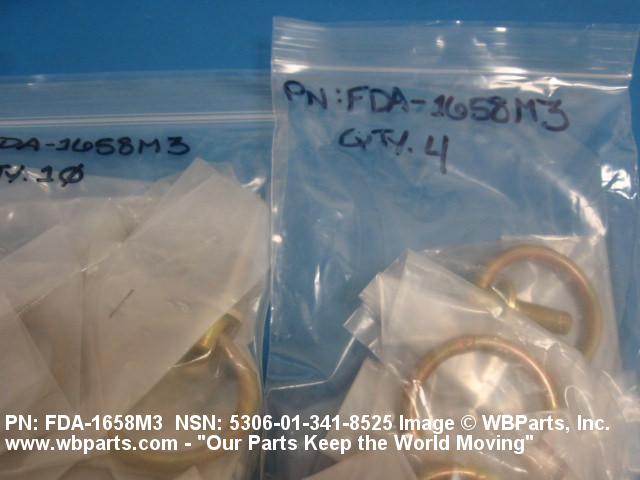

Drawings & Photos | NSN 5306-01-341-8525

Part Number	Request Date	QTY	Origin
5306-01-341-8525	2023-09-268	20	United States
FDA-1658M-3	2022-02-40	133	DIBBS
FDA-1658M-3	2022-01-25	133	DIBBS
FDA-1658M-3	2021-11-322	44	DIBBS
FDA-1658M-3	2021-08-214	178	DIBBS
FDA-1658M-3	2021-07-201	178	DIBBS
FDA1658M3	2021-06-158	558	United States
FDA-1658M-3	2020-04-93	264	DIBBS
FDA-1658M-3	2020-03-85	264	DIBBS
FDA1658M3	2019-06-157	80	US
5306-01-341-8525	2019-01-24	190	US
FDA-1658M-3	2019-01-13	244	DIBBS
FDA1658M3	2018-11-311	460	US
5306-01-341-8525	2017-11-331	40	United States
FDA1658M3	2017-08-240	387	United States
5306-01-341-8525	2017-05-129	72	US
FDA1658M3	2017-04-95	45	US
FDA1658M3	2017-04-95	45	US
FDA1658M3	2017-03-73	9	United States
5306-01-341-8525	2017-02-41	247	DIBBS
5306-01-341-8525	2017-02-32	167	US
5306-01-341-8525	2017-02-32	247	DIBBS
5306-01-341-8525	2017-01-05	167	US
5306-01-341-8525	2015-10-285	196	DIBBS
5306-01-341-8525	2015-02-47	31	DIBBS
5306-01-341-8525	2014-02-34	20	United States
5306-01-341-8525	2012-06-181	238	DIBBS
5306-01-341-8525	2012-03-67	250	DIBBS
5306-01-341-8525	2012-02-59	18	DIBBS
5306-01-341-8525	2012-02-59	24	DIBBS
5306-01-341-8525	2012-02-58	24	DIBBS
5306-01-341-8525	2012-02-52	18	DIBBS
5306-01-341-8525	2012-02-40	24	DIBBS
5306-01-341-8525	2012-01-27	20	DIBBS
5306-01-341-8525	2011-12-364	75	DIBBS
FDA1658M3	2011-02-47	152	United States
5306-01-341-8525	2011-02-32	5	US
5306-01-341-8525	2011-01-07	198	United States
FDA1658M3	2010-11-327	2300	United States
5306-01-341-8525	2010-07-207	225	United States
FDA1658M3	2009-10-289	360	United States
FDA1658M3	2009-08-230	136	United States
5306-01-341-8525	2009-06-159	243	DIBBS
FDA1658M3	2009-05-124	24	United States
FDA1658M3	2009-03-77	24	United States
FDA1658M3	2009-03-70	163	United States
5306-01-341-8525	2009-02-35	9	DIBBS
5306-01-341-8525	2009-01-07	17	DIBBS

Cross Reference | NSN 5306-01-341-8525

Part Number	Cage Code	Manufacturer
FDA-1658M-3	98313	DAVIS AIRCRAFT PRODUCTS CO., INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-341-8525

Compare

Related Products | NSN 5306-01-341-8525

5306-01-341-8526, 5306-01-341-8527, 5306-01-341-8531, 5306-01-341-8532, 5306-01-341-8533

Technical Data | NSN 5306-01-341-8525

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.690 INCHES NOMINAL
STYLE DESIGNATOR	B19 SWIVEL
SHANK LENGTH	0.850 INCHES NOMINAL
EYE STOCK DIAMETER	0.250 INCHES NOMINAL
SHOULDER DIAMETER	0.870 INCHES NOMINAL
SHOULDER LENGTH	0.670 INCHES NOMINAL
RING STOCK DIAMETER	0.250 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5306-01-341-8525

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	574	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-01-341-8525

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
