NSN 5306-01-358-9245 AIC87254, AIC872-5-4, PBF159354
Product Details | SHEAR BOLT
5306-01-358-9245 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: AIC87254, AIC872-5-4, PBF159354, PBF1593-5-4, VCG003854, VCG0038-5-4, 344754, 3447-5-4, 3D002854, 3D0028-5-4, 8426854, 84268-5-4, 5306-01-358-9245, 01-358-9245, 5306013589245, 013589245
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAY 1992 | 01-358-9245 | 15903 ( BOLT, SHEAR ) |

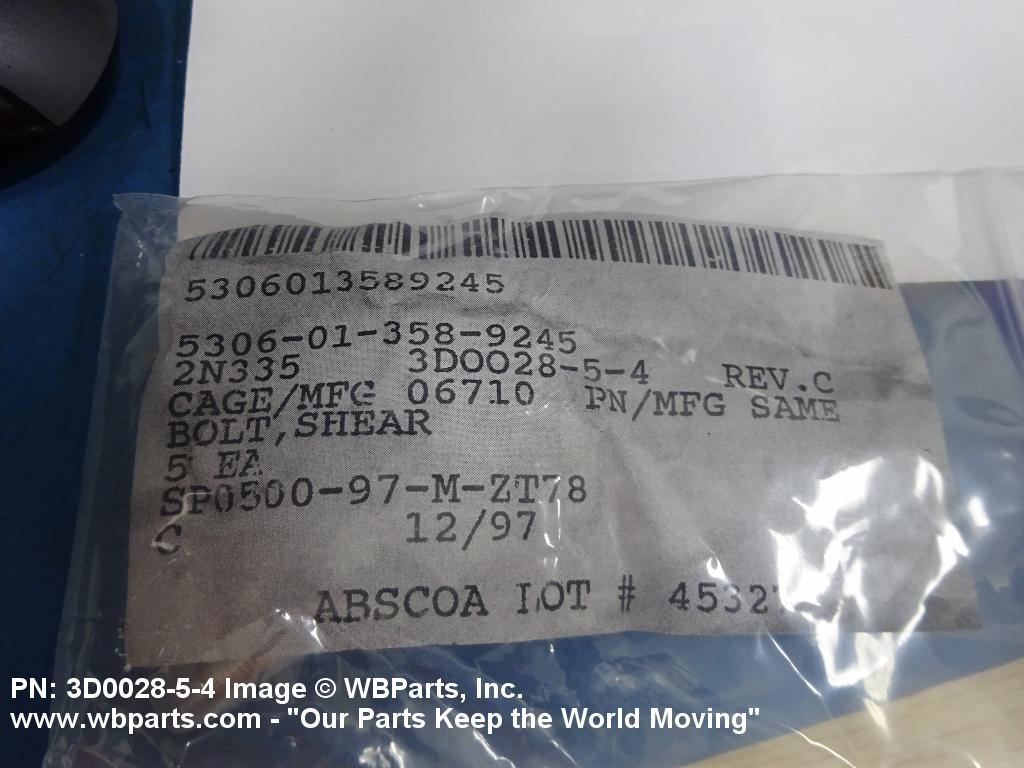

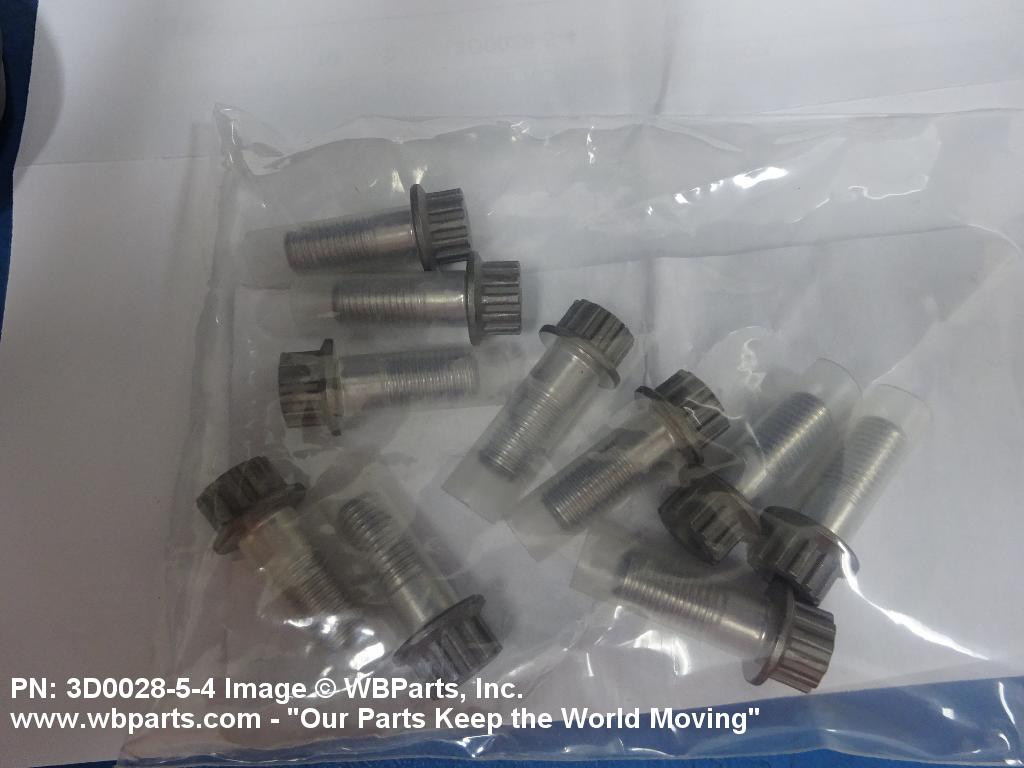

Drawings & Photos | NSN 5306-01-358-9245
Demand History | NSN 5306-01-358-9245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3D0028-5-4 | 2023-02-32 | 135 | DIBBS |
| 84268-5-4 | 2023-02-32 | 135 | DIBBS |
| AIC872-5-4 | 2023-02-32 | 135 | DIBBS |
| PBF1593-5-4 | 2023-02-32 | 135 | DIBBS |
| VCG0038-5-4 | 2023-02-32 | 135 | DIBBS |
| 3D0028-5-4 | 2022-12-340 | 111 | DIBBS |
| 84268-5-4 | 2022-12-340 | 111 | DIBBS |
| AIC872-5-4 | 2022-12-340 | 111 | DIBBS |
| PBF1593-5-4 | 2022-12-340 | 111 | DIBBS |
| VCG0038-5-4 | 2022-12-340 | 111 | DIBBS |
| 3D0028-5-4 | 2022-11-332 | 111 | DIBBS |
| 84268-5-4 | 2022-11-332 | 111 | DIBBS |
| AIC872-5-4 | 2022-11-332 | 111 | DIBBS |
| PBF1593-5-4 | 2022-11-332 | 111 | DIBBS |
| VCG0038-5-4 | 2022-11-332 | 111 | DIBBS |
| 3D0028-5-4 | 2022-11-324 | 111 | DIBBS |
| 84268-5-4 | 2022-11-324 | 111 | DIBBS |
| AIC872-5-4 | 2022-11-324 | 111 | DIBBS |
| PBF1593-5-4 | 2022-11-324 | 111 | DIBBS |
| VCG0038-5-4 | 2022-11-324 | 111 | DIBBS |
| 3D0028-5-4 | 2022-09-258 | 38 | DIBBS |
| 84268-5-4 | 2022-09-258 | 38 | DIBBS |
| AIC872-5-4 | 2022-09-258 | 38 | DIBBS |
| PBF1593-5-4 | 2022-09-258 | 38 | DIBBS |
| VCG0038-5-4 | 2022-09-258 | 38 | DIBBS |
| 3D002854 | 2022-04-118 | 10 | United States |
| 5306-01-358-9245 | 2022-04-117 | 10 | United States |
| 3D0028-5-4 | 2022-01-10 | 7 | DIBBS |
| 84268-5-4 | 2022-01-10 | 7 | DIBBS |
| AIC872-5-4 | 2022-01-10 | 7 | DIBBS |
| PBF1593-5-4 | 2022-01-10 | 7 | DIBBS |
| VCG0038-5-4 | 2022-01-10 | 7 | DIBBS |
| 3D0028-5-4 | 2021-05-129 | 35 | DIBBS |
| 84268-5-4 | 2021-05-129 | 35 | DIBBS |
| AIC872-5-4 | 2021-05-129 | 35 | DIBBS |
| PBF1593-5-4 | 2021-05-129 | 35 | DIBBS |
| VCG0038-5-4 | 2021-05-129 | 35 | DIBBS |
| 3D0028-5-4 | 2021-02-56 | 7 | DIBBS |
| 84268-5-4 | 2021-02-56 | 7 | DIBBS |
| AIC872-5-4 | 2021-02-56 | 7 | DIBBS |
| PBF1593-5-4 | 2021-02-56 | 7 | DIBBS |
| VCG0038-5-4 | 2021-02-56 | 7 | DIBBS |
| 3D0028-5-4 | 2020-03-77 | 108 | DIBBS |
| 84268-5-4 | 2020-03-77 | 108 | DIBBS |
| AIC872-5-4 | 2020-03-77 | 108 | DIBBS |
| PBF1593-5-4 | 2020-03-77 | 108 | DIBBS |
| VCG0038-5-4 | 2020-03-77 | 108 | DIBBS |
| 5306-01-358-9245 | 2011-12-353 | 14 | DIBBS |
| 5306-01-358-9245 | 2011-05-124 | 7 | DIBBS |
| 5306-01-358-9245 | 2011-05-124 | 10 | DIBBS |
| 5306-01-358-9245 | 2011-04-109 | 10 | DIBBS |
| 5306-01-358-9245 | 2011-03-67 | 7 | DIBBS |
| 5306-01-358-9245 | 2010-07-210 | 10 | DIBBS |
| 5306-01-358-9245 | 2010-05-126 | 23 | DIBBS |
| 5306-01-358-9245 | 2009-10-289 | 12 | DIBBS |
| 5306-01-358-9245 | 2009-09-265 | 12 | DIBBS |
Cross Reference | NSN 5306-01-358-9245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3447-5-4 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3D0028-5-4 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3D0028-5-4 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 84268-5-4 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| AIC872-5-4 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| PBF1593-5-4 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| VCG0038-5-4 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-358-9245
Technical Data | NSN 5306-01-358-9245
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.467 INCHES NOMINAL |
| FASTENER LENGTH | 0.702 INCHES MINIMUM AND 0.732 INCHES MAXIMUM |
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| SINGLE SHEAR STRENGTH | 108000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C11 SPLINE EXTENDED WASHER |
| HEAD HEIGHT | 0.312 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 0.575 INCHES MINIMUM AND 0.585 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.045 INCHES NOMINAL |
| HEAD MINOR DIAMETER | 0.383 INCHES MINIMUM AND 0.389 INCHES MAXIMUM |
| GRIP LENGTH | 0.250 INCHES NOMINAL |
| GRIP DIAMETER | 0.311 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5306-01-358-9245
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-358-9245
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
