NSN 5306-01-389-0244 RT132BA42L, RT132BA4-2L, 5306010A42L
Product Details | INTERNAL WRENCHING BOLT
5306-01-389-0244 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: RT132BA42L, RT132BA4-2L, 5306010A42L, 5306-010A4-2L, 5306-01-389-0244, 01-389-0244, 5306013890244, 013890244
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 APR 1994 | 01-389-0244 | 06666 ( BOLT, INTERNAL WRENCHING ) |

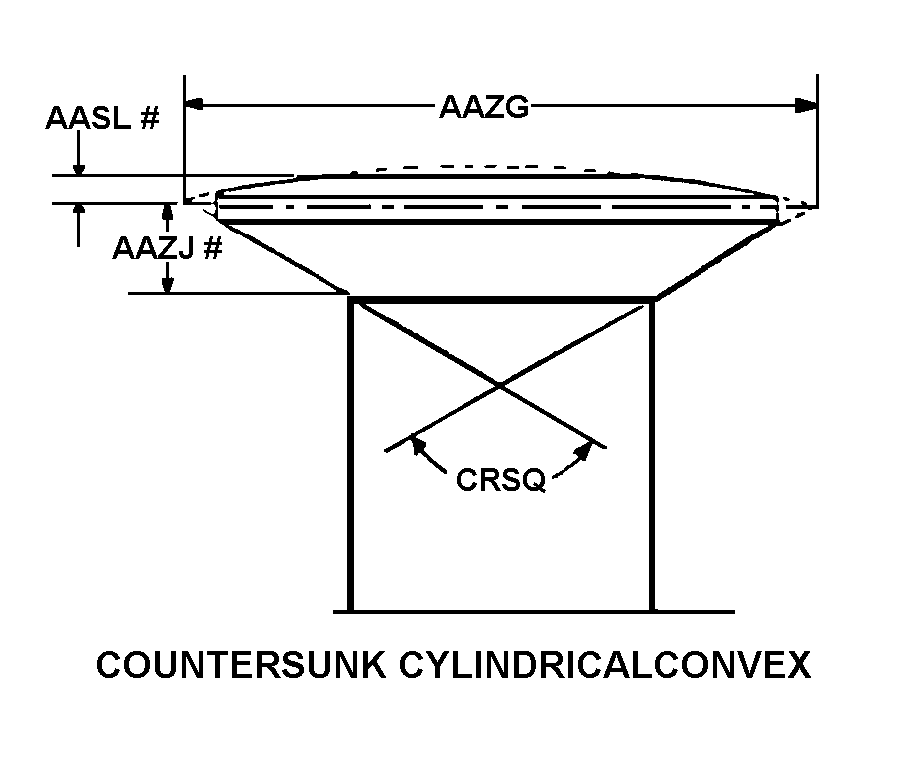

Drawings & Photos | NSN 5306-01-389-0244
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-389-0244
Technical Data | NSN 5306-01-389-0244
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.725 INCHES MINIMUM AND 0.865 INCHES MAXIMUM |
| FASTENER LENGTH | 1.015 INCHES NOMINAL |
| MATERIAL | STEEL COMP 631 SPRING STEEL COMP 4140 OR STEEL COMP 8740 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5678 ASSN STD SINGLE MATERIAL RESPONSE SPRING MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE FASTENER |
| SURFACE TREATMENT | PASSIVATE SPRING CADMIUM FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING QQ-P-416,TYPE II, CL 2 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C114 COUNTERSUNK CYLINDRICAL CONVEX |
| HEAD MAJOR DIAMETER | 0.402 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.141 INCHES NOMINAL |
| SPECIAL FEATURES | "O" RING SYNTHETIC RUBBER PER MIL-R-6855, CL I, GRADE 60:5306-010 BOLTS ARE INTENDED FOR USE WITH 5310-039 RECEPTACLE, 5365-010 RING AND 5325 -014 GROMMET |
| III END ITEM IDENTIFICATION | PACER DAWN |
