NSN 5306-01-408-4049 MS2000510, MS20005-10, 01-408-4049

Product Details | INTERNAL WRENCHING BOLT

5306-01-408-4049 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.

Part Alternates: MS2000510, MS20005-10, 5306-01-408-4049, 01-408-4049, 5306014084049, 014084049

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	16 FEB 1995	01-408-4049	06666 ( BOLT, INTERNAL WRENCHING )

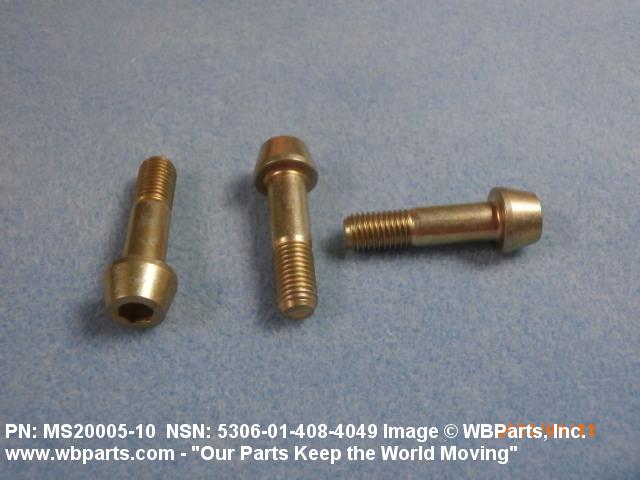

Drawings & Photos | NSN 5306-01-408-4049

Part Number	Request Date	QTY	Origin
MS2000510	2024-10-295	50	Japan
MS2000510	2017-10-283	2	United States
5306-01-408-4049	2017-05-151	5895	DIBBS
5306-01-408-4049	2017-01-26	40	US
MS2000510	2016-11-308	44	United States
5306-01-408-4049	2016-06-181	3717	DIBBS
5306-01-408-4049	2016-06-154	1018	DIBBS
5306-01-408-4049	2016-05-140	1	Canada
MS2000510	2016-04-118	10	United Arab Emirates
5306-01-408-4049	2015-10-302	2060	DIBBS
5306-01-408-4049	2015-10-286	734	DIBBS
MS2000510	2015-05-148	10	US
MS20005-10	2014-09-272	100	United States
MS20005-10	2013-11-322	24	Belgium
MS2000510	2013-09-262	40	United Kingdom
MS2000510	2012-07-196	18	CA
MS2000510	2012-06-157	20	CA
MS2000510	2012-06-157	20	CA
MS2000510	2010-09-263	250	US
5306-01-408-4049	2009-12-355	105	US
5306-01-408-4049	2009-09-262	20	US

Cross Reference | NSN 5306-01-408-4049

Part Number	Cage Code	Manufacturer
MS20005-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-408-4049

Compare

Related Products | NSN 5306-01-408-4049

5306-01-408-4061, 5306-01-408-4064, 5306-01-408-4540, 5306-01-408-4669, 5306-01-408-4835

Technical Data | NSN 5306-01-408-4049

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF

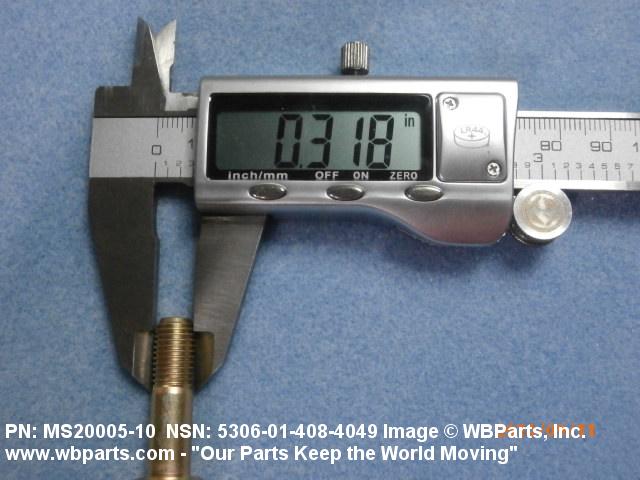

NOMINAL THREAD DIAMETER	0.312 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

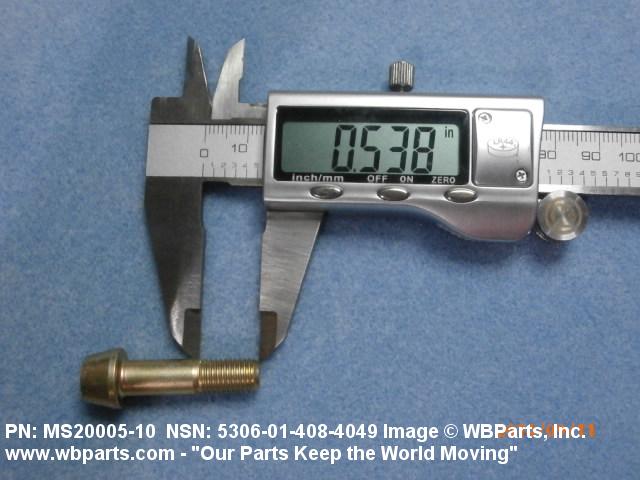

THREAD LENGTH	0.537 INCHES MINIMUM

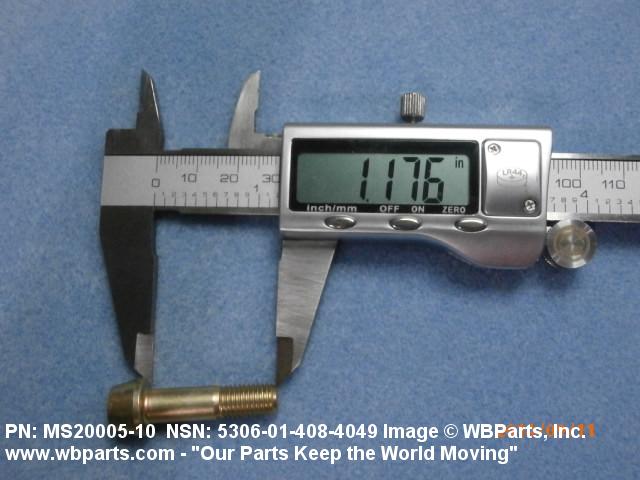

FASTENER LENGTH	1.173 INCHES MINIMUM AND 1.203 INCHES MAXIMUM
MATERIAL	STEEL COMP 4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C28 BEVEL-CONICAL

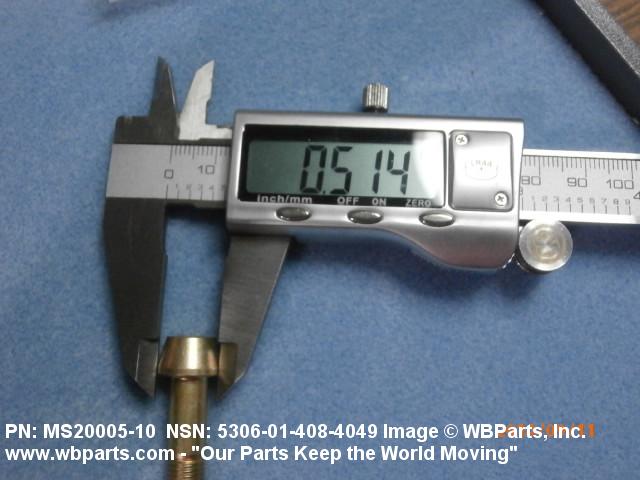

HEAD DIAMETER	0.521 INCHES MINIMUM AND 0.531 INCHES MAXIMUM
HEAD HEIGHT	0.312 INCHES NOMINAL

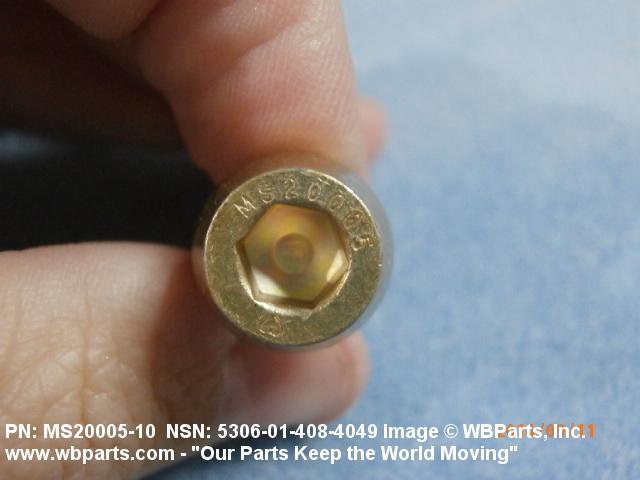

INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.219 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20005-10

Restrictions/Controls & Freight Information | NSN 5306-01-408-4049

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-01-408-4049

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
