NSN 5306-01-419-4095 AES07M10C030CG7A81, B18.3.1M-M10X1.5X30SHCSZNPLATED, B18231B10030N

Product Details | MACHINE BOLT

5306-01-419-4095 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AES07M10C030CG7A81, B18.3.1M-M10X1.5X30SHCSZNPLATED, B18231B10030N, B1831MM10X15X30SHCSZNPLATED, 5306-01-419-4095, 01-419-4095, 5306014194095, 014194095

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 SEP 1985	01-419-4095	01847 ( BOLT, MACHINE )

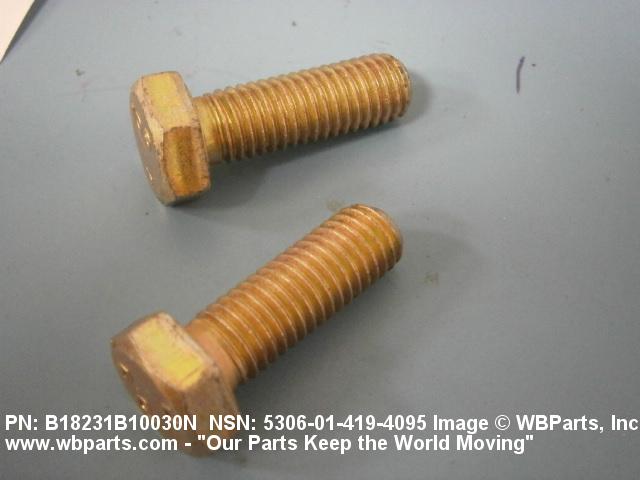

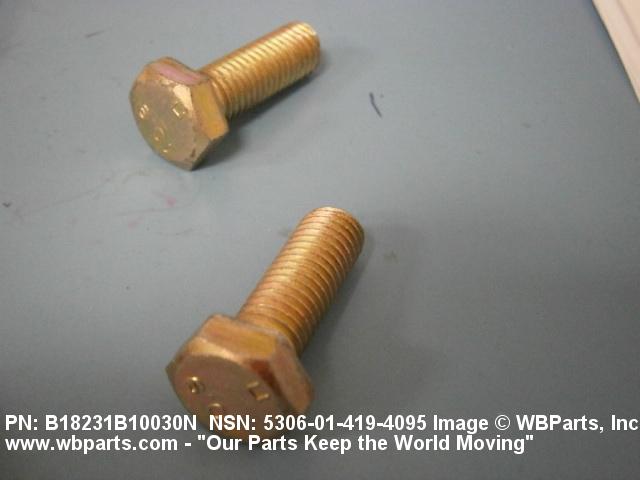

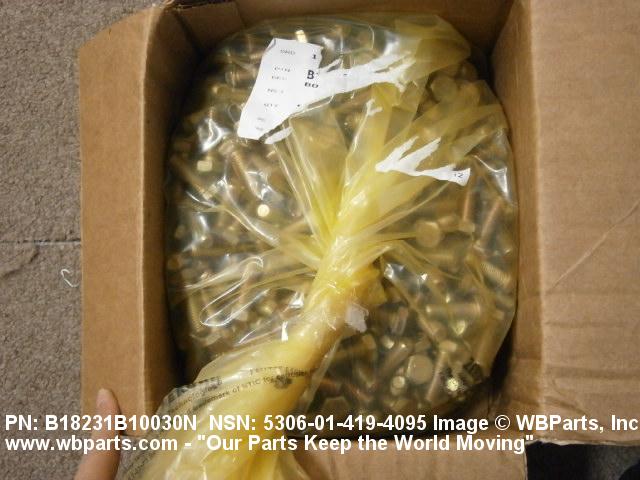

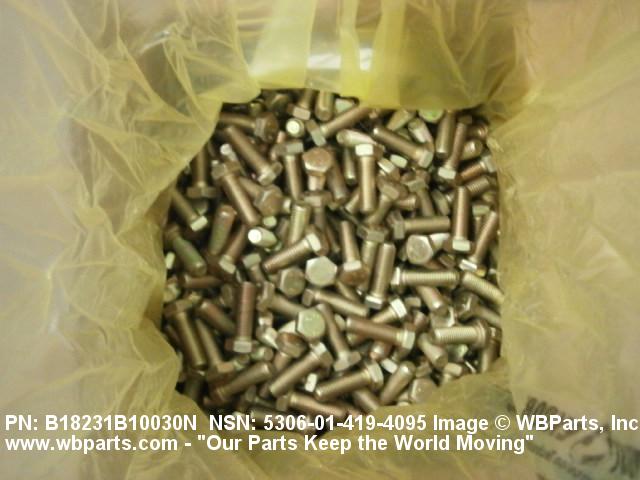

Drawings & Photos | NSN 5306-01-419-4095

Part Number	Request Date	QTY	Origin
5306-01-419-4095	2025-01-21	6828	DIBBS
5306-01-419-4095	2024-06-177	6107	DIBBS
5306-01-419-4095	2024-06-169	6107	DIBBS
5306-01-419-4095	2023-04-107	7213	DIBBS
5306-01-419-4095	2023-01-19	4800	DIBBS
5306-01-419-4095	2022-10-289	5077	DIBBS
5306-01-419-4095	2022-08-226	3572	DIBBS
5306-01-419-4095	2022-02-34	3572	DIBBS
5306-01-419-4095	2022-01-25	3572	DIBBS
5306-01-419-4095	2021-11-319	2088	DIBBS
5306-01-419-4095	2021-11-305	2088	DIBBS
5306-01-419-4095	2021-09-262	2728	DIBBS
B18231B10030N	2020-03-62	40	US
B18231B10030N	2014-04-91	10	Australia
5306-01-419-4095	2013-10-287	7848	DIBBS
B18231B10030N	2013-09-253	25	United States
B18231B10030N	2013-09-253	50	United States
B18231B10030N	2013-09-253	100	United States
B18231B10030N	2012-06-156	9313	US
5306-01-419-4095	2012-05-151	9313	DIBBS
B18231B10030N	2011-12-362	504	United States
5306-01-419-4095	2011-12-341	1426	DIBBS
5306-01-419-4095	2011-10-284	1370	DIBBS
5306-01-419-4095	2011-09-259	283	DIBBS
5306-01-419-4095	2011-09-245	259	DIBBS
5306-01-419-4095	2011-06-160	134	DIBBS
5306-01-419-4095	2010-12-343	134	DIBBS
5306-01-419-4095	2010-04-120	433	DIBBS
5306-01-419-4095	2009-06-173	151	DIBBS
5306-01-419-4095	2009-01-08	17	DIBBS
5306-01-419-4095	2008-05-151	17	DIBBS
5306-01-419-4095	2008-03-73	43	DIBBS

Cross Reference | NSN 5306-01-419-4095

Part Number	Cage Code	Manufacturer
AES07M10C030CG7A81	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
B18.3.1M-M10X1.5X30SHCSZNPLATED	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
B18231B10030N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-419-4095

Compare

Related Products | NSN 5306-01-419-4095

5306-01-419-4096, 5306-01-419-4099, 5306-01-419-4100, 5306-01-419-4248, 5306-01-419-4447

Technical Data | NSN 5306-01-419-4095

Characteristic	Specifications
THREAD SERIES DESIGNATOR	M
NOMINAL THREAD DIAMETER	10.0 MILLIMETERS
THREAD PITCH IN MILLIMETERS	1.5
EXTERNAL THREAD TOLERANCE CLASS	6G
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	27.4 MILLIMETERS MINIMUM AND 30.4 MILLIMETERS MAXIMUM
FASTENER LENGTH	29.60 MILLIMETERS MINIMUM AND 30.40 MILLIMETERS MAXIMUM
MATERIAL	STEEL PROPERTY CLASS 10.9 OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	DSTM B633 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	33.0 ROCKWELL C MINIMUM AND 39.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	1040 MEGAPASCALS
MINIMUM YIELD STRENGTH	940 MEGAPASCALS
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	6.17 MILLIMETERS MINIMUM AND 6.63 MILLIMETERS MAXIMUM
WIDTH BETWEEN FLATS	15.73 MILLIMETERS MINIMUM AND 16.00 MILLIMETERS MAXIMUM
FEATURES PROVIDED	FINISHED HEAD

Restrictions/Controls & Freight Information | NSN 5306-01-419-4095

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	574	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-01-419-4095

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	MM	SU:F-86 SABRE
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
