NSN 5306-01-424-2476 014242476
Product Details | AIRCRAFT STRUCTURAL COMPONENT SUPPORT
5306-01-424-2476 A device of various shapes to be permanently attached to the structure of an aircraft. It is designed to permanently mount and/or support an integral member, or group of members of the airframe in a proper position and bear the stress imposed by the components being supported. It may have mounting provisions, such as slots, holes, and/or attachments to facilitate installation. Excludes items which are primarily designed for dampening shock and/or vibration. Excludes BRACKET, ANGLE; BRACKET, DOUBLE ANGLE; BRACKET, SHELF; BRACKET, MOUNTING; BRACKET (1), STRUCTURAL COMPONENT, AIRCRAFT; and RADIUS BLOCK.
Part Alternates: 014242476
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 24-JAN-96 | 01-424-2476 | 32243 ( SUPPORT, STRUCTURAL COMPONENT, AIRCRAFT ) |

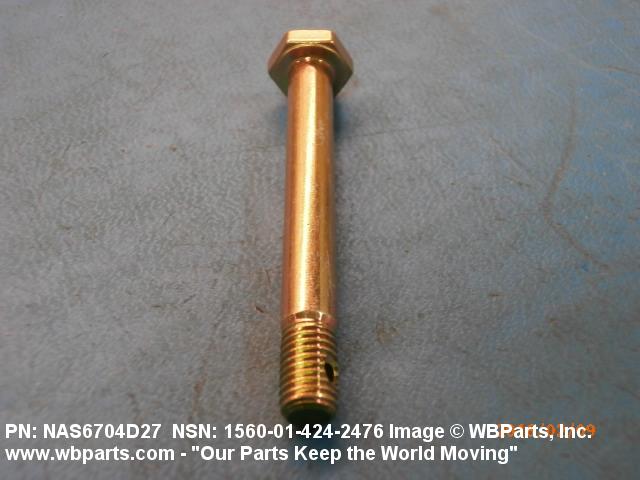

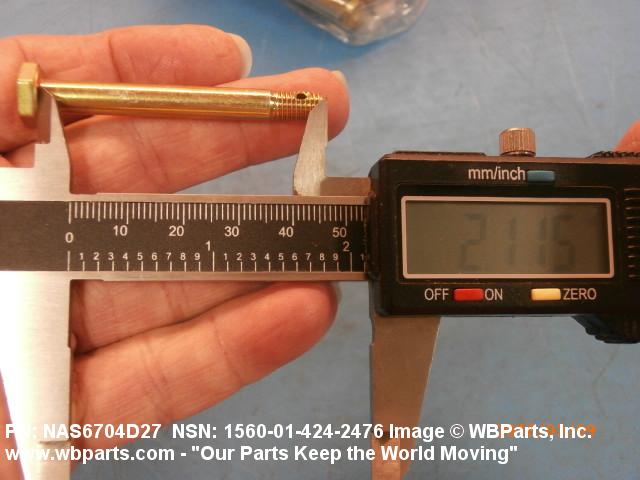

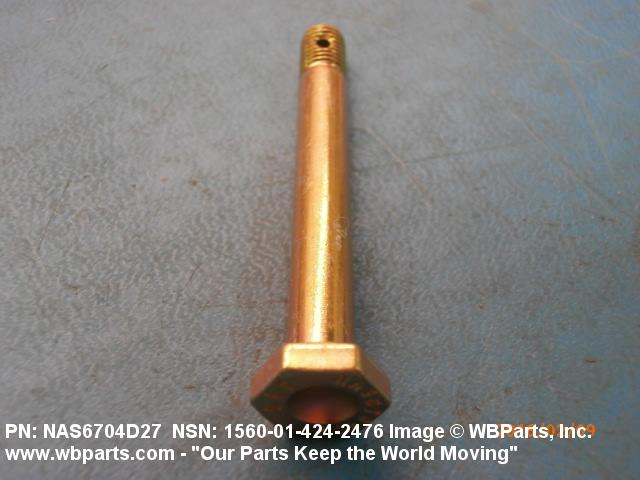

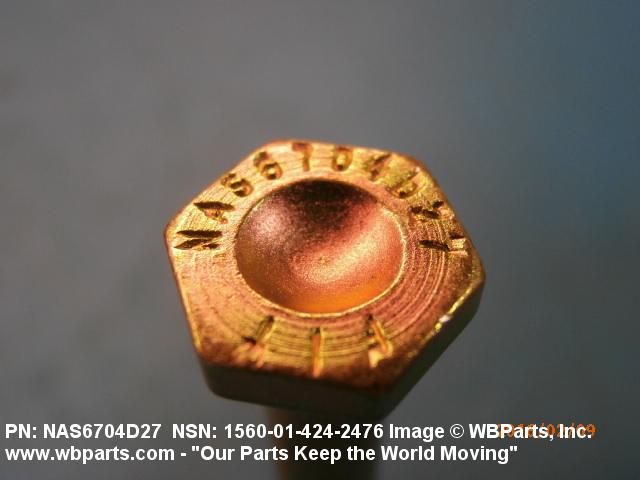

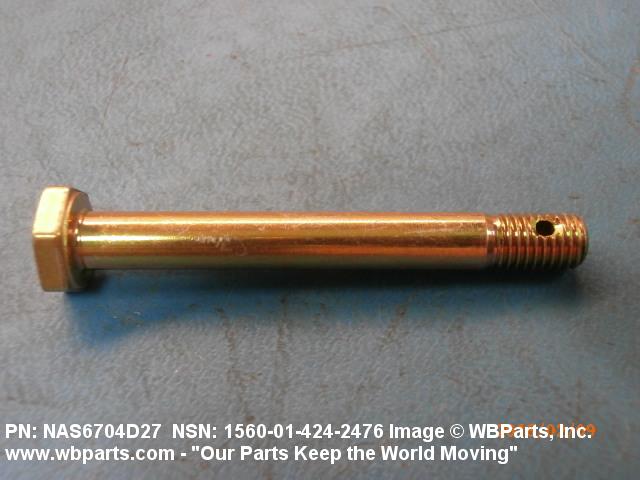

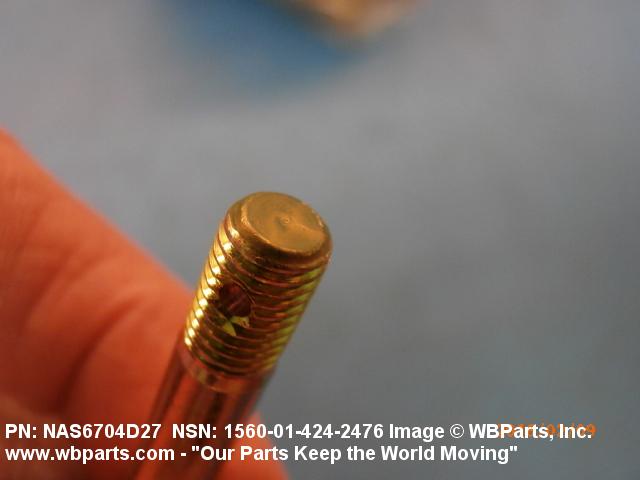

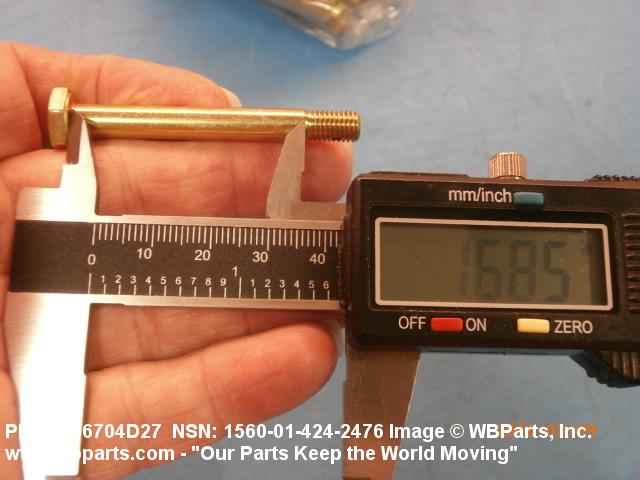

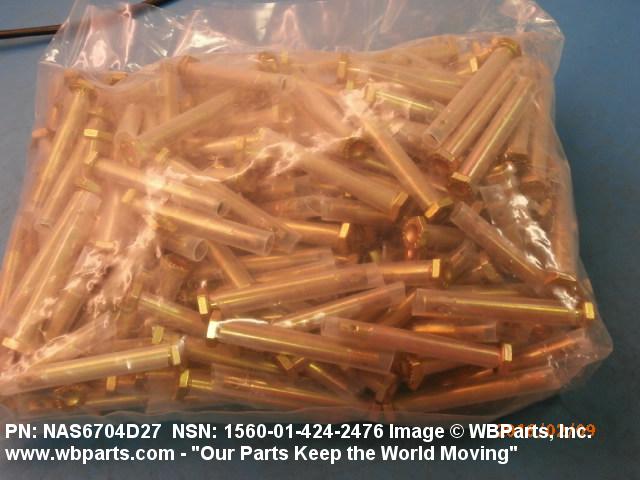

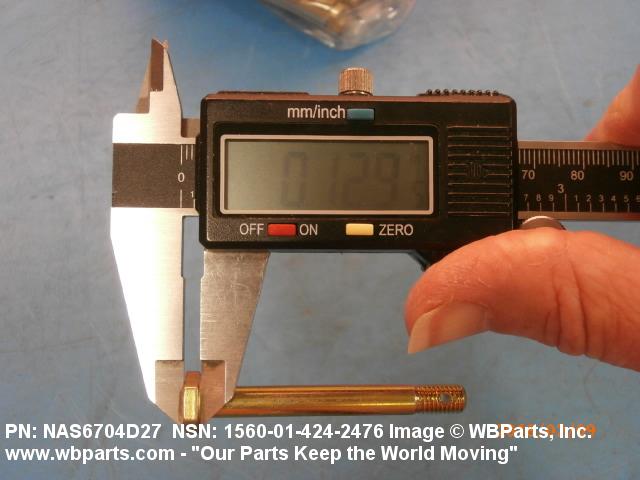

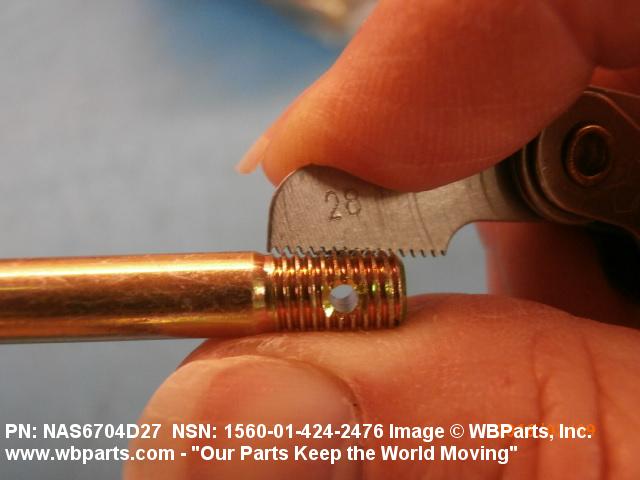

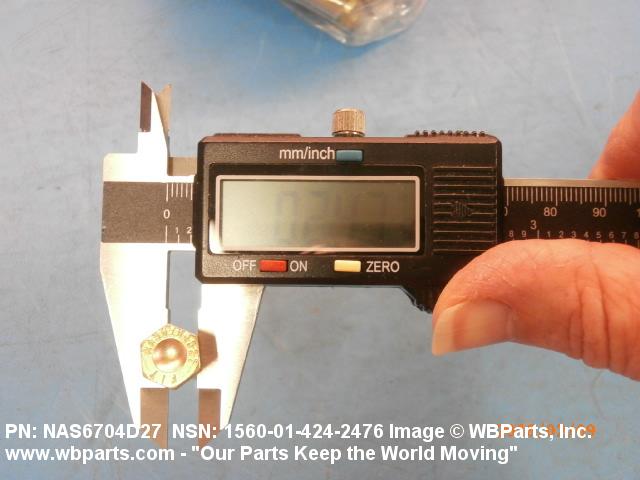

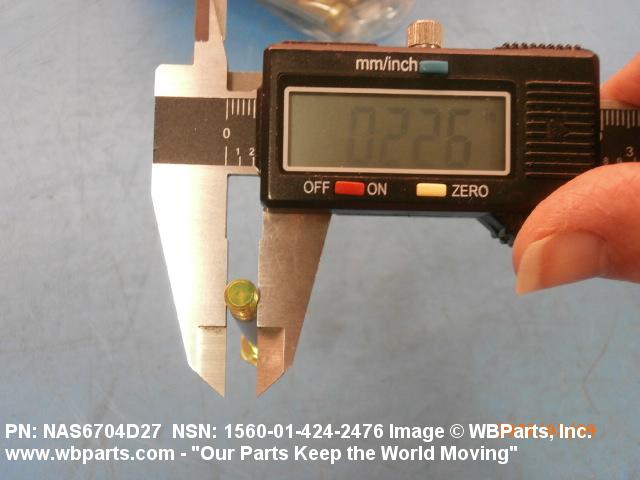

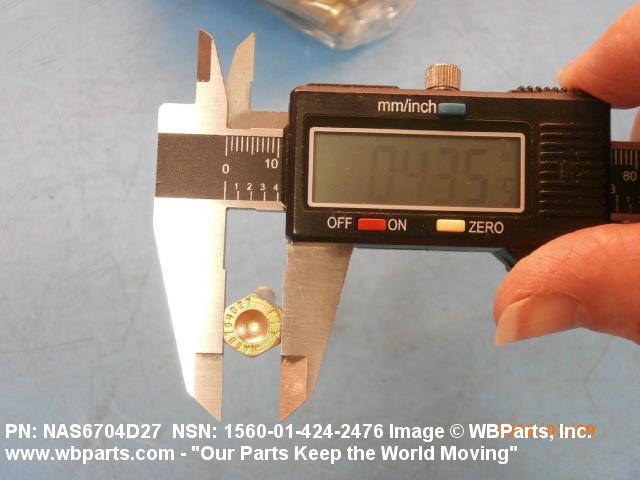

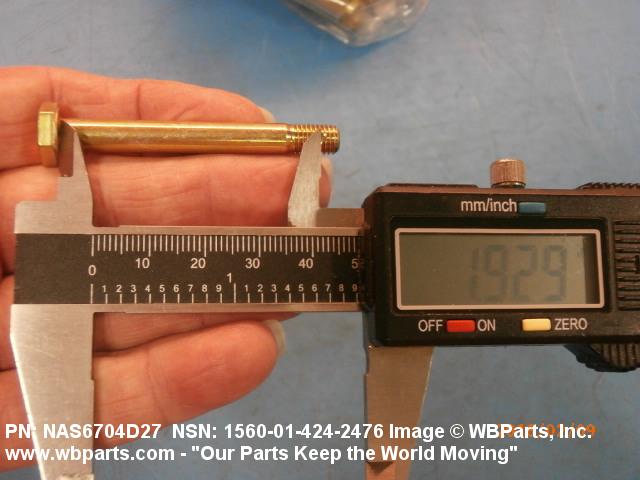

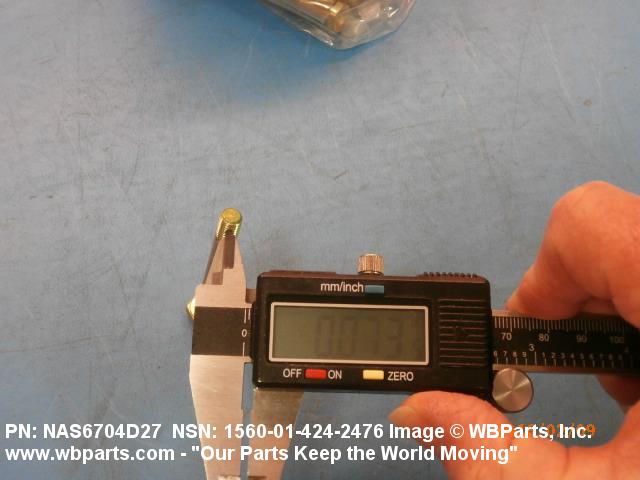

Drawings & Photos | NSN 1560-01-424-2476
Demand History | NSN 5306-01-424-2476
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS6704D27 | 2016-01-25 | 20 | United States |
| NAS6704D27 | 2016-01-25 | 200 | United States |
| NAS6704D27 | 2016-01-21 | 200 | United States |
| NAS6704D27 | 2016-01-14 | 200 | United States |
| 1560-01-424-2476 | 2013-08-225 | 58 | DIBBS |
Cross Reference | NSN 5306-01-424-2476
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS6704D27 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-424-2476
Technical Data | NSN 5306-01-424-2476
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | BOLT |
| III END ITEM IDENTIFICATION | AIRCRAFT E-3 |
Restrictions/Controls & Freight Information | NSN 5306-01-424-2476
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
