NSN 5306-01-462-6778 MC4243V12D82, AIC6924V12D82, HS4243V12D82

Product Details | MACHINE BOLT

5306-01-462-6778 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: MC4243V12D82, AIC6924V12D82, HS4243V12D82, SII1263V12D82, SLB351V12D82, PBF146612D82, PBF1466-12D82, 76924V12D82, 5306-01-462-6778, 01-462-6778, 5306014626778, 014626778

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	12 FEB 1999	01-462-6778	01847 ( BOLT, MACHINE )

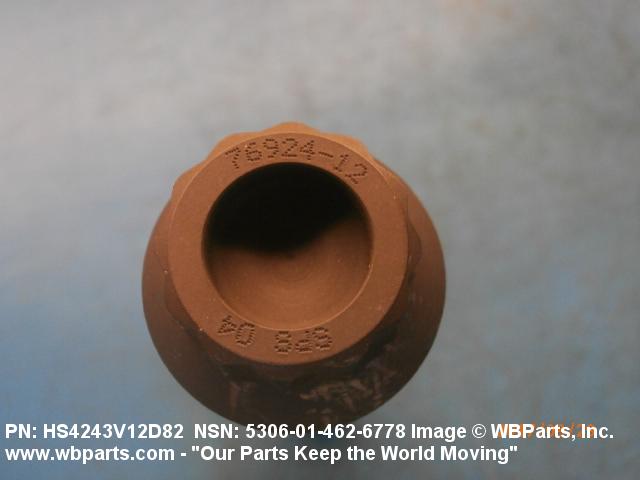

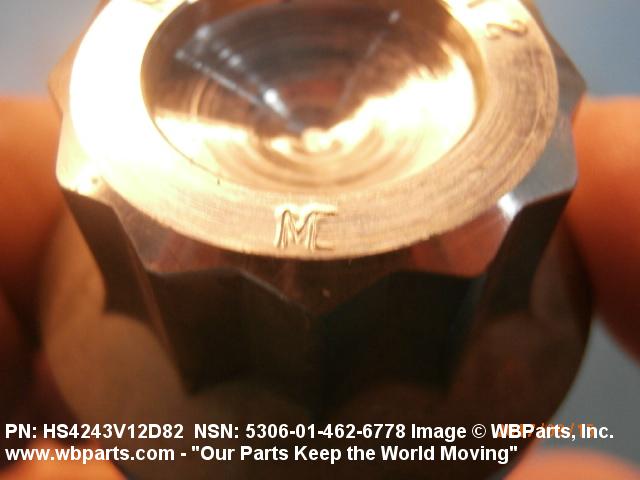

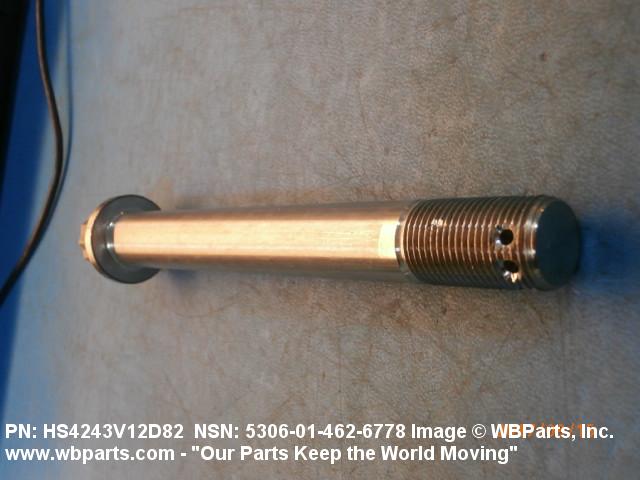

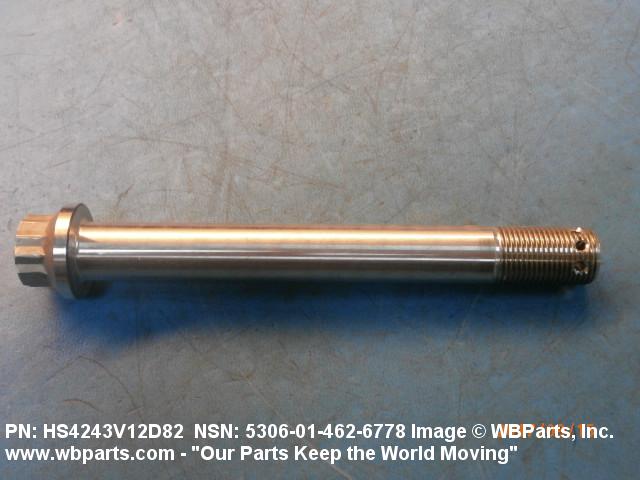

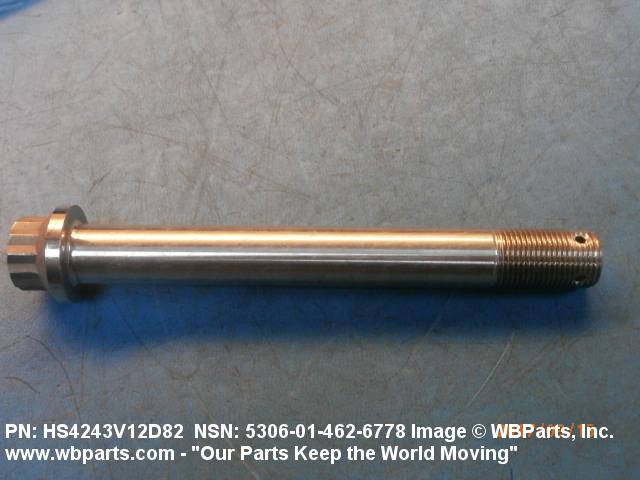

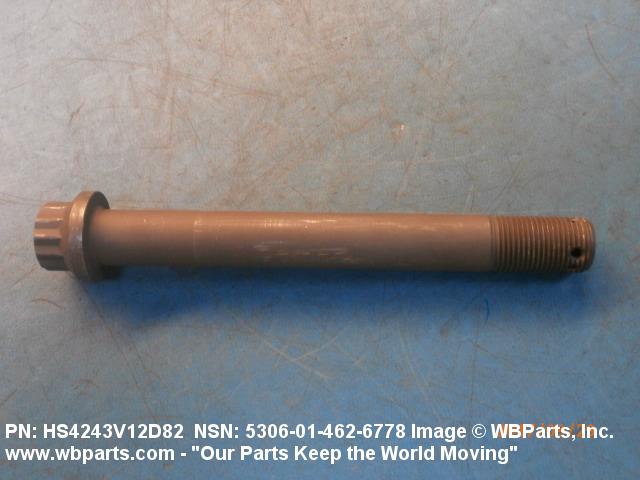

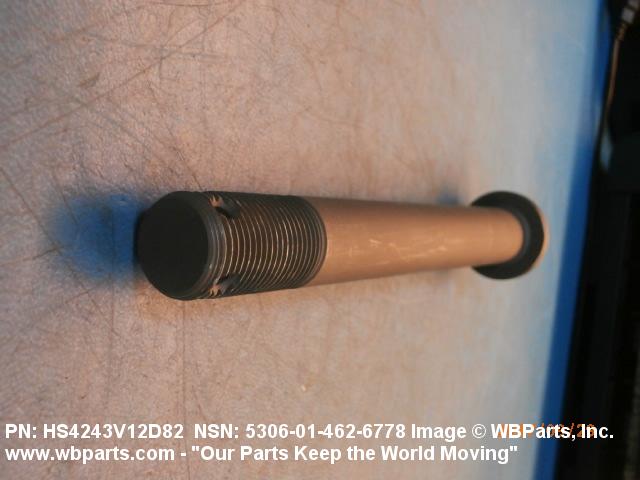

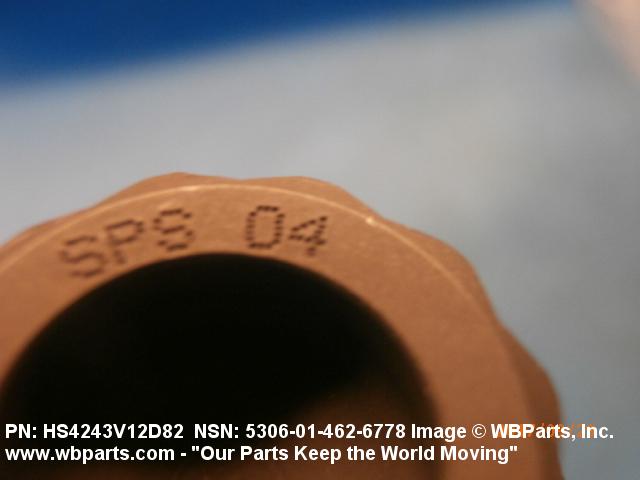

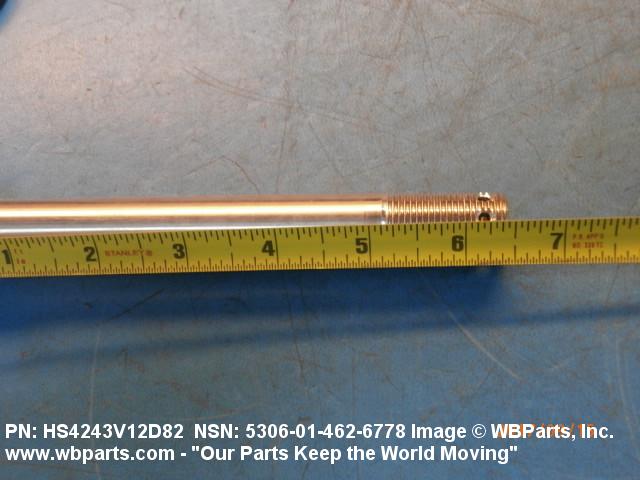

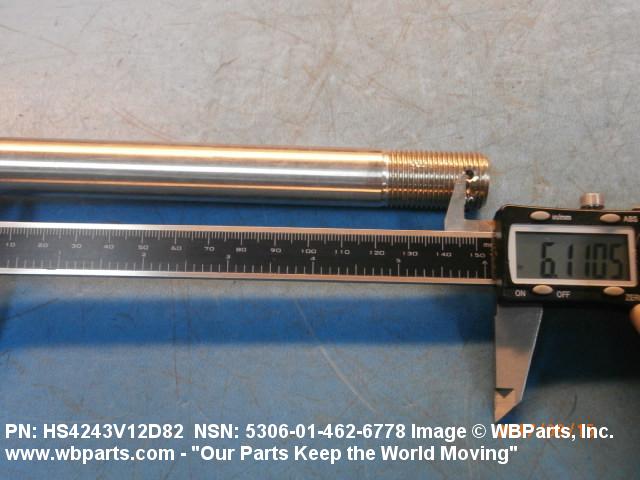

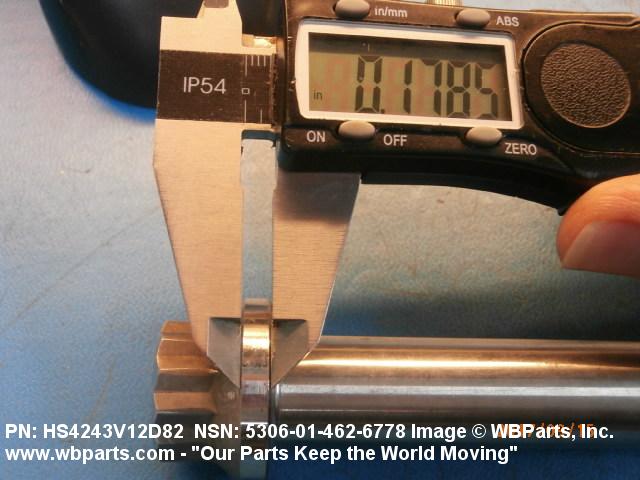

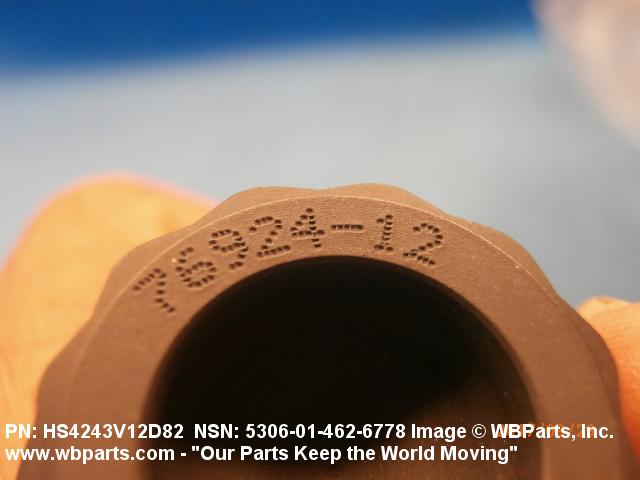

Drawings & Photos | NSN 5306-01-462-6778

Part Number	Request Date	QTY	Origin
76924V12D82	2020-01-23	26	DIBBS
AIC6924V12D82	2020-01-23	26	DIBBS
HS4243V12D82	2020-01-23	26	DIBBS
SII1263V12D82	2020-01-23	26	DIBBS
SLB351V12D82	2020-01-23	26	DIBBS
76924V12D82	2020-01-14	250	DIBBS
AIC6924V12D82	2020-01-14	250	DIBBS
HS4243V12D82	2020-01-14	250	DIBBS
SII1263V12D82	2020-01-14	250	DIBBS
SLB351V12D82	2020-01-14	250	DIBBS
5306-01-462-6778	2019-10-289	250	US
76924V12D82	2019-10-289	250	DIBBS
AIC6924V12D82	2019-10-289	250	DIBBS
HS4243V12D82	2019-10-289	250	DIBBS
SII1263V12D82	2019-10-289	250	DIBBS
SLB351V12D82	2019-10-289	250	DIBBS
76924V12D82	2019-09-269	244	DIBBS
AIC6924V12D82	2019-09-269	244	DIBBS
HS4243V12D82	2019-09-269	244	DIBBS
SII1263V12D82	2019-09-269	244	DIBBS
SLB351V12D82	2019-09-269	244	DIBBS
76924V12D82	2019-09-248	109	DIBBS
AIC6924V12D82	2019-09-248	109	DIBBS
HS4243V12D82	2019-09-248	109	DIBBS
SII1263V12D82	2019-09-248	109	DIBBS
SLB351V12D82	2019-09-248	109	DIBBS
76924V12D82	2019-08-220	34	DIBBS
AIC6924V12D82	2019-08-220	34	DIBBS
HS4243V12D82	2019-08-220	34	DIBBS
SII1263V12D82	2019-08-220	34	DIBBS
SLB351V12D82	2019-08-220	34	DIBBS
76924V12D82	2019-07-212	139	DIBBS
AIC6924V12D82	2019-07-212	139	DIBBS
HS4243V12D82	2019-07-212	139	DIBBS
SII1263V12D82	2019-07-212	139	DIBBS
SLB351V12D82	2019-07-212	139	DIBBS
76924V12D82	2019-05-122	132	DIBBS
AIC6924V12D82	2019-05-122	132	DIBBS
HS4243V12D82	2019-05-122	132	DIBBS
SII1263V12D82	2019-05-122	132	DIBBS
SLB351V12D82	2019-05-122	132	DIBBS
5306-01-462-6778	2018-08-217	123	DIBBS
5306-01-462-6778	2018-05-150	155	DIBBS
5306-01-462-6778	2018-04-108	183	DIBBS
5306-01-462-6778	2018-02-39	183	DIBBS
5306-01-462-6778	2018-02-33	183	US
5306-01-462-6778	2018-01-31	183	DIBBS
5306-01-462-6778	2017-10-292	110	DIBBS
HS4243V12D82	2017-08-226	2	United States
HS4243V12D82	2017-08-223	2	United States
HS4243V12D82	2017-08-222	2	United States
5306-01-462-6778	2017-05-131	149	DIBBS
5306-01-462-6778	2017-02-32	115	DIBBS
5306-01-462-6778	2017-01-09	128	DIBBS
5306-01-462-6778	2016-12-342	128	DIBBS
5306-01-462-6778	2016-07-199	145	DIBBS
5306-01-462-6778	2016-03-90	128	DIBBS
5306-01-462-6778	2016-02-41	60	DIBBS
5306-01-462-6778	2015-09-246	74	DIBBS
5306-01-462-6778	2013-02-58	92	DIBBS
5306-01-462-6778	2012-09-272	90	DIBBS
5306-01-462-6778	2012-02-51	4	MANUAL
HS4243V12D82	2012-02-51	4	US
5306-01-462-6778	2011-09-256	85	DIBBS
5306-01-462-6778	2011-08-213	109	DIBBS
5306-01-462-6778	2010-05-124	16	DIBBS

Cross Reference | NSN 5306-01-462-6778

Part Number	Cage Code	Manufacturer
76924V12D82	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
AIC6924V12D82	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HS4243V12D82	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
HS4243V12D82	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HS4243V12D82	16258	SPACELOK INC.
HS4243V12D82	4GP55	ACUFAST AIRCRAFT PRODUCTS INC.
HS4243V12D82	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HS4243V12D82	57928	SONIC INDUSTRIES INC.
HS4243V12D82	8V613	BOEING COMPANY, THE DBA BOEING
MC4243V12D82	0HL40	MECAIR AEROSPACE INDUSTRIES SUBSIDIARY OF SPS TECHNOLOGIES DIV D
PBF1466-12D82	27624	SPS TECHNOLOGIES, LLC DBA PB FASTENERS
SII1263V12D82	57928	SONIC INDUSTRIES INC.
SLB351V12D82	16258	SPACELOK INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-462-6778

Compare

Related Products | NSN 5306-01-462-6778

5306-01-462-6810, 5306-01-462-6874, 5306-01-462-7054, 5306-01-462-7055, 5306-01-462-7353

Technical Data | NSN 5306-01-462-6778

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF

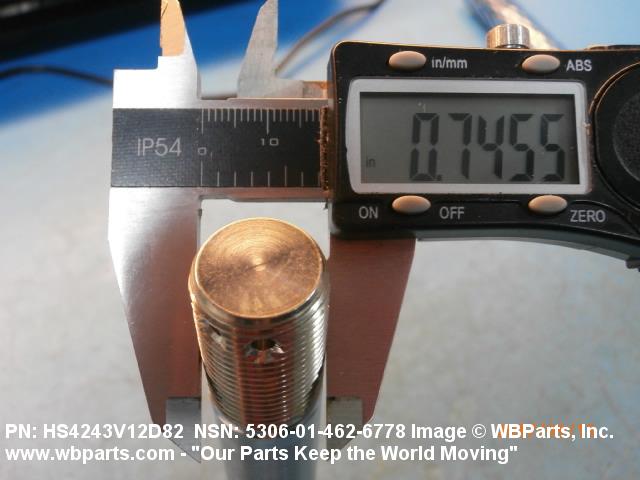

NOMINAL THREAD DIAMETER	0.750 INCHES

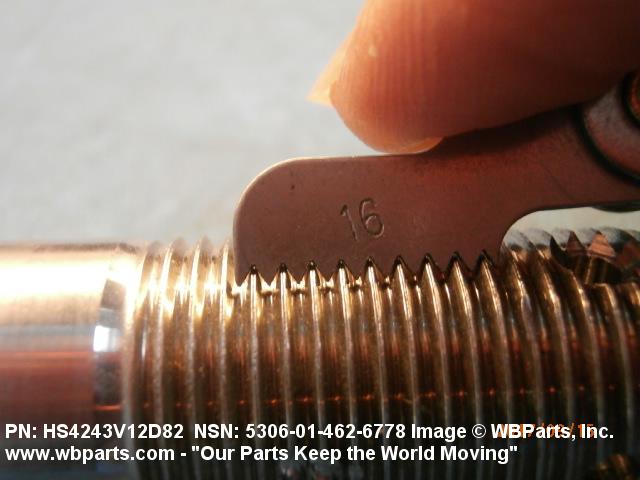

THREAD QUANTITY PER INCH	16
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

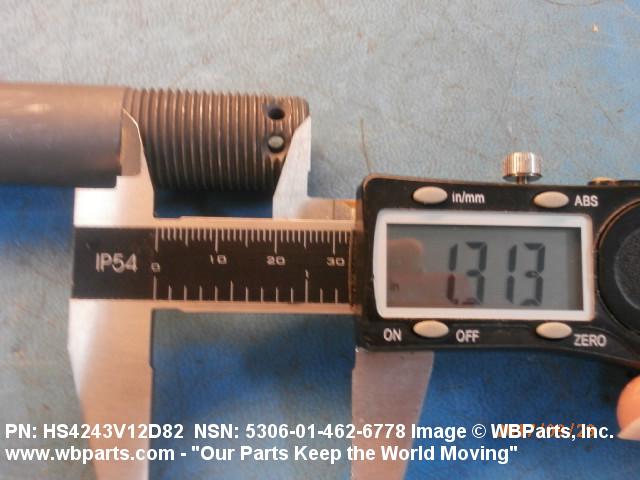

THREAD LENGTH	1.314 INCHES NOMINAL
FASTENER LENGTH	6.439 INCHES NOMINAL
MATERIAL	COBALT COMP MP-35-N OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5758 ASSN STD 1ST MATERIAL RESPONSE OR AMS5844 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-8867 TY 2 OR TY 3 CL 2 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-46010 TY 1 MIL SPEC 2ND TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	260000 POUNDS PER SQUARE INCH

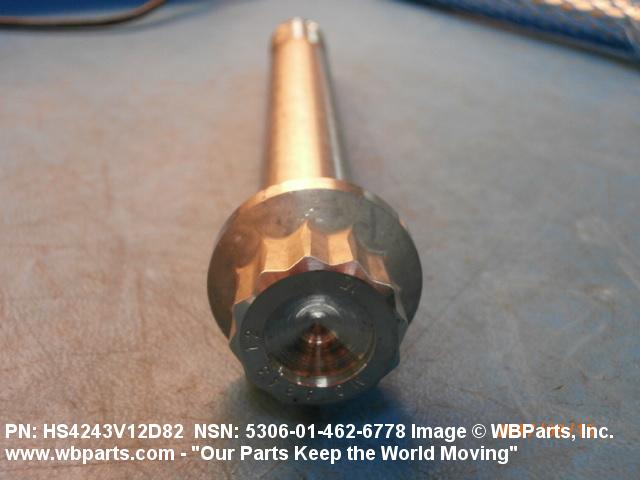

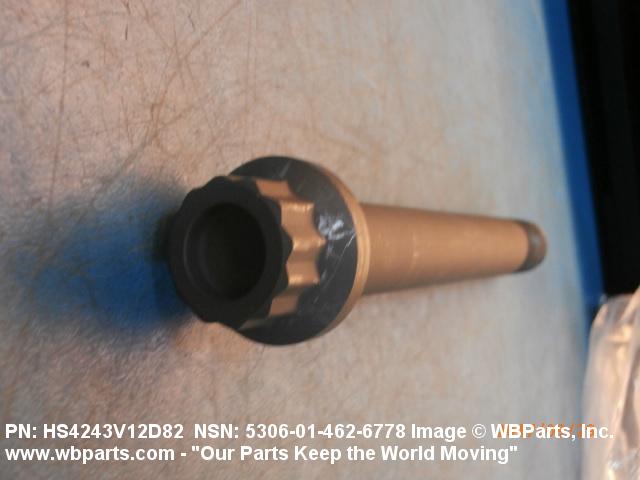

HEAD STYLE	C9 DOUBLE HEXAGON EXTENDED WASHER

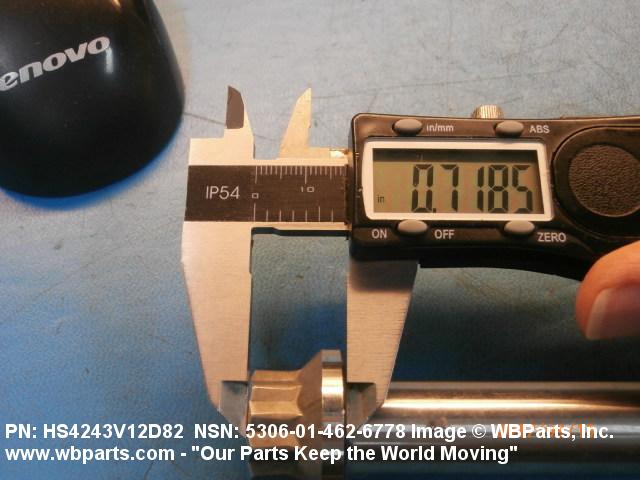

HEAD HEIGHT	0.711 INCHES NOMINAL

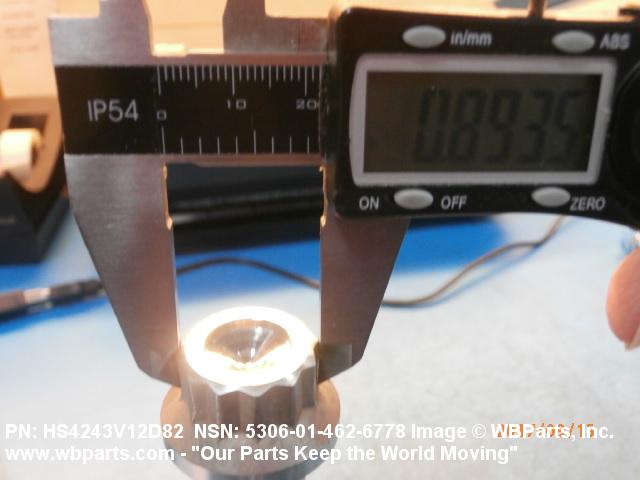

WIDTH BETWEEN FLATS	0.917 INCHES NOMINAL

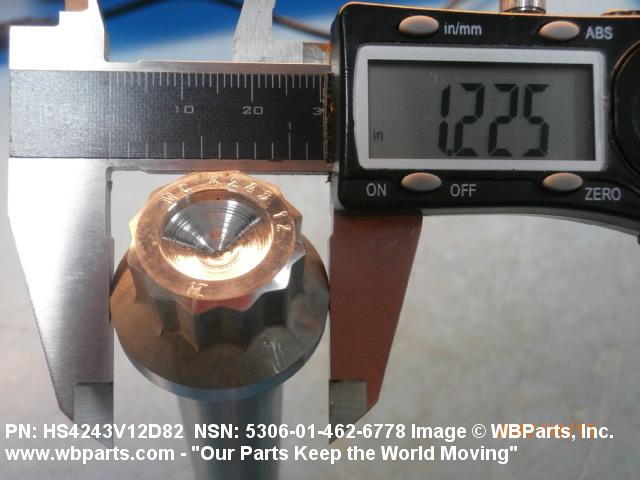

EXTENDED WASHER DIAMETER	1.225 INCHES NOMINAL
EXTENDED WASHER THICKNESS	0.178 INCHES NOMINAL
GRIP LENGTH	6.185 INCHES MINIMUM AND 6.215 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5306-01-462-6778

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	574	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-01-462-6778

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
