NSN 5306-01-481-6886 AN450A, AN4-50A, 01-481-6886
Product Details | MACHINE BOLT
5306-01-481-6886 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN450A, AN4-50A, 5306-01-481-6886, 01-481-6886, 5306014816886, 014816886
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JAN 2001 | 01-481-6886 | 01847 ( BOLT, MACHINE ) |

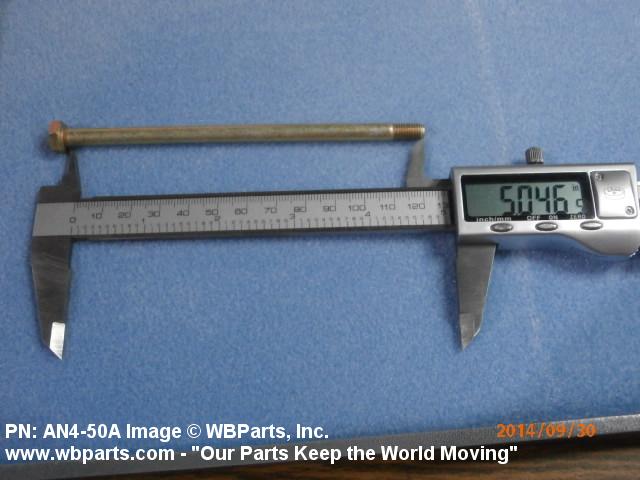

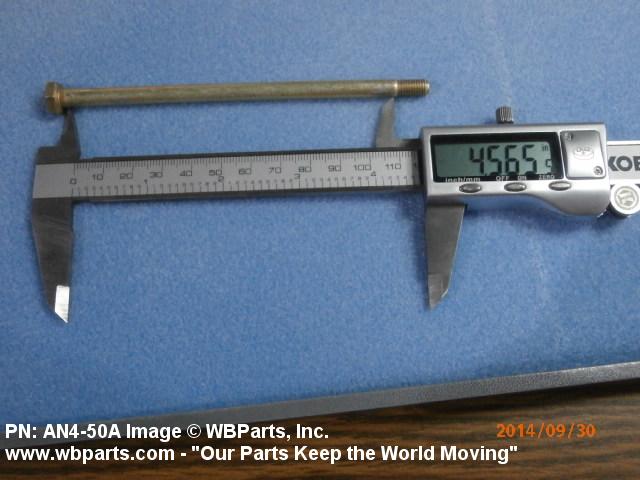

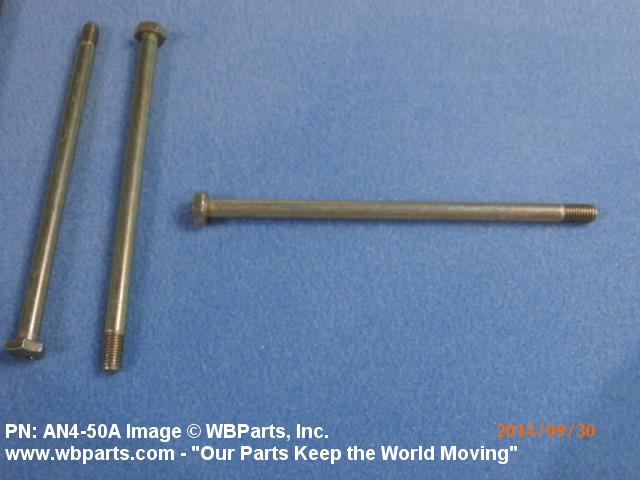

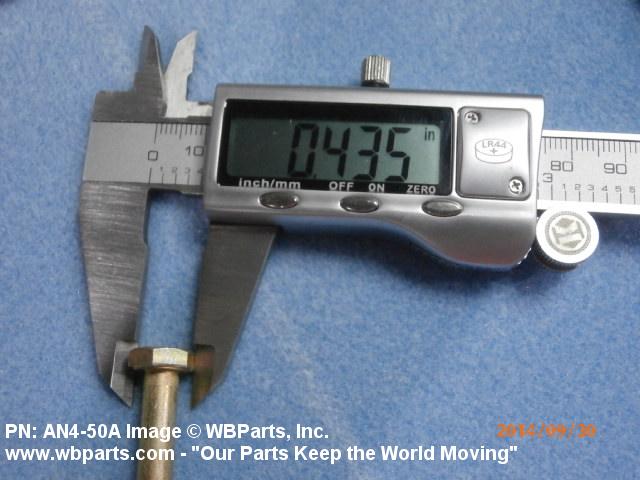

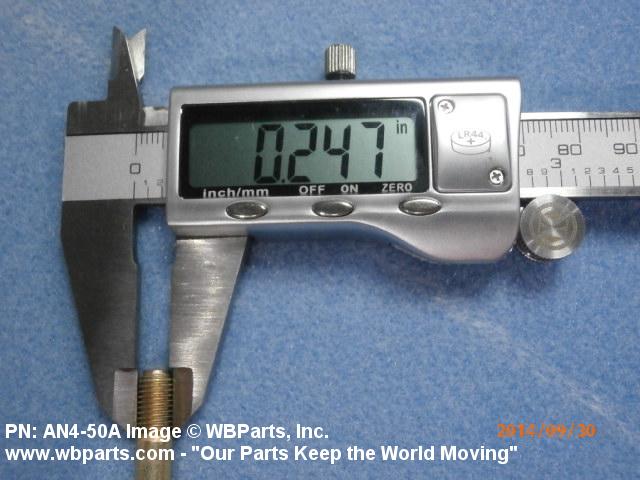

Drawings & Photos | NSN 5306-01-481-6886
Demand History | NSN 5306-01-481-6886
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN4-50A | 2014-05-142 | 250 | United States |
Cross Reference | NSN 5306-01-481-6886
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN4-50A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-481-6886
Technical Data | NSN 5306-01-481-6886
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.453125 INCHES MINIMUM AND 0.500000 INCHES MAXIMUM |
| FASTENER LENGTH | 5.015625 INCHES MINIMUM AND 5.062500 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY OR STEEL OR STEEL CORROSION RESISTING OVERALL |
| MINIMUM TENSILE STRENGTH | 1310 POUNDS PER SQUARE INCH |
| GRIP LENGTH | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| GRIP DIAMETER | 0.246 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| SPECIAL FEATURES | RATED STRENGTH IN LBS ULTIMATE TESILE AT ROOT DIA 2030, SINGLE SHEAR AT FULL DIA 1715 |
| III END ITEM IDENTIFICATION | HELICOPTER SPARE PARTS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT MACHINE, AIRCRAFT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN4-50A |
Restrictions/Controls & Freight Information | NSN 5306-01-481-6886
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
