NSN 5306-01-483-3653 MS955816, MS9558-16, 01-483-3653
Product Details | MACHINE BOLT
5306-01-483-3653 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: MS955816, MS9558-16, 5306-01-483-3653, 01-483-3653, 5306014833653, 014833653
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 2001 | 01-483-3653 | 01847 ( BOLT, MACHINE ) |

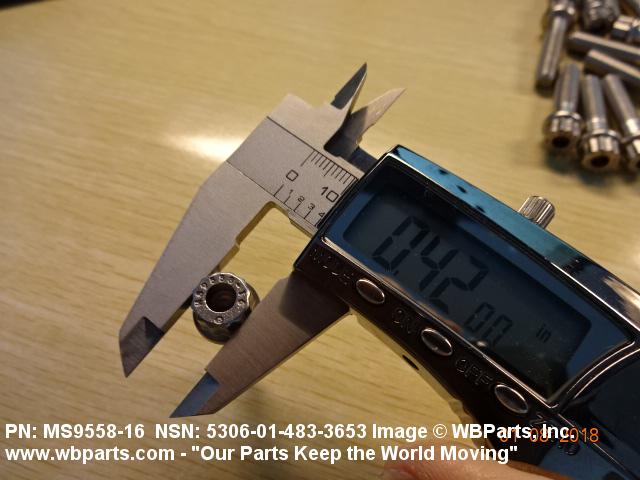

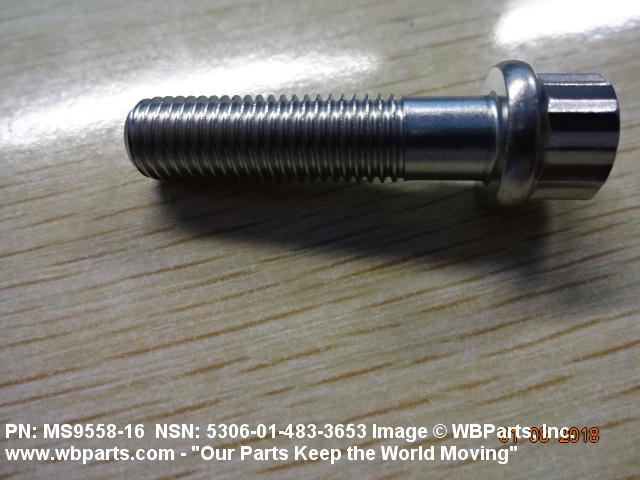

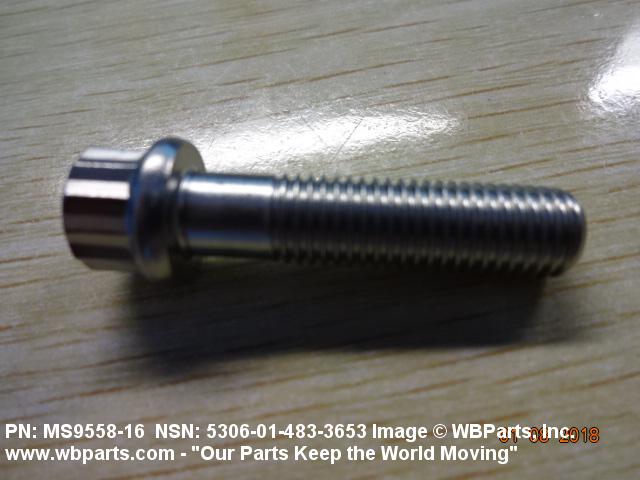

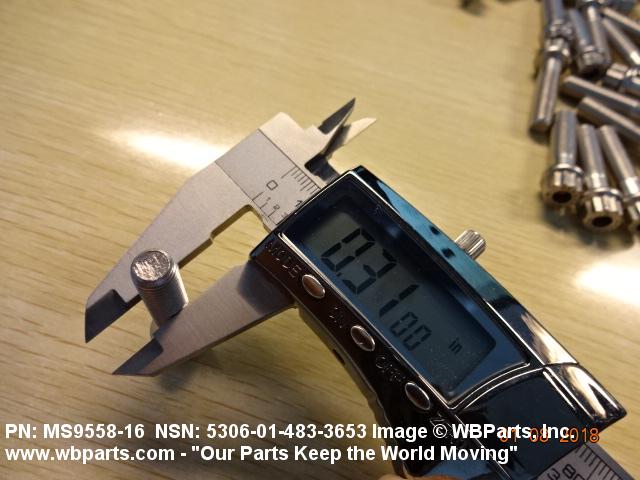

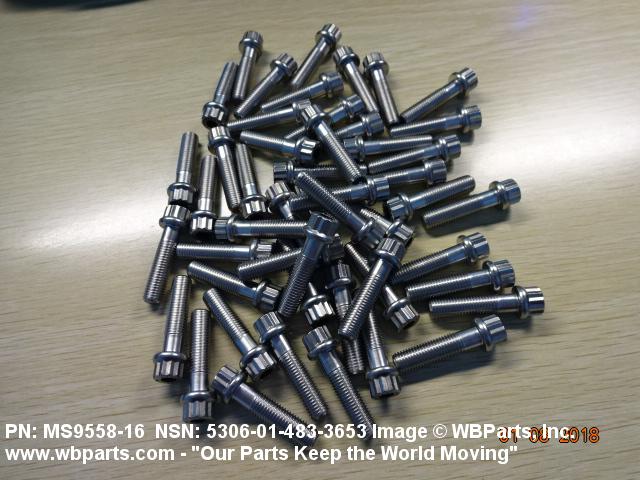

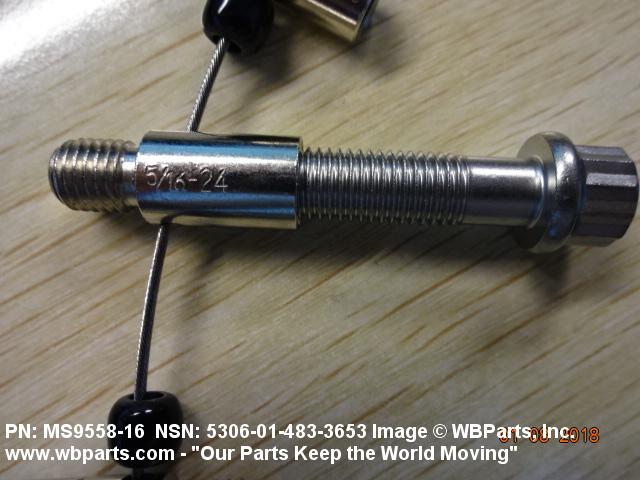

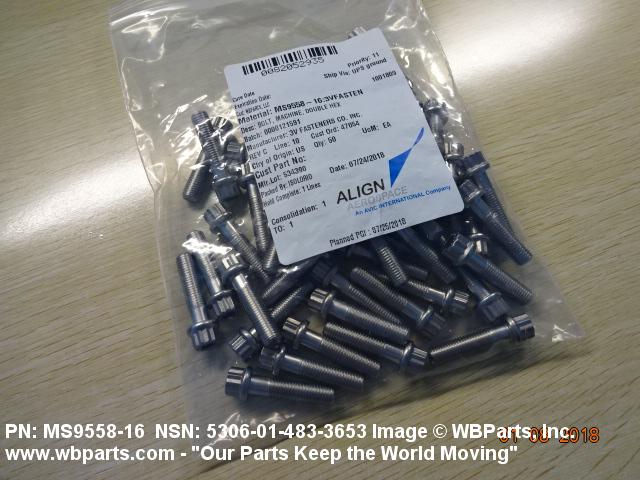

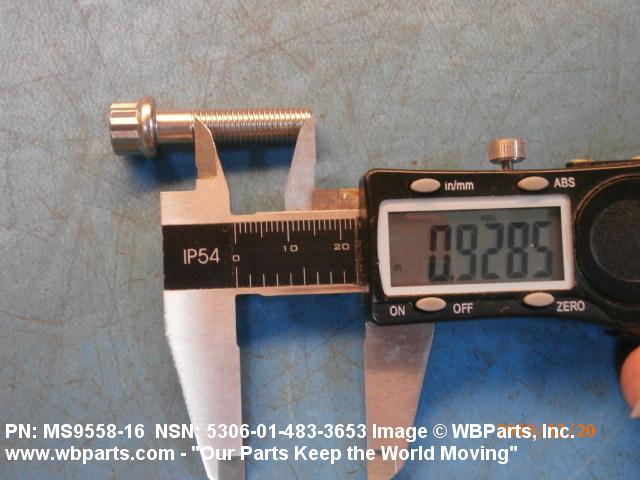

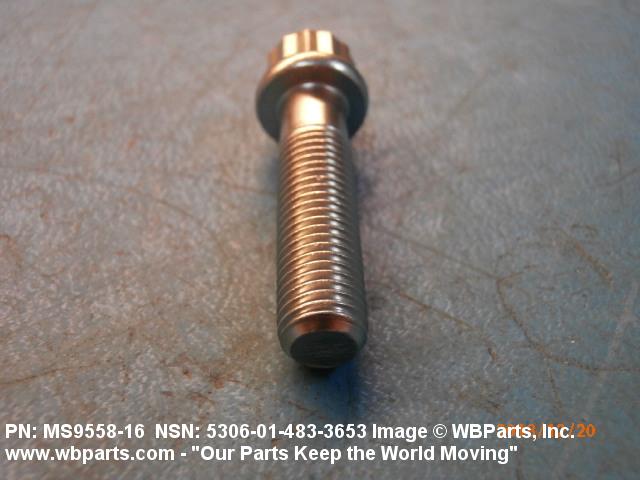

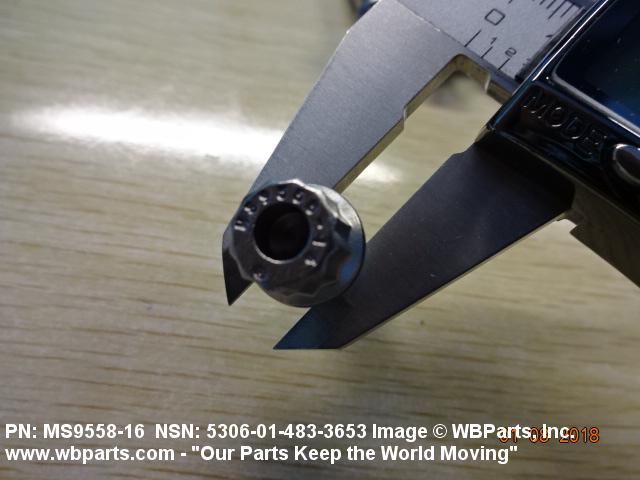

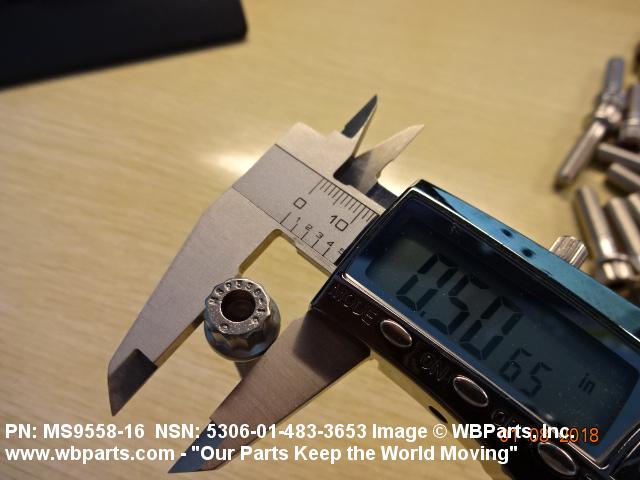

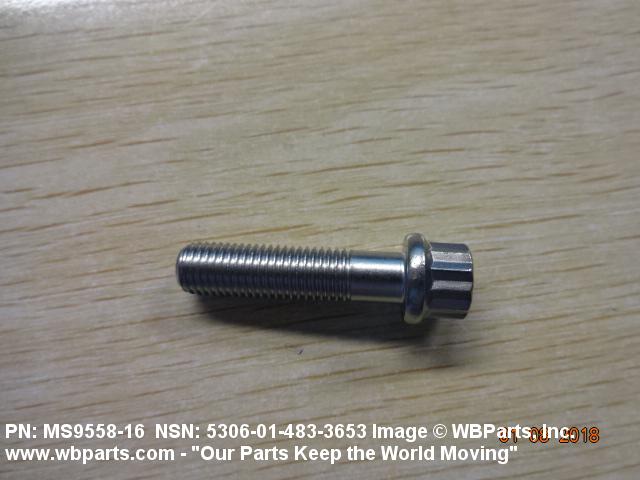

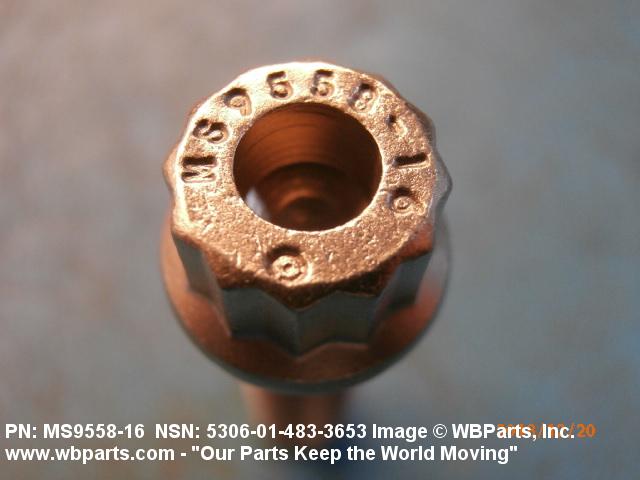

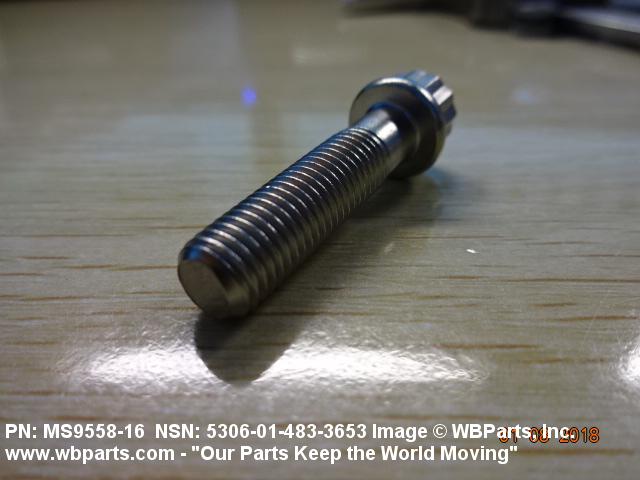

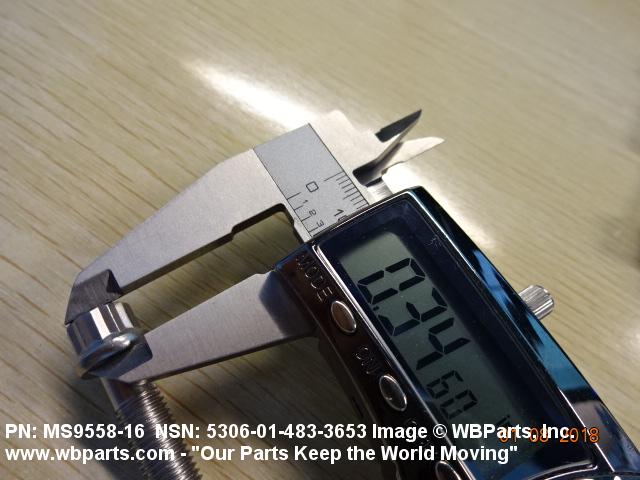

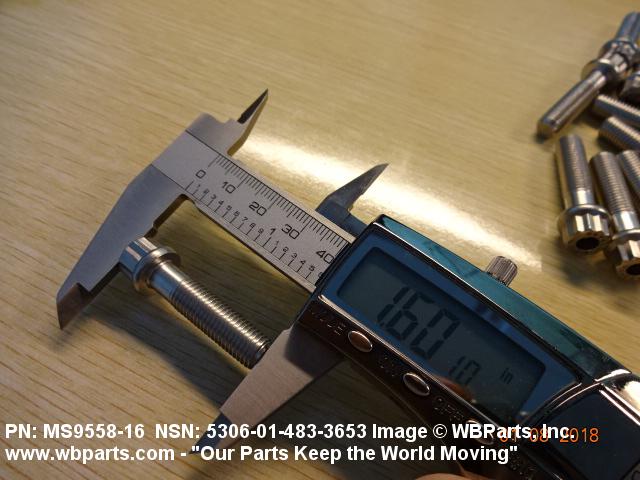

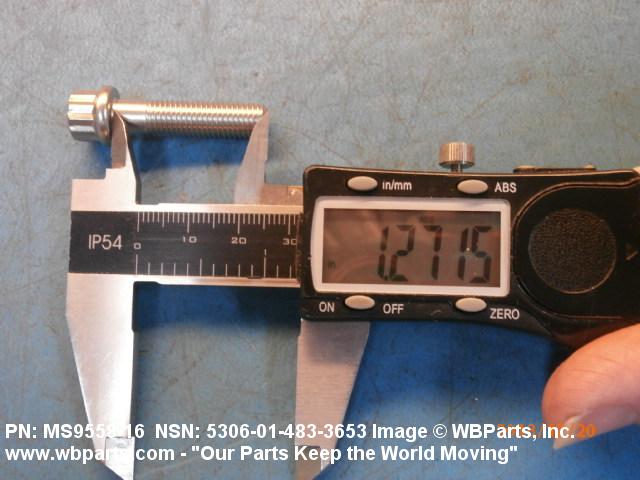

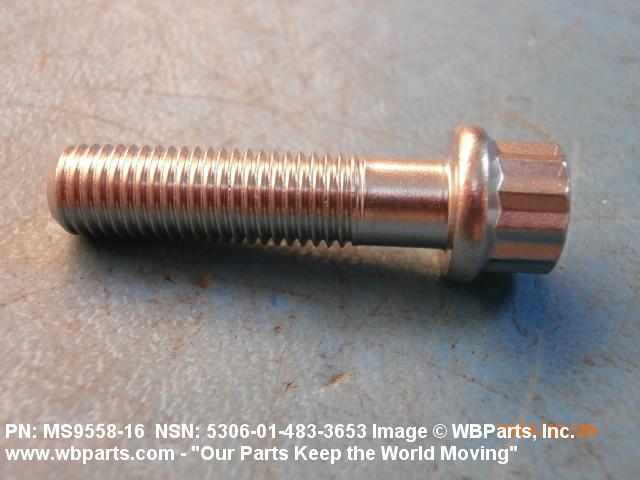

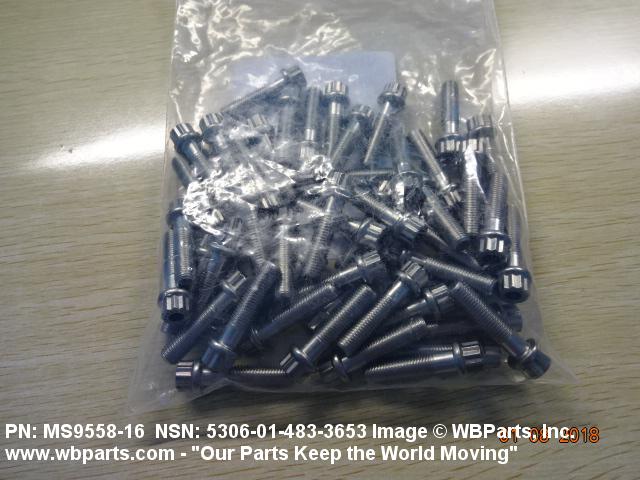

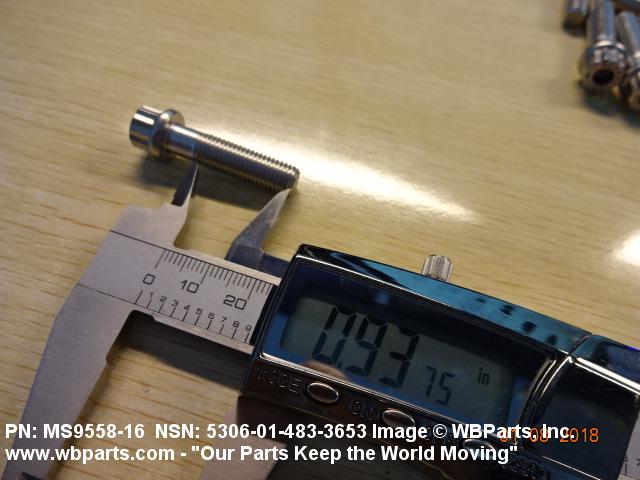

Drawings & Photos | NSN 5306-01-483-3653
Demand History | NSN 5306-01-483-3653
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS955816 | 2025-11-315 | 10 | us |
| 5306-01-483-3653 | 2025-03-69 | 25 | Greece |
| MS955816 | 2024-10-295 | 2 | Japan |
| MS955816 | 2024-09-257 | 25 | United States |
| MS955816 | 2024-03-79 | 50 | DE |
| MS955816 | 2022-11-305 | 100 | United States |
| MS955816 | 2022-04-112 | 100 | United States |
| MS955816 | 2021-11-306 | 50 | United States |
| MS955816 | 2021-08-222 | 100 | United States |
| MS955816 | 2021-08-216 | 100 | United States |
| MS955816 | 2021-05-124 | 100 | United States |
| MS955816 | 2021-02-39 | 25 | United States |
| MS955816 | 2020-11-316 | 100 | United States |
| MS955816 | 2020-08-220 | 100 | United States |
| MS955816 | 2020-05-142 | 50 | United States |
| MS955816 | 2020-05-135 | 50 | United States |
| MS955816 | 2019-07-212 | 50 | United States |
| 5306-01-483-3653 | 2019-04-116 | 25 | IN |
| 5306-01-483-3653 | 2018-12-340 | 10 | United States |
| 5306-01-483-3653 | 2018-07-201 | 50 | United States |
| MS9558-16 | 2018-05-135 | 4 | FX |
| MS955816 | 2013-09-252 | 50 | US |
| MS955816 | 2009-01-19 | 25 | United States |
| MS955816 | 2007-12-344 | 4000 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-483-3653
Related Products | NSN 5306-01-483-3653
Technical Data | NSN 5306-01-483-3653
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.874 INCHES MINIMUM AND 0.934 INCHES MAXIMUM |
| FASTENER LENGTH | 1.312 INCHES NOMINAL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731-85 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 24.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 130000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 85000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.348 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.375 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 0.500 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.070 INCHES MINIMUM |
| GRIP LENGTH | 0.378 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| GRIP DIAMETER | 0.280 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | 1055-01-450-4243 |
Restrictions/Controls & Freight Information | NSN 5306-01-483-3653
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-483-3653
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
