Product Details | MACHINE BOLT
5306-01-496-3529 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: C36551, C3655-1, 69904361, 69904-36-1, 5306-01-496-3529, 01-496-3529, 5306014963529, 014963529
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 APR 2002 | 01-496-3529 | 01847 ( BOLT, MACHINE ) |
Drawings & Photos | NSN 5306-01-496-3529
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5306-01-496-3529
5306-01-496-3530, 5306-01-496-3606, 5306-01-496-3716, 5306-01-496-3991, 5306-01-496-4110
Technical Data | NSN 5306-01-496-3529
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 1.750 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 2.500 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6485 ASSN STD SINGLE MATERIAL RESPONSE OR AMS6405 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 1.800 INCHES MINIMUM AND 1.820 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 1.610 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 2.805 INCHES MINIMUM AND 2.815 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 5.435 INCHES MINIMUM AND 5.465 INCHES MAXIMUM |

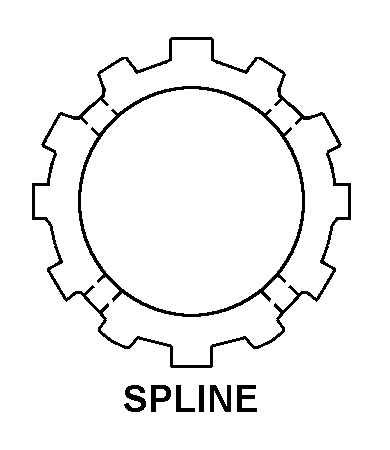

| HOLE CONFIGURATION STYLE | E18 SPLINE |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 1.170 INCHES MINIMUM AND 1.210 INCHES MAXIMUM |
| SPECIAL FEATURES | HEAT TREATMENT 220 KSI MIN TENSILE, 132 KSI MIN SHEAR, ROCKWELL C46-50 |
| III UNIT OF ISSUE WEIGHT | 5.38 POUNDS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT, 12 POINT, EXTERNAL WRENCHING, 220 MIN TENSILE, 450 DEG F |
Restrictions/Controls & Freight Information | NSN 5306-01-496-3529
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
