NSN 5306-01-497-8358 AN33A, AN3-3A, 01-497-8358
Product Details | MACHINE BOLT
5306-01-497-8358 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN33A, AN3-3A, 5306-01-497-8358, 01-497-8358, 5306014978358, 014978358
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUN 2002 | 01-497-8358 | 01847 ( BOLT, MACHINE ) |

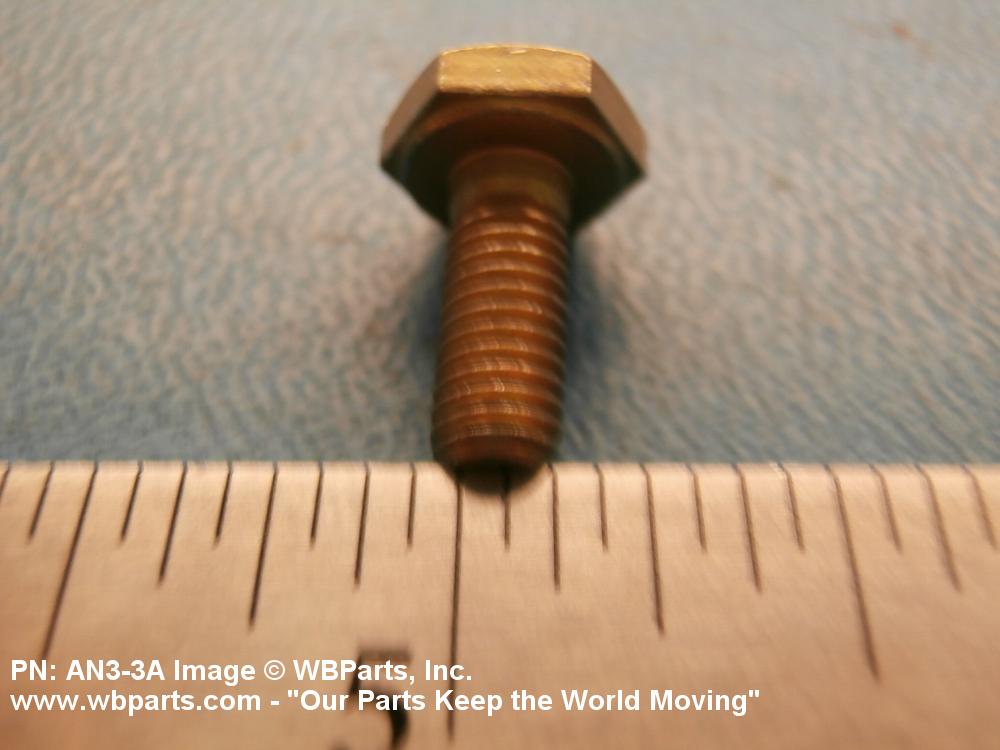

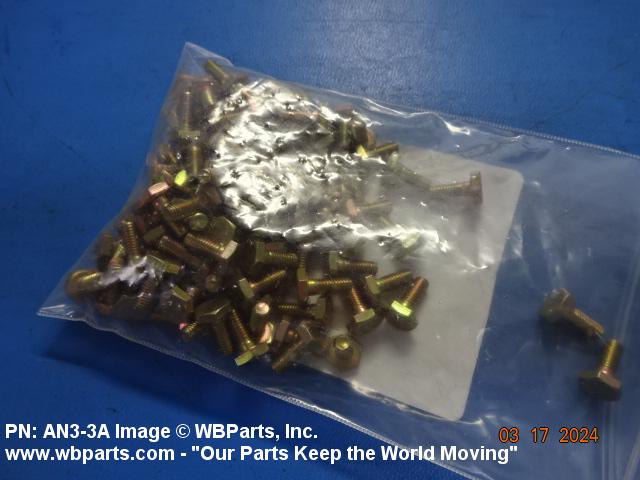

Drawings & Photos | NSN 5306-01-497-8358
Demand History | NSN 5306-01-497-8358
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN33A | 2025-11-318 | 1000 | PK |
| AN33A | 2025-07-197 | 1500 | United States |
| AN33A | 2024-11-309 | 1000 | United States |
| AN33A | 2024-09-253 | 60 | United States |
| AN33A | 2024-07-198 | 50 | US |
| AN33A | 2024-07-194 | 1200 | United States |
| AN33A | 2024-01-25 | 1000 | United States |
| AN33A | 2023-11-319 | 3 | US |
| AN33A | 2023-10-286 | 89 | Turkey |
| AN33A | 2023-10-284 | 151 | US |
| AN33A | 2023-08-216 | 2000 | United States |
| AN33A | 2023-07-202 | 3 | CA |
| AN33A | 2023-03-69 | 100 | US |
| AN33A | 2023-02-48 | 10 | US |
| 5306-01-497-8358 | 2019-12-340 | 100 | United States |
| AN33A | 2019-02-37 | 500 | United States |
| AN33A | 2018-02-57 | 50 | United States |
| AN33A | 2018-02-37 | 50 | China |
| AN33A | 2017-10-297 | 100 | United Arab Emirates |
| AN33A | 2017-03-79 | 4 | United States |
| AN33A | 2016-05-131 | 3000 | Egypt |
| AN3-3A | 2016-04-96 | 200 | Romania |
| AN33A | 2016-04-95 | 1 | BR |
| AN33A | 2016-01-22 | 350 | us |
| AN3-3A | 2015-11-315 | 30 | |
| 5306-01-497-8358 | 2015-11-313 | 30 | NECO |
| AN33A | 2015-07-208 | 50 | UM |
| AN33A | 2015-07-208 | 50 | UM |
| AN33A | 2015-07-191 | 100 | United States |
| AN3-3A | 2015-05-138 | 8 | United States |
| AN3-3A | 2015-05-138 | 8 | United States |
| AN3-3A | 2015-03-78 | 5000 | United States |
| AN3-3A | 2015-03-71 | 25 | US |
| AN33A | 2015-03-63 | 100 | US |
| AN33A | 2014-11-307 | 100 | US |
| AN3-3A | 2014-05-142 | 5000 | United States |
| AN3-3A | 2013-11-322 | 20 | Belgium |
| AN33A | 2013-07-205 | 35 | Singapore |
| AN33A | 2013-07-199 | 200 | United States |
| AN33A | 2012-12-346 | 300 | Switzerland |
| AN33A | 2012-12-344 | 300 | Switzerland |
| AN3-3A | 2012-11-310 | 50 | |
| AN3-3A | 2011-08-223 | 20 | Hong Kong |
| AN33A | 2011-01-14 | 45 | US |
| 5306-01-497-8358 | 2010-12-350 | 8 | CN |
| 5306-01-497-8358 | 2010-03-85 | 100 | India |
| AN33A | 2009-05-138 | 87 | China |
| AN33A | 2008-03-63 | 250 | Sri Lanka |
Cross Reference | NSN 5306-01-497-8358
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN3-3A | 1E0F1 | ROLLS ROYCE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-497-8358
Technical Data | NSN 5306-01-497-8358

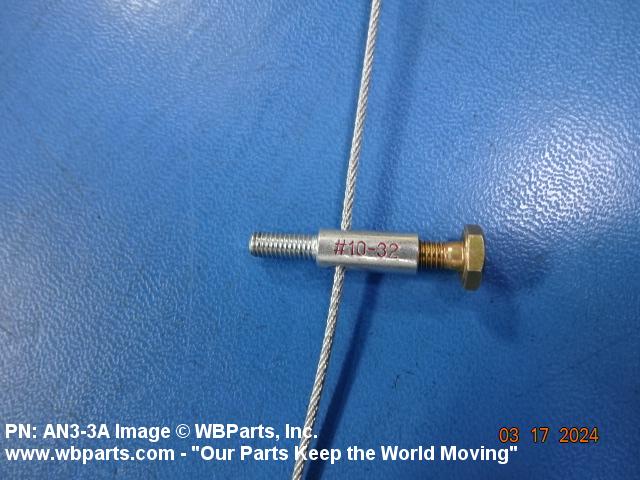

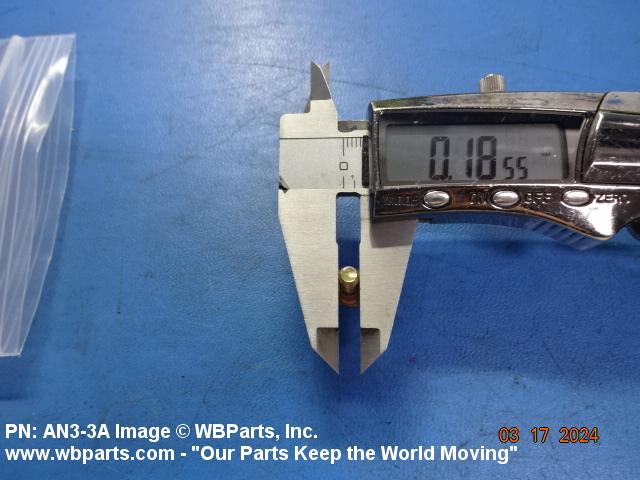

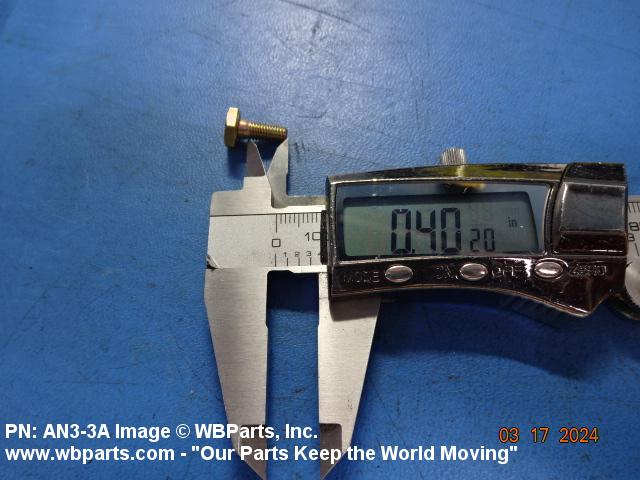

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.407 INCHES NOMINAL |

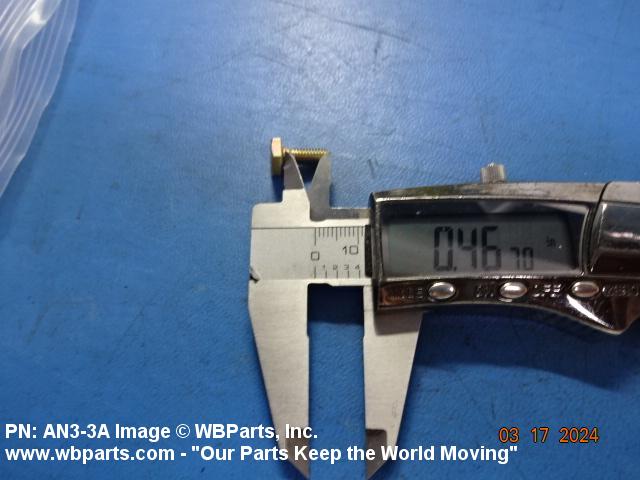

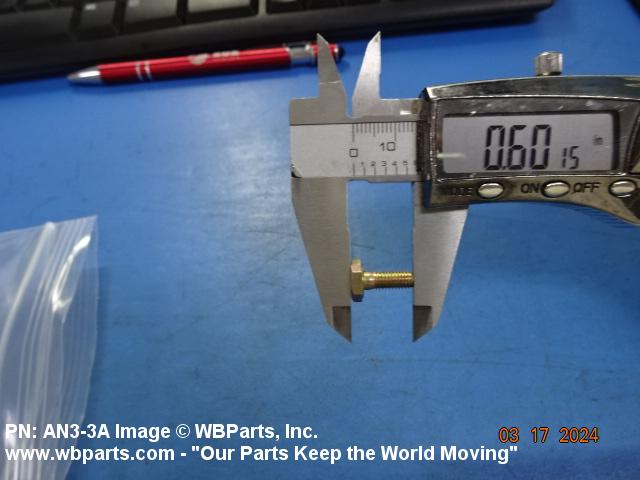

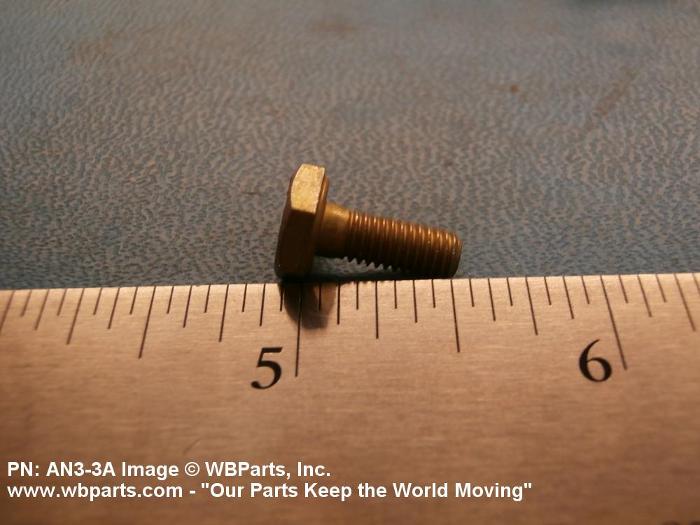

| FASTENER LENGTH | 0.469 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| HEAD STYLE | C1 HEXAGON |

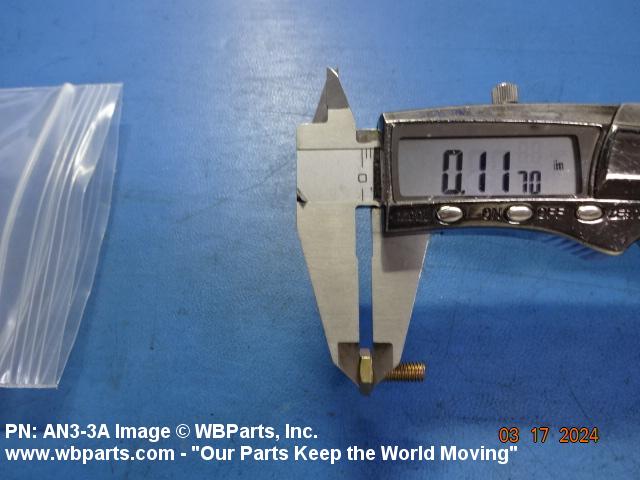

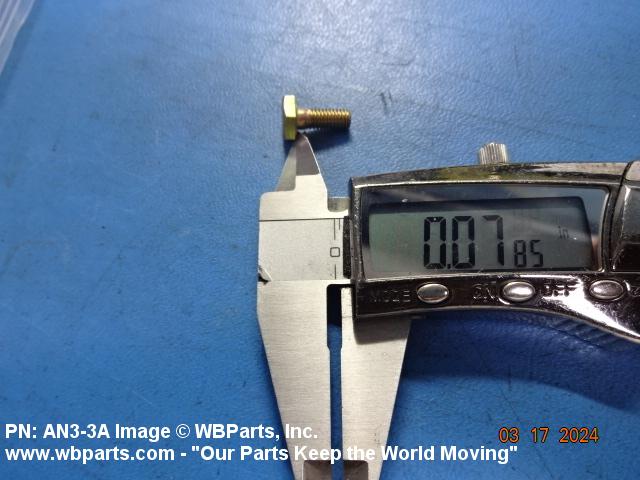

| HEAD HEIGHT | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |

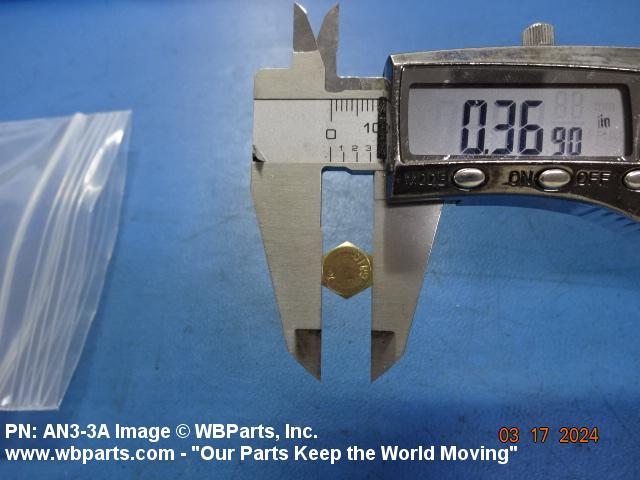

| WIDTH BETWEEN FLATS | 0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
