NSN 5306-01-513-2470 AS323716, AS3237-16, BACB30ZF416

Product Details | MACHINE BOLT

5306-01-513-2470 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AS323716, AS3237-16, BACB30ZF416, BACB30ZF4-16, 5306-01-513-2470, 01-513-2470, 5306015132470, 015132470

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 SEP 2003	01-513-2470	01847 ( BOLT, MACHINE )

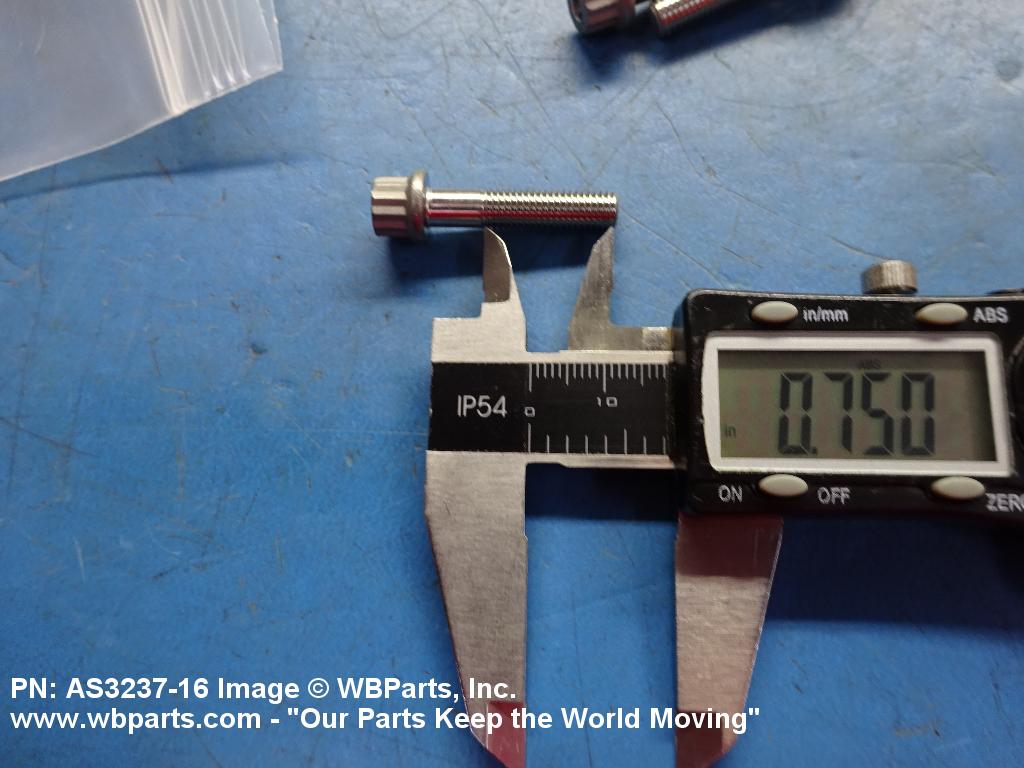

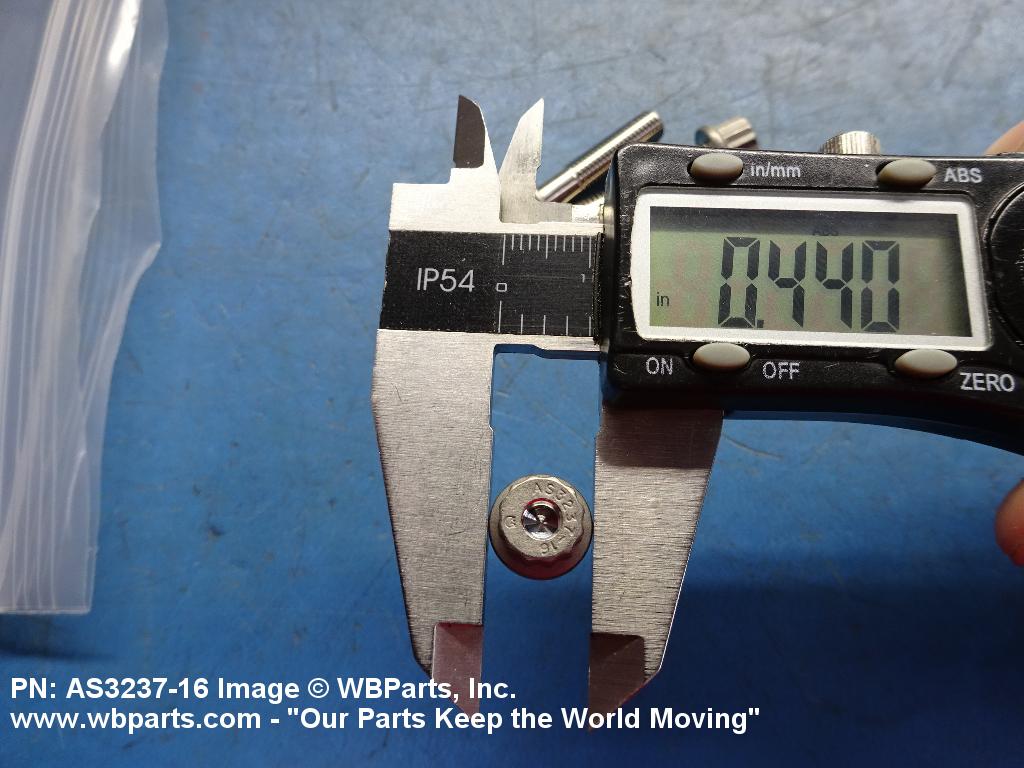

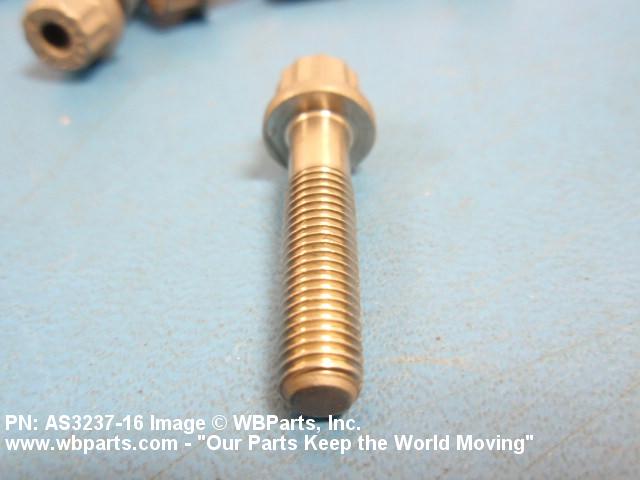

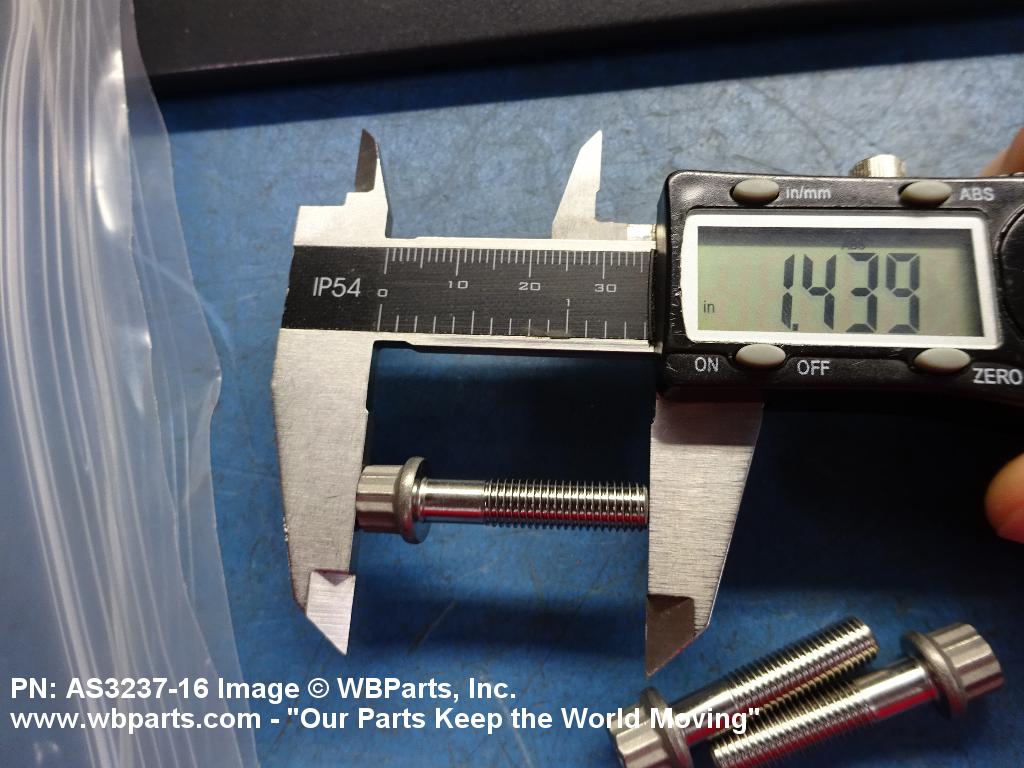

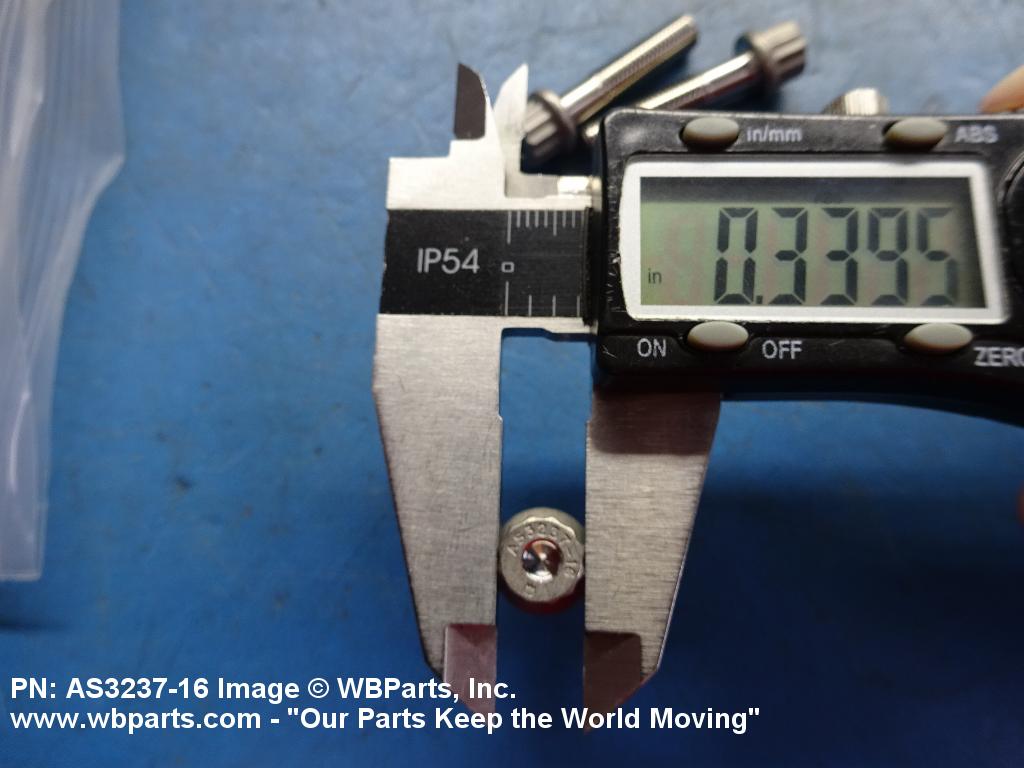

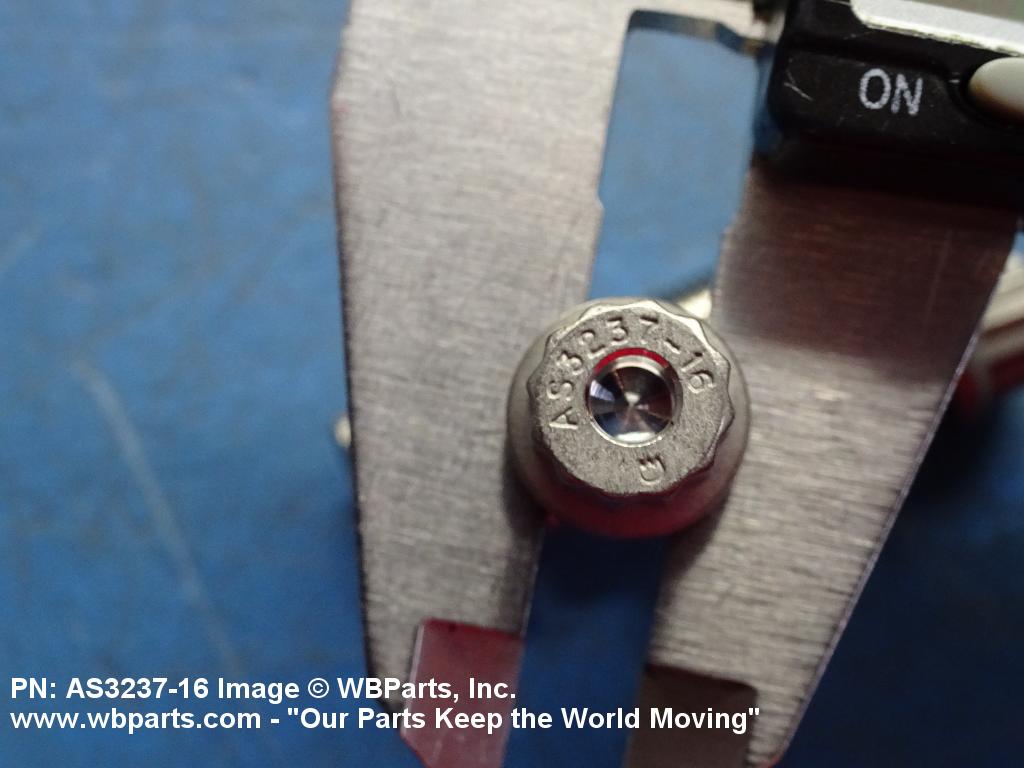

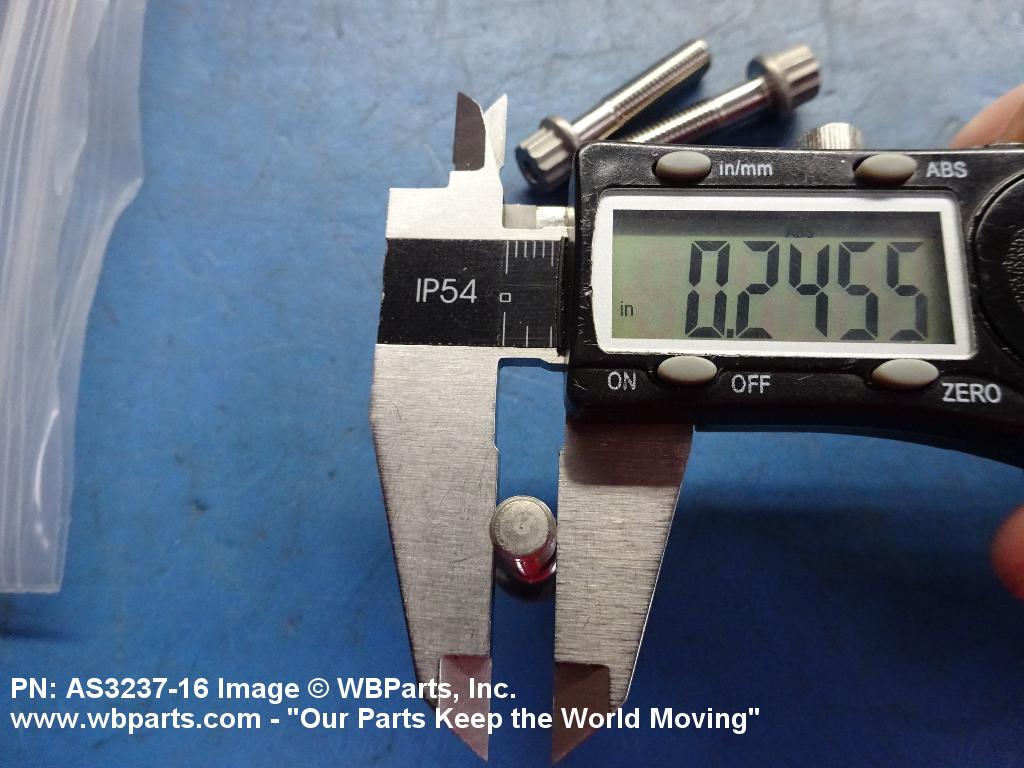

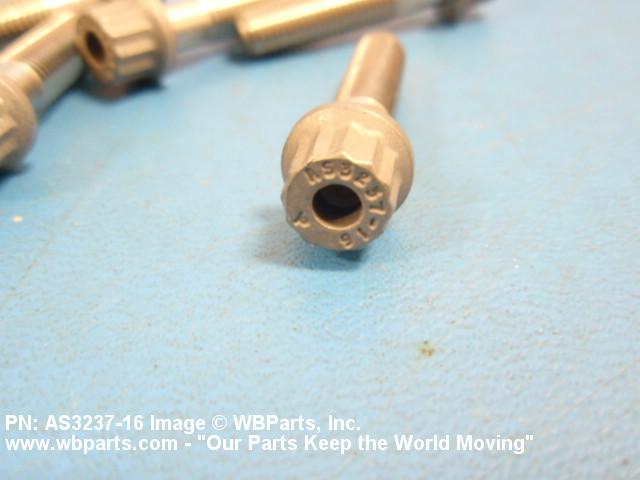

Drawings & Photos | NSN 5306-01-513-2470

Part Number	Request Date	QTY	Origin
5306-01-513-2470	2025-12-346	150	Malaysia
AS323716	2025-10-303	4	SG
AS323716	2025-07-190	400	US
AS323716	2022-07-209	8	United States
AS323716	2020-09-245	100	Hong Kong
AS323716	2020-01-16	16	US
5306-01-513-2470	2018-05-149	75	US
AS3237-16	2018-05-135	70	FX
AS323716	2013-03-88	6	IT
5306-01-513-2470	2012-01-20	298	DIBBS
5306-01-513-2470	2011-12-353	269	DIBBS
5306-01-513-2470	2010-06-174	196	United States
AS323716	2010-06-153	9	US
5306-01-513-2470	2010-05-141	196	DIBBS
5306-01-513-2470	2010-04-102	91	DIBBS
5306-01-513-2470	2009-11-322	127	DIBBS
5306-01-513-2470	2009-08-233	250	US
5306-01-513-2470	2009-02-42	117	DIBBS
AS323716	2008-11-315	20720	Singapore

Cross Reference | NSN 5306-01-513-2470

Part Number	Cage Code	Manufacturer
BACB30ZF4-16	1RC86	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
BACB30ZF4-16	27624	SPS TECHNOLOGIES, LLC DBA PB FASTENERS
BACB30ZF4-16	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
BACB30ZF4-16	57928	SONIC INDUSTRIES INC.
BACB30ZF4-16	81205	THE BOEING COMPANY DBA BOEING
BACB30ZF4-16	Z03F0	BOEING DEFENCE AUSTRALIA LTD
BACB30ZF4-16	Z8T75	BOEING DEFENCE AUSTRALIA LTD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-513-2470

Compare

Related Products | NSN 5306-01-513-2470

5306-01-513-2518, 5306-01-513-2528, 5306-01-513-2536, 5306-01-513-2765, 5306-01-513-3030

Technical Data | NSN 5306-01-513-2470

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.750 INCHES MINIMUM AND 0.881 INCHES MAXIMUM
FASTENER LENGTH	1.115 INCHES MINIMUM AND 1.135 INCHES MAXIMUM
MATERIAL	NICKEL ALLOY 718 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL
HEAD STYLE	C10 DOUBLE HEXAGON WITH HOLE
HEAD HEIGHT	0.293 INCHES MINIMUM AND 0.313 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.312 INCHES MINIMUM AND 0.327 INCHES MAXIMUM
EXTENDED WASHER DIAMETER	0.438 INCHES NOMINAL
EXTENDED WASHER THICKNESS	0.060 INCHES NOMINAL
GRIP LENGTH	0.244 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
GRIP DIAMETER	0.222 INCHES MINIMUM AND 0.232 INCHES MAXIMUM
III END ITEM IDENTIFICATION	F108-CF-100
III PART NAME ASSIGNED BY CONTROLLING AGENCY	BOLT,MACHINE

Restrictions/Controls & Freight Information | NSN 5306-01-513-2470

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	574	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-01-513-2470

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
