NSN 5306-01-515-6686 AN473A, AN4-73A, 01-515-6686
Product Details | MACHINE BOLT
5306-01-515-6686 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN473A, AN4-73A, 5306-01-515-6686, 01-515-6686, 5306015156686, 015156686
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 DEC 2003 | 01-515-6686 | 01847 ( BOLT, MACHINE ) |

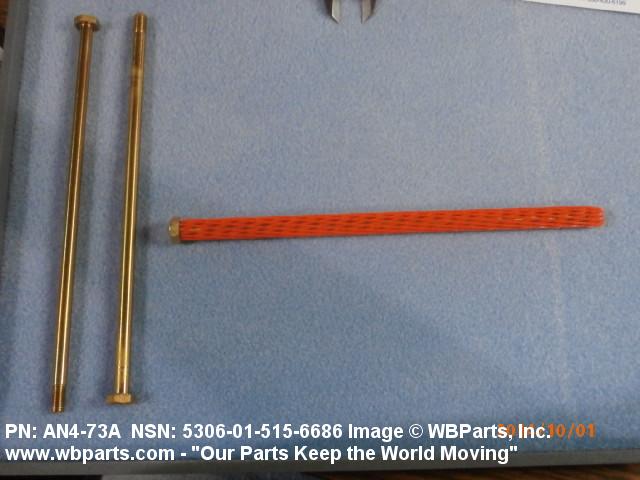

Drawings & Photos | NSN 5306-01-515-6686
Demand History | NSN 5306-01-515-6686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN473A | 2021-04-99 | 25 | United States |
| AN473A | 2020-09-256 | 50 | United States |
| AN473A | 2016-07-209 | 4 | United States |
| AN4-73A | 2014-05-142 | 25 | United States |
| AN473A | 2009-06-175 | 25 | ZA |
Cross Reference | NSN 5306-01-515-6686
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN4-73A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-515-6686
Technical Data | NSN 5306-01-515-6686
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

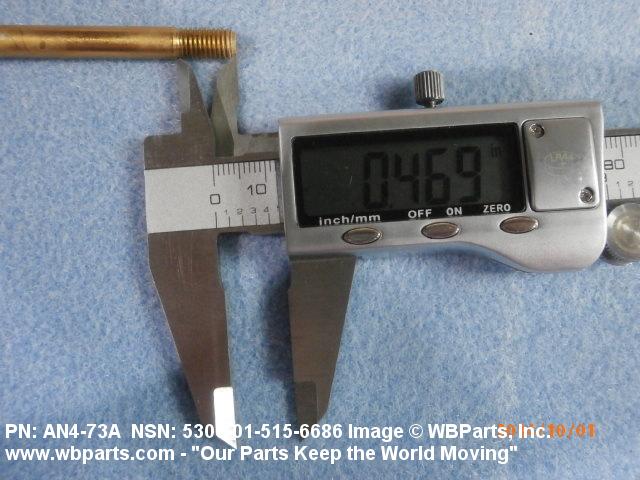

| THREAD LENGTH | 0.468 INCHES NOMINAL |

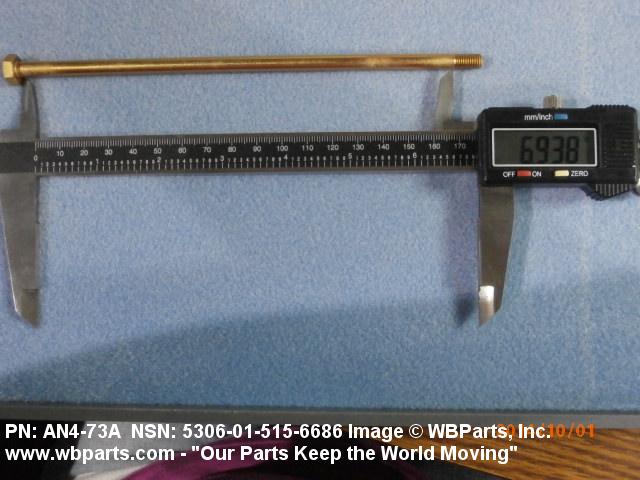

| FASTENER LENGTH | 7.406 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MINIMUM TENSILE STRENGTH | 40000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 3130 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |

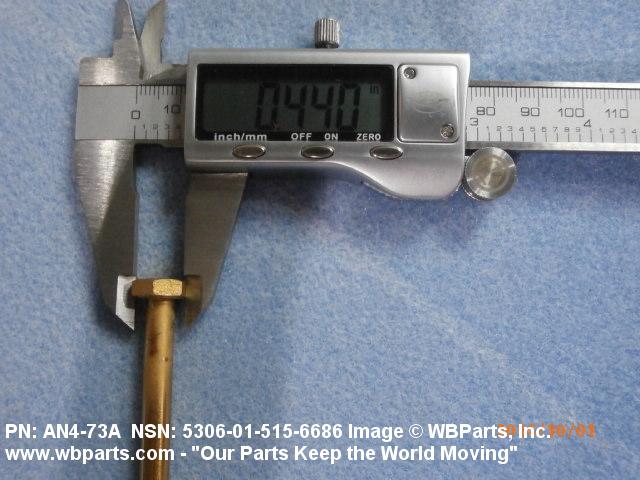

| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| GRIP LENGTH | 6.938 INCHES NOMINAL |

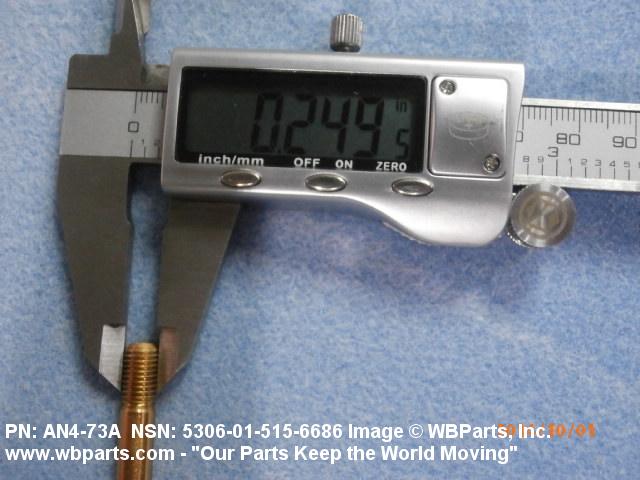

| GRIP DIAMETER | 0.246 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
