NSN 5306-01-527-7478 NAS1160412, NAS1160-4-12, 01-527-7478
Product Details | SHOULDER BOLT
5306-01-527-7478 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: NAS1160412, NAS1160-4-12, 5306-01-527-7478, 01-527-7478, 5306015277478, 015277478
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 FEB 2005 | 01-527-7478 | 04905 ( BOLT, SHOULDER ) |

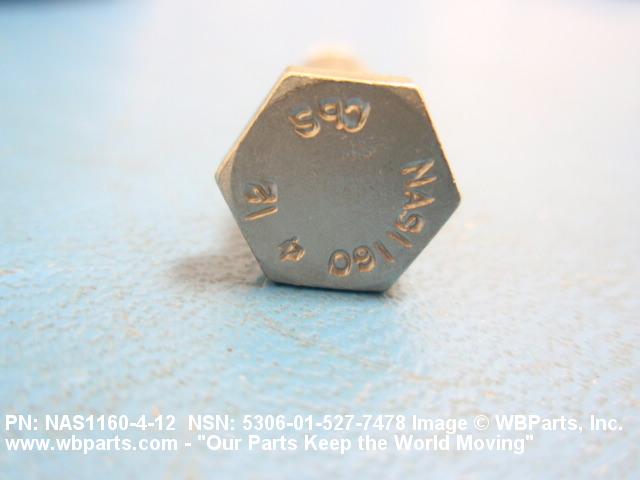

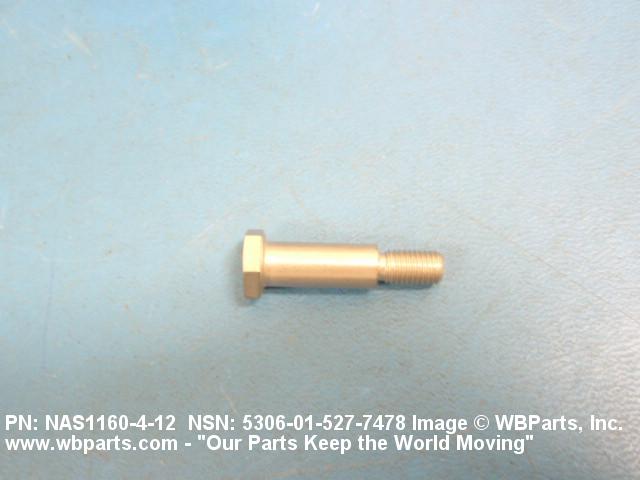

Drawings & Photos | NSN 5306-01-527-7478
Demand History | NSN 5306-01-527-7478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1160412 | 2024-10-281 | 12 | United States |
| 5306-01-527-7478 | 2022-10-276 | 846 | DIBBS |
| 5306-01-527-7478 | 2022-08-237 | 197 | DIBBS |
| 5306-01-527-7478 | 2022-08-234 | 305 | DIBBS |
| 5306-01-527-7478 | 2022-08-223 | 305 | DIBBS |
| NAS1160-4-12 | 2022-07-201 | 102 | DIBBS |
| NAS1160-4-12 | 2022-03-87 | 305 | DIBBS |
| NAS1160-4-12 | 2022-03-76 | 305 | DIBBS |
| NAS1160412 | 2021-03-82 | 4 | United States |
| NAS1160-4-12 | 2019-11-332 | 225 | DIBBS |
| NAS1160-4-12 | 2019-06-158 | 281 | DIBBS |
| NAS1160-4-12 | 2019-05-147 | 281 | DIBBS |
| 5306-01-527-7478 | 2017-08-243 | 425 | United States |
| 5306-01-527-7478 | 2017-08-243 | 425 | United States |
| 5306-01-527-7478 | 2017-04-110 | 233 | US |
| 5306-01-527-7478 | 2015-10-274 | 98 | United States |
| NAS1160412 | 2010-06-175 | 120 | United States |
| NAS1160412 | 2010-05-133 | 1000 | US |
| NAS1160412 | 2009-02-47 | 140 | United States |
| NAS1160412 | 2008-05-150 | 330 | United States |
| NAS1160412 | 2007-05-125 | 5 | Canada |
Cross Reference | NSN 5306-01-527-7478
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1160-4-12 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-527-7478
Related Products | NSN 5306-01-527-7478
Technical Data | NSN 5306-01-527-7478
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.382 INCHES MINIMUM AND 0.399 INCHES MAXIMUM |
| FASTENER LENGTH | 1.203 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.125 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.429 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| SHOULDER SHAPE | ROUND GRIP |
| SHOULDER DIAMETER | 0.311 INCHES MINIMUM AND 0.312 INCHES MAXIMUM GRIP |
| SHOULDER LENGTH | 0.760 INCHES NOMINAL GRIP |
| III END ITEM IDENTIFICATION | END ITEM NSN: 1025-99-411-1447 M777E1 155MM HOWITZER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT,SHOULDER,HEX HEAD,CLOSE TOLERANCE,CRES-A286 |
Restrictions/Controls & Freight Information | NSN 5306-01-527-7478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-527-7478
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 4 | PROVISIONING ITEMS (Exclusive of Insurance Items). This code will identify new items introduced through the provisioning process for system stock which would normally be categorized as either nonreparable or reparable but for which sufficient experience has been obtained to manage on the basis of normal demand forecasts. |
| Specific Group/Generic Code | G | Artillery |
| Weapons Systems/End Item or Homogeneous Group | GK | Howitzer, 155MM, M777E1 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 5 | General Property Materiel15; 16; 18; 31; 35; 39; 40; 44; 49 except 4910, 4925, 4930, 4931, 4933, 4935; 51; 52; 53; 63; 65 except 6545; 69; 70; 71; 72; 73; 74; 75; 76; 77; 78; 79; 80; 81 except 8140; 83; 84; 85; 87; 88; 89; 91; 93; 94; 95; 96; 99 10.3-125 |
| Echelon Management Code | 6 | ICP/DSSCs Weapon system-oriented consumable items assigned to another Service/Agency for integrated materiel management which are managed by the ICP on a complex basis and which have not been decontrolled by the Integrated Materiel Manager. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
