NSN 5306-01-567-6926 AS323608, AS3236-08, 01-567-6926
Product Details | EXTERNALLY RELIEVED BODY BOLT
5306-01-567-6926 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercuts for thread relief). It is No. 10 (0.190 IN.) (5 mm) or larger in size and has a head which is not designed to be held or driven with an inserted driver or designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, INTERNAL WRENCHING and THUMBSCREW. See also SCREW, EXTERNALLY RELIEVED BODY.
Part Alternates: AS323608, AS3236-08, 5306-01-567-6926, 01-567-6926, 5306015676926, 015676926
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 OCT 2008 | 01-567-6926 | 06675 ( BOLT, EXTERNALLY RELIEVED BODY ) |

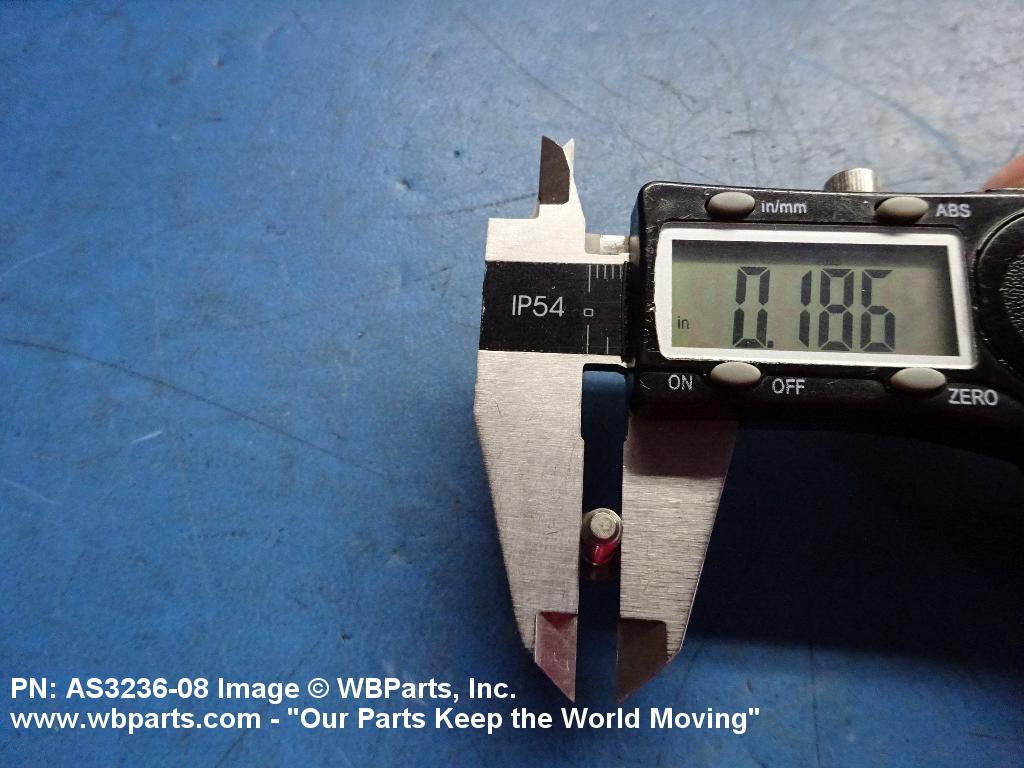

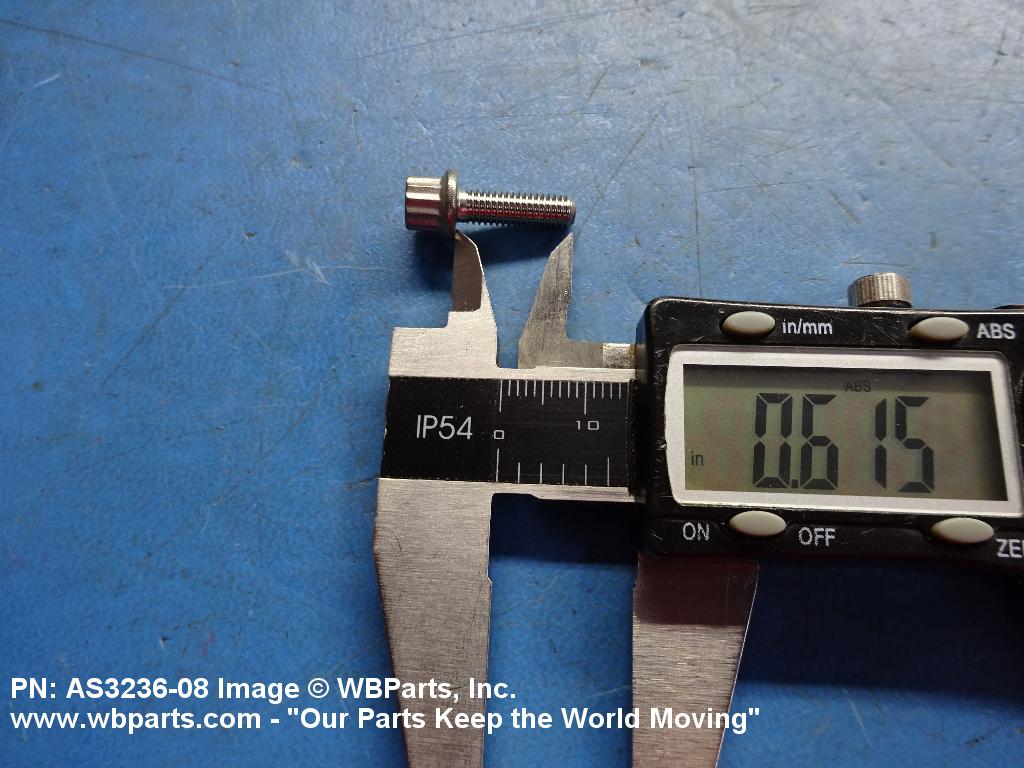

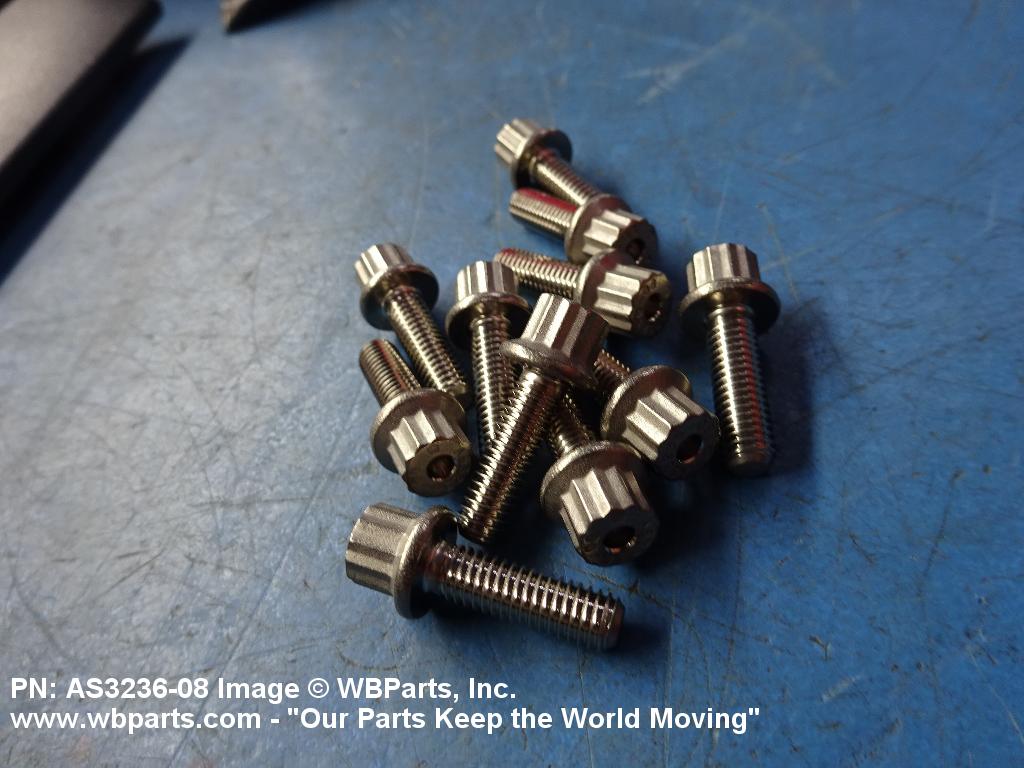

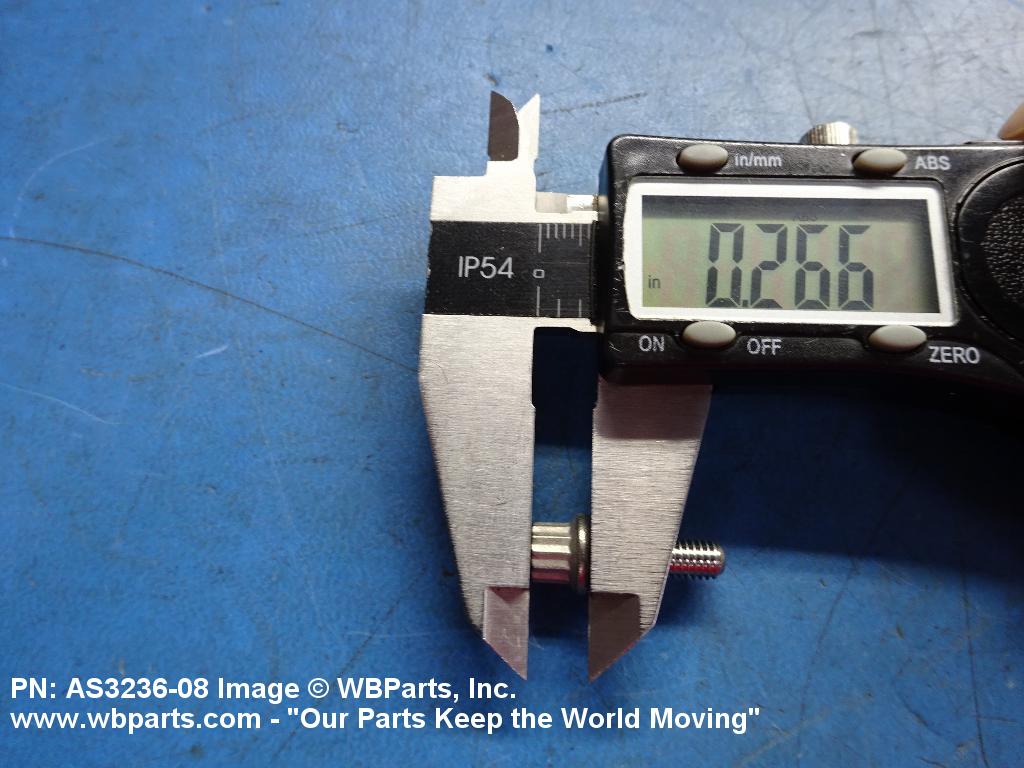

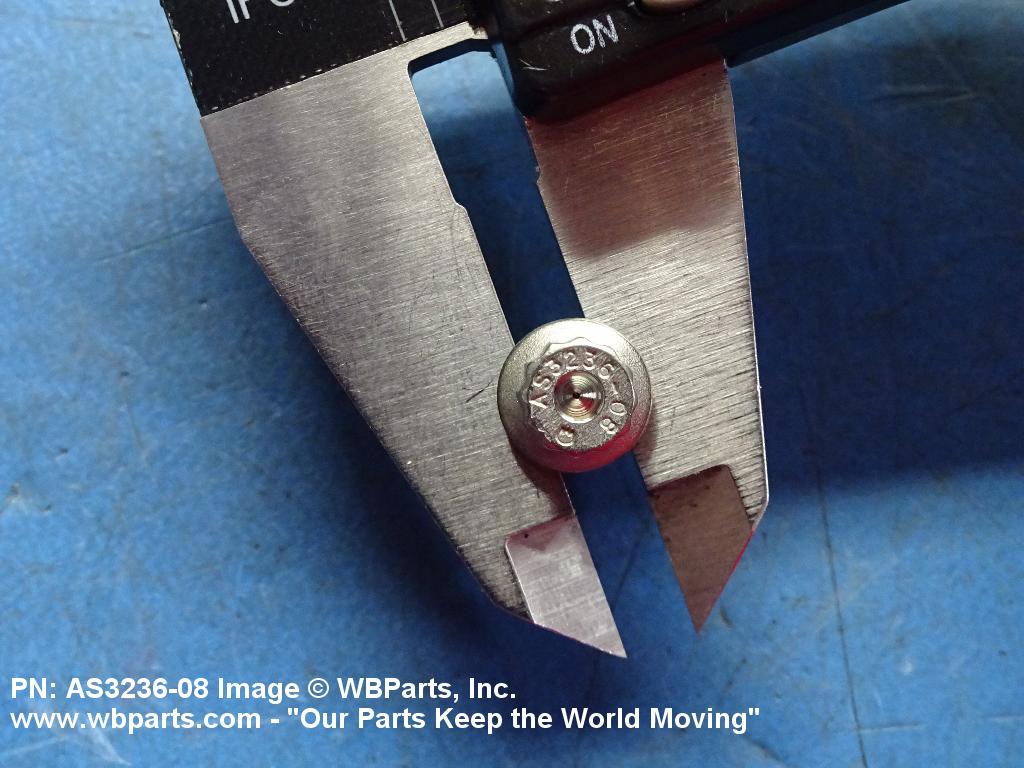

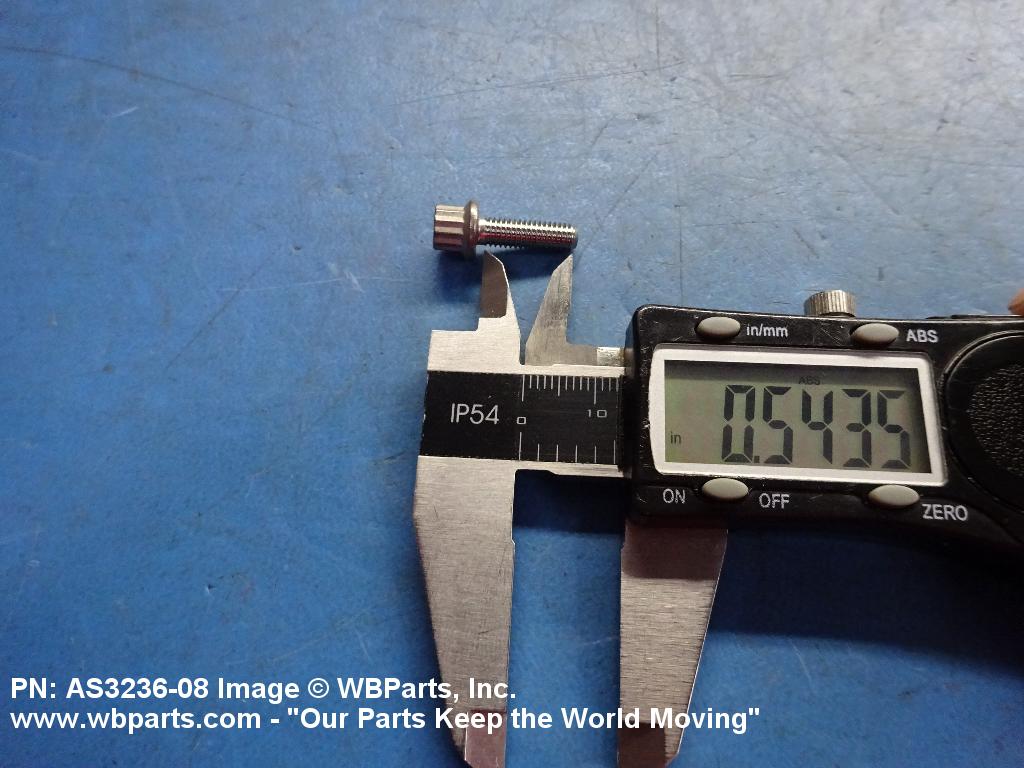

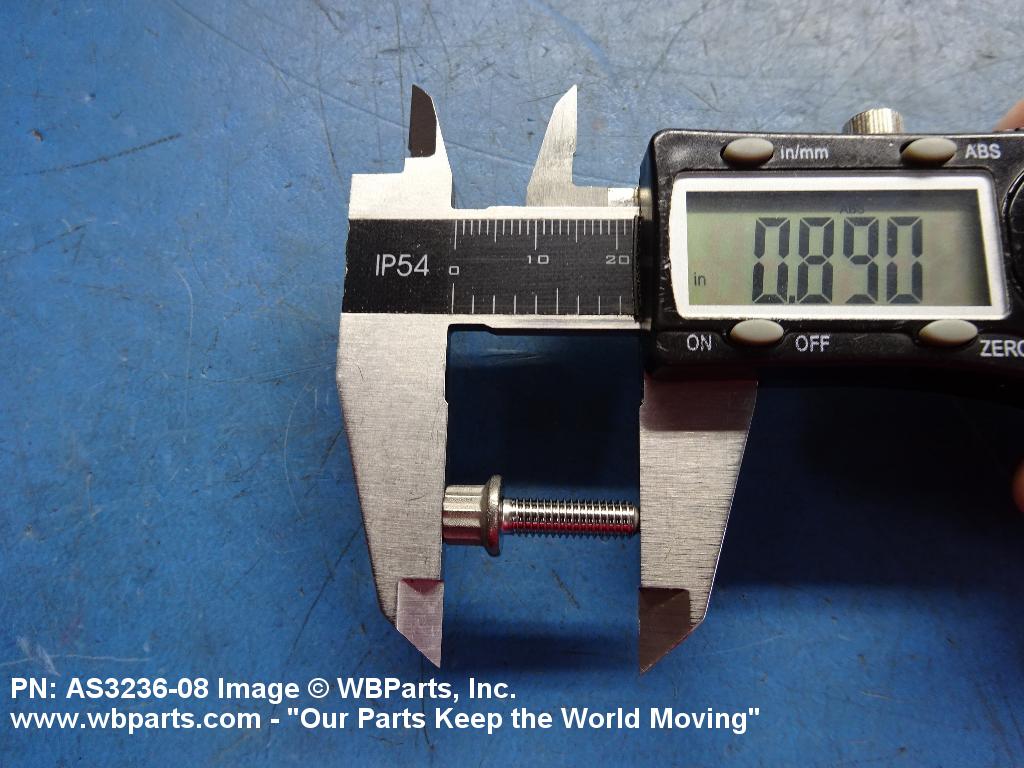

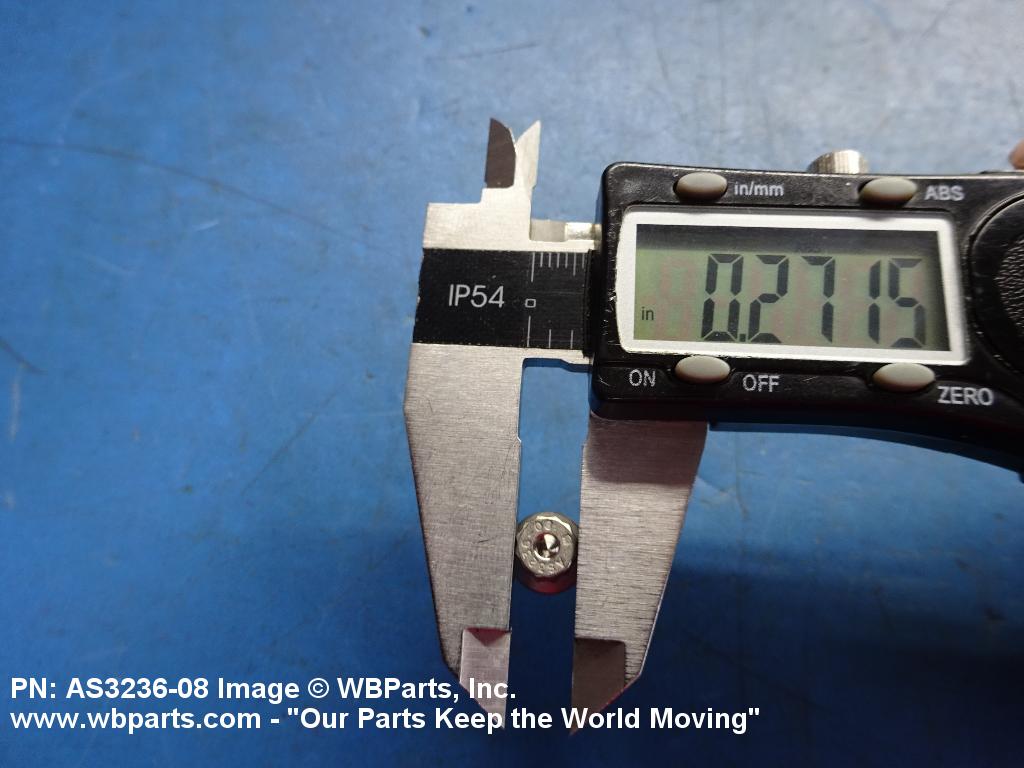

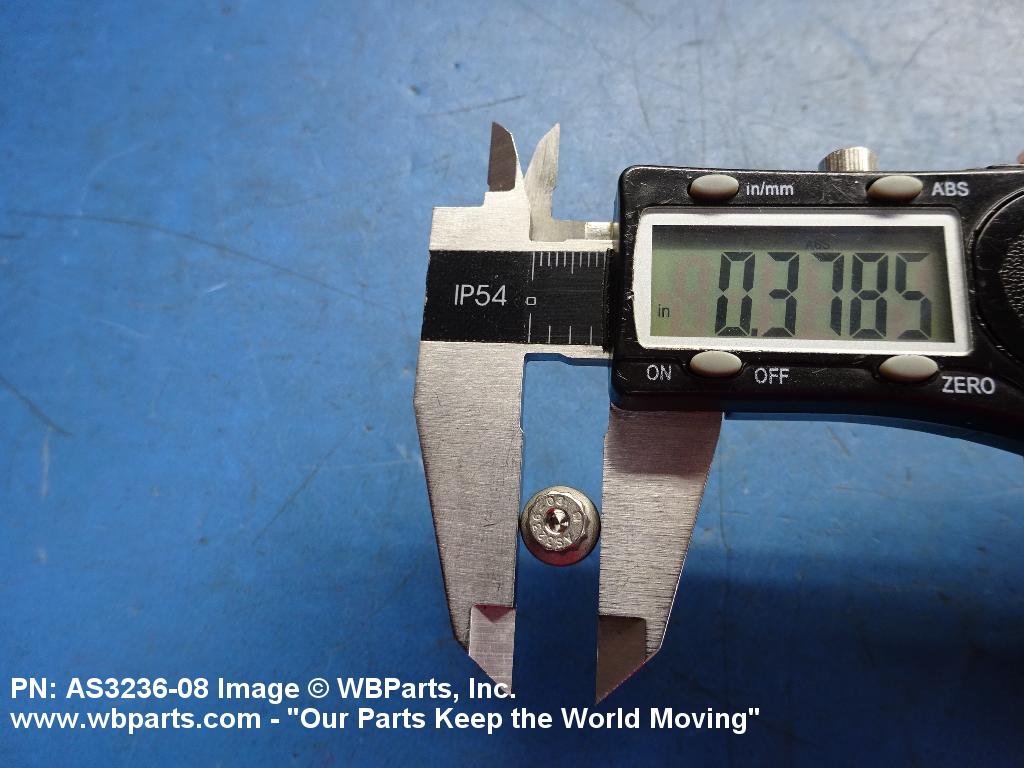

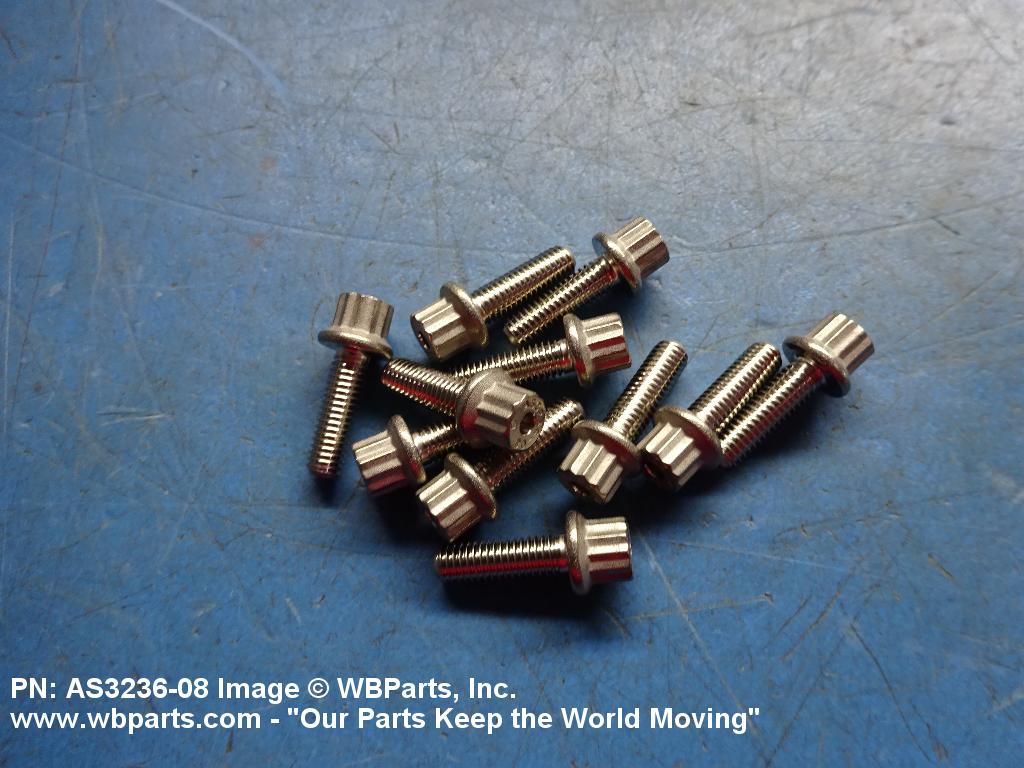

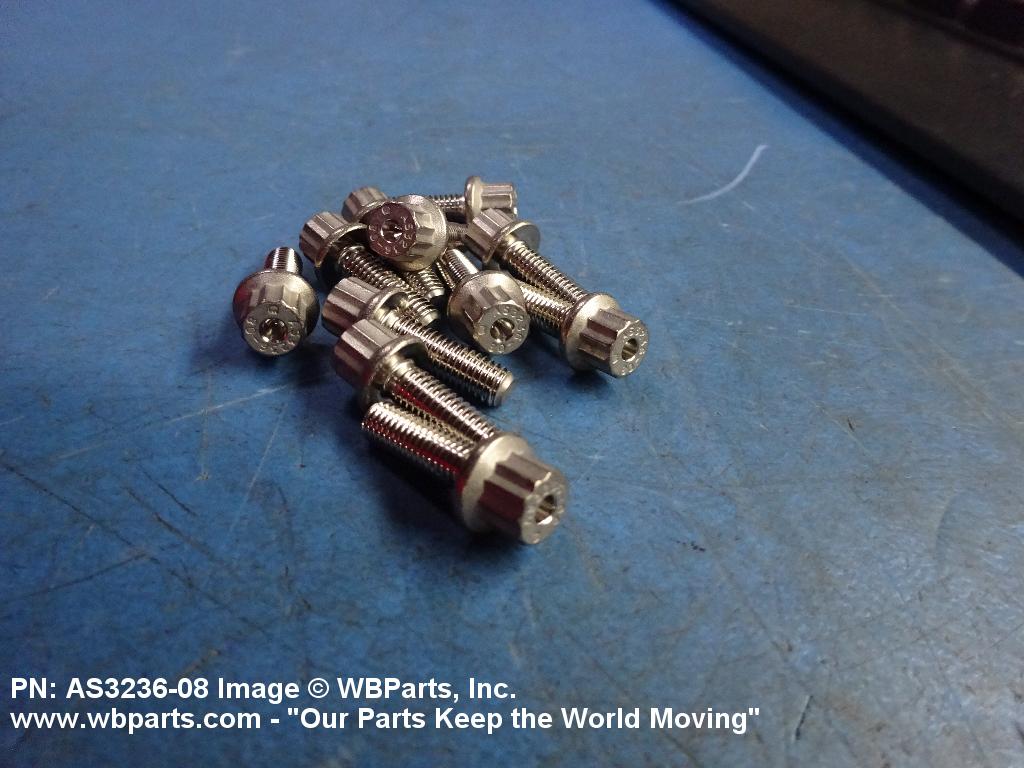

Drawings & Photos | NSN 5306-01-567-6926
Demand History | NSN 5306-01-567-6926
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS3236-08 | 2025-07-211 | 1564 | DIBBS |
| AS3236-08 | 2025-07-203 | 1564 | DIBBS |
| AS323608 | 2025-07-202 | 18 | United States |
| 5306-01-567-6926 | 2025-06-169 | 1254 | US |
| AS3236-08 | 2025-04-106 | 618 | DIBBS |
| AS3236-08 | 2025-04-98 | 618 | DIBBS |
| AS323608 | 2025-02-55 | 50 | United States |
| 5306-01-567-6926 | 2024-11-331 | 1000 | TW |
| AS3236-08 | 2024-05-133 | 21 | DIBBS |
| AS323608 | 2022-07-209 | 8 | United States |
| AS3236-08 | 2019-01-24 | 25 | EG |
| AS323608 | 2018-07-205 | 4 | US |
| AS3236-08 | 2018-05-135 | 3 | FX |
| AS323608 | 2008-01-08 | 100 | France |
| AS323608 | 2007-12-360 | 12 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-567-6926
Technical Data | NSN 5306-01-567-6926
| Characteristic | Specifications |
|---|---|
| HEAD HEIGHT | 0.248 INCHES MINIMUM AND 0.268 INCHES MAXIMUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| THREAD DIRECTION | RIGHT-HAND |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
| EXTENDED WASHER THICKNESS | 0.040 INCHES MINIMUM |
| EXTENDED WASHER DIAMETER | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| FASTENER LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| FIRST DIAMETER FROM HEAD | 0.165 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.092 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 32 |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD LENGTH | 0.543 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| HEAD STYLE | DOUBLE HEXAGON W/HOLE |
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5306-01-567-6926
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5306-01-567-6926
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
