NSN 5306-01-576-9802 CA21037610HS, CA21037-6-10HS, 01-576-9802
Product Details | INTERNAL WRENCHING BOLT
5306-01-576-9802 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: CA21037610HS, CA21037-6-10HS, 5306-01-576-9802, 01-576-9802, 5306015769802, 015769802
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 2009 | 01-576-9802 | 06666 ( BOLT, INTERNAL WRENCHING ) |

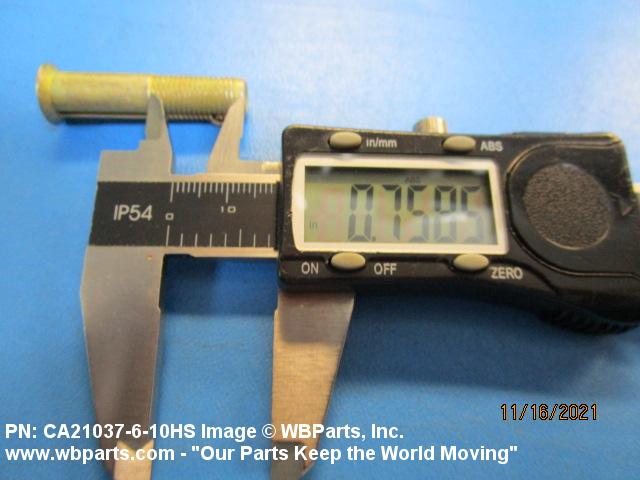

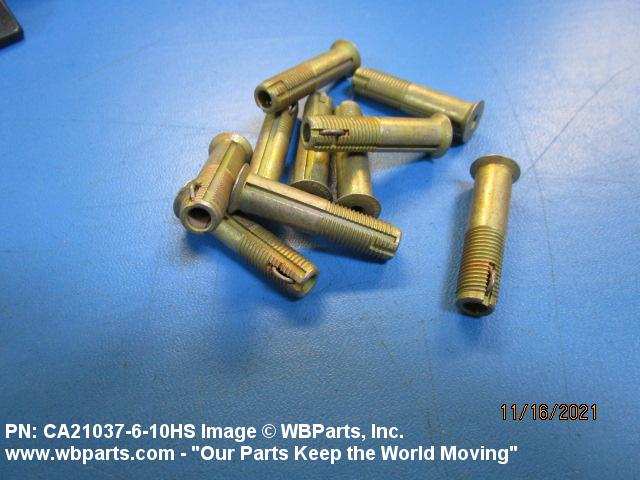

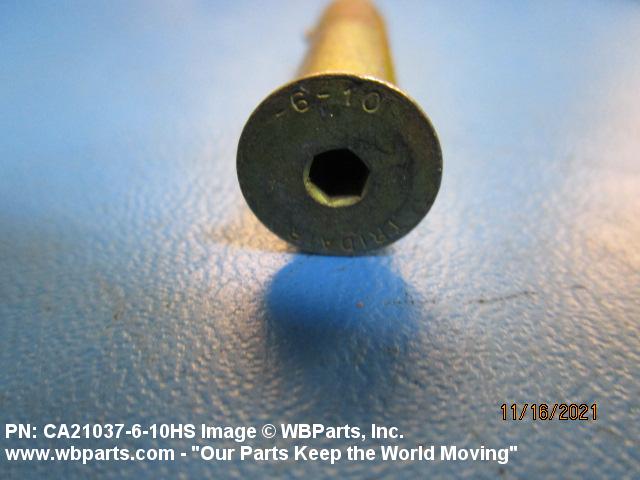

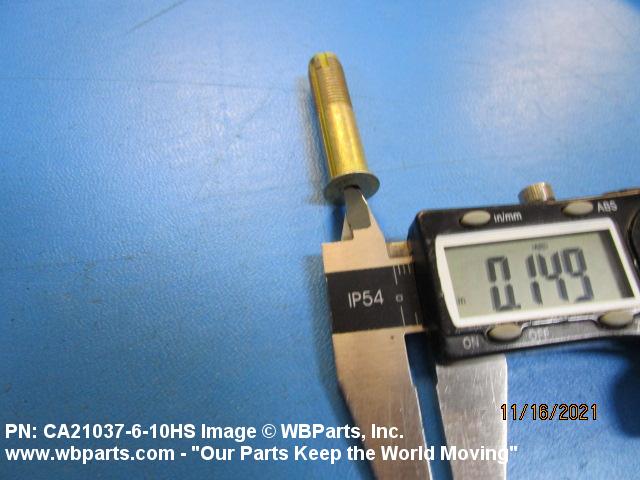

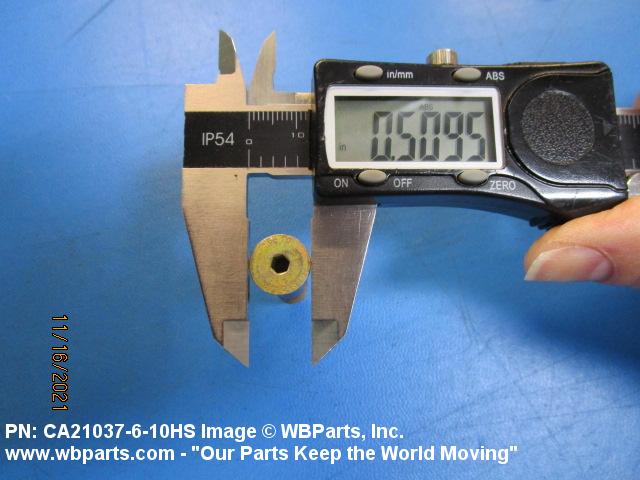

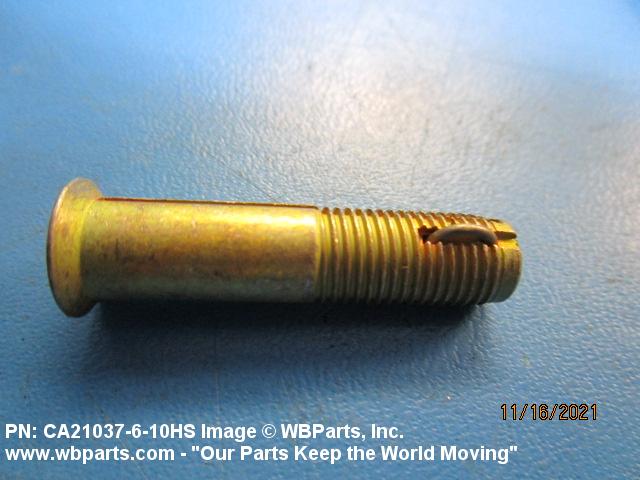

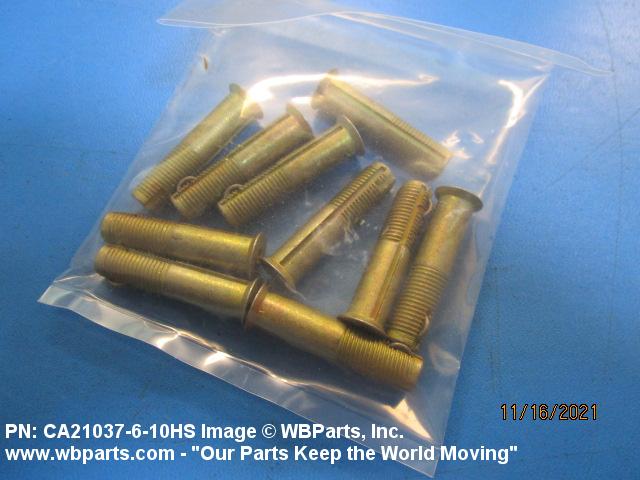

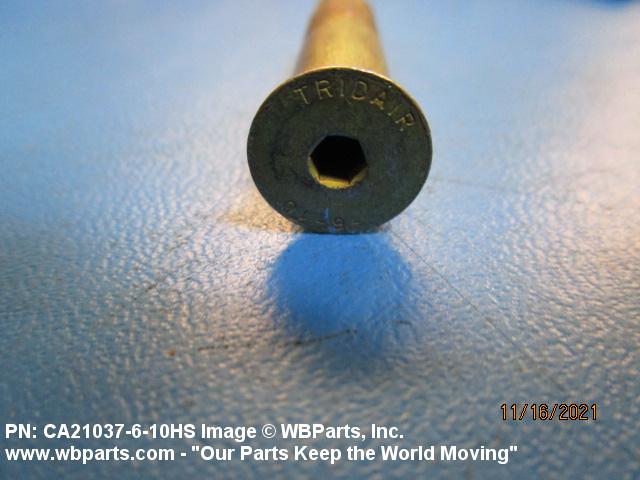

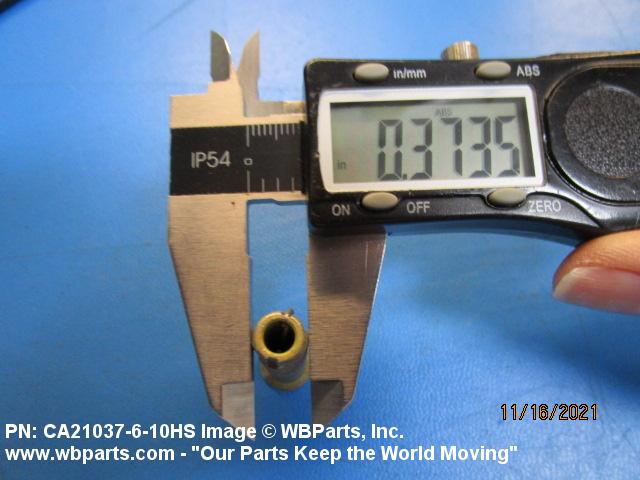

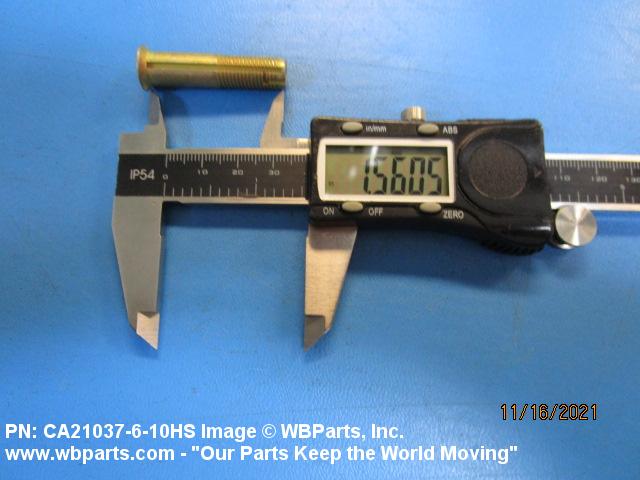

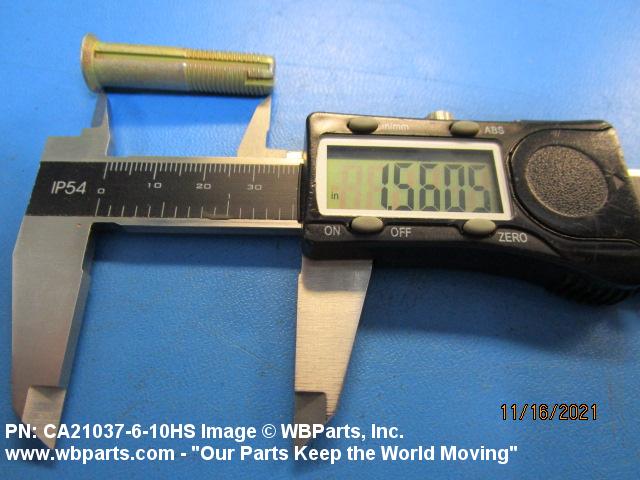

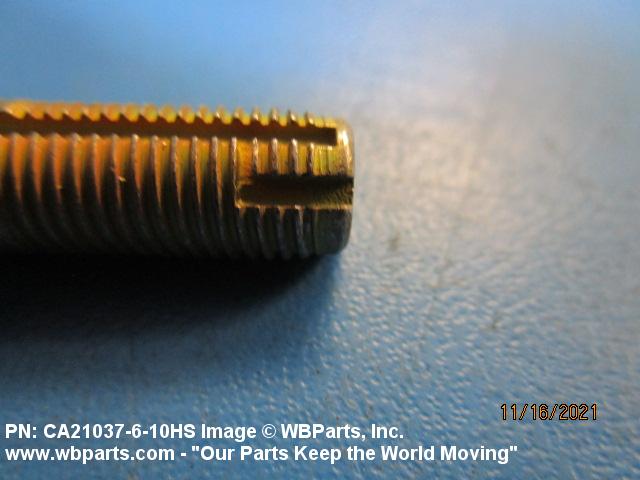

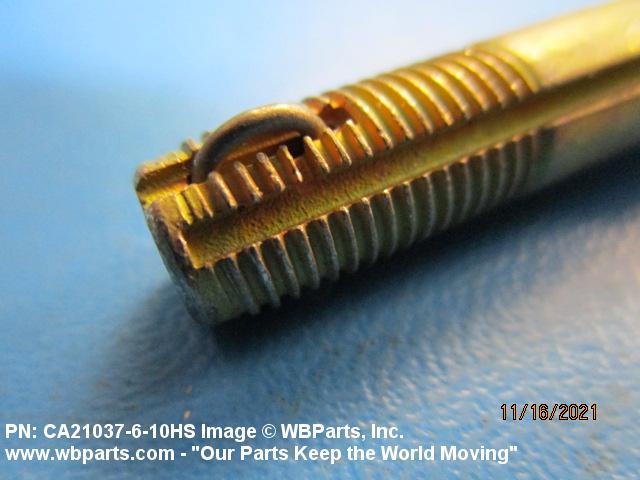

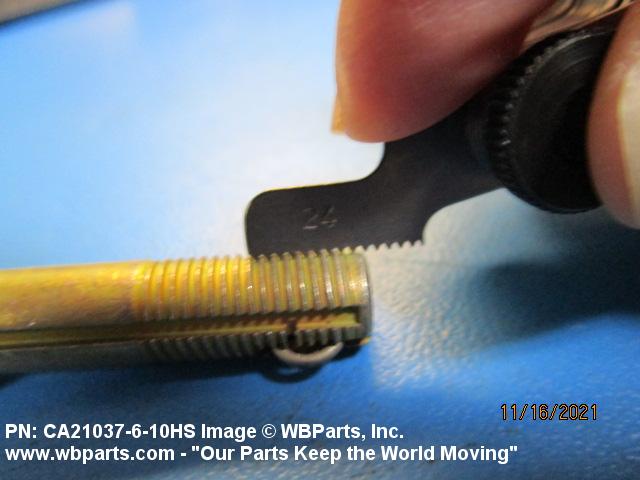

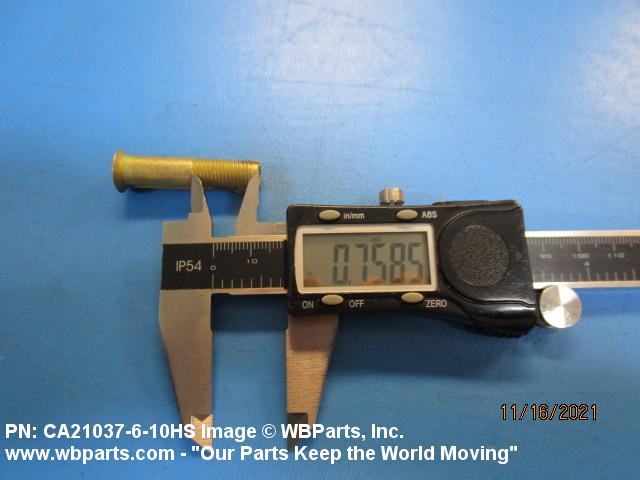

Drawings & Photos | NSN 5306-01-576-9802
Demand History | NSN 5306-01-576-9802
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA21037610HS | 2022-11-312 | 4 | United States |
| 5306-01-576-9802 | 2021-11-309 | 10 | United States |
| CA21037610HS | 2009-04-99 | 8 | United States |
| CA21037610HS | 2009-03-63 | 16 | United States |
Cross Reference | NSN 5306-01-576-9802
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA21037-6-10HS | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-576-9802
Technical Data | NSN 5306-01-576-9802
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| INTERNAL DRIVE STYLE | HEXAGON |
| THREAD SERIES DESIGNATOR | UNF |
| FASTENER LENGTH | 1.630 INCHES NOMINAL |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| WIDTH ACROSS FLATS | 0.141 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD LENGTH | 0.850 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OVERALL OR STEEL COMP 8740 OVERALL |
| HEAD STYLE | FLAT COUNTERSUNK UNDERCUT |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| HEAD DIAMETER | 0.505 INCHES NOMINAL |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5306-01-576-9802
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
