NSN 5306-01-598-8544 NAS6810U66, 01-598-8544, 015988544
Product Details | SHEAR BOLT
5306-01-598-8544 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS6810U66, 5306-01-598-8544, 01-598-8544, 5306015988544, 015988544
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 AUG 2011 | 01-598-8544 | 15903 ( BOLT, SHEAR ) |

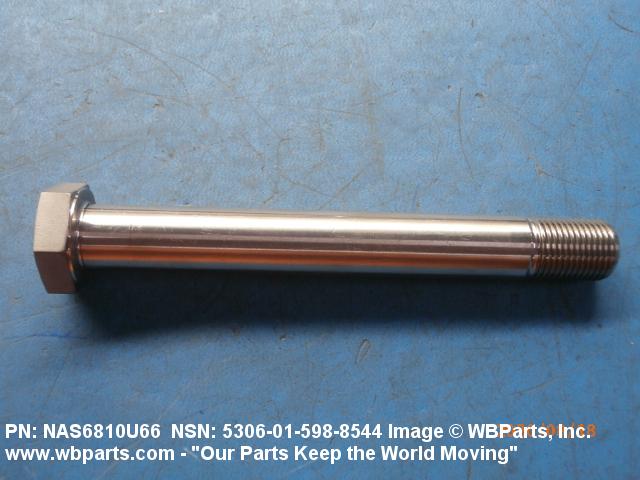

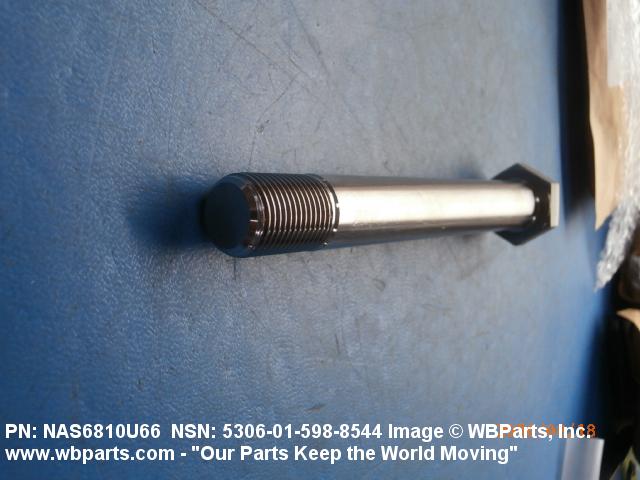

Drawings & Photos | NSN 5306-01-598-8544
Demand History | NSN 5306-01-598-8544
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS6810U66 | 2025-10-274 | 47 | DIBBS |
| NAS6810U66 | 2025-09-258 | 4 | DIBBS |
| NAS6810U66 | 2025-09-247 | 1 | DIBBS |
| NAS6810U66 | 2025-09-247 | 17 | DIBBS |
| NAS6810U66 | 2022-02-46 | 772 | DIBBS |
| 5306-01-598-8544 | 2021-06-165 | 343 | DIBBS |
| 5306-01-598-8544 | 2021-05-131 | 61 | DIBBS |
| 5306-01-598-8544 | 2020-10-301 | 500 | DIBBS |
| 5306-01-598-8544 | 2020-08-238 | 8 | US |
| 5306-01-598-8544 | 2020-08-238 | 8 | US |
| 5306-01-598-8544 | 2020-07-212 | 6 | United States |
| 5306-01-598-8544 | 2020-07-204 | 200 | United States |
| 5306-01-598-8544 | 2020-07-202 | 200 | DIBBS |
| 5306-01-598-8544 | 2019-11-325 | 300 | DIBBS |
| 5306-01-598-8544 | 2019-08-241 | 81 | DIBBS |
| 5306-01-598-8544 | 2019-06-161 | 75 | DIBBS |
| 5306-01-598-8544 | 2019-03-87 | 57 | DIBBS |
| 5306-01-598-8544 | 2018-11-310 | 160 | DIBBS |
| 5306-01-598-8544 | 2018-09-268 | 70 | DIBBS |
| 5306-01-598-8544 | 2018-02-38 | 3 | DIBBS |
| 5306-01-598-8544 | 2017-11-319 | 108 | DIBBS |
| 5306-01-598-8544 | 2017-09-260 | 70 | DIBBS |
| 5306-01-598-8544 | 2017-07-211 | 18 | DIBBS |
| 5306-01-598-8544 | 2016-05-129 | 100 | DIBBS |
| 5306-01-598-8544 | 2016-04-108 | 15 | DIBBS |
| NAS6810U66 | 2015-06-159 | 1 | United States |
| 5306-01-598-8544 | 2014-01-02 | 100 | Turkey |
| 5306-01-598-8544 | 2013-04-94 | 2 | DIBBS |
| 5306-01-598-8544 | 2012-02-57 | 2 | DIBBS |
| 5306-01-598-8544 | 2011-12-349 | 2 | DIBBS |
Cross Reference | NSN 5306-01-598-8544
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS6810U66 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-598-8544
Technical Data | NSN 5306-01-598-8544
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |

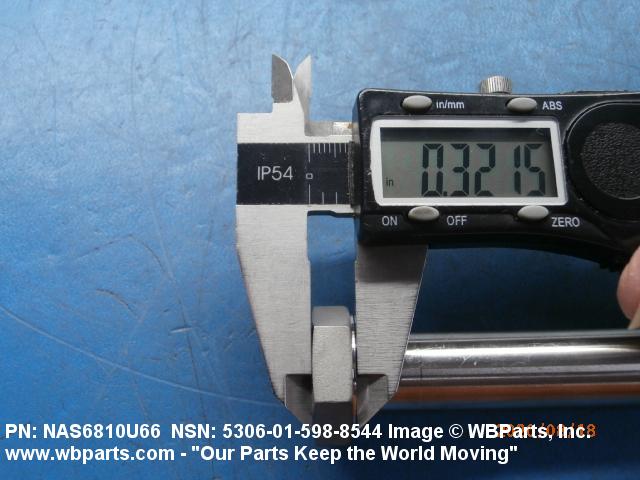

| HEAD HEIGHT | 0.312 INCHES MINIMUM AND 0.327 INCHES MAXIMUM |

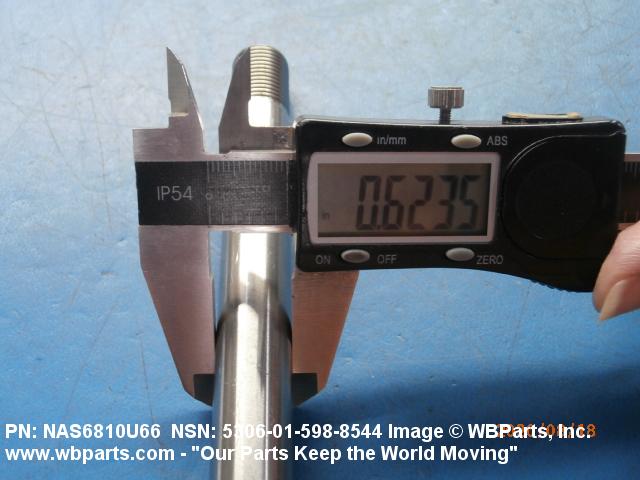

| GRIP DIAMETER | 0.6226 INCHES MINIMUM AND 0.6232 INCHES MAXIMUM |

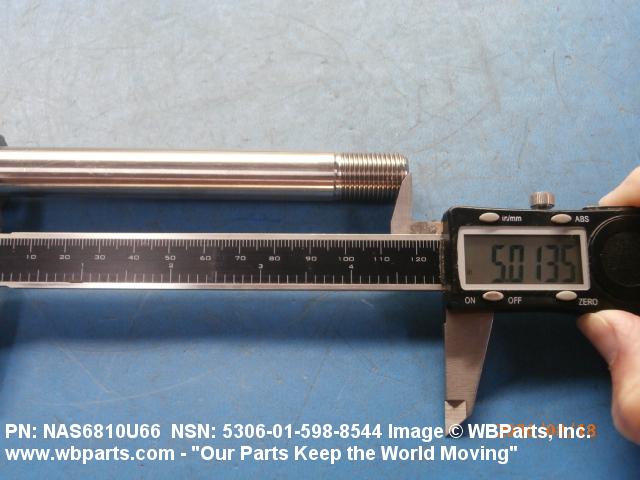

| FASTENER LENGTH | 5.012 INCHES MINIMUM AND 5.042 INCHES MAXIMUM |

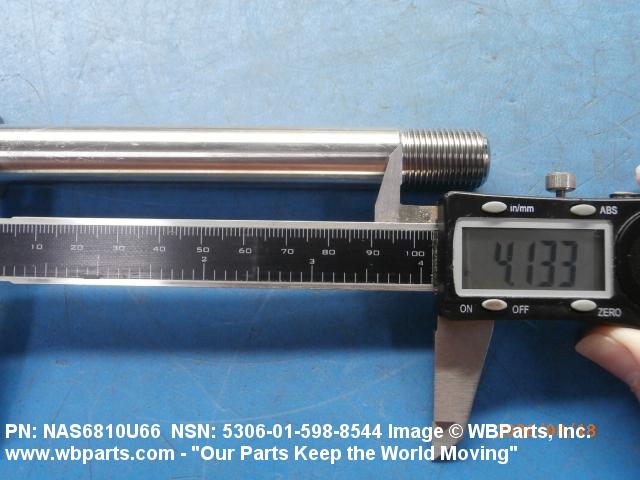

| GRIP LENGTH | 4.115 INCHES MINIMUM AND 4.135 INCHES MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

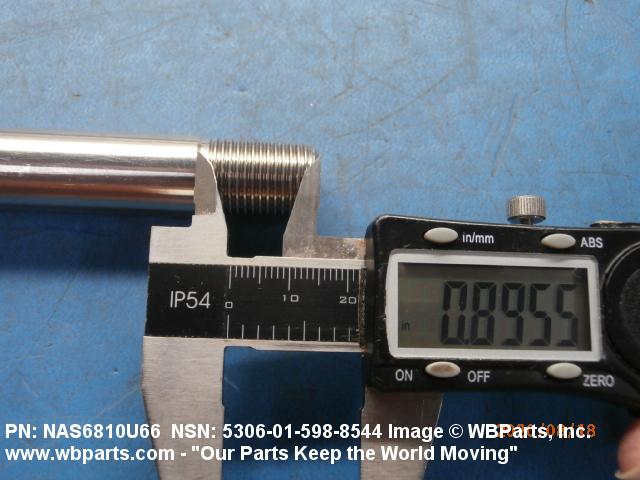

| THREAD LENGTH | 0.902 INCHES NOMINAL |

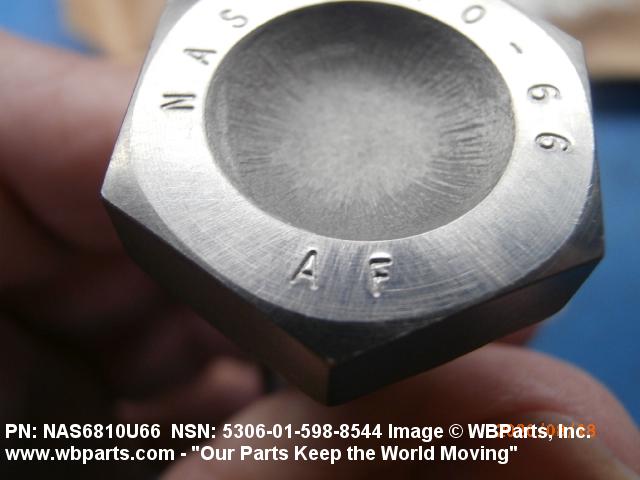

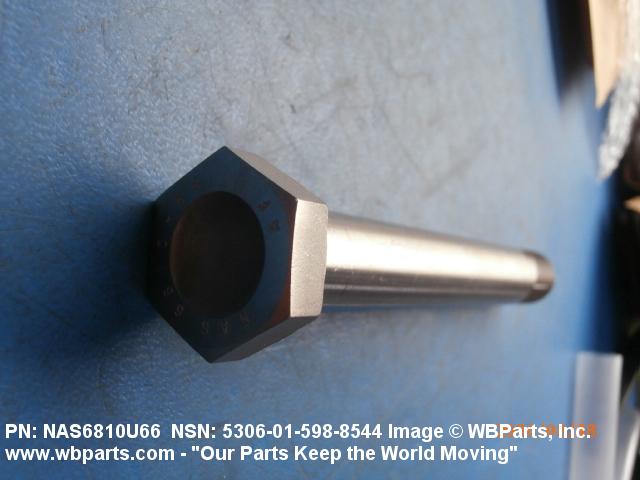

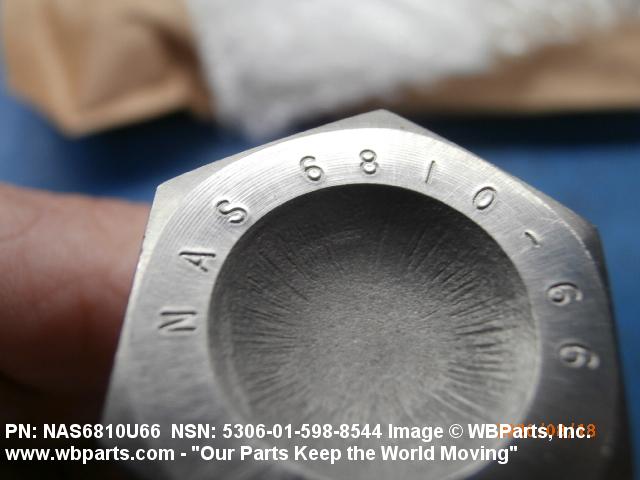

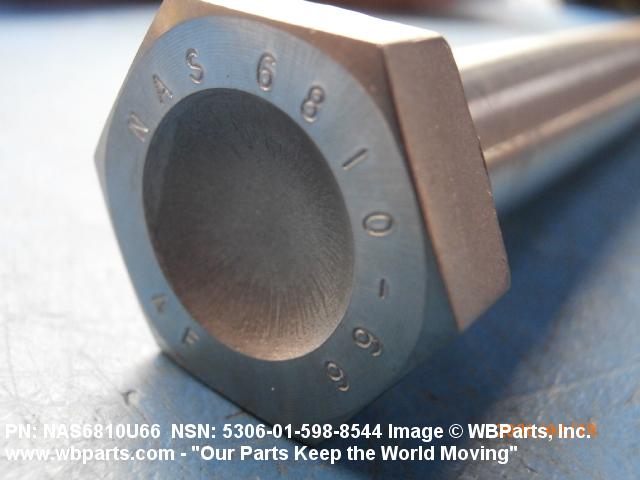

| HEAD STYLE | DISHED HEXAGON |
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| SPECIFICATION/STANDARD DATA | 80205-NAS6810 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |

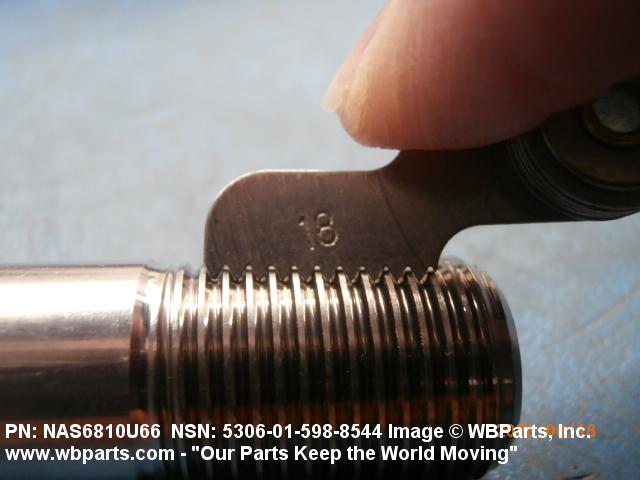

| THREAD QUANTITY PER INCH | 18 |
| THREAD SERIES DESIGNATOR | UNJF |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 4967 ASSN STD 2ND MATERIAL RESPONSE OVERALL |

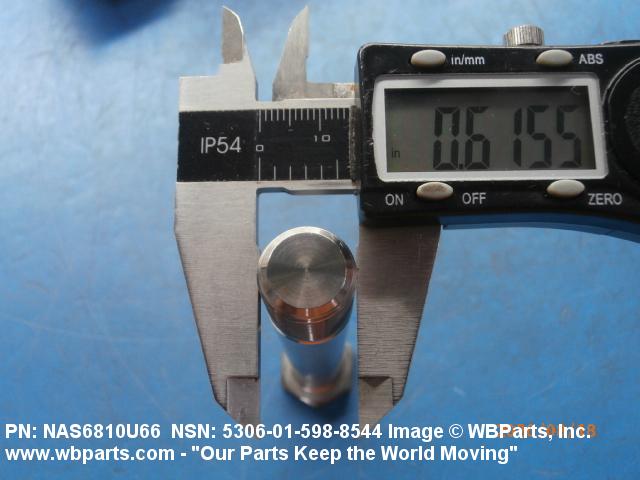

| NOMINAL THREAD DIAMETER | 0.625 INCHES |

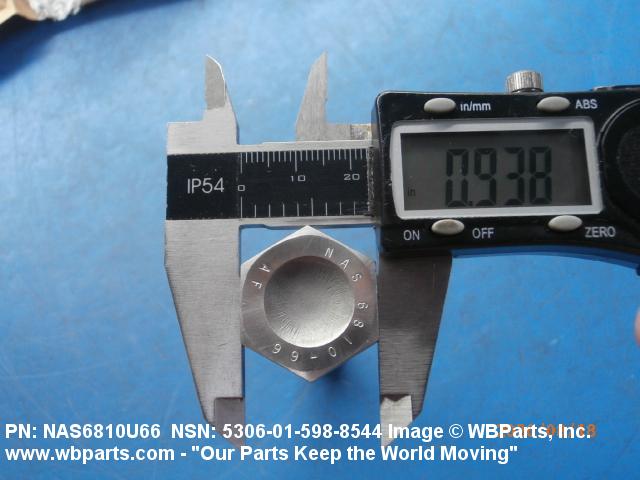

| WIDTH BETWEEN FLATS | 0.928 INCHES MINIMUM AND 0.940 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5306-01-598-8544
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-598-8544
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
