NSN 5306-01-605-3400 MBT50632, MBT50-6-32, 01-605-3400
Product Details | MACHINE BOLT
5306-01-605-3400 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: MBT50632, MBT50-6-32, 5306-01-605-3400, 01-605-3400, 5306016053400, 016053400
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 APR 2012 | 01-605-3400 | 01847 ( BOLT, MACHINE ) |

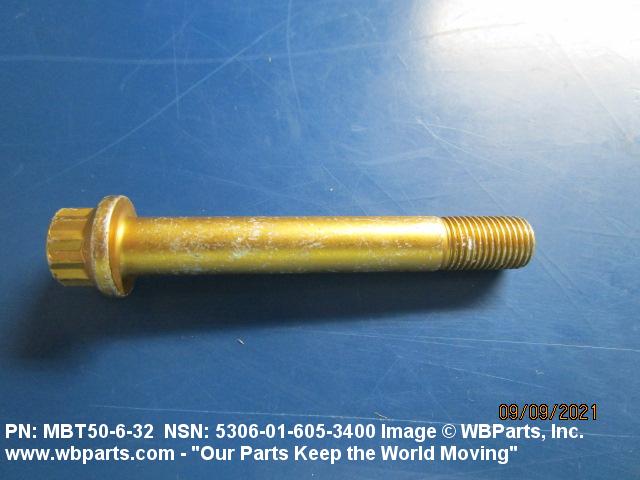

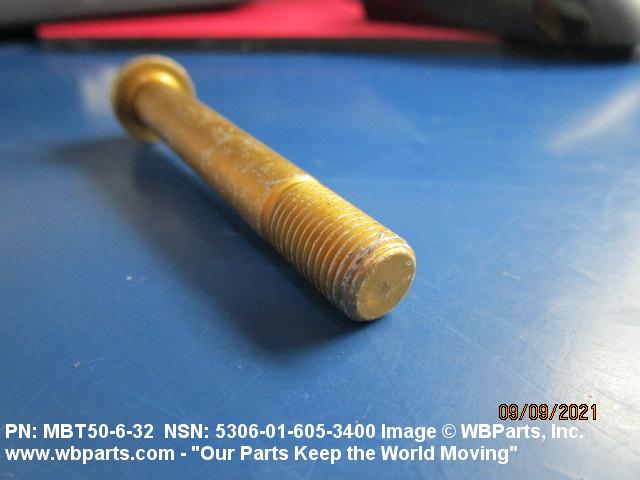

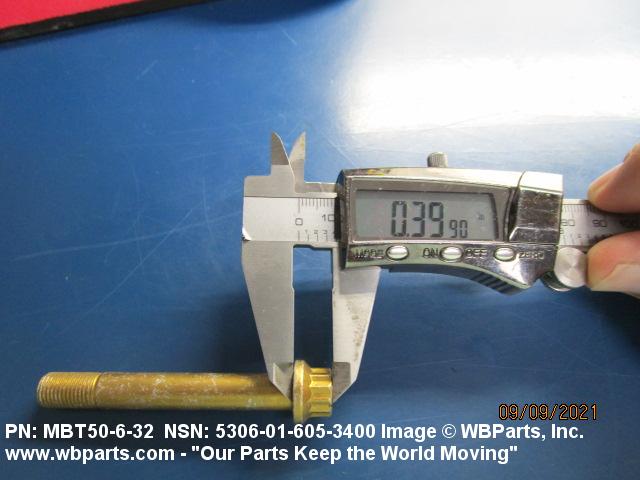

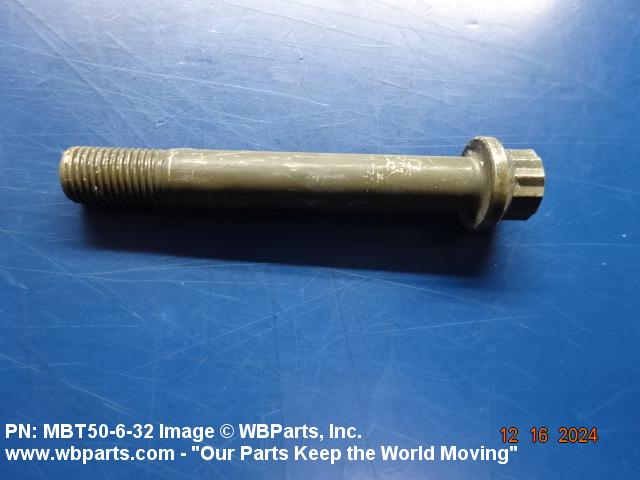

Drawings & Photos | NSN 5306-01-605-3400
Demand History | NSN 5306-01-605-3400
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MBT50-6-32 | 2025-11-308 | 61 | DIBBS |
| MBT50-6-32 | 2025-08-231 | 75 | DIBBS |
| MBT50-6-32 | 2025-05-126 | 16 | DIBBS |
| MBT50-6-32 | 2025-03-85 | 19 | DIBBS |
| MBT50-6-32 | 2025-01-14 | 22 | DIBBS |
| MBT50-6-32 | 2024-12-345 | 30 | DIBBS |
| 5306-01-605-3400 | 2024-12-341 | 10 | us |
| 5306-01-605-3400 | 2024-12-341 | 10 | us |
| 5306-01-605-3400 | 2023-03-62 | 35 | US |
| MBT50-6-32 | 2023-02-59 | 7 | DIBBS |
| MBT50-6-32 | 2023-01-22 | 28 | DIBBS |
| 5306-01-605-3400 | 2022-06-167 | 2 | United States |
| 5306-01-605-3400 | 2021-09-244 | 1 | United States |
| 5306-01-605-3400 | 2020-12-344 | 6 | United States |
| MBT50632 | 2012-02-47 | 50 | IT |
Cross Reference | NSN 5306-01-605-3400
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MBT50-6-32 | 73197 | HI-SHEAR CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-605-3400
Technical Data | NSN 5306-01-605-3400
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |

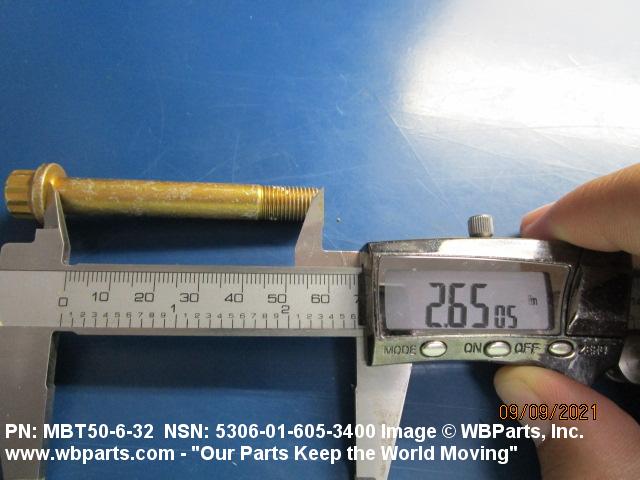

| FASTENER LENGTH | 2.629 INCHES NOMINAL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| EXTENDED WASHER THICKNESS | 0.081 INCHES MINIMUM AND 0.101 INCHES MAXIMUM |

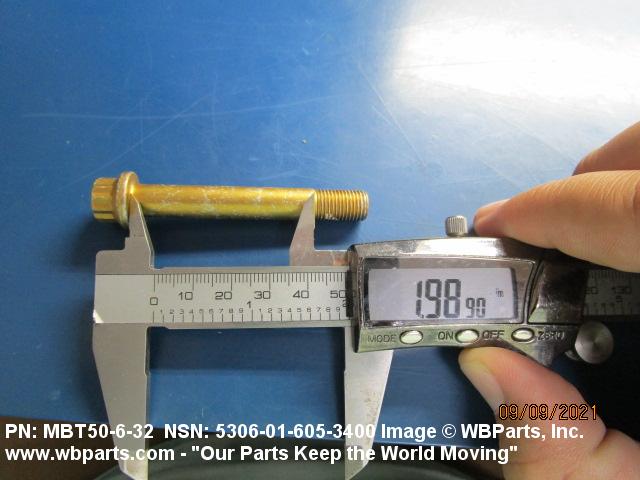

| GRIP LENGTH | 1.984 INCHES NOMINAL |
| SURFACE TREATMENT | CADMIUM OVERALL |

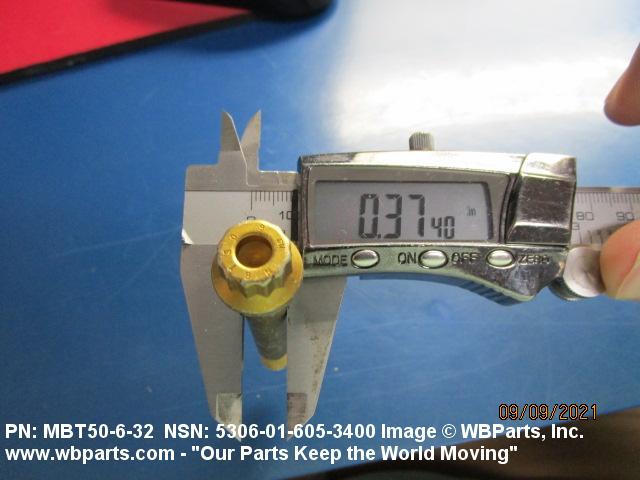

| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MATERIAL | STEEL OVERALL |

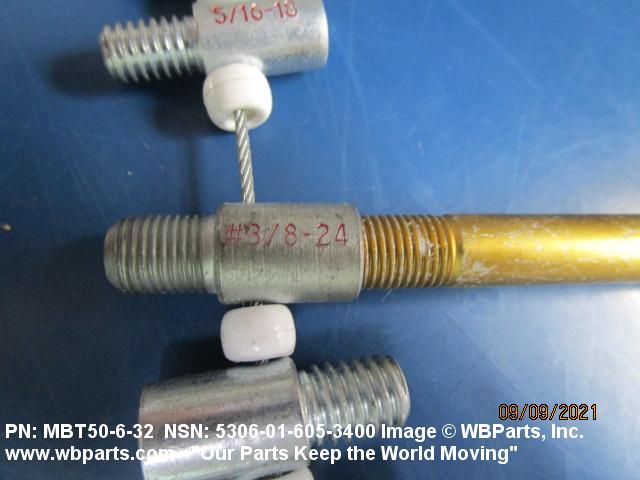

| THREAD QUANTITY PER INCH | 24 |
| THREAD SERIES DESIGNATOR | UNJF |
| HEAD STYLE | DOUBLE HEXAGON EXTENDED WASHER |

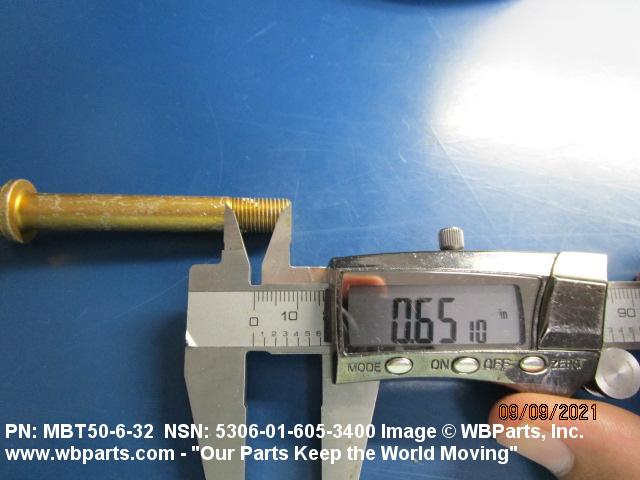

| THREAD LENGTH | 0.657 INCHES NOMINAL |
| GRIP DIAMETER | 0.3891 INCHES MINIMUM AND 0.3901 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.4375 INCHES NOMINAL |
| HEAD HEIGHT | 0.378 INCHES MINIMUM AND 0.398 INCHES MAXIMUM |

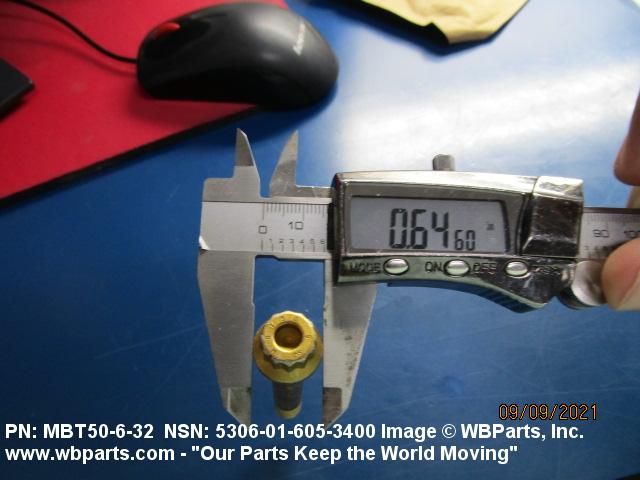

| WIDTH BETWEEN FLATS | 0.639 INCHES MINIMUM AND 0.649 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5306-01-605-3400
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
