NSN 5306-01-616-3192 6736617 , 67366171, 6736617-1
Product Details | SHEAR BOLT
5306-01-616-3192 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: 6736617 , 67366171, 6736617-1 , 5306-01-616-3192, 01-616-3192, 5306016163192, 016163192
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2013039 | 01-616-3192 | 15903 ( BOLT, SHEAR ) |

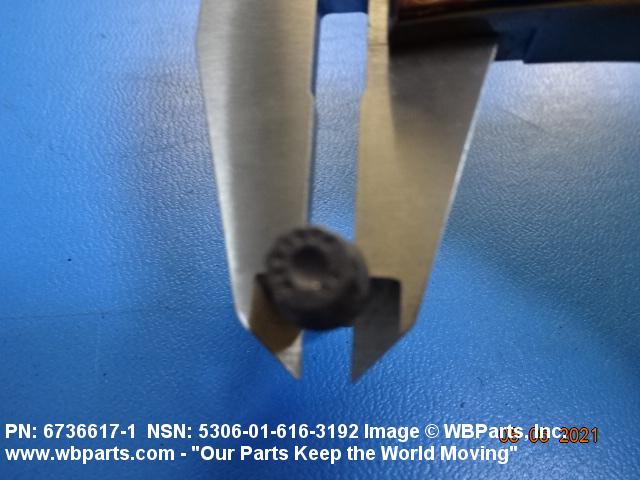

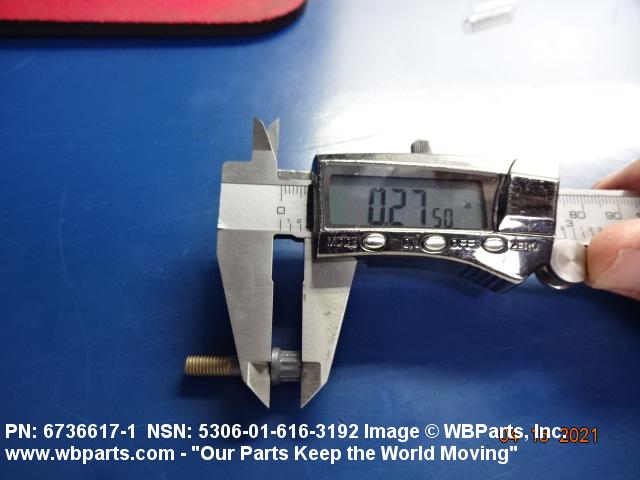

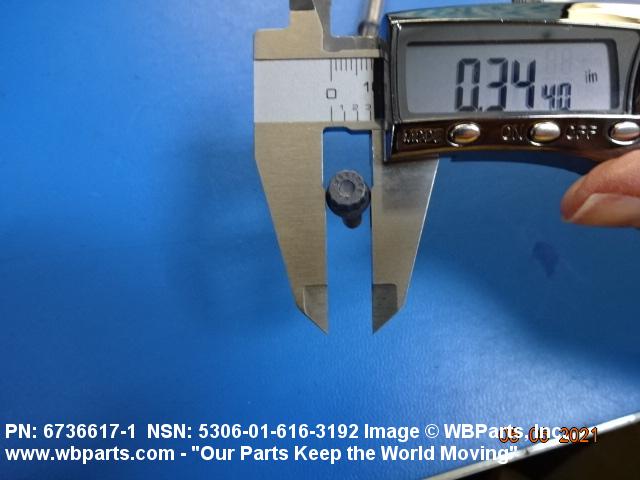

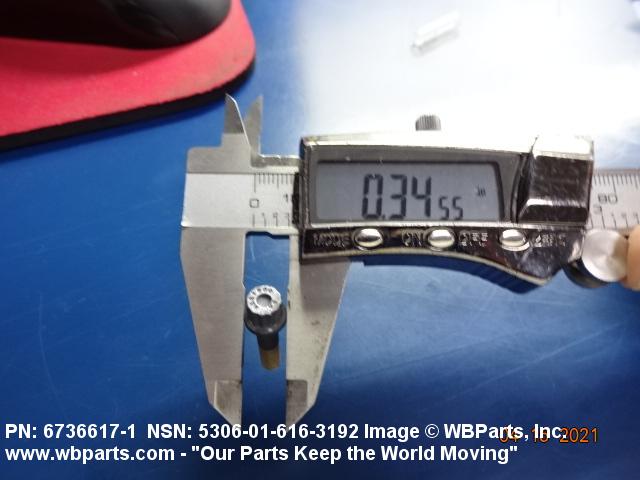

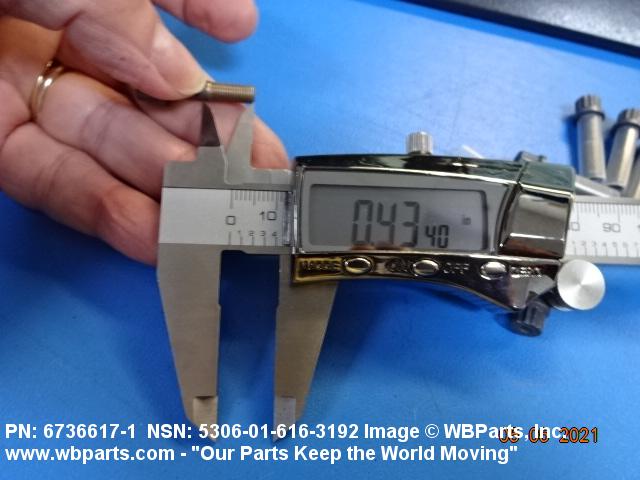

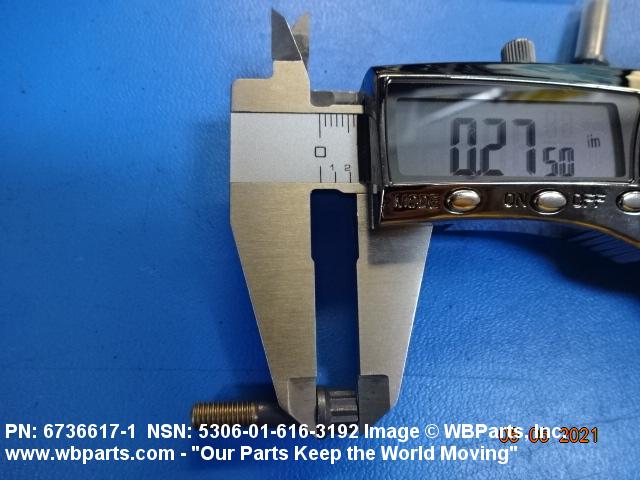

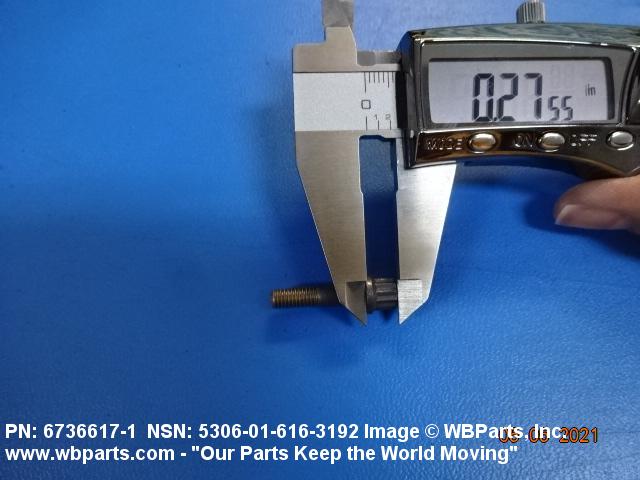

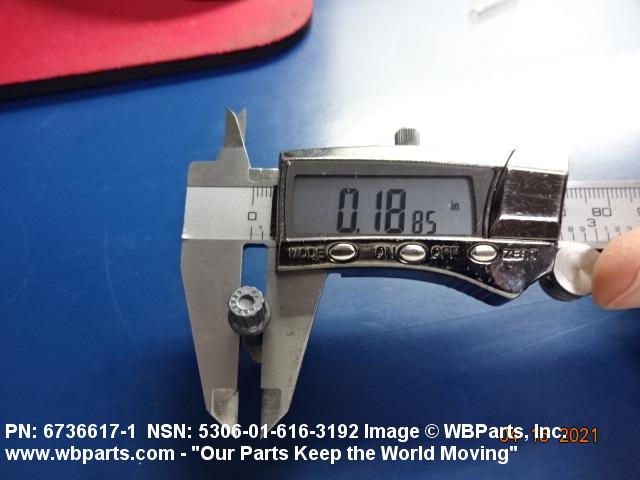

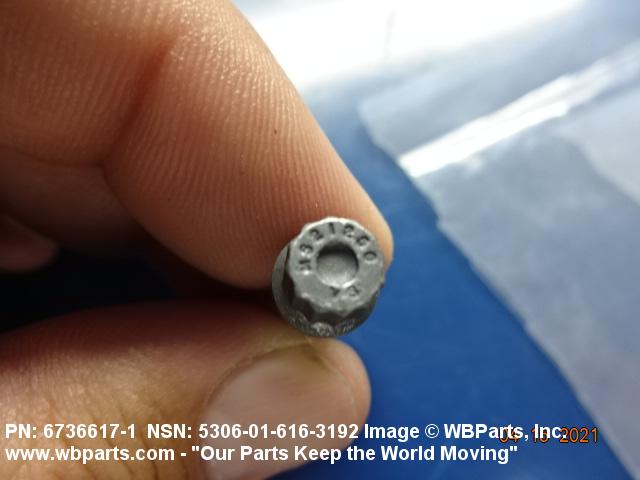

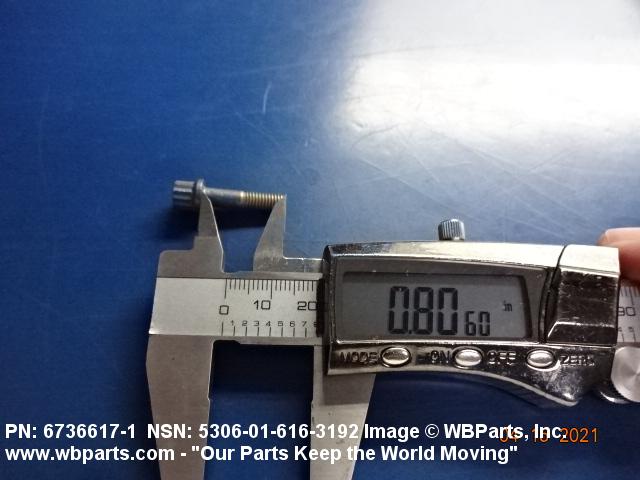

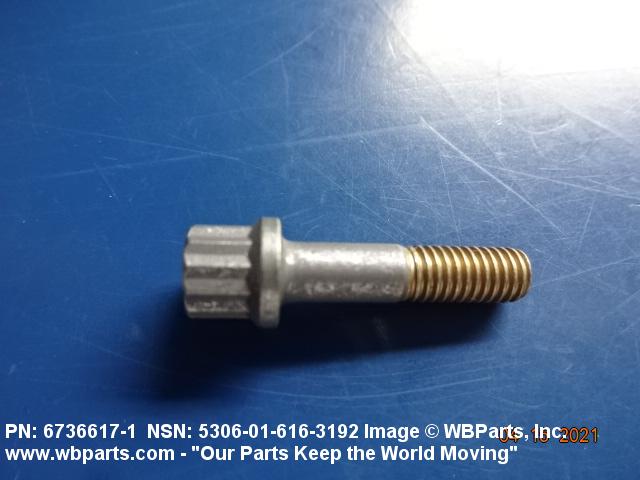

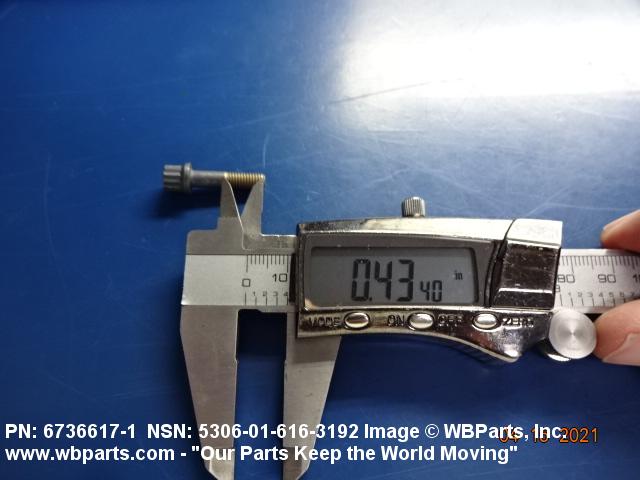

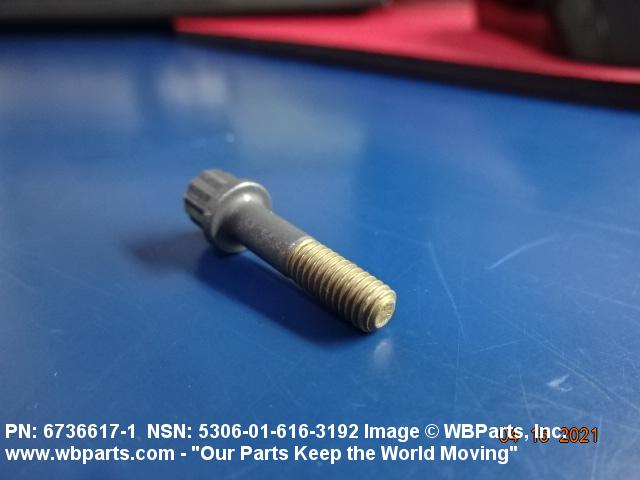

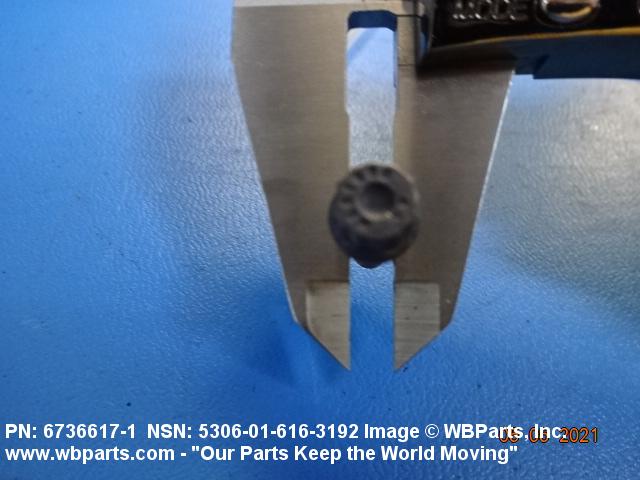

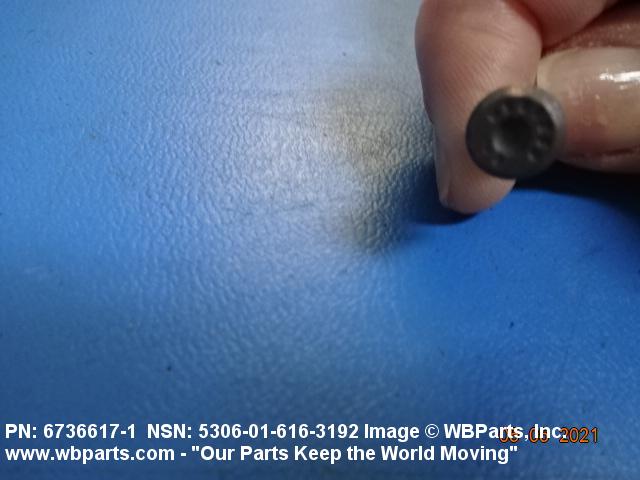

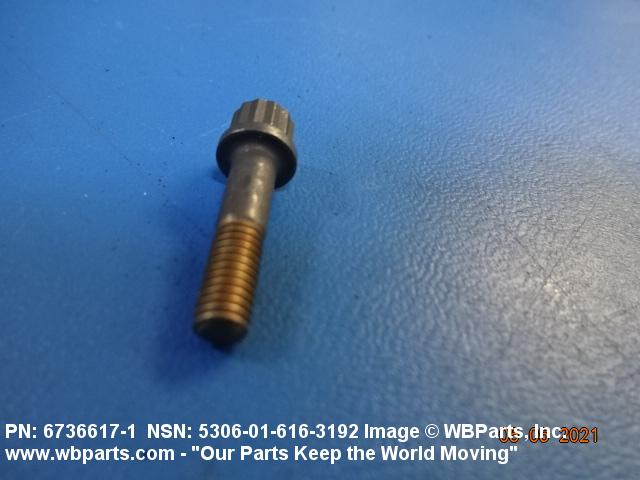

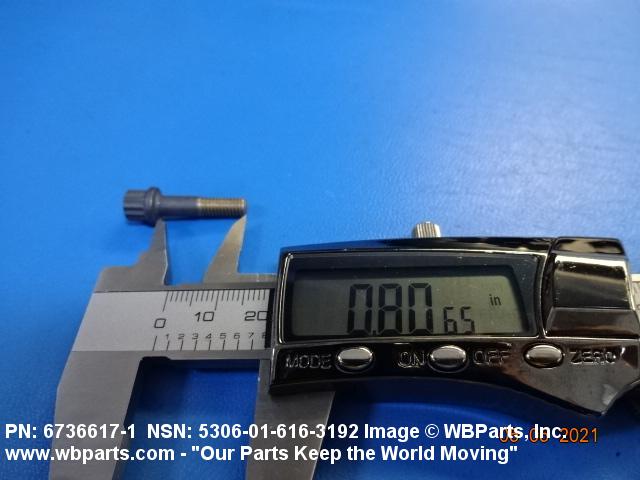

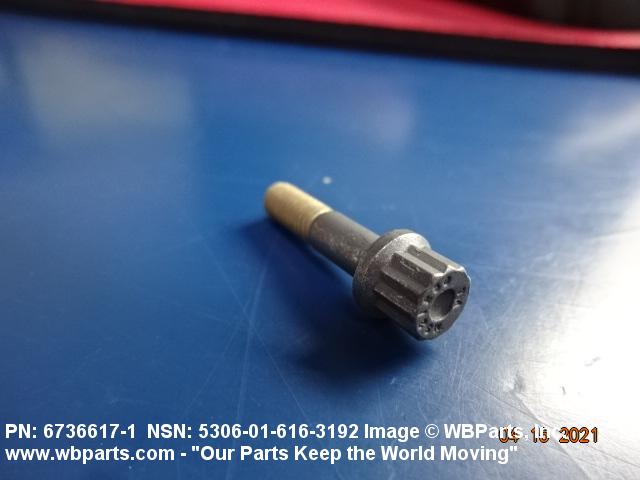

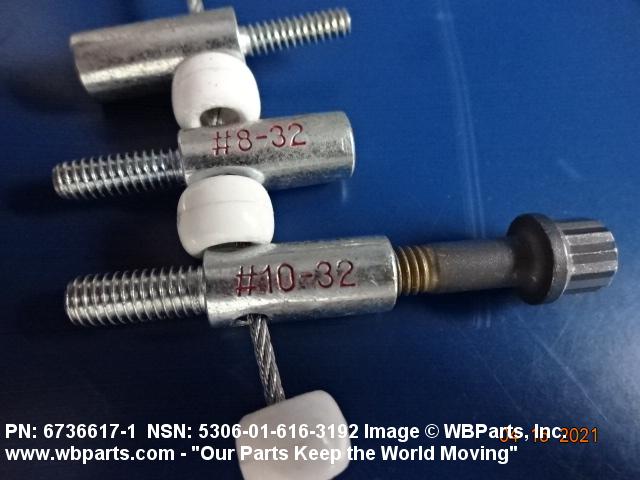

Drawings & Photos | NSN 5306-01-616-3192
Demand History | NSN 5306-01-616-3192
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-616-3192 | 2022-12-340 | 70 | DIBBS |
| 5306-01-616-3192 | 2021-06-164 | 69 | DIBBS |
| 5306-01-616-3192 | 2021-04-120 | 8 | United States |
| 5306-01-616-3192 | 2021-04-112 | 8 | US |
| 5306-01-616-3192 | 2021-04-97 | 30 | United States |
| 5306-01-616-3192 | 2020-12-345 | 96 | DIBBS |
| 5306-01-616-3192 | 2020-12-337 | 96 | DIBBS |
| 5306-01-616-3192 | 2020-11-324 | 92 | DIBBS |
| 5306-01-616-3192 | 2020-11-310 | 4 | DIBBS |
| 5306-01-616-3192 | 2020-10-292 | 90 | DIBBS |
| 5306-01-616-3192 | 2020-09-272 | 4 | DIBBS |
| 5306-01-616-3192 | 2020-09-258 | 4 | DIBBS |
| 5306-01-616-3192 | 2019-05-148 | 61 | DIBBS |
| 5306-01-616-3192 | 2018-09-254 | 80 | DIBBS |
| 5306-01-616-3192 | 2018-05-137 | 39 | DIBBS |
| 5306-01-616-3192 | 2018-02-39 | 80 | DIBBS |
| 5306-01-616-3192 | 2017-11-333 | 21 | DIBBS |
| 5306-01-616-3192 | 2017-10-302 | 7 | DIBBS |
| 5306-01-616-3192 | 2017-10-291 | 1 | DIBBS |
| 5306-01-616-3192 | 2017-09-249 | 16 | DIBBS |
| 5306-01-616-3192 | 2017-08-241 | 1 | DIBBS |
| 5306-01-616-3192 | 2017-06-166 | 8 | DIBBS |
| 5306-01-616-3192 | 2017-06-156 | 8 | DIBBS |
| 5306-01-616-3192 | 2016-05-140 | 8 | DIBBS |
| 5306-01-616-3192 | 2015-12-355 | 8 | DIBBS |
| 5306-01-616-3192 | 2015-09-252 | 80 | DIBBS |
| 5306-01-616-3192 | 2015-04-111 | 56 | DIBBS |
| 5306-01-616-3192 | 2014-04-98 | 8 | DIBBS |
| 5306-01-616-3192 | 2014-03-79 | 8 | DIBBS |
| 5306-01-616-3192 | 2014-03-63 | 8 | DIBBS |
| 5306-01-616-3192 | 2014-02-55 | 8 | DIBBS |
| 5306-01-616-3192 | 2013-12-364 | 8 | DIBBS |
| 5306-01-616-3192 | 2013-06-157 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-616-3192
Technical Data | NSN 5306-01-616-3192
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.1900 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.420 INCHES MINIMUM |
| FASTENER LENGTH | 0.815 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OR |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6382 NATIONAL STD/SPEC 1ST MATERIAL RESPONSE OR |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAD STYLE | DOUBLE HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 0.255 INCHES MINIMUM AND |
| WIDTH BETWEEN FLATS | 0.2500 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 0.340 INCHES MINIMUM AND |
| EXTENDED WASHER THICKNESS | 0.045 INCHES MINIMUM AND |
| GRIP LENGTH | 0.365 INCHES MINIMUM AND |
| GRIP DIAMETER | 0.1885 INCHES MINIMUM AND |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD |
| FEATURES PROVIDED | DRY FILM LUBRICANT |
| SPECIAL FEATURES | ITEM IS ALTERED FROM MS21250-03006 WITH DRY FILM LUBRICANT 5191127 APPLIED TO ALL SURFACES EXCEPT OMIT FROM THREADS;SURFACE ROUGHNESS IS 32 MICROINCHES ON SHANK AND BEARING SURFACE OF HEAD,ALL OTHER SURFACES ARE 125 MICROINCHES |
| SPECIFICATION/STANDARD DATA | 80205-NASM21250 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | MK 7 MOD 1 RA |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT,MACHINE |
Restrictions/Controls & Freight Information | NSN 5306-01-616-3192
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-616-3192
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
