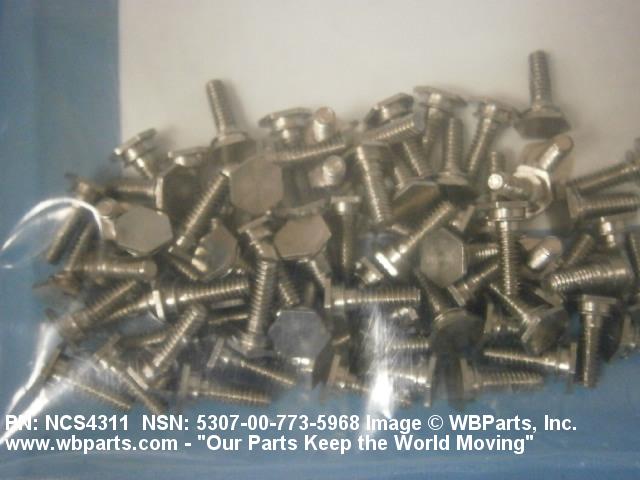

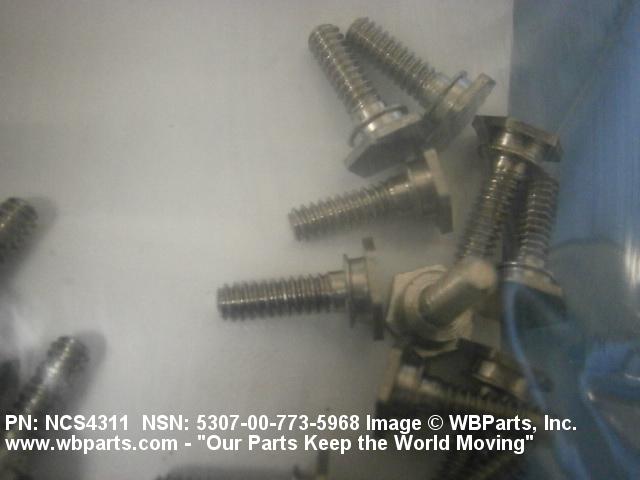

Product Details | SELF-LOCKING STUD
5307-00-773-5968 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: NCS4311, NCS4-3-11, 9174575, 5307-00-773-5968, 00-773-5968, 5307007735968, 007735968
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-773-5968 | 27783 ( STUD, SELF-LOCKING ) |
Drawings & Photos | NSN 5307-00-773-5968
Demand History | NSN 5307-00-773-5968
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9174575 | 2012-02-59 | 75 | United States |
| NCS4311 | 2012-02-59 | 75 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-773-5968
Technical Data | NSN 5307-00-773-5968
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 171,5.4.1 MIL STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 83 SELF-LOCKING |
| HEAD DIAMETER | 0.197 INCHES MINIMUM AND 0.201 INCHES MAXIMUM |
| HEAD LENGTH | 0.081 INCHES MINIMUM AND 0.089 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 0.438 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |
| NOMINAL THREAD SIZE | 0.112 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 40 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.344 INCHES NOMINAL NUT THREAD |
| LOCKING FEATURE | SELF-CLINCHING HEAD |
