NSN 5307-00-788-2913 NCS10420, NCS-10-4-20, NCS10-4-20
Product Details | SELF-LOCKING STUD
5307-00-788-2913 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: NCS10420, NCS-10-4-20, NCS10-4-20, NCS104304, NCS-10-4-304, RCS10512520, FIT36194, FIT361-94, 575R275H02, 86033694, 860336-94, 9062424, 90637703, 906377-03, 132544A173, 153061-304, 2341015P14, 234-1015P14, 510S125ST20, 5110S125ST20, 5307-00-788-2913, 00-788-2913, 5307007882913, 007882913, 153061304
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-788-2913 | 27783 ( STUD, SELF-LOCKING ) |

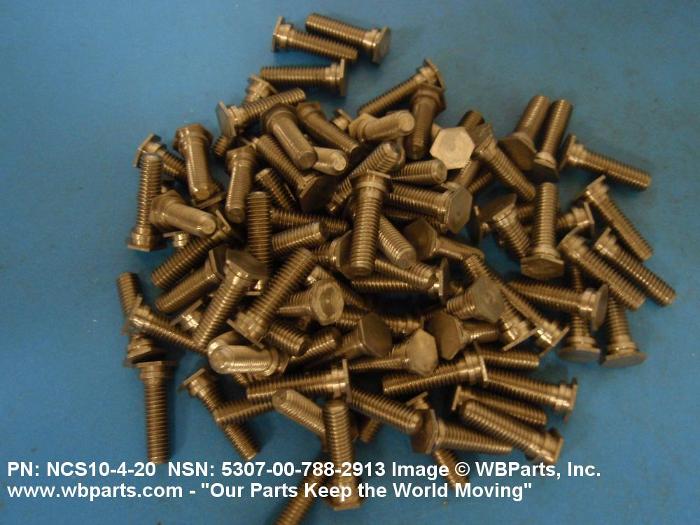

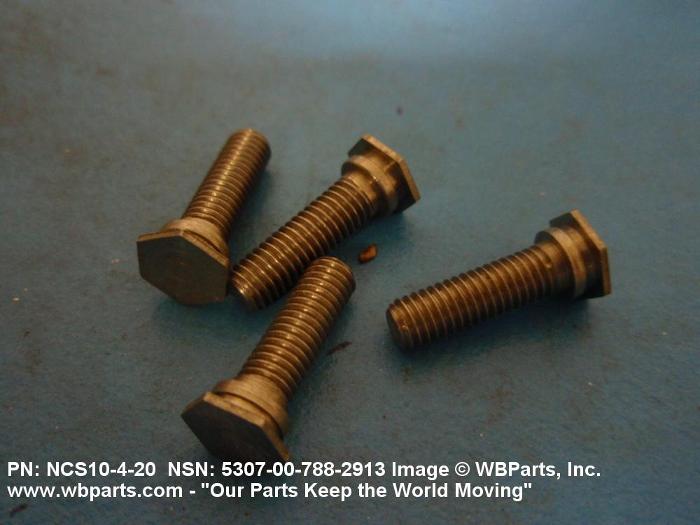

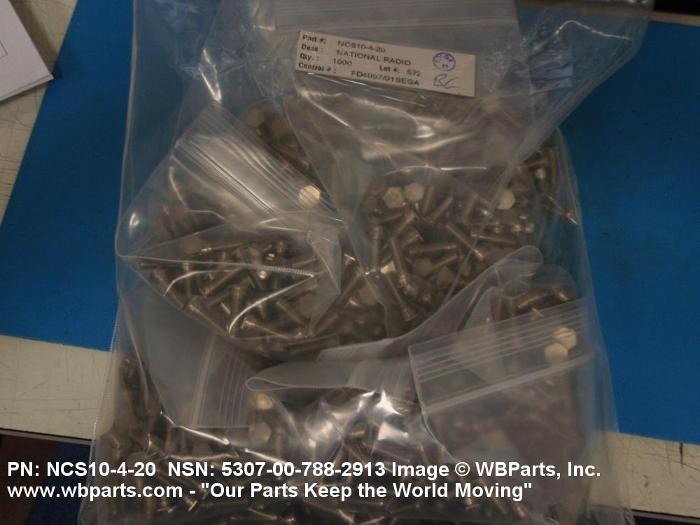

Drawings & Photos | NSN 5307-00-788-2913
Demand History | NSN 5307-00-788-2913
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NCS10420 | 2018-09-263 | 36 | us |
| 5307-00-788-2913 | 2014-02-34 | 5 | United States |
| 5307-00-788-2913 | 2011-02-56 | 1000 | United States |
| 5307-00-788-2913 | 2010-08-231 | 2100 | DIBBS |
| 5307-00-788-2913 | 2010-07-211 | 341 | DIBBS |
Cross Reference | NSN 5307-00-788-2913
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 132544A173 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 132544A173 | 28528 | ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS |
| 132544A173 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| 153061-304 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 153061-304 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 234-1015P14 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 234-1015P14 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 510S125ST20 | 86577 | PRECISION METAL PRODUCTS CO |
| 5110S(.125)ST20 | 86577 | PRECISION METAL PRODUCTS CO |
| 575R275H02 | 86577 | PRECISION METAL PRODUCTS CO |
| 575R275H02 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 860336-94 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 860336-94 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 9062424 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 906377-03 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| FIT361-94 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| NCS-10-4-20 | 07886 | DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV |
| NCS-10-4-304 | 57227 | PIC'S SCREW MACHINE, INC. |
| NCS10-4-20 | 57227 | PIC'S SCREW MACHINE, INC. |
| NCS10-4-20 | 71313 | VIKING TECHNOLOGIES, LTD. |
| RCS10512520 | 30343 | RADIO COMPONENT CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-788-2913
Related Products | NSN 5307-00-788-2913
Technical Data | NSN 5307-00-788-2913
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,COND A FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 171,5.4.1 MIL STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 83 SELF-LOCKING |
| HEAD DIAMETER | 0.259 INCHES MINIMUM AND 0.263 INCHES MAXIMUM |
| HEAD LENGTH | 0.112 INCHES MINIMUM AND 0.122 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.312 INCHES NOMINAL |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM NUT THREAD |
| LOCKING FEATURE | SELF-CLINCHING HEAD |
| III SURFACE FINISH | 125.0 MICROINCHES HEAD |
Restrictions/Controls & Freight Information | NSN 5307-00-788-2913
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-788-2913
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
