NSN 5307-01-047-8032 UH13573, 01-047-8032, 010478032
Product Details | RECESSED STUD
5307-01-047-8032 A headless fastener not exceeding twelve inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. One end or both ends may have a point. The unthreaded section may have more than one diameter, none of which may be greater than the maximum major thread diameter. It may be thread relieved. Excludes items with taper threads.
Part Alternates: UH13573, 5307-01-047-8032, 01-047-8032, 5307010478032, 010478032
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 SEP 1977 | 01-047-8032 | 15945 ( STUD, RECESSED ) |

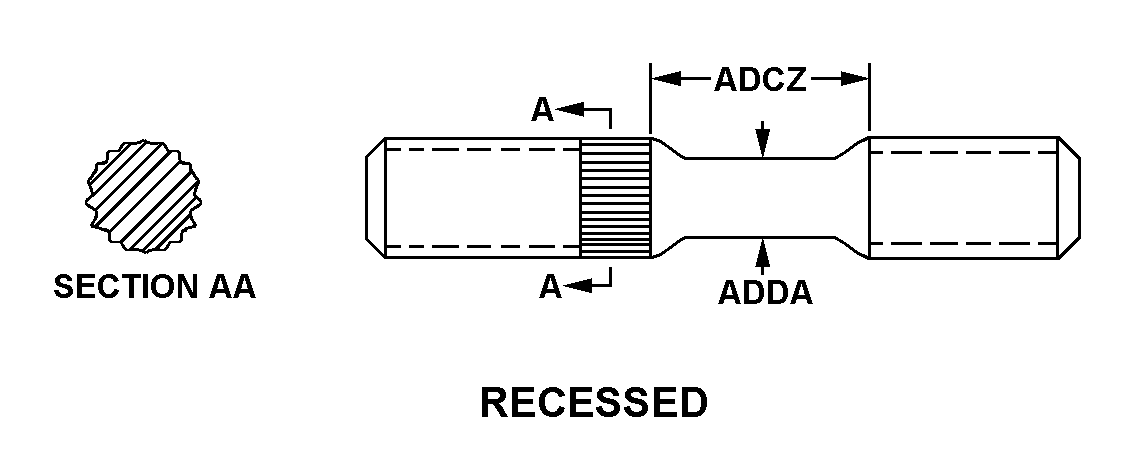

Drawings & Photos | NSN 5307-01-047-8032
Cross Reference | NSN 5307-01-047-8032
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| UH13573 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-047-8032
Technical Data | NSN 5307-01-047-8032
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4142 |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 52 RECESSED |
| LENGTH OF RECESSED PORTION OF SHANK | 0.628 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.4025 INCHES MINIMUM AND 0.4035 INCHES MAXIMUM |
| OVERALL LENGTH | 2.438 INCHES MINIMUM AND 2.500 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.438 INCHES NUT THREAD 0.438 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 20 NUT THREAD 20 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 1.000 INCHES NOMINAL NUT THREAD 0.810 INCHES NOMINAL STUD THREAD |
| III HARDNESS RATING | 277.0 BRINELL STANDARD MINIMUM AND 331.0 BRINELL STANDARD MAXIMUM |
| MANUFACTURERS CODE | 12736 |
| DESIGN CONTROL REFERENCE | UH13573 |
Restrictions/Controls & Freight Information | NSN 5307-01-047-8032
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
