NSN 5307-01-049-7448 204010777015, 204-010-777-015, 20401077715
Product Details | PLAIN STUD
5307-01-049-7448 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD.
Part Alternates: 204010777015, 204-010-777-015, 20401077715, 204-010-777-15, 5307-01-049-7448, 01-049-7448, 5307010497448, 010497448
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 OCT 1977 | 01-049-7448 | 15948 ( STUD, PLAIN ) |
Drawings & Photos | NSN 5307-01-049-7448
Demand History | NSN 5307-01-049-7448
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 204010777015 | 2016-08-222 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-049-7448
Technical Data | NSN 5307-01-049-7448
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE |

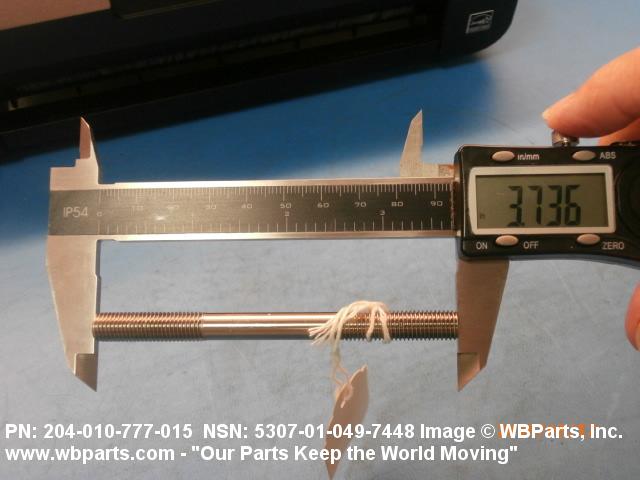

| OVERALL LENGTH | 3.720 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNF STUD THREAD |

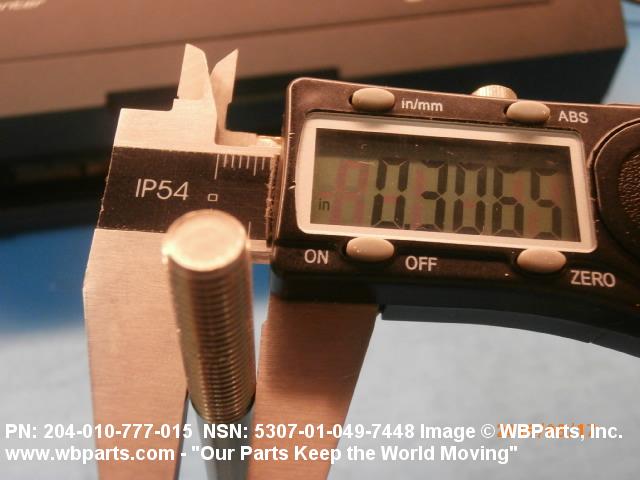

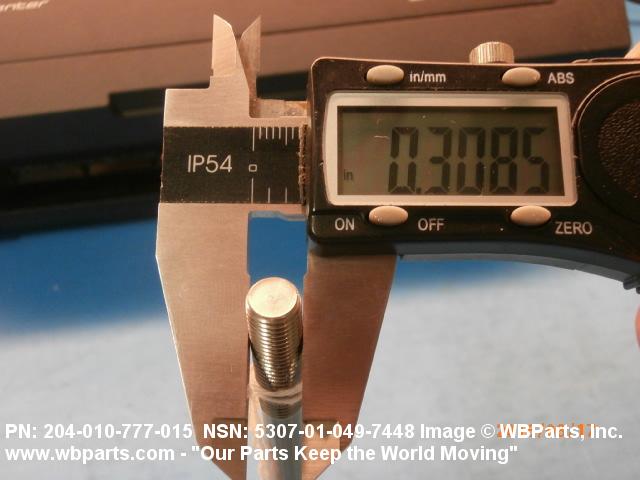

| NOMINAL THREAD SIZE | 0.312 INCHES NUT THREAD 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |

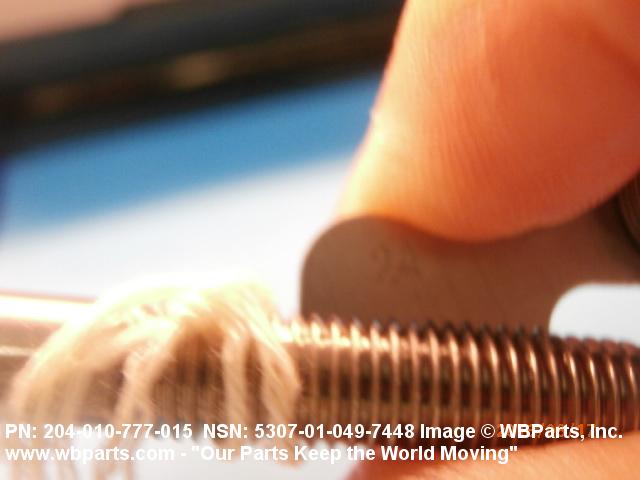

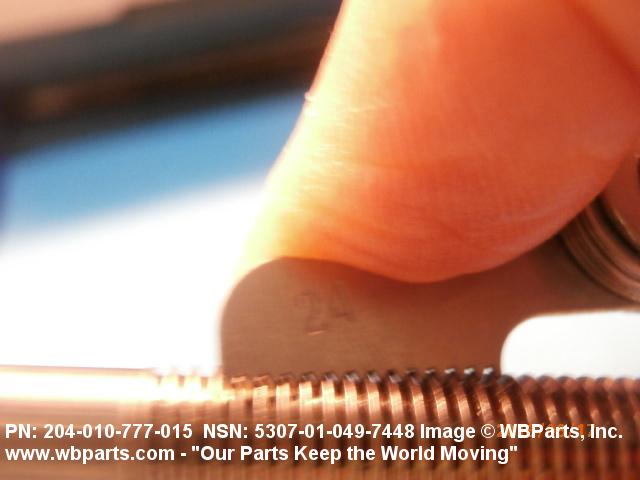

| THREAD QUANTITY PER INCH | 24 NUT THREAD 24 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |

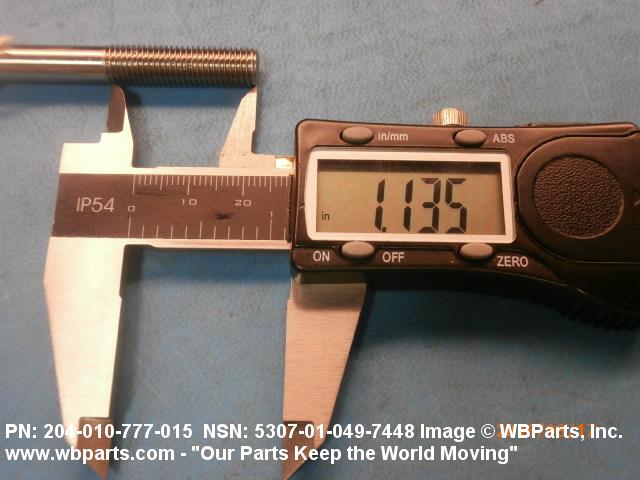

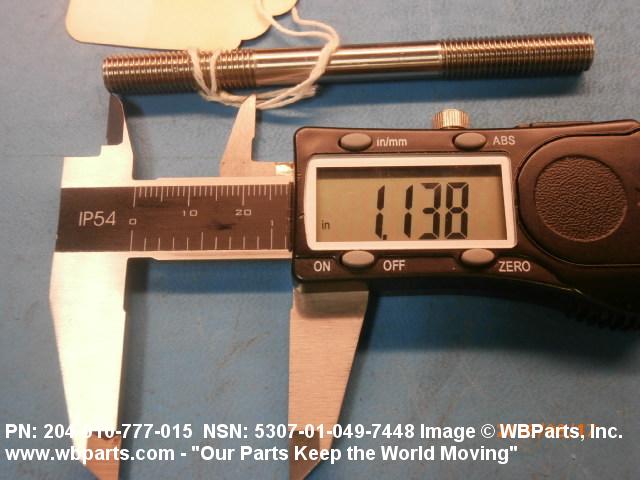

| THREAD LENGTH | 1.125 INCHES MINIMUM NUT THREAD 1.125 INCHES MINIMUM STUD THREAD |
| III SURFACE FINISH | 63.0 MICROINCHES SHANK |
Restrictions/Controls & Freight Information | NSN 5307-01-049-7448
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
