NSN 5307-01-120-3345 ST10045, 01-120-3345, 011203345
Product Details | LOCKED IN STUD
5307-01-120-3345 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: ST10045, 5307-01-120-3345, 01-120-3345, 5307011203345, 011203345
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 OCT 1981 | 01-120-3345 | 16012 ( STUD, LOCKED IN ) |

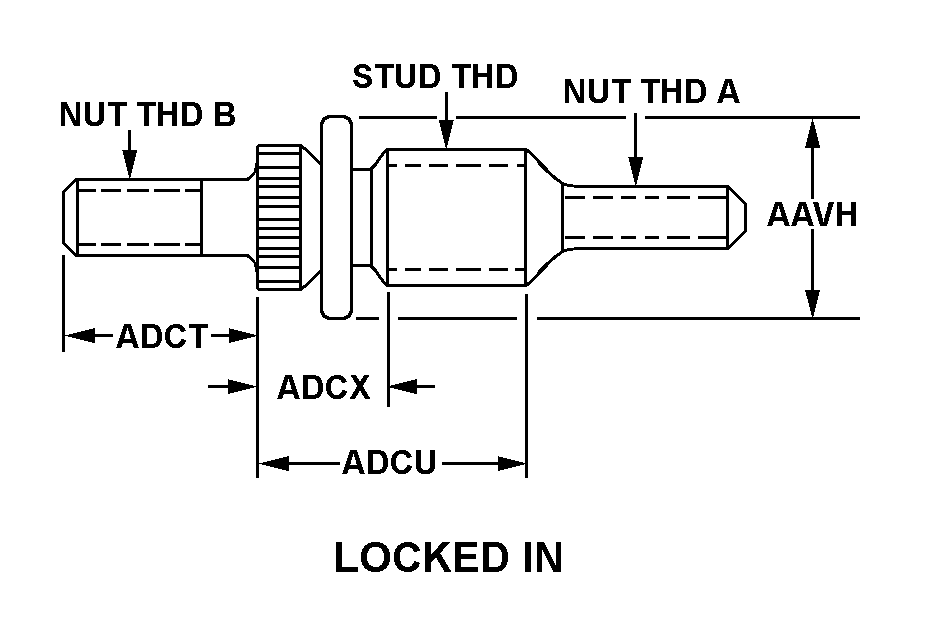

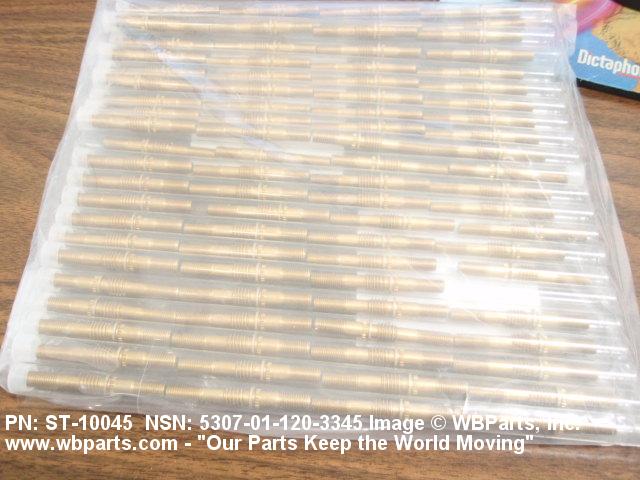

Drawings & Photos | NSN 5307-01-120-3345
Demand History | NSN 5307-01-120-3345
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST10045 | 2023-12-346 | 9 | DIBBS |
| ST10045 | 2023-07-206 | 9 | DIBBS |
| ST10045 | 2019-05-143 | 2 | DIBBS |
| 5307-01-120-3345 | 2018-11-305 | 2 | DIBBS |
| ST10045 | 2012-12-354 | 9 | United States |
| 5307-01-120-3345 | 2012-10-279 | 4 | DIBBS |
| ST10045 | 2012-09-262 | 86 | United States |
| ST10045 | 2011-11-308 | 29 | United States |
| ST10045 | 2011-11-305 | 5 | United States |
| ST10045 | 2011-11-305 | 180 | United States |
| ST10045 | 2011-10-299 | 5 | United States |
| ST10045 | 2011-10-299 | 180 | United States |
| ST10045 | 2011-09-255 | 5 | United States |
| ST10045 | 2011-09-255 | 180 | United States |
| ST10045 | 2010-11-309 | 87 | United States |
| ST10045 | 2010-05-133 | 87 | United States |
| 5307-01-120-3345 | 2010-01-13 | 82 | United States |
Cross Reference | NSN 5307-01-120-3345
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST10045 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-120-3345
Related Products | NSN 5307-01-120-3345
Technical Data | NSN 5307-01-120-3345
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 37 LOCKED IN |
| SHOULDER DIAMETER | 0.366 INCHES MINIMUM AND 0.371 INCHES MAXIMUM |
| DISTANCE FROM SERRATED PORTION TO NUT END | 0.760 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO STUD END | 0.560 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO END OF STUD THREAD | 0.221 INCHES NOMINAL |
| OVERALL LENGTH | 2.210 INCHES NOMINAL |
| THREAD CLASS | 3A NUT THREAD |
| THREAD LENGTH | 0.580 INCHES NOMINAL NUT THREAD 0.339 INCHES NOMINAL STUD THREAD |
| LOCKING FEATURE | RING, LOCK SERRATED |
| III SERRATION QUANTITY | 17 |
| MANUFACTURERS CODE | 83324 |
| DESIGN CONTROL REFERENCE | ST10045 |
Restrictions/Controls & Freight Information | NSN 5307-01-120-3345
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
