NSN 5307-01-265-1248 K8444359138, K-8444359-138, 8444359138
Product Details | SHOULDERED STUD

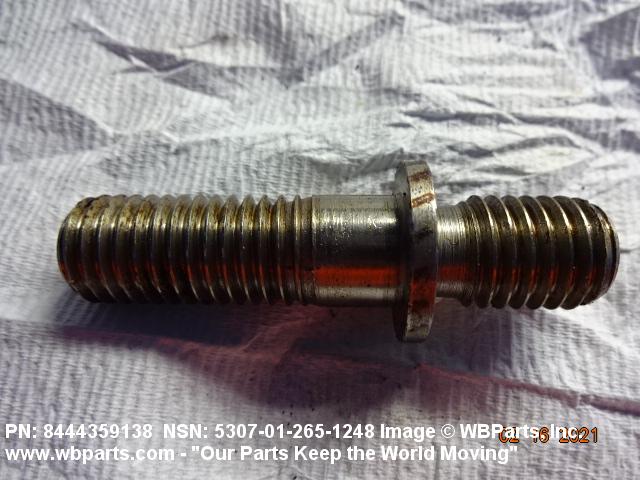

5307-01-265-1248 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: K8444359138, K-8444359-138, 8444359138, 8444359-138, 5307-01-265-1248, 01-265-1248, 5307012651248, 012651248
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 OCT 1987 | 01-265-1248 | 15946 ( STUD, SHOULDERED ) |

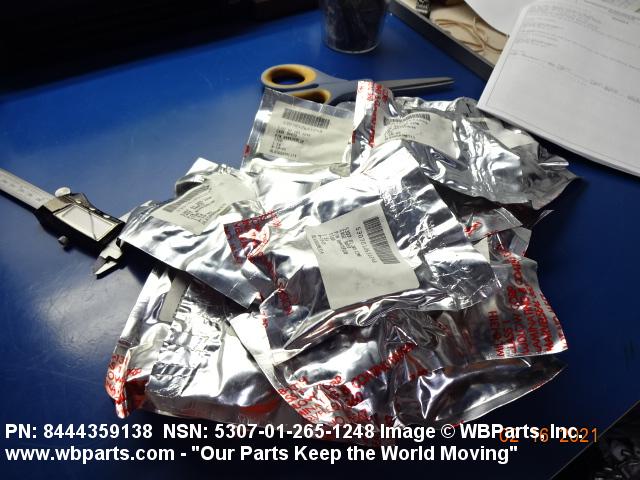

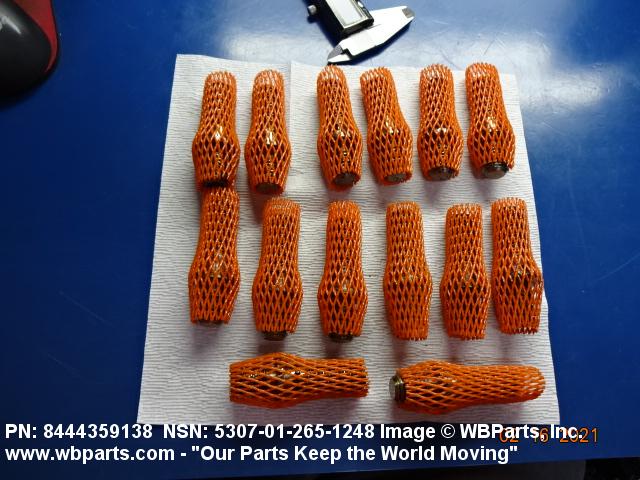

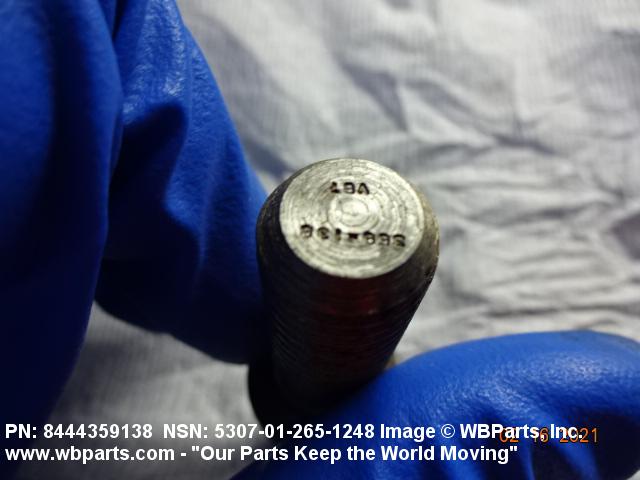

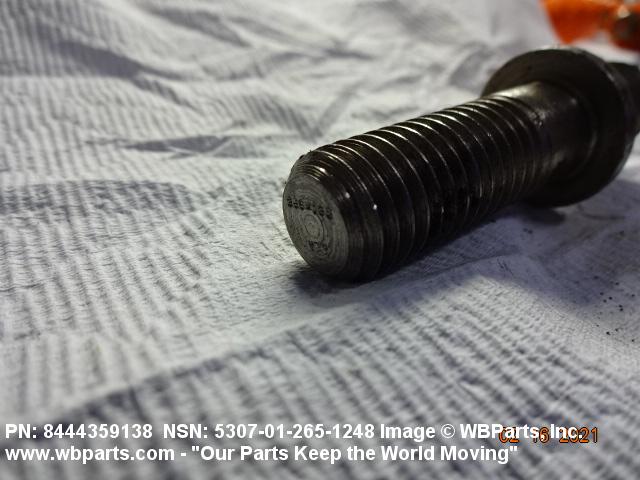

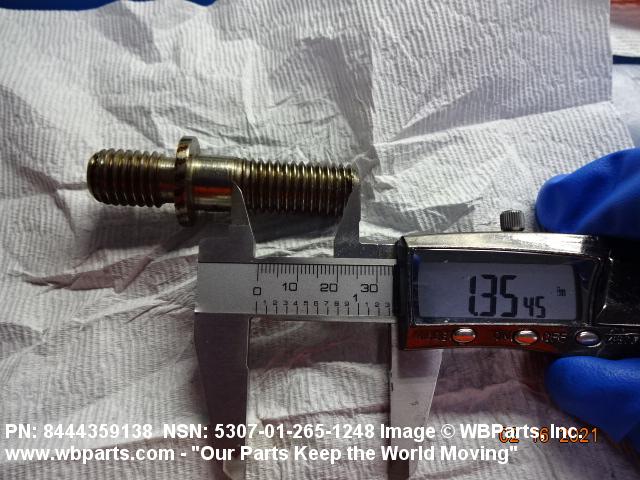

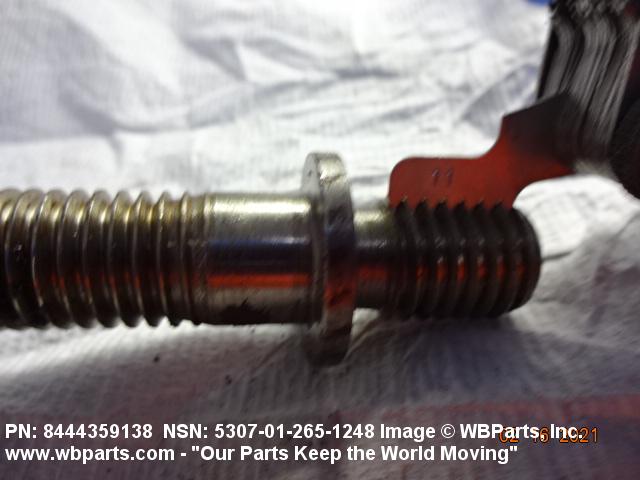

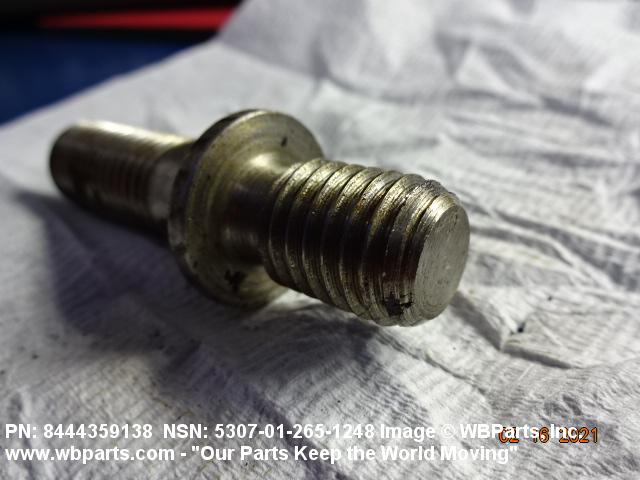

Drawings & Photos | NSN 5307-01-265-1248
Demand History | NSN 5307-01-265-1248
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-265-1248 | 2021-02-41 | 14 | United States |
| 8444359-138 | 2020-10-293 | 14 | DIBBS |
| 8444359-138 | 2020-10-281 | 14 | DIBBS |
| 8444359-138 | 2020-04-99 | 31 | DIBBS |
| 8444359-138 | 2020-02-51 | 10 | DIBBS |
| 8444359-138 | 2020-02-43 | 10 | DIBBS |
| 8444359-138 | 2020-01-09 | 10 | DIBBS |
| 8444359-138 | 2019-04-98 | 22 | DIBBS |
| 8444359-138 | 2019-03-90 | 22 | DIBBS |
| 8444359-138 | 2019-03-73 | 12 | DIBBS |
| 5307-01-265-1248 | 2008-08-219 | 21 | DIBBS |
| 5307-01-265-1248 | 2008-04-100 | 23 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-265-1248
Technical Data | NSN 5307-01-265-1248
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 4142 OR STEEL COMP 4145 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A193 GR B7 ASSN STD ALL MATERIAL RESPONSES |
| STYLE DESIGNATOR | 97C SHOULDERED |
| SHOULDER LENGTH | 0.125 INCHES NOMINAL |

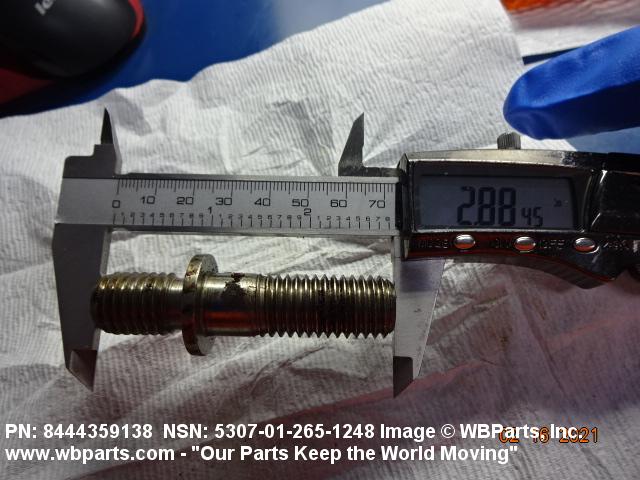

| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.625 INCHES NUT THREAD 0.625 INCHES STUD THREAD |

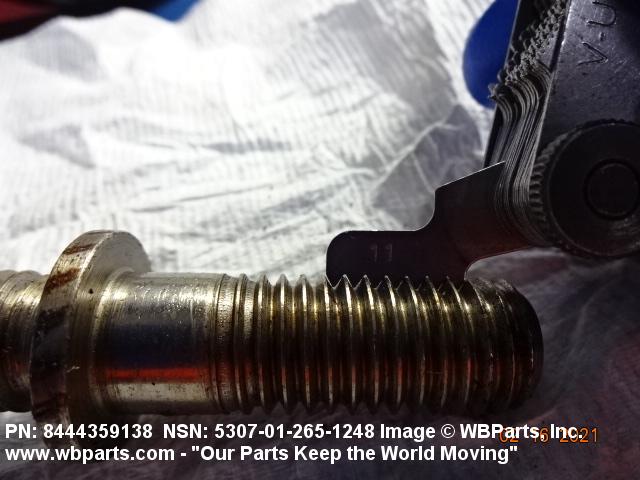

| THREAD QUANTITY PER INCH | 11 NUT THREAD 11 STUD THREAD |

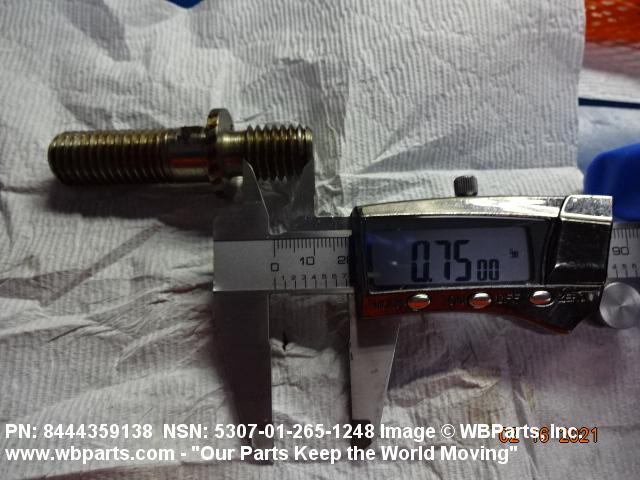

| THREAD LENGTH | 1.094 INCHES NOMINAL NUT THREAD 0.750 INCHES NOMINAL STUD THREAD |
| MANUFACTURERS CODE | 01289 |
| DESIGN CONTROL REFERENCE | 8444359-138 |
Restrictions/Controls & Freight Information | NSN 5307-01-265-1248
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-265-1248
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
