NSN 5307-01-293-5429 M24149/2-321, M241492321, MIL-S-24149/2
Product Details | WELDING STUD
5307-01-293-5429 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: M24149/2-321, M241492321, MIL-S-24149/2, MILS241492, 5307-01-293-5429, 01-293-5429, 5307012935429, 012935429
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 FEB 1989 | 01-293-5429 | 16944 ( STUD, WELDING ) |

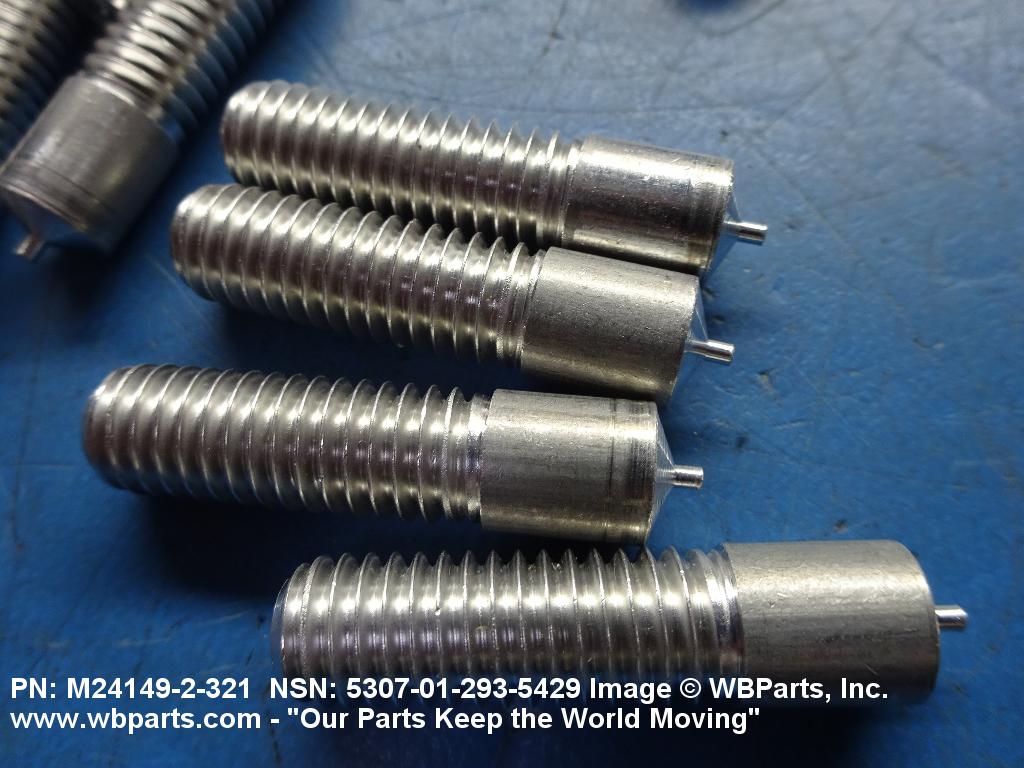

Drawings & Photos | NSN 5307-01-293-5429
Demand History | NSN 5307-01-293-5429
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-293-5429 | 2025-03-69 | 30 | United States |
| 5307-01-293-5429 | 2022-02-46 | 10 | United States |
| 5307-01-293-5429 | 2015-06-169 | 944 | DIBBS |
| 5307-01-293-5429 | 2015-03-88 | 100 | DIBBS |
| 5307-01-293-5429 | 2014-12-356 | 26 | DIBBS |
| 5307-01-293-5429 | 2014-12-343 | 26 | DIBBS |
| 5307-01-293-5429 | 2014-09-259 | 52 | DIBBS |
| 5307-01-293-5429 | 2011-07-199 | 100 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-293-5429
Technical Data | NSN 5307-01-293-5429
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | 148 WELDING |

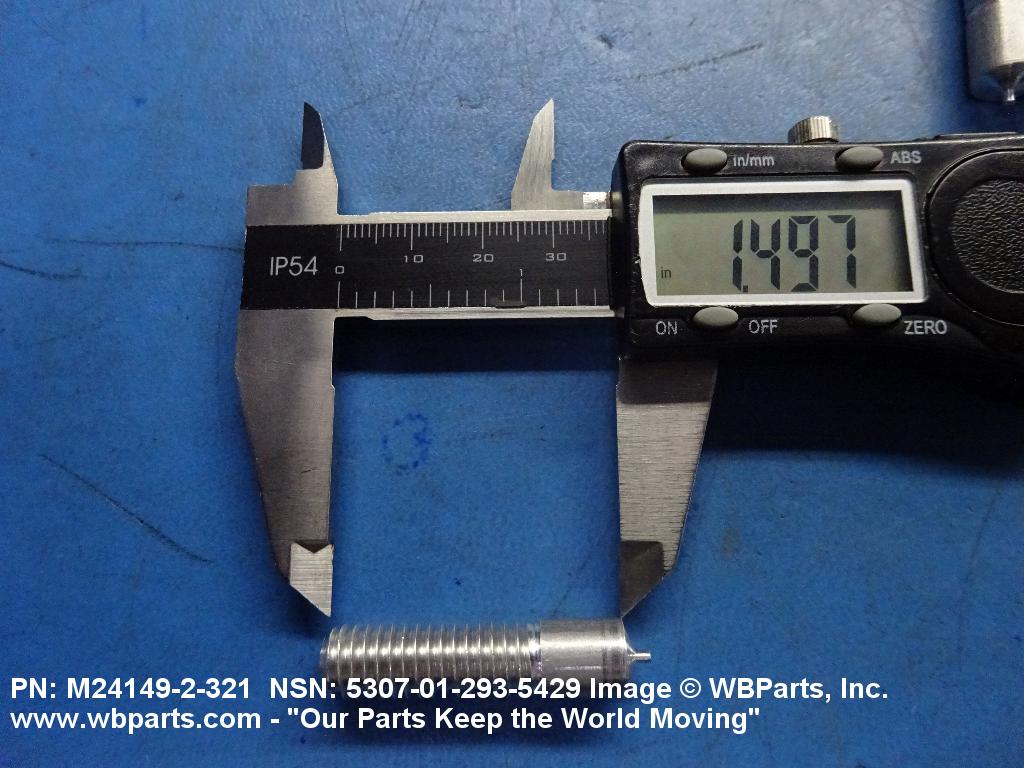

| LENGTH EXCLUDING FLUXED WELDING TIP | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |

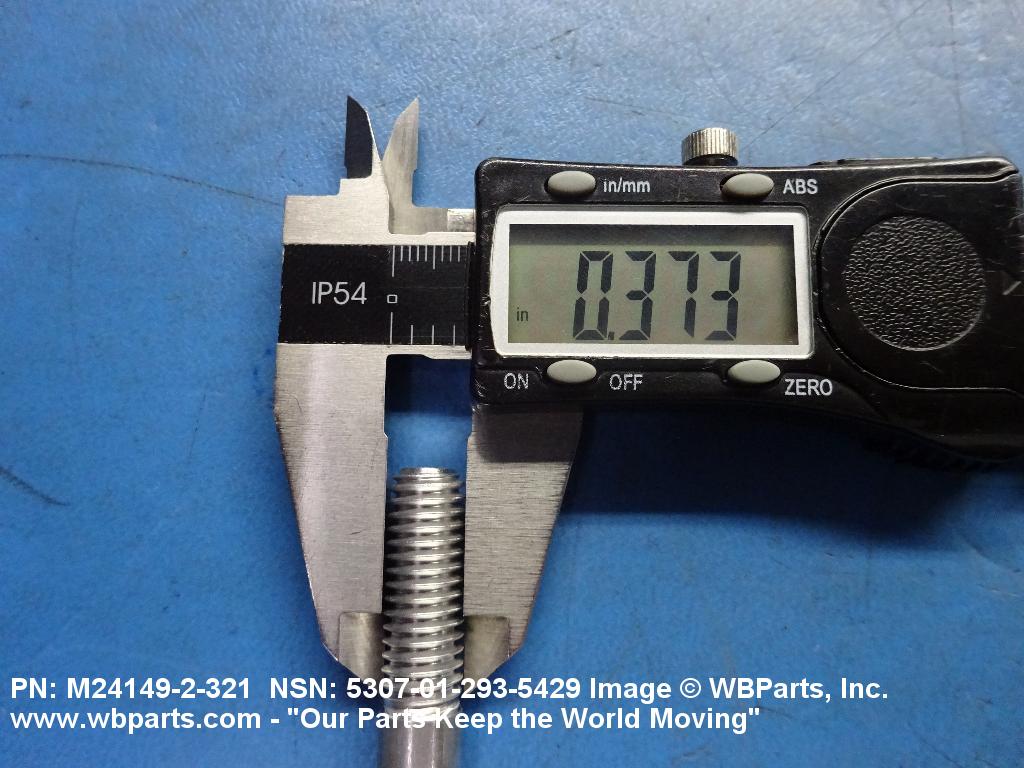

| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 16 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 1.032 INCHES MINIMUM AND 1.125 INCHES MAXIMUM NUT THREAD |
| FEATURES PROVIDED | HEAT SHIELD |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 1 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24149/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24149/2-321 |
Restrictions/Controls & Freight Information | NSN 5307-01-293-5429
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013280 | ALUM BOLTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-293-5429
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
