NSN 5307-01-320-8861 NAS1454C60204, NAS1454C6-0204, 01-320-8861
Product Details | CONTINUOUS THREAD STUD
5307-01-320-8861 A headless fastener not exceeding 12 inches (304.8 mm) in length having an external thread of one nominal diameter running from end to end. See also ROD, CONTINUOUS THREAD.
Part Alternates: NAS1454C60204, NAS1454C6-0204, 5307-01-320-8861, 01-320-8861, 5307013208861, 013208861
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JUN 1990 | 01-320-8861 | 15951 ( STUD, CONTINUOUS THREAD ) |

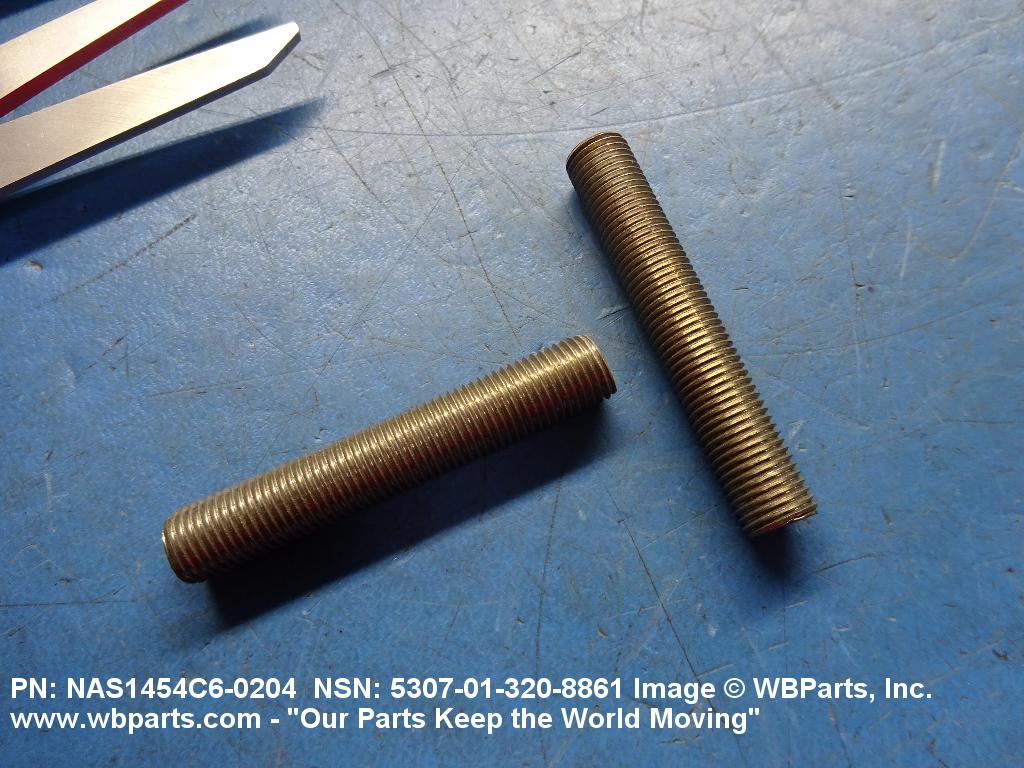

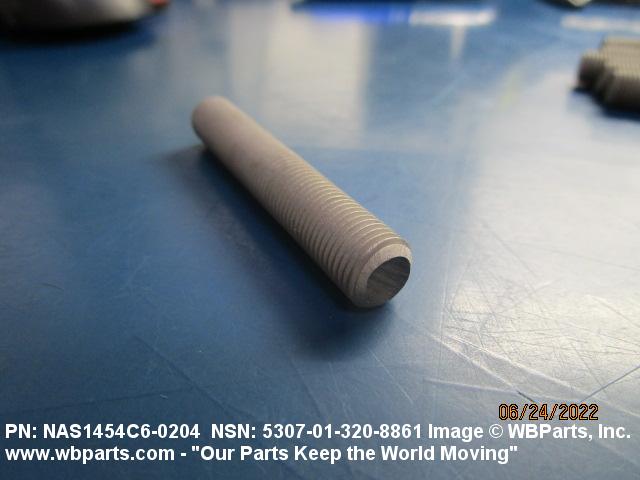

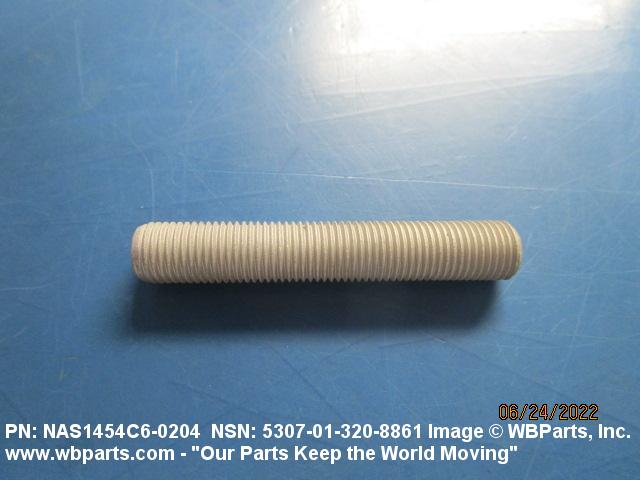

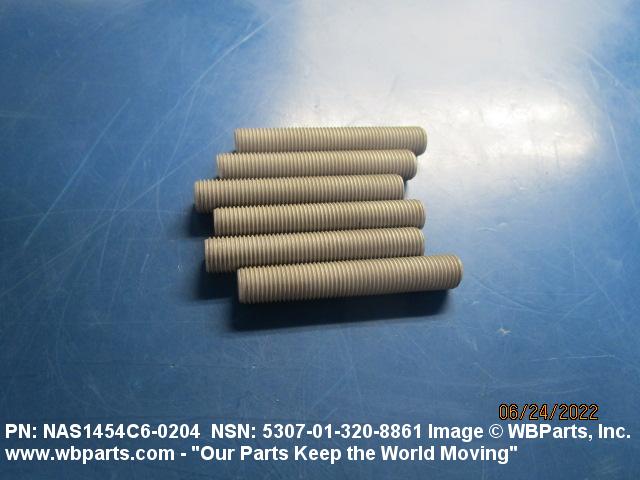

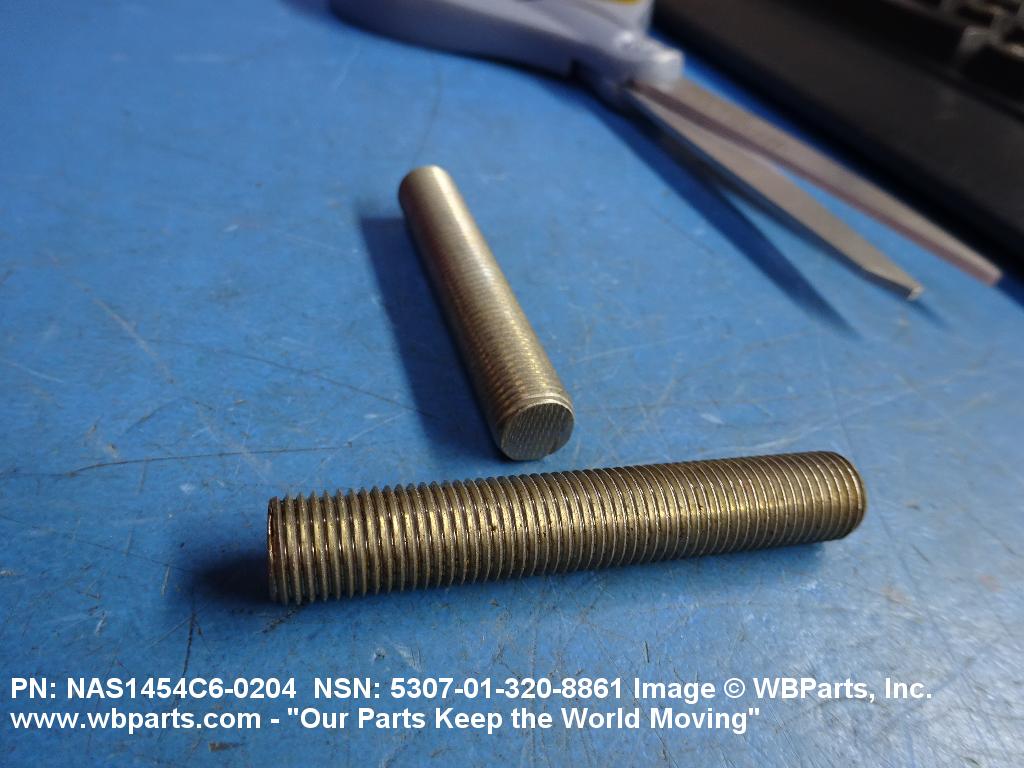

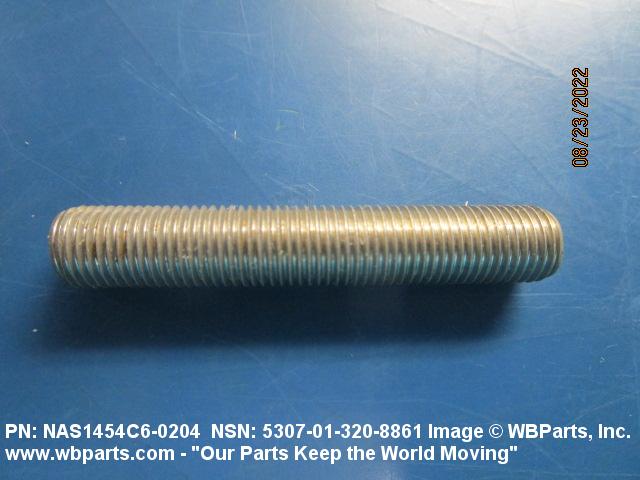

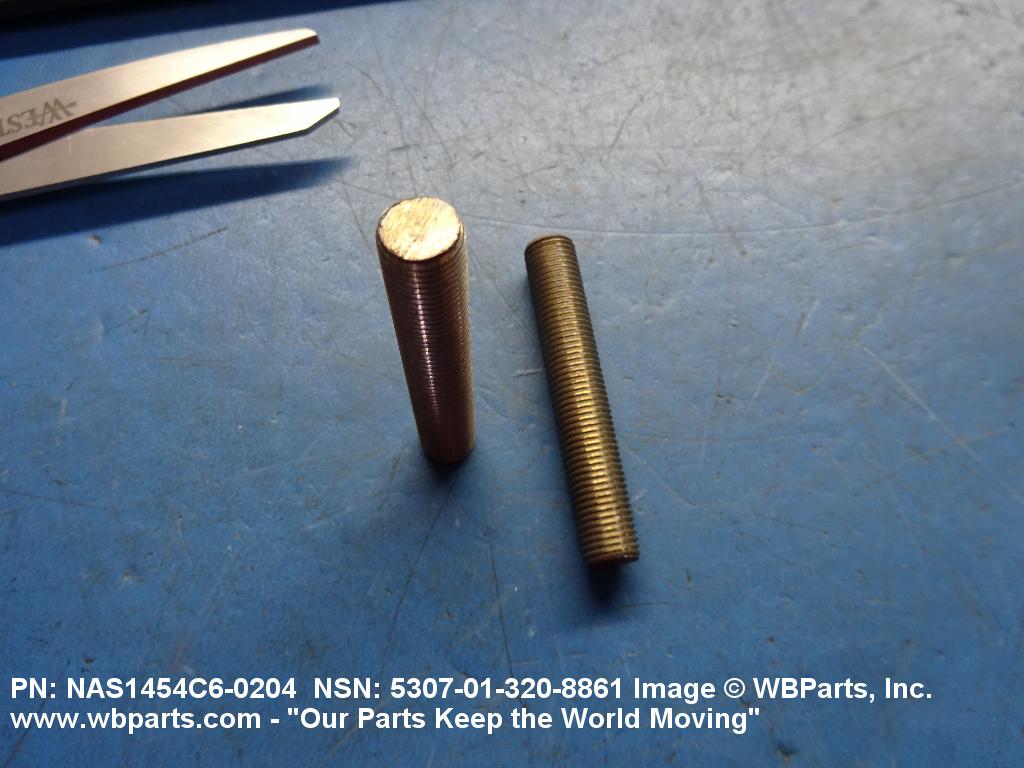

Drawings & Photos | NSN 5307-01-320-8861
Demand History | NSN 5307-01-320-8861
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1454C60204 | 2025-03-64 | 5 | United States |
| NAS1454C60204 | 2025-02-55 | 5 | United States |
| NAS1454C60204 | 2025-02-51 | 4 | United States |
| NAS1454C60204 | 2025-01-28 | 4 | United States |
| NAS1454C60204 | 2023-03-74 | 4 | United States |
| NAS1454C60204 | 2022-12-342 | 2 | United States |
| NAS1454C60204 | 2022-10-292 | 2 | United States |
| NAS1454C60204 | 2022-06-173 | 4 | United States |
| NAS1454C60204 | 2022-04-116 | 6 | United States |
Cross Reference | NSN 5307-01-320-8861
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1454C6-0204 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-320-8861
Related Products | NSN 5307-01-320-8861
Technical Data | NSN 5307-01-320-8861
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 316 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

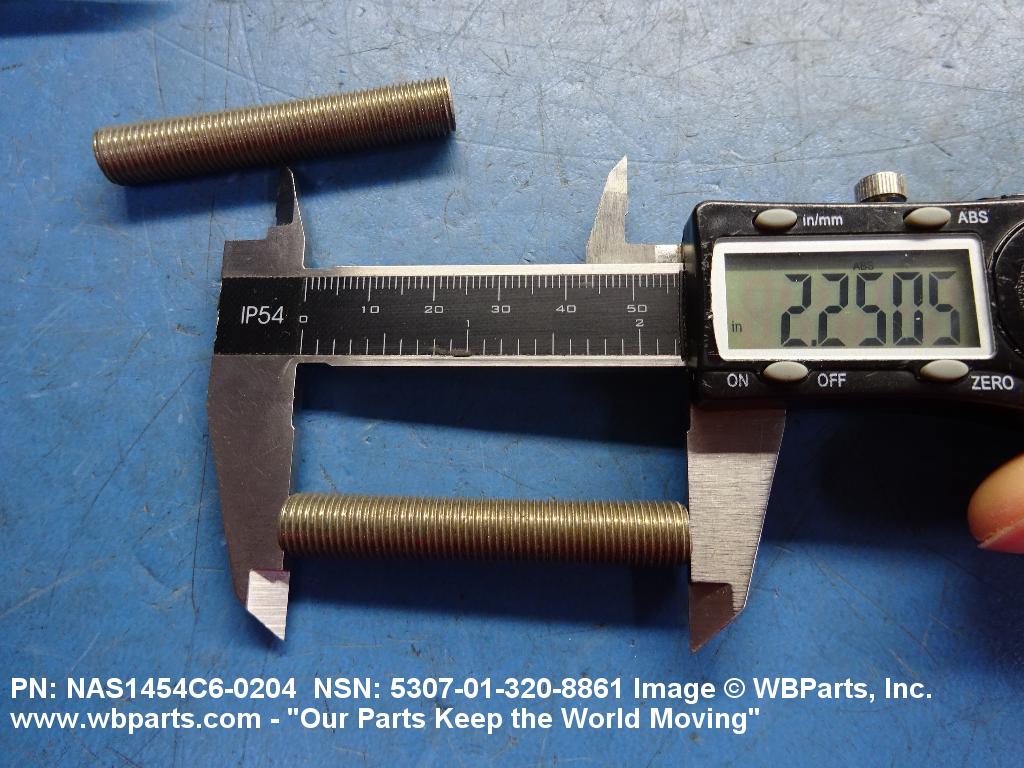

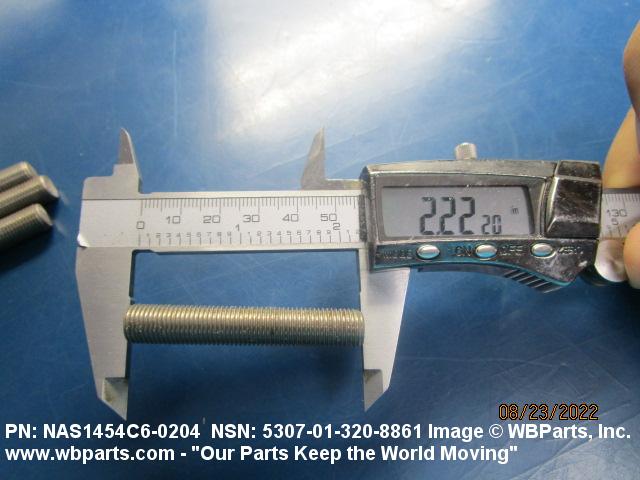

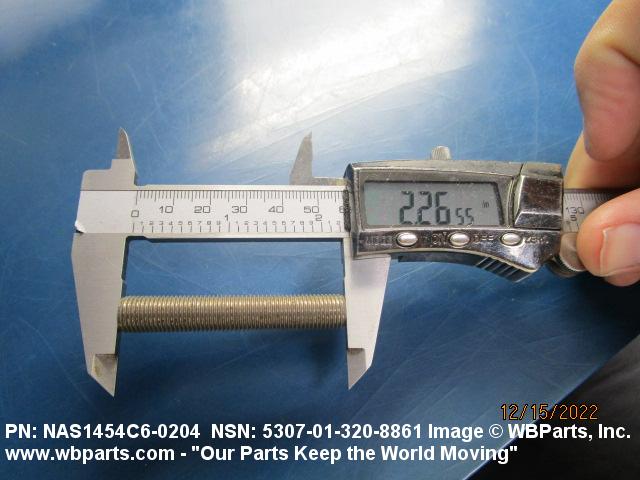

| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |

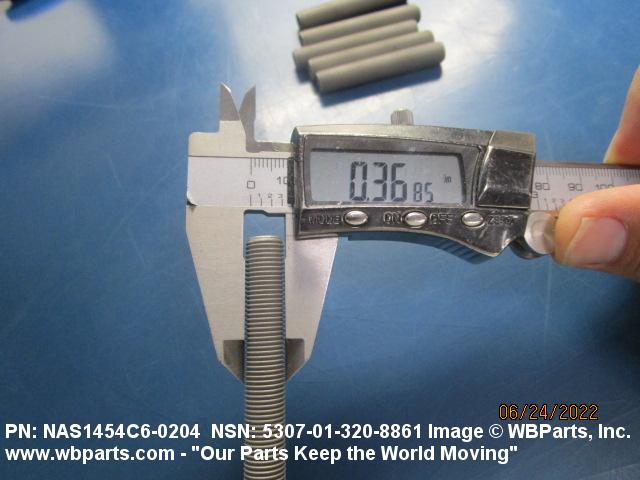

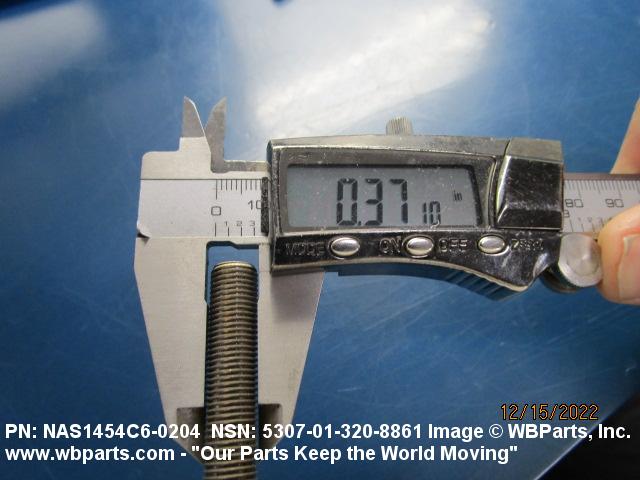

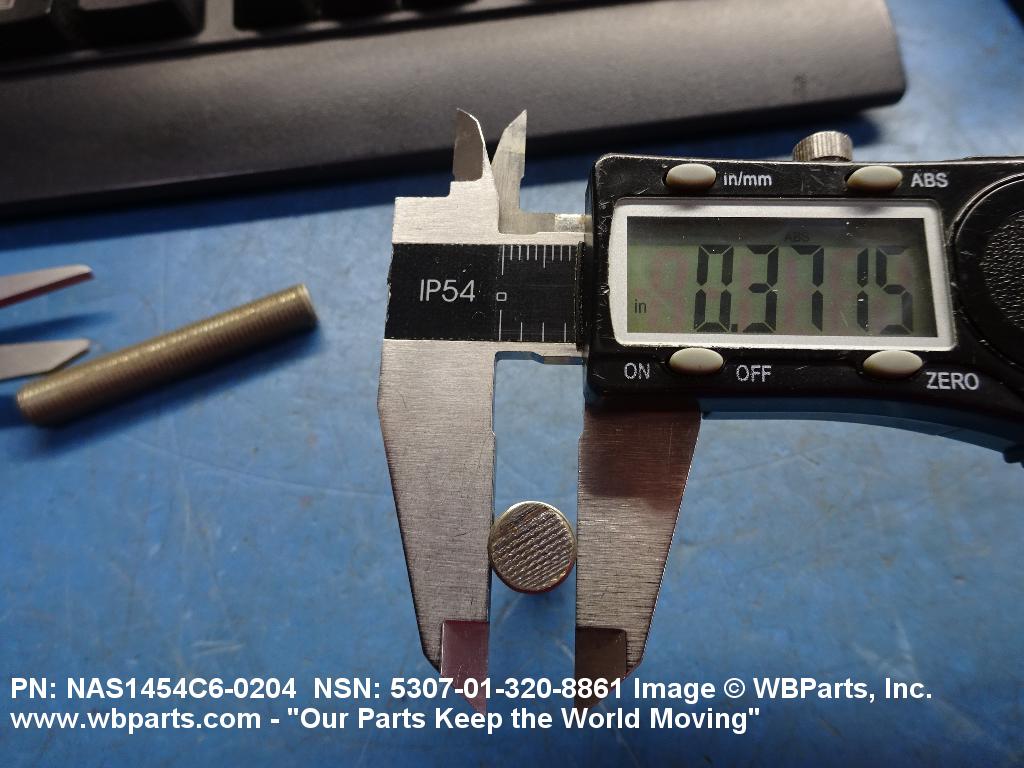

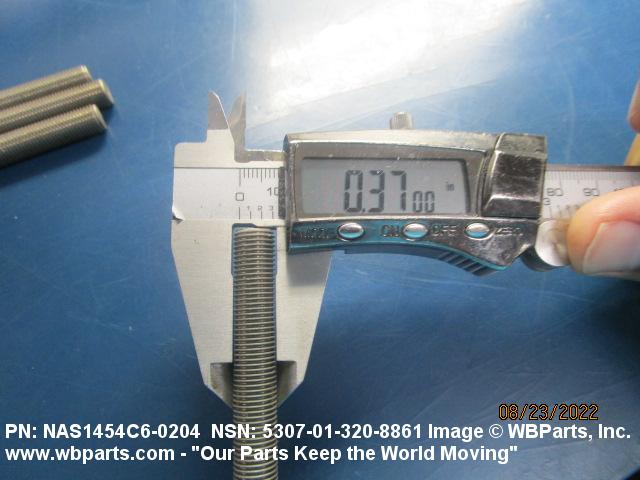

| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |

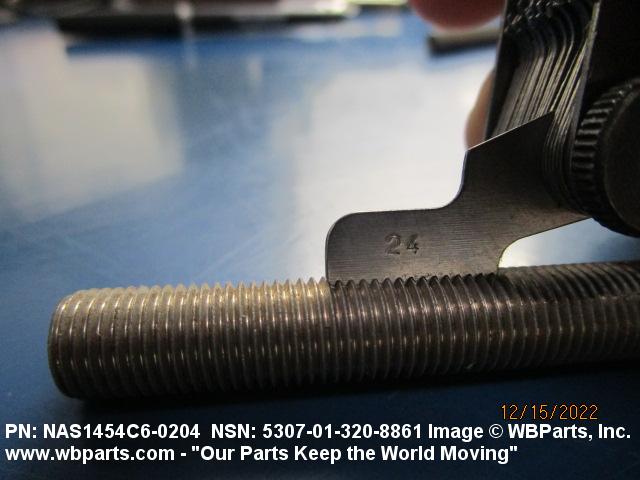

| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIFICATION/STANDARD DATA | 80205-NAS1454 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5307-01-320-8861
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-320-8861
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
