NSN 5307-01-530-8879 M24149/1-510, M241491510, 1137607317ITEM0534
Product Details | WELDING STUD
5307-01-530-8879 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: M24149/1-510, M241491510, 1137607317ITEM0534, 113-7607317ITEM053-4, 5307-01-530-8879, 01-530-8879, 5307015308879, 015308879
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUN 2005 | 01-530-8879 | 16944 ( STUD, WELDING ) |

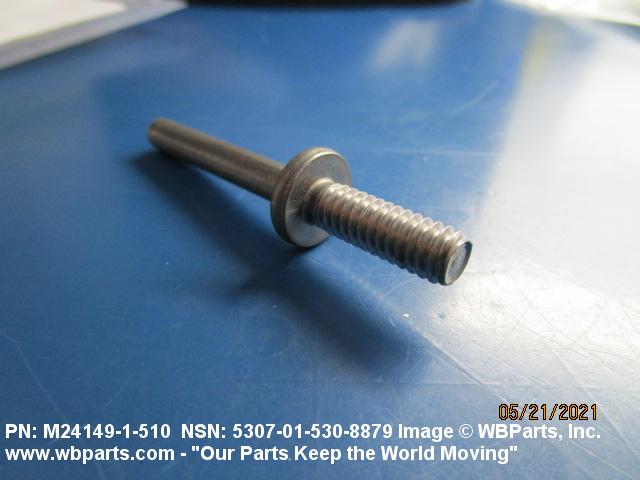

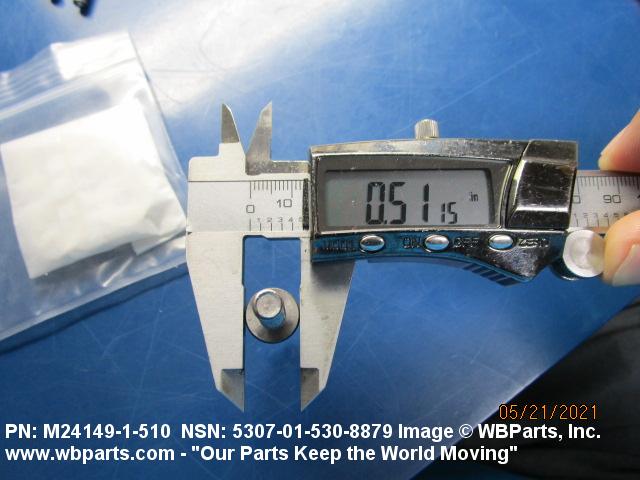

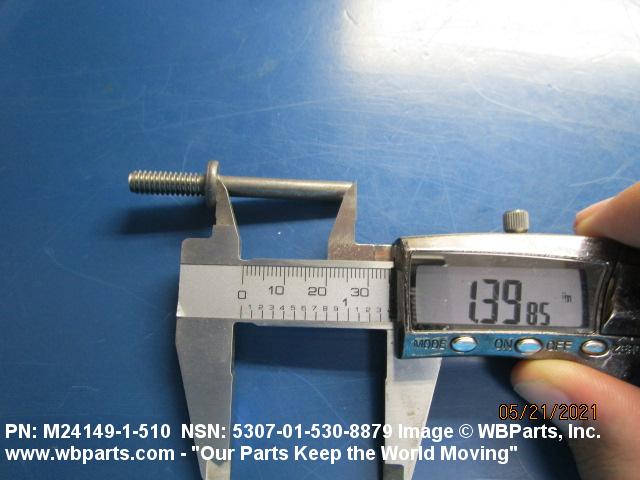

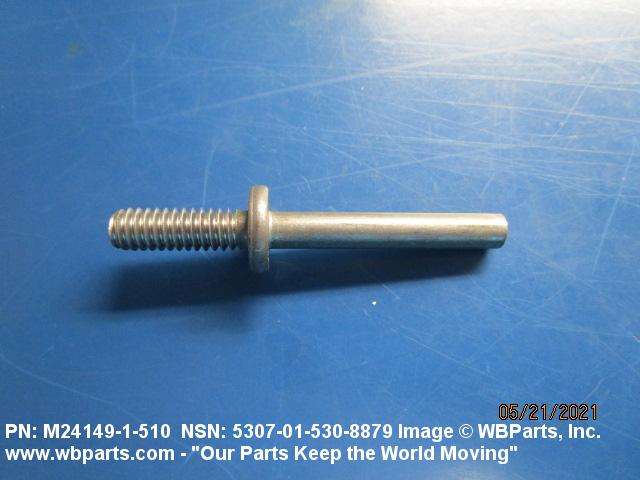

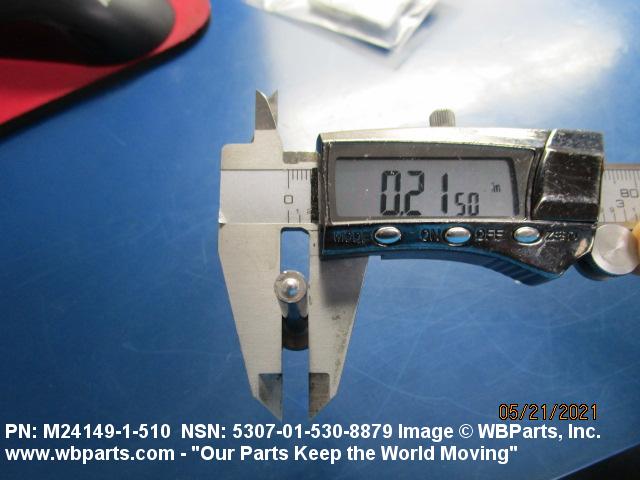

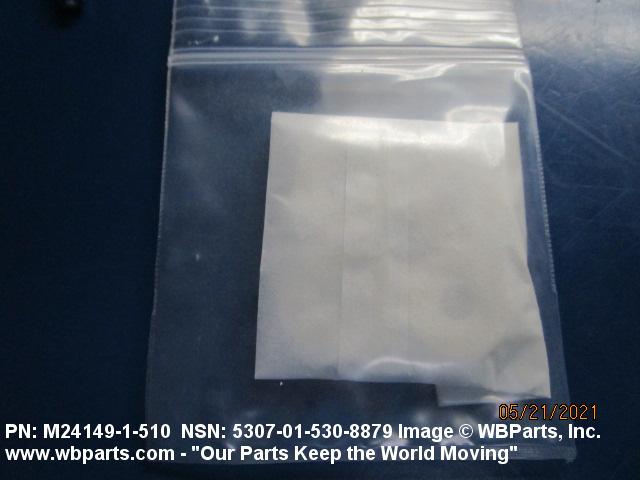

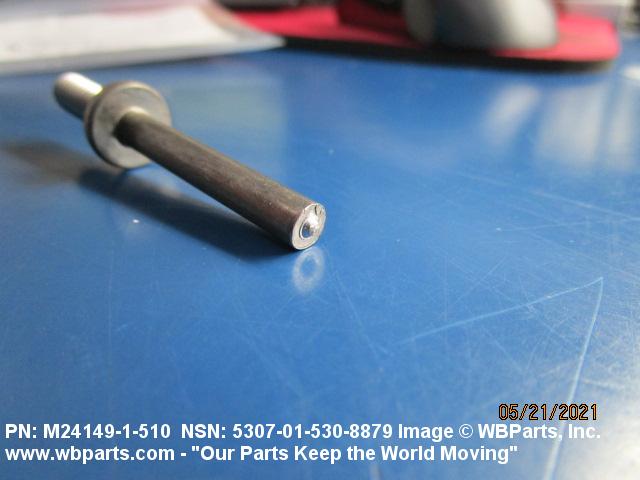

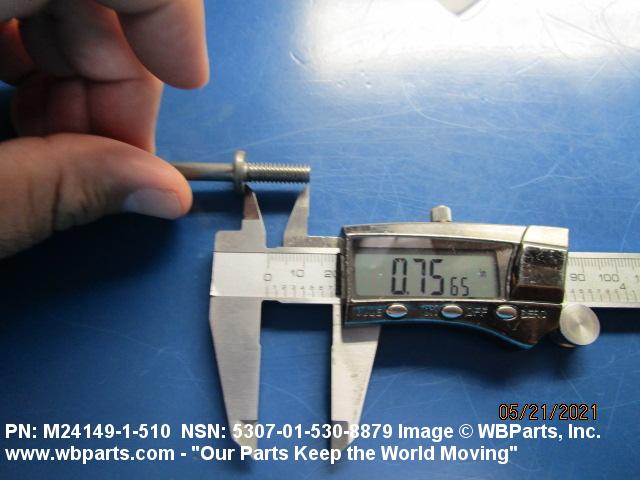

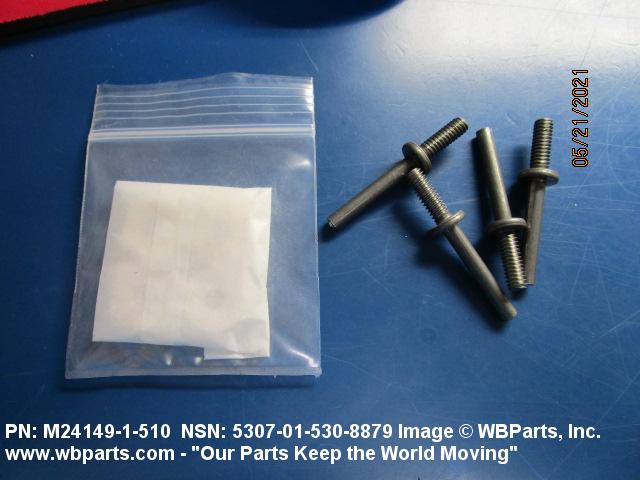

Drawings & Photos | NSN 5307-01-530-8879
Demand History | NSN 5307-01-530-8879
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M241491510 | 2023-12-338 | 4 | us |
| 5307-01-530-8879 | 2022-09-270 | 20 | United States |
| M241491510 | 2022-09-270 | 272 | United States |
| 5307-01-530-8879 | 2021-12-344 | 4 | GU |
| 5307-01-530-8879 | 2021-05-131 | 4 | United States |
| 5307-01-530-8879 | 2020-11-315 | 4 | US |
| 5307-01-530-8879 | 2020-07-197 | 28 | United States |
| 5307-01-530-8879 | 2020-02-55 | 3264 | United States |
| 5307-01-530-8879 | 2019-09-253 | 3729 | DIBBS |
| 5307-01-530-8879 | 2019-06-169 | 4 | United States |
| M241491510 | 2019-04-109 | 2 | US |
| M241491510 | 2019-04-109 | 6 | US |
| 5307-01-530-8879 | 2017-06-152 | 2 | us |
| 5307-01-530-8879 | 2017-06-152 | 10 | us |
| 5307-01-530-8879 | 2014-12-337 | 2953 | DIBBS |
| M241491510 | 2007-05-122 | 20 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-530-8879
Related Products | NSN 5307-01-530-8879
Technical Data | NSN 5307-01-530-8879
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 135 WELDING |
| UNTHREADED END DIAMETER | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.515 INCHES MINIMUM AND 0.575 INCHES MAXIMUM STUD THREAD |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24149/1-510 |
Restrictions/Controls & Freight Information | NSN 5307-01-530-8879
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-530-8879
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
