NSN 5307-01-541-4490 KNHS820JT25, 01-541-4490, 015414490
Product Details | LOCKED IN STUD

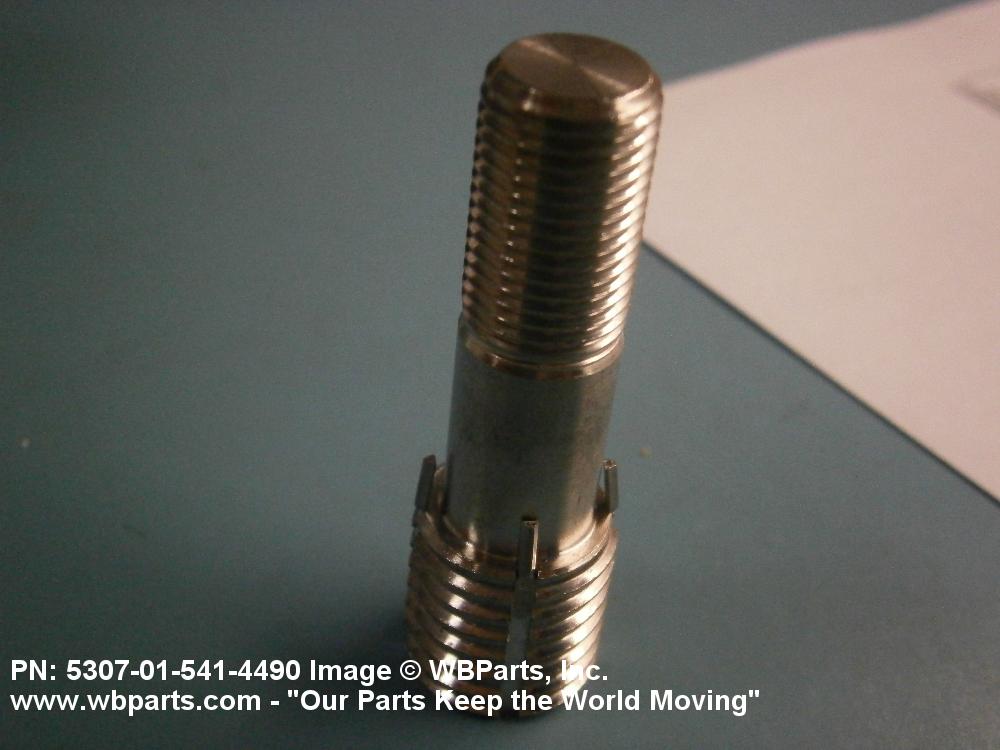

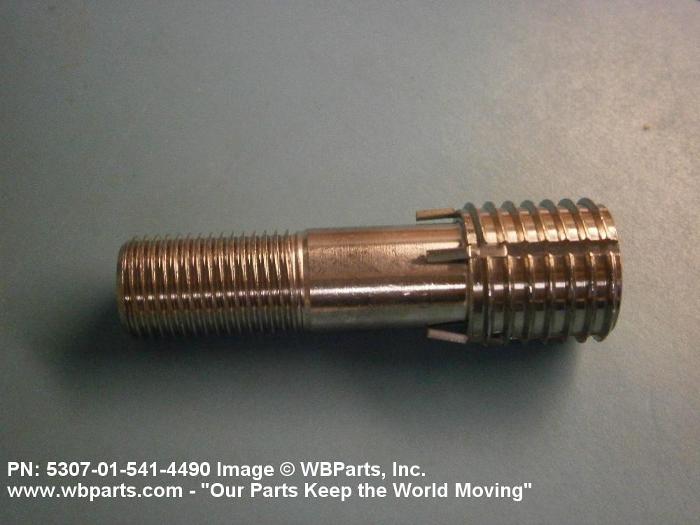

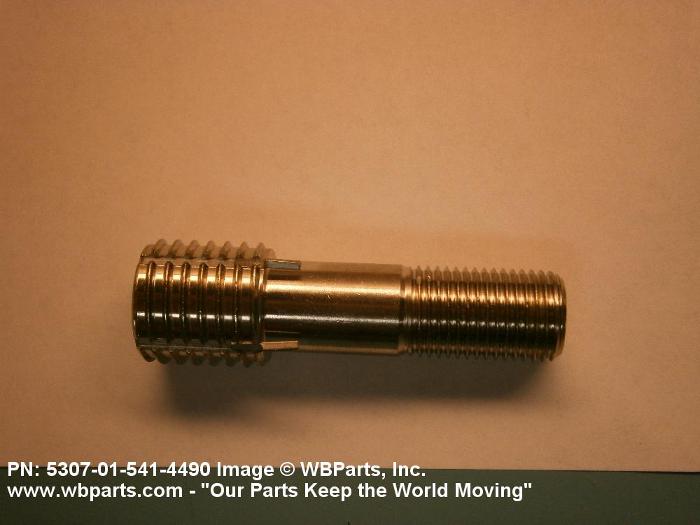

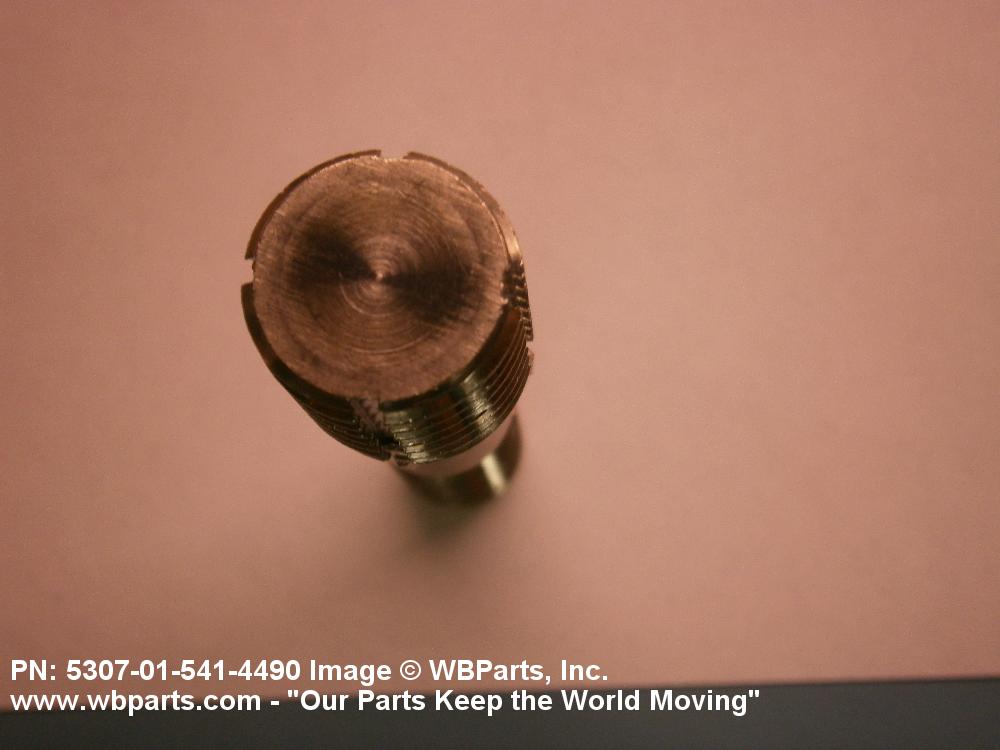

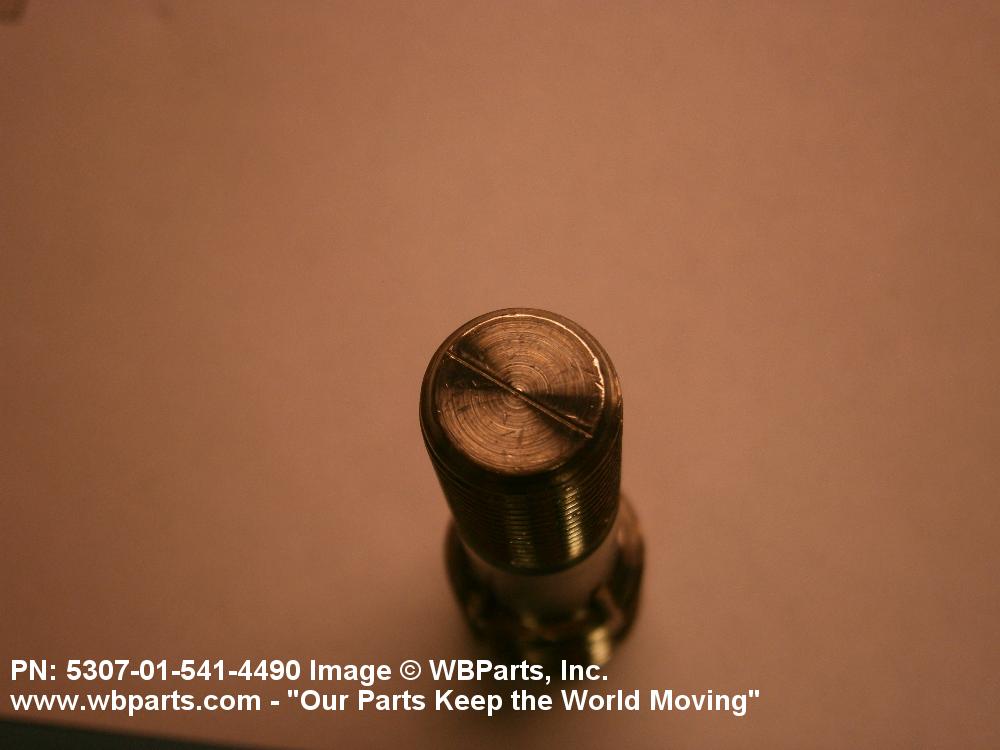

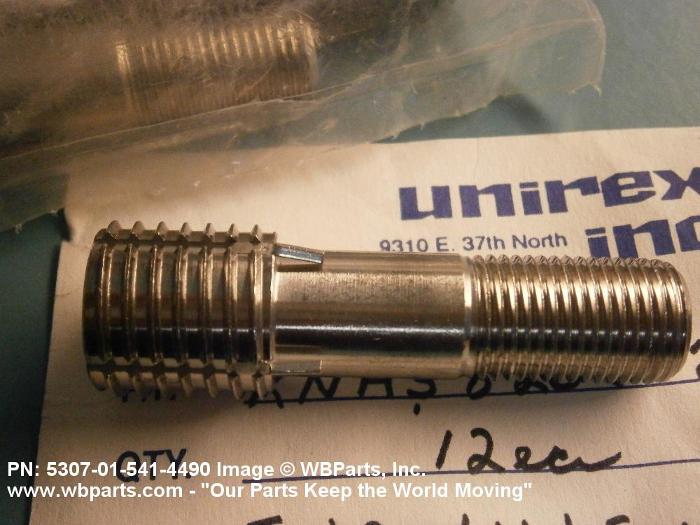

5307-01-541-4490 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: KNHS820JT25, 5307-01-541-4490, 01-541-4490, 5307015414490, 015414490
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUN 2006 | 01-541-4490 | 16012 ( STUD, LOCKED IN ) |

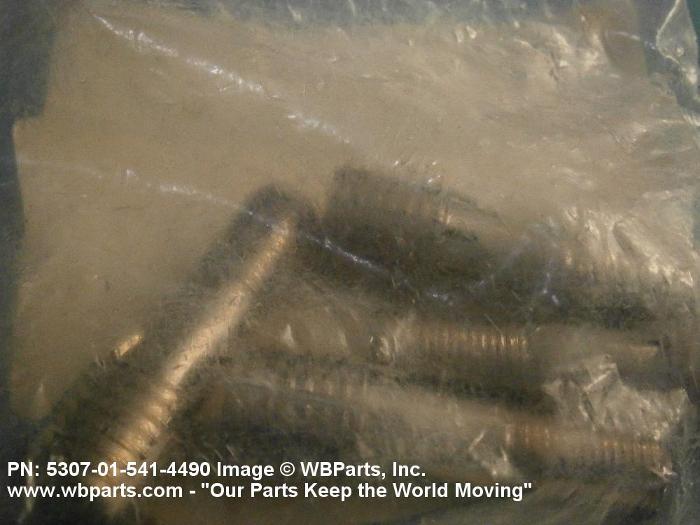

Drawings & Photos | NSN 5307-01-541-4490
Demand History | NSN 5307-01-541-4490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KNHS820JT25 | 2014-01-23 | 14 | United Kingdom |
| KNHS820JT25 | 2013-04-98 | 12 | United Kingdom |
| KNHS820JT25 | 2012-06-171 | 4 | United Kingdom |
Cross Reference | NSN 5307-01-541-4490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KNHS820JT25 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-541-4490
Related Products | NSN 5307-01-541-4490
Technical Data | NSN 5307-01-541-4490
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | 35 LOCKED IN |
| DISTANCE FROM SERRATED PORTION TO NUT END | 1.562 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO STUD END | 0.680 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO END OF STUD THREAD | 0.380 INCHES NOMINAL |
| OVERALL LENGTH | 2.622 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF NUT THREAD |
| NOMINAL THREAD SIZE | 0.500 INCHES NUT THREAD |
| THREAD CLASS | 3A NUT THREAD A |
| THREAD QUANTITY PER INCH | 20 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.780 INCHES NOMINAL NUT THREAD 0.680 INCHES NOMINAL STUD THREAD |
| LOCKING FEATURE | KEY INSERTS |
| SPECIAL FEATURES | .106 DRILLED HOLE .172 FROM NUT END, |
Restrictions/Controls & Freight Information | NSN 5307-01-541-4490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-541-4490
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
