NSN 5310-00-008-3696 AMS-QQ-A-200/11 , AMSQQA20011, AND101372012

Product Details | DOUBLE HEXAGON SELF-LOCKING NUT

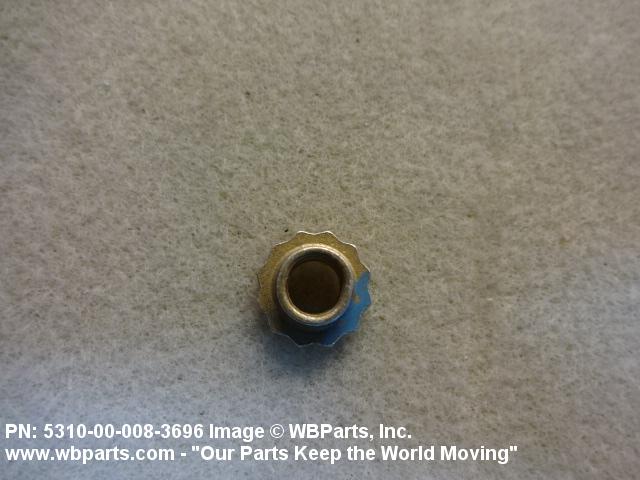

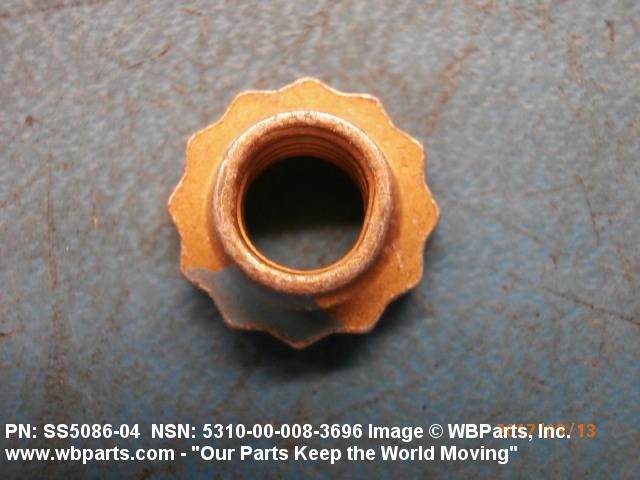

5310-00-008-3696 A nut having 12 drive points and 24 sides. The bearing surface may be washer faced. An integral locking feature is incorporated in the design of the head or in the threads.

Part Alternates: AMS-QQ-A-200/11 , AMSQQA20011, AND101372012, AND10137-2012 , SS508604, SS5086-04, EWSN26AG04, EWSN26AG-04 , LH6521048, LH6521-048, LS1013720125, LS10137-2012-5 , QQ-A-200/11 , QQA20011, 05852601, 058526-01, 5310-00-008-3696, 00-008-3696, 5310000083696, 000083696

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 JUL 1972	00-008-3696	05276 ( NUT, SELF-LOCKING, DOUBLE HEXAGON )

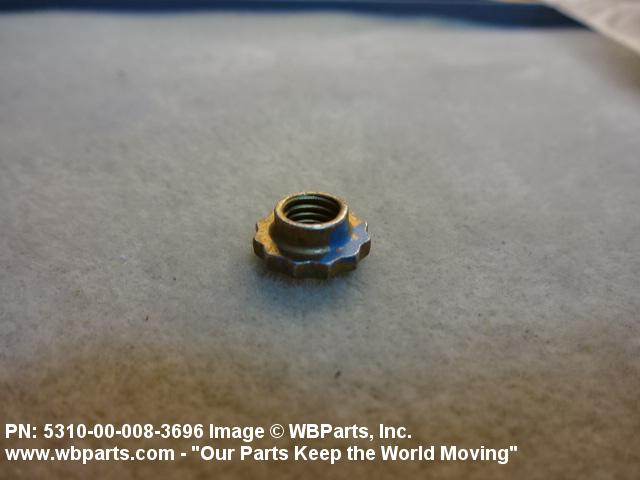

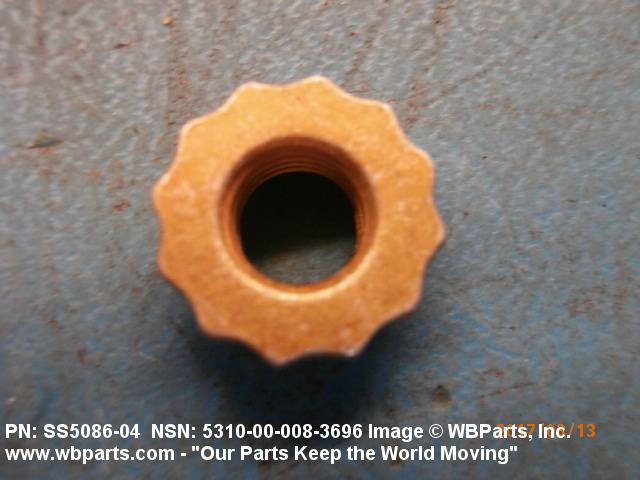

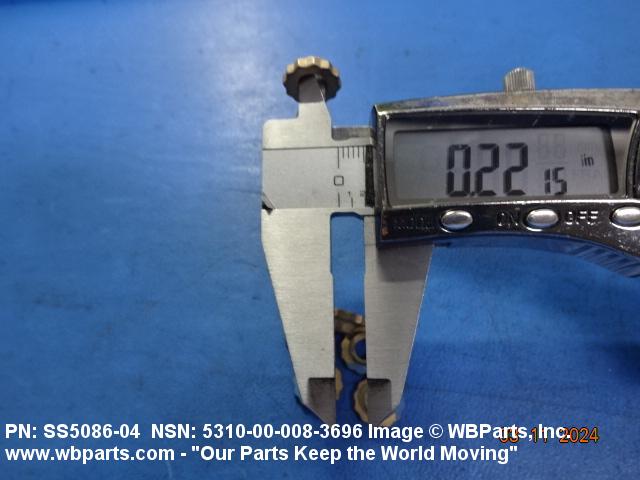

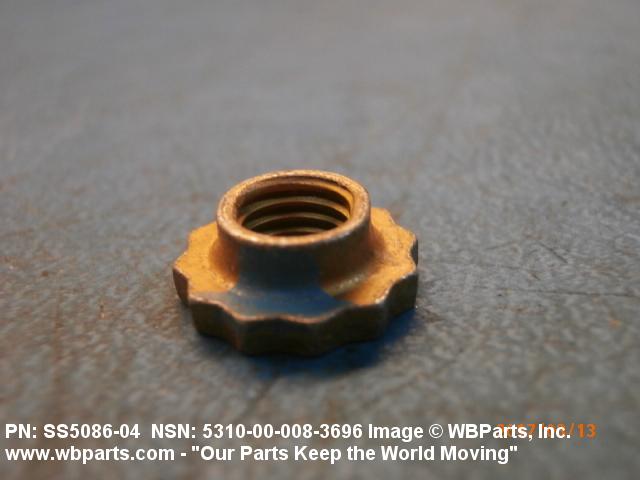

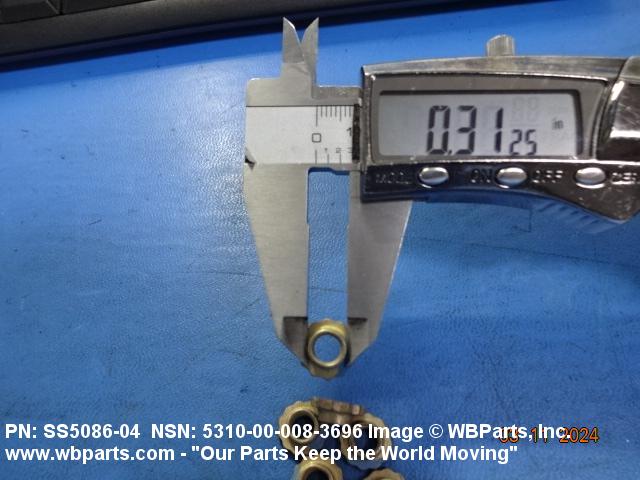

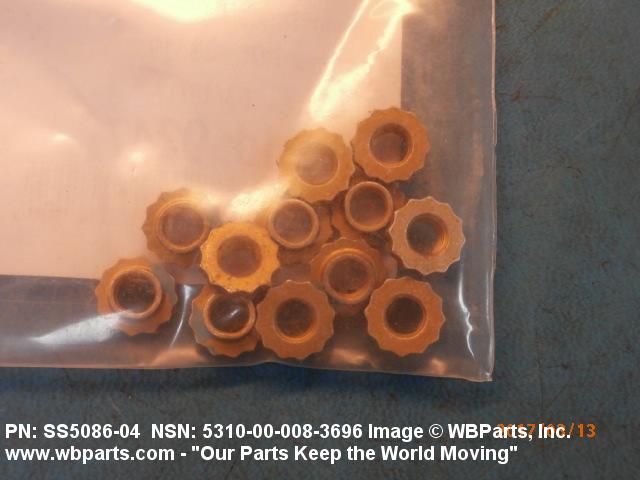

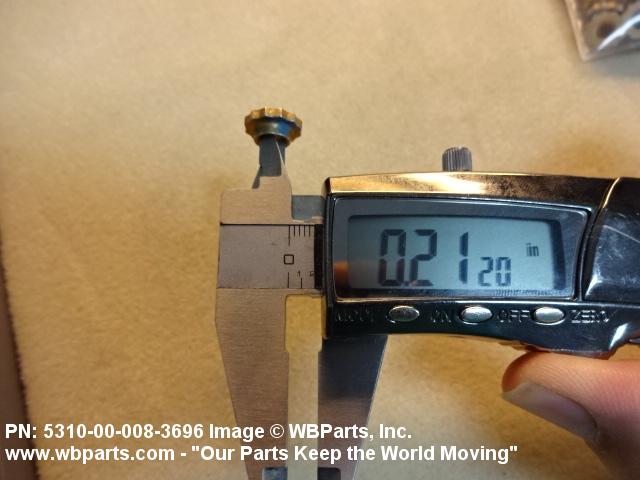

Drawings & Photos | NSN 5310-00-008-3696

Part Number	Request Date	QTY	Origin
5310-00-008-3696	2024-06-162	36	United States
SS508604	2024-06-158	46	US
5310-00-008-3696	2024-02-48	20	us
5310-00-008-3696	2024-01-22	6	United States
5310-00-008-3696	2023-10-277	6	United States
5310-00-008-3696	2023-10-276	6	US
5310-00-008-3696	2023-10-276	6	United States
5310-00-008-3696	2023-09-272	6	United States
5310-00-008-3696	2023-09-268	6	United States
SS508604	2021-03-76	8	United States
SS508604	2021-01-28	10	IN
LH6521048	2020-09-248	1	United States
QQA20011	2020-01-03	1	US
SS508604	2019-06-179	17	Turkey
5310-00-008-3696	2018-11-323	54	United States
5310-00-008-3696	2018-03-81	1	DIBBS-RFPs
SS508604	2017-08-226	20	United States
SS508604	2017-08-226	100	United States
5310-00-008-3696	2017-03-69	12	United States
5310-00-008-3696	2016-01-20	25	United States
5310-00-008-3696	2015-09-264	2236	DIBBS
5310-00-008-3696	2015-07-190	200	TR
5310-00-008-3696	2015-07-189	200	MANUAL
SS5086-04	2015-03-61	50	US
5310-00-008-3696	2015-01-13	10967	DIBBS
5310-00-008-3696	2014-10-300	24	United States
5310-00-008-3696	2014-08-225	24	United States
5310-00-008-3696	2014-08-217	12363	DIBBS
5310-00-008-3696	2014-07-191	21579	DIBBS
5310-00-008-3696	2014-02-59	5	MANUAL
SS5086-04	2014-02-59	5	TR
5310-00-008-3696	2013-11-325	1	DIBBS-RFPs
5310-00-008-3696	2013-10-291	1	DIBBS-RFPs
SS508604	2013-09-261	16	US
5310-00-008-3696	2013-09-246	1	DIBBS-RFPs
5310-00-008-3696	2013-03-84	28400	DIBBS
SS508604	2013-02-46	30	US
5310-00-008-3696	2012-11-326	8715	DIBBS
SS508604	2010-10-297	384	SG
SS508604	2010-05-124	3	Canada
5310-00-008-3696	2009-10-295	3	US
QQA20011	2009-10-287	14	FX
SS508604	2009-05-121	2500	US
SS508604	2007-07-208	8280	United States

Cross Reference | NSN 5310-00-008-3696

Part Number	Cage Code	Manufacturer
058526-01	89305	SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED
EWSN26AG-04	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
LH6521-048	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
LH6521-048	72962	HARVARD INDUSTRIES INC
SS5086-04	27238	BRISTOL INDUSTRIES
SS5086-04	78286	SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-008-3696

Compare

Related Products | NSN 5310-00-008-3696

5310-00-008-4549, 5310-00-008-4555, 5310-00-008-4730, 5310-00-008-4731, 5310-00-008-5687

Technical Data | NSN 5310-00-008-3696

Characteristic	Specifications

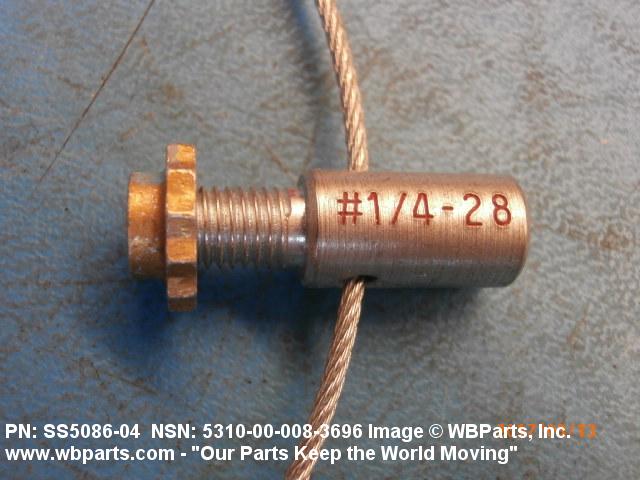

THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	39.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM
NUT STYLE	A16 DOUBLE HEXAGON

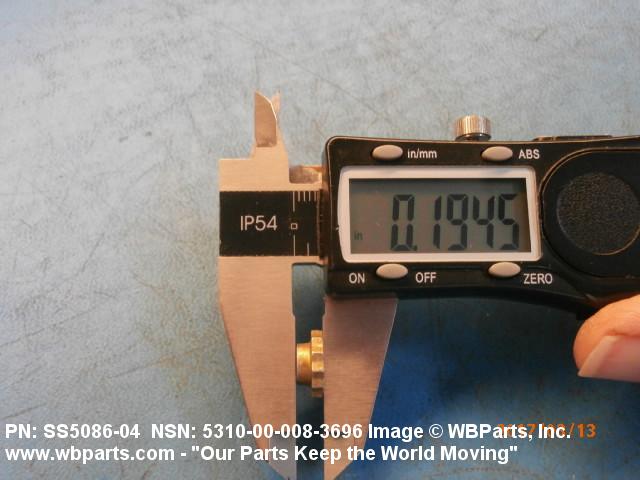

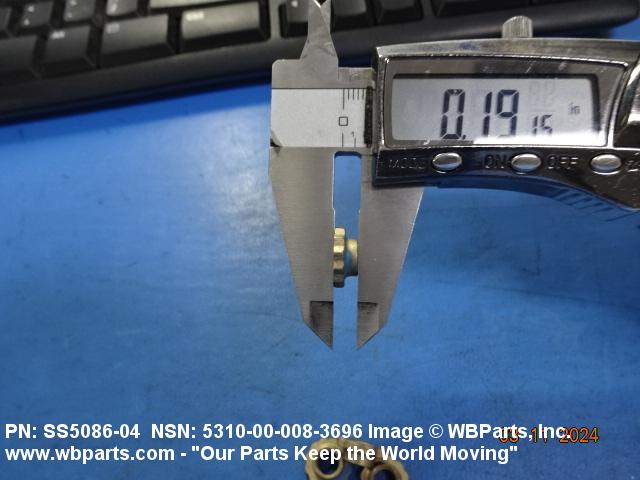

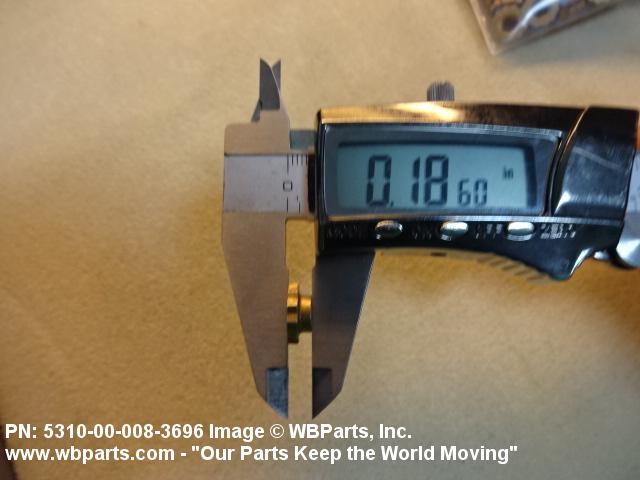

NUT HEIGHT	0.189 INCHES MINIMUM AND 0.199 INCHES MAXIMUM

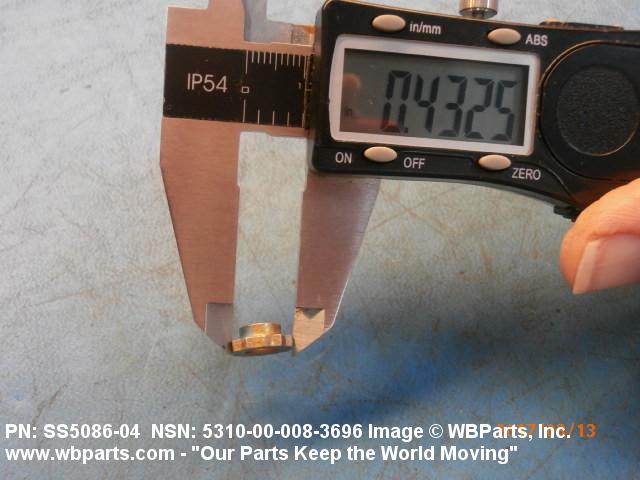

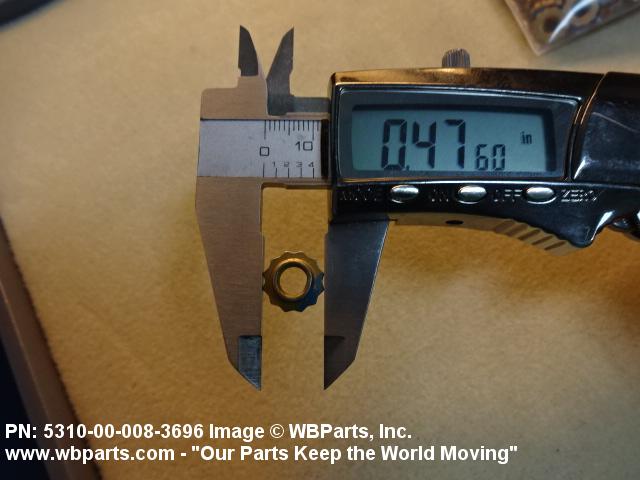

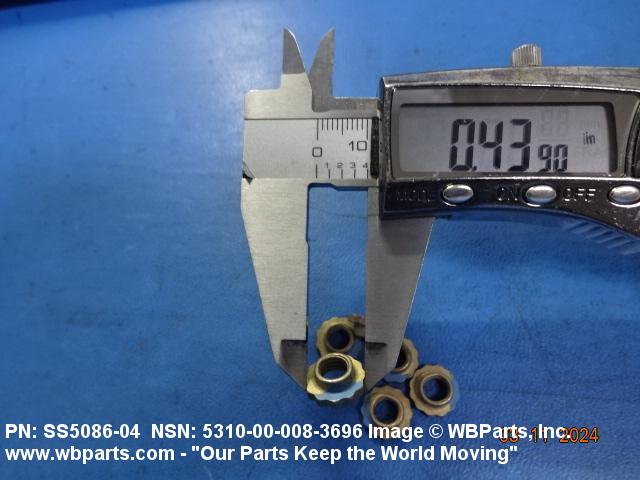

WIDTH ACROSS FLATS	0.431 INCHES MINIMUM AND 0.439 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE	ANY ACCEPTABLE NUT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-008-3696

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-008-3696

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
