NSN 5310-00-058-1823 MS 21042-02 , MS2104202, MS21042-02

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

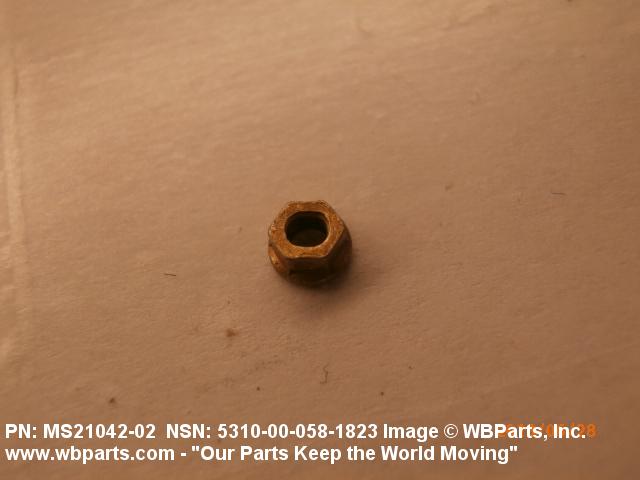

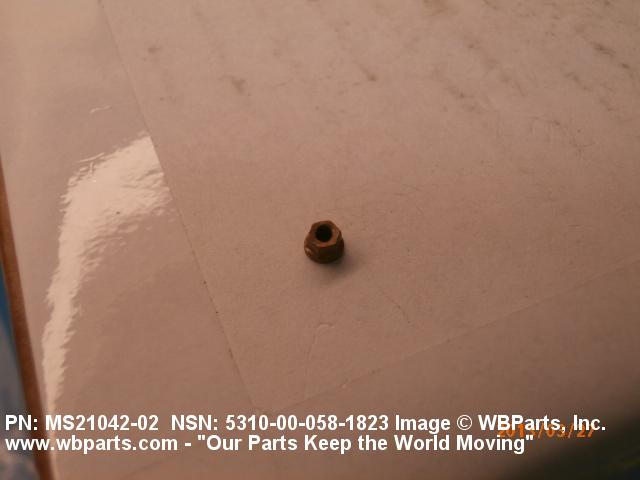

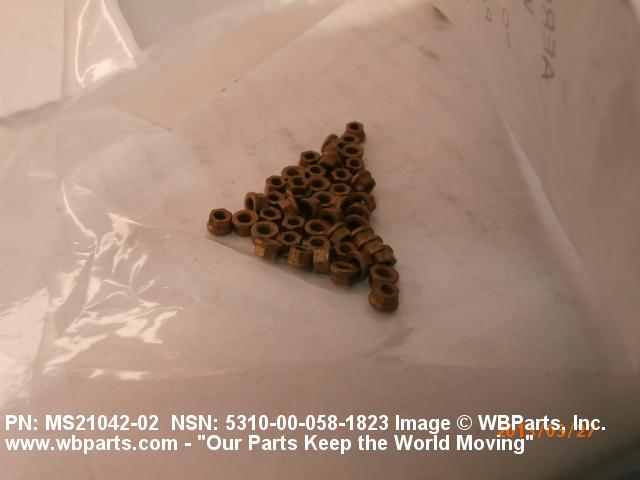

5310-00-058-1823 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS 21042-02 , MS2104202, MS21042-02, H14L02CW, LF52LH332426, LF52LH3324-26, FN12A26, FN12A-26, GN510B256, RM22LH166026, RM22LH1660-26, 53100581823, 5310-058-1823 , 10186988, 2 0040-322 , 20040322, 32040118051, 3204-0118-051, 32050118051, 3205-0118-051, 3331471010, 333-1471-010, 41380020, 4138-0020, 5310-00-058-1823, 00-058-1823, 5310000581823 , 000581823

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-058-1823	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

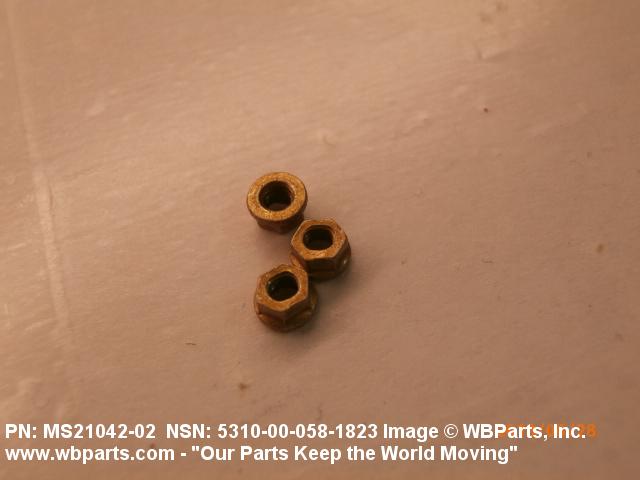

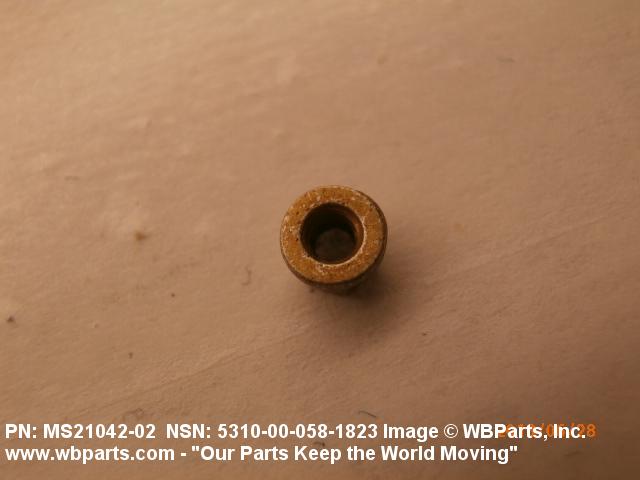

Drawings & Photos | NSN 5310-00-058-1823

Part Number	Request Date	QTY	Origin
5310-00-058-1823	2025-11-308	9057	DIBBS
5310-00-058-1823	2025-08-234	10208	DIBBS
5310-00-058-1823	2025-08-226	10208	DIBBS
5310-00-058-1823	2025-07-197	1762	DIBBS
5310-00-058-1823	2025-04-120	8449	DIBBS
MS2104202	2025-03-63	143	United States
5310-00-058-1823	2024-09-267	1600	US
MS2104202	2024-09-263	1	AU
MS2104202	2023-04-108	2400	United States
5310-00-058-1823	2022-04-111	100	US
MS2104202	2022-04-108	80	United States
MS21042-02	2022-04-95	4
5310-00-058-1823	2022-01-05	325	United States
5310-00-058-1823	2021-12-337	9	Germany
5310-00-058-1823	2021-04-113	5	US
5310-00-058-1823	2020-07-184	40	US
MS2104202	2017-09-256	16	United States
MS2104202	2017-08-219	50	US
MS2104202	2017-04-93	75	United States
MS2104202	2015-06-155	150	US
MS2104202	2014-04-120	25	United States
MS2104202	2013-06-175	100	United States
MS2104202	2013-03-81	100	United States
MS2104202	2013-03-78	20	US
MS2104202	2012-11-310	150	Spain
MS2104202	2012-08-240	40	United States
MS2104202	2011-02-46	8	US
5310-00-058-1823	2009-11-316	125	US
5310-00-058-1823	2009-09-257	100	US
5310-00-058-1823	2009-09-257	100	US
5310-00-058-1823	2009-06-167	4	US
5310-00-058-1823	2009-05-149	50	US
5310-00-058-1823	2009-01-14	455	US
5310-00-058-1823	2008-12-360	10	Turkey
5310-00-058-1823	2008-12-353	10	US
5310-00-058-1823	2008-09-266	2	United States
5310-00-058-1823	2008-05-144	57	US

Cross Reference | NSN 5310-00-058-1823

Part Number	Cage Code	Manufacturer
2 0040-322	S3465	BAE SYSTEMS HAGGLUNDS AB
3204-0118-051	K0656	BAE SYSTEMS (OPERATIONS) LTD
3205-0118-051	K0656	BAE SYSTEMS (OPERATIONS) LTD
333-1471-010	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
4138-0020	13467	ASSOCIATED INDUSTRIES A DIV OF ARNOLD A SEMLER INC
5310-058-1823	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310000581823	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
FN12A-26	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
GN510B256	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
H14L02CW	15653	ALCOA GLOBAL FASTENERS, INC.
H14L02CW	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H14L02CW	F6033	TECNOTEC SARL
H14L02CW	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H14L02CW	R1120	SATAIR A/S
LF52LH3324-26	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
LF52LH3324-26	72962	HARVARD INDUSTRIES INC
MS 21042-02	0291H	ROSOMAK S.A
MS21042-02	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21042-02	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
RM22LH1660-26	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-058-1823

Compare

Related Products | NSN 5310-00-058-1823

5310-00-058-1831, 5310-00-058-1896, 5310-00-058-1899, 5310-00-058-1989, 5310-00-058-2071

Technical Data | NSN 5310-00-058-1823

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.086 INCHES
THREAD QUANTITY PER INCH	56
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A294 HEXAGON

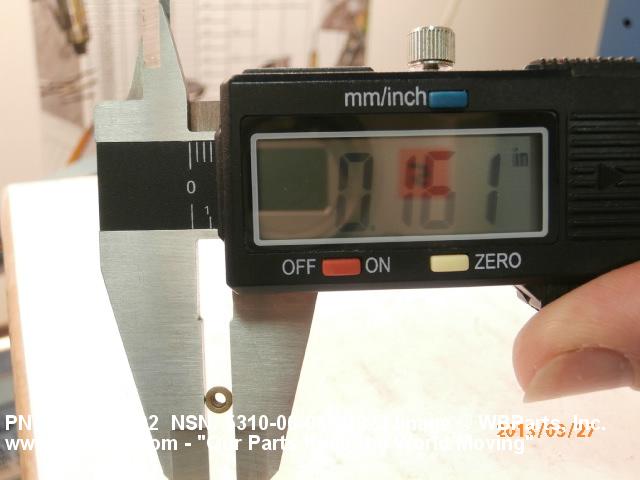

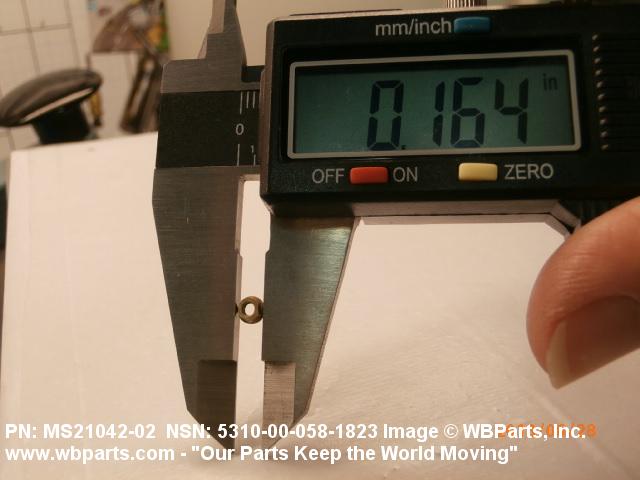

WASHER OUTSIDE DIAMETER	0.167 INCHES MAXIMUM

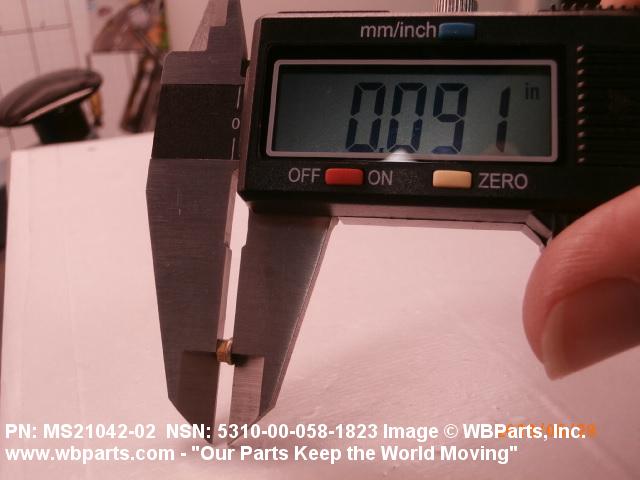

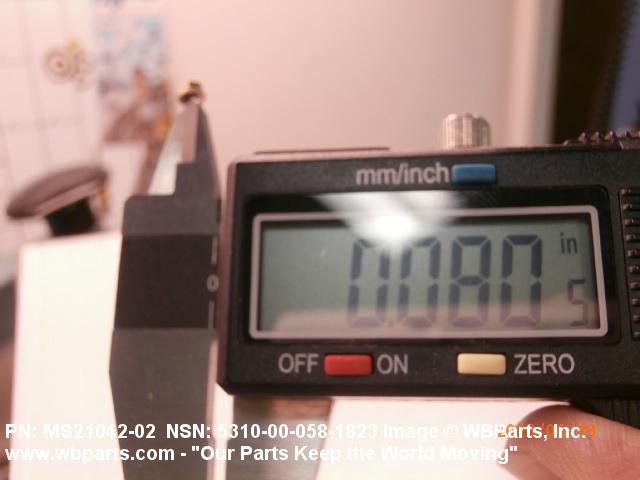

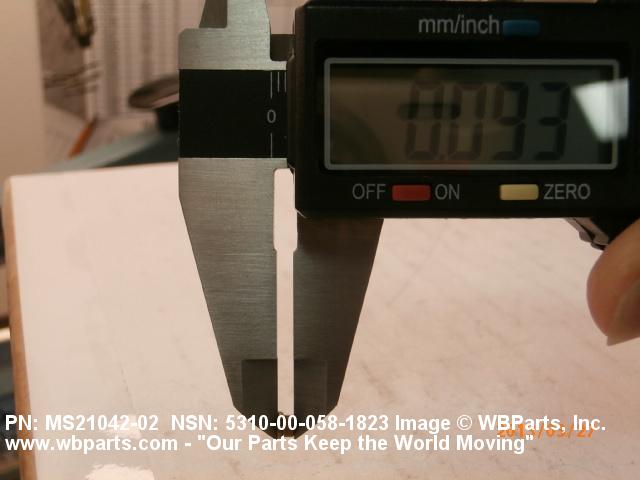

OVERALL HEIGHT	0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM
WASHER THICKNESS	0.010 INCHES MINIMUM

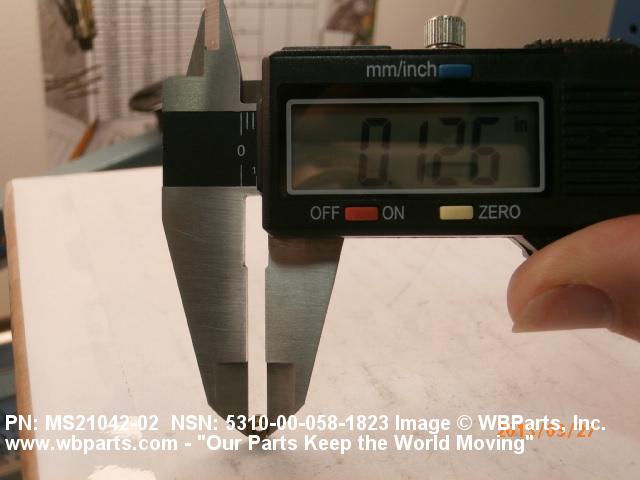

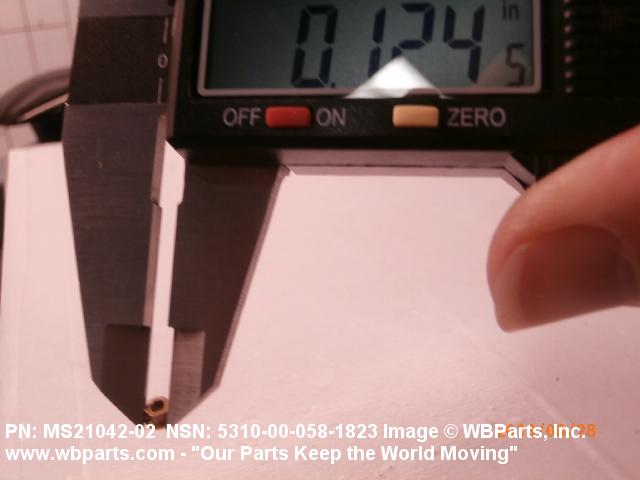

WIDTH ACROSS FLATS	0.122 INCHES MINIMUM AND 0.127 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE	ANY ACCEPTABLE NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
III END ITEM IDENTIFICATION	W/S:SUPPORT EQUIPMENT, B-1 AIRCRAFT; TEST SET, ARM-155/156; TEST CONSOLES, MINI-SACE; TRAINER, B-1B AIRCRAFT; ENGINE, AIRCRAFT TF33-PW-102 (C-135E, EC-135H/K/P); MISSILE, ADVANCE MEDIUM RANGE AIR-TO-AIR (AMRAAM)/AIM120A; FIRE CONTROL SYSTEM, MISSILE MK 74 (FCS); AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130S; GUIDED MISSILE LAUNCHING SYSTEM, MK 26 (GMLS); INTERMEDIATE FORWARD TEST EQUIPMENT (IFTE) SYSTEM

Restrictions/Controls & Freight Information | NSN 5310-00-058-1823

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-058-1823

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
