NSN 5310-00-088-3181 5310A010001, 5310A01-000-1, 538176
Product Details | SLOTTED WASHER
5310-00-088-3181 A washer, round in shape, and having a centrally located hole. Its two flat parallel bearing surfaces are divided or cut along the radius, leaving a cleft, fissure, or cutaway portion across the rim which extends from the outer circumference to the washer hole and is always as large as, or larger than the diameter of the hole.
Part Alternates: 5310A010001, 5310A01-000-1, 538176, 5310-00-088-3181, 00-088-3181, 5310000883181, 000883181
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-088-3181 | 15936 ( WASHER, SLOTTED ) |

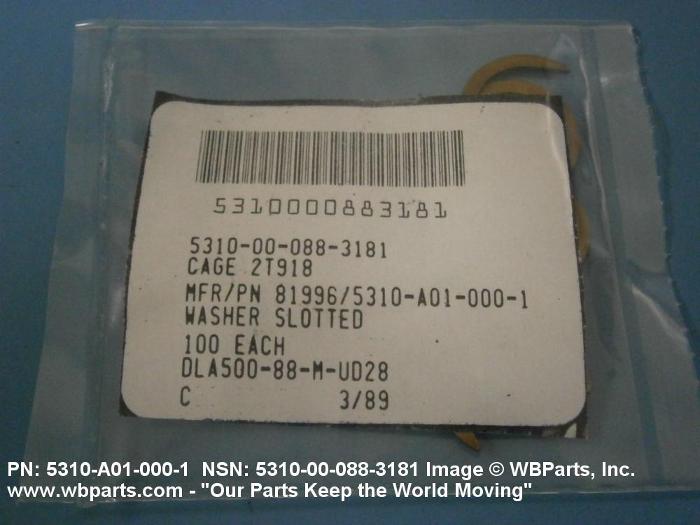

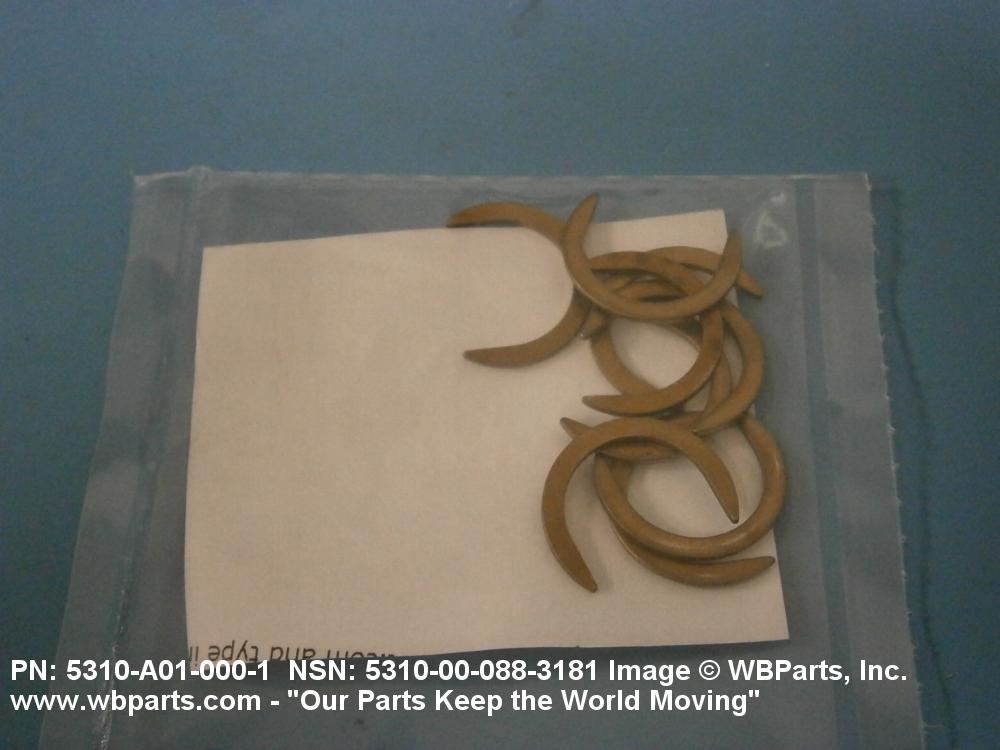

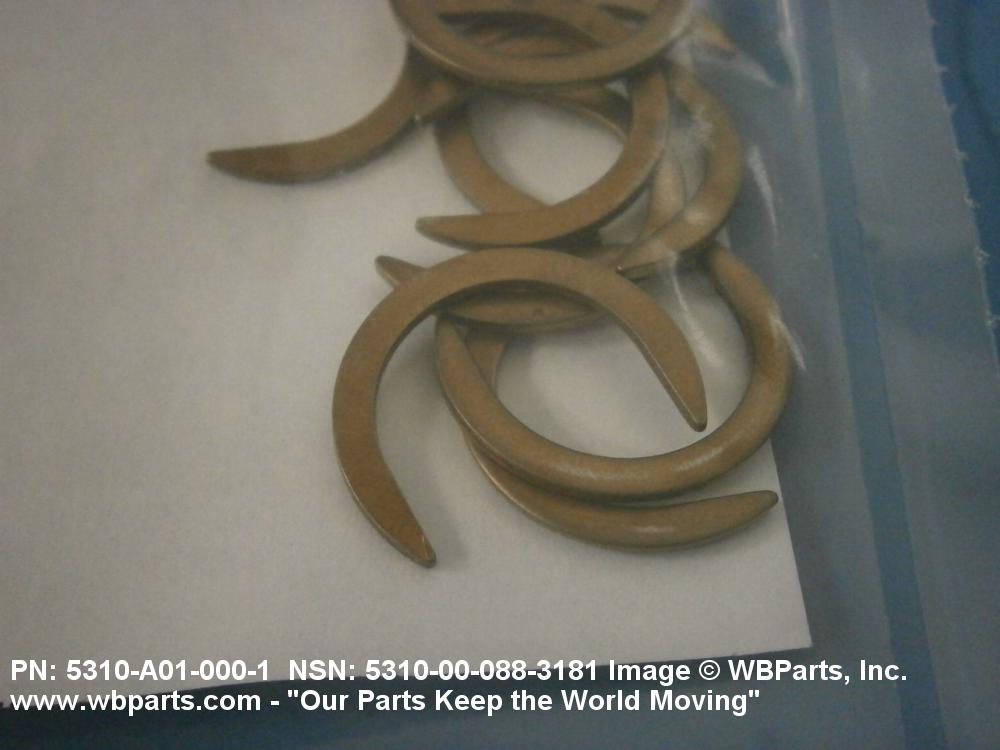

Drawings & Photos | NSN 5310-00-088-3181
Demand History | NSN 5310-00-088-3181
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-088-3181 | 2017-09-249 | 50 | US |
| 538176 | 2012-11-310 | 4 | |
| 5310-00-088-3181 | 2011-09-252 | 9 | Italy |
| 538176 | 2011-09-252 | 6 | Italy |
| 538176 | 2009-10-295 | 3 | Italy |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-088-3181
Technical Data | NSN 5310-00-088-3181
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5504 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 10 SLOTTED |
| HOLE DIAMETER | 0.643 INCHES MINIMUM AND 0.647 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.840 INCHES MINIMUM AND 0.845 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.050 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81996 |
| DESIGN CONTROL REFERENCE | 5310A01-000-1 |
Restrictions/Controls & Freight Information | NSN 5310-00-088-3181
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
